HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V
HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V
HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V
HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V
HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V
HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping

Pay Securely with

HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V

HELLA - 1EE 996 374-011 - LED-Headlight, C140, 24/12V

€483.56

(Excl. VAT)

Price

(Excl. VAT)

€483.56

Product Description

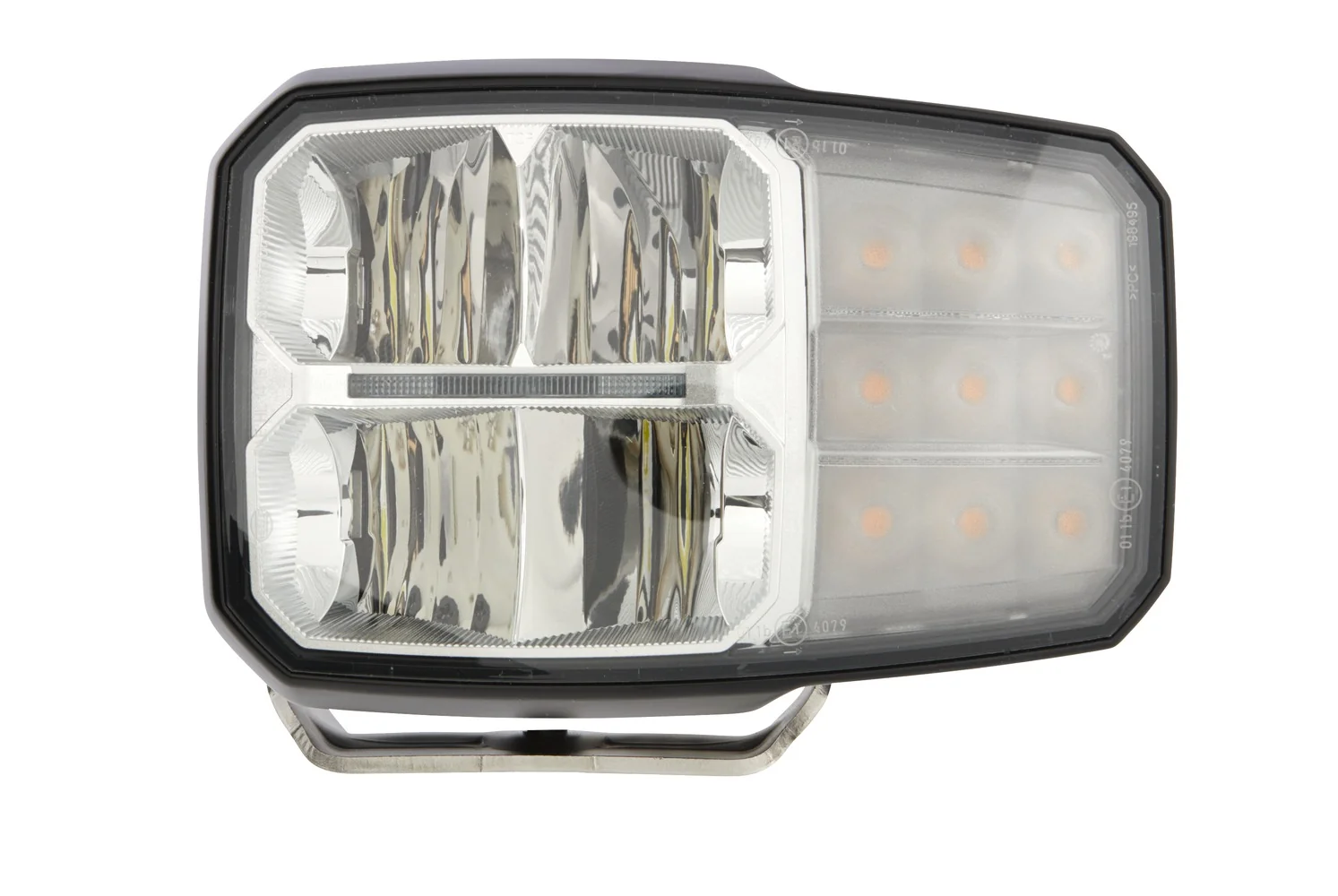

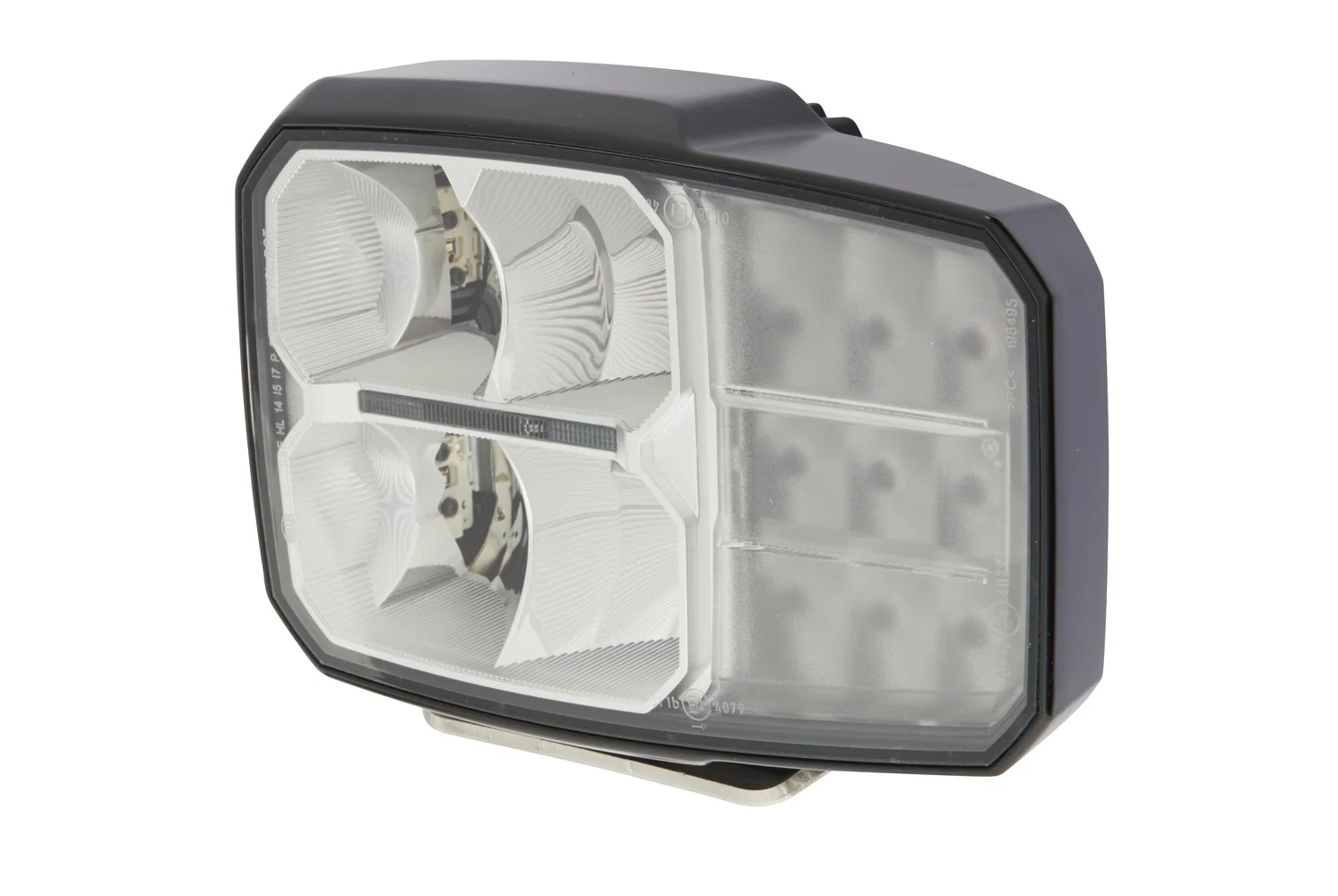

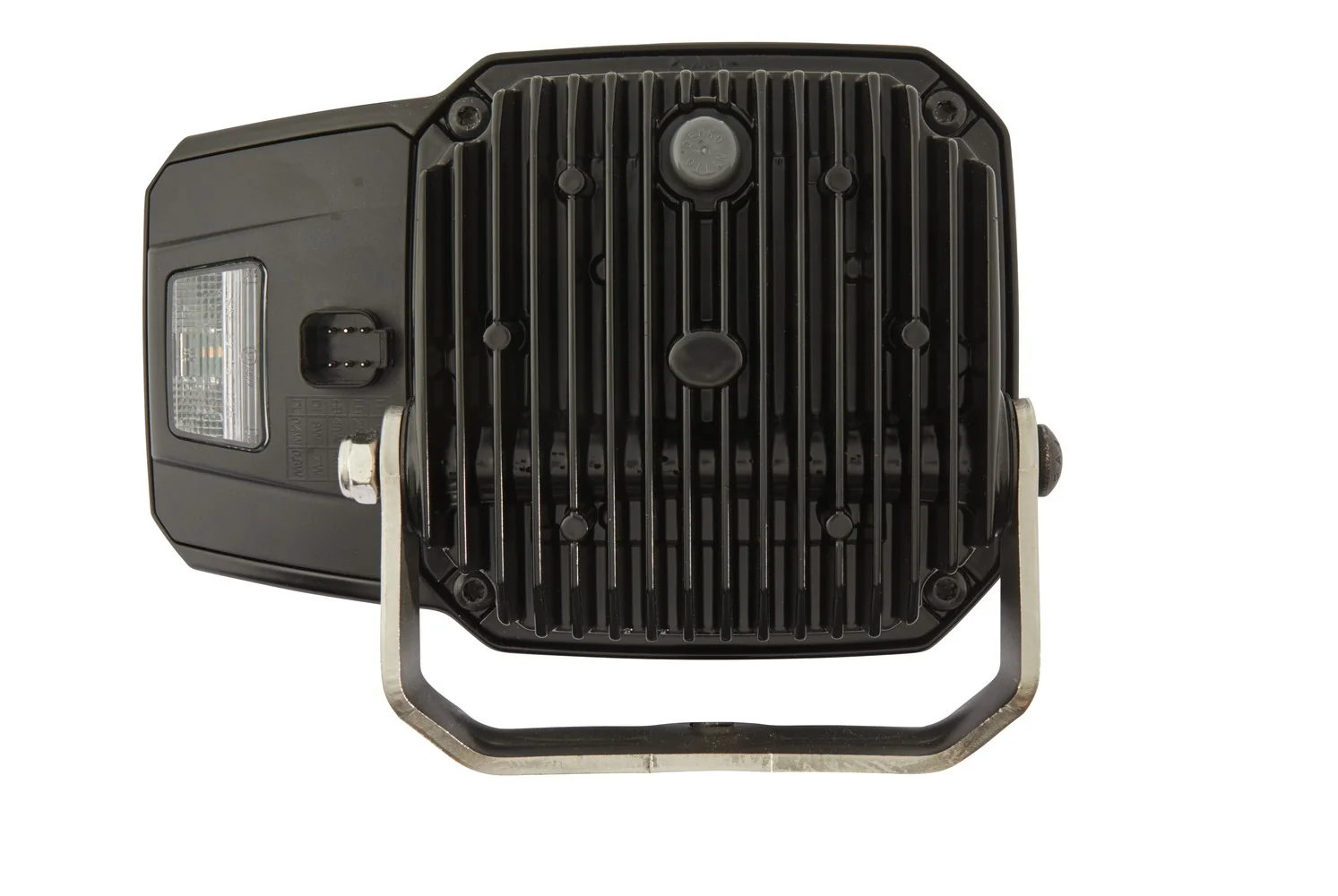

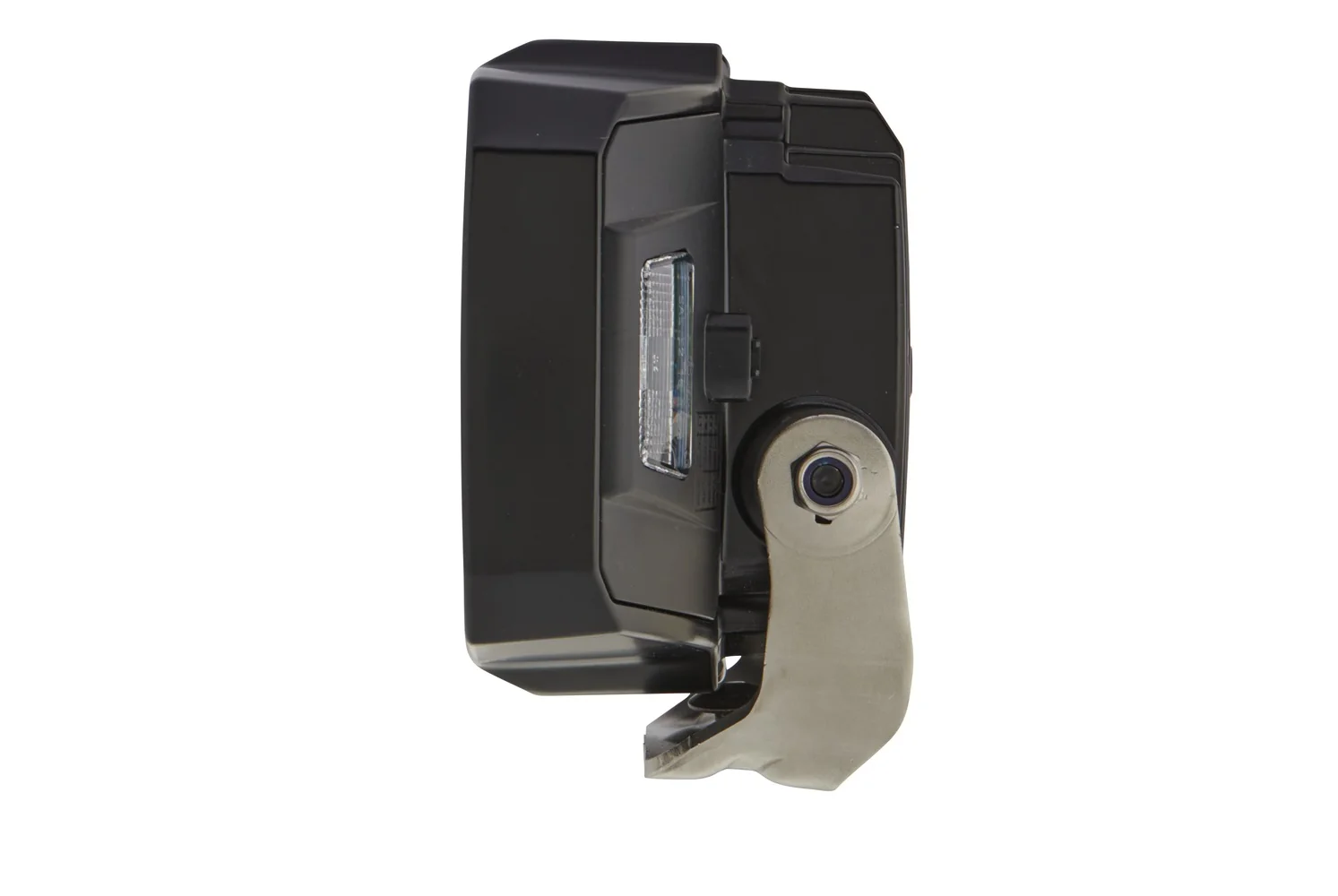

The C140 LED is the first combination headlight on the market to feature all light functions in LED technology: low beam, high beam, indicator and position light (as LED light guide). The special freeform reflector together with the LED light source produces significantly better light than headlights with halogen bulbs. With its daylight colour, the light appears far brighter to the eye and makes working at night less tiring. The housing of the C140 LED is made of aluminum and features cooling fins on its rear, which ensure heat removal from the high-power LEDs. A specially developed thermal design with temperature sensors prevents the headlight from overheating. With its robust, heavy-duty bracket and a lens made of toughened, shatterproof plastic, the headlight is particularly resistant to vibration and impact. Ideal for the tough conditions on construction vehicles (strong vibrations, dust, wetness, mechanical shock, etc.). The LED technology enables a lifetime of over 20,000 hours. The C140 LED headlight is a fully sealed, maintenance-free system: it obviates the need to replace bulbs, saving time and money for the final consumer. The low LED power consumption compared to conventional halogen headlights also saves fuel, further driving down costs. The C140 LED meets all ECE and SAE requirements and is both approvable and ideal for use almost anywhere in the world. Additional approvals are required for use in China.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Aebi

1240714-8

Bobcat

301005-02417

Bucher

7655-3656

Doosan

301005-02417

Grimme

B94.09094

Holder

164514

Holmer

1019058511

Hyundai

21WD-23030

John deere

AT504137

Jungheinrich

51890193

Kässbohrer

7.512.325.000.0

Kramer

1000362652

Liebherr

12105928

Mafi

000,580,0133

Man

U1.25103-6011

Manitou

52713784

Paus

564838

Tatra

TW30092
Plug
DEUTSCH plug
Depth
114 mm
Width
248 mm
Height
167 mm
Voltage
24 V / 12 V
Lamp Type
LED
Lens Colour
Transparent
Light Design
LED
Mounting Type
Mounting
Connector Type
DEUTSCH
Fastening Type
Horizontal fastening
Housing Colour
Black
Light Function
With high beam / with indicator / with low beam / with position light
Light Functions
4
Fitting Position
Left
Housing Material
Aluminium
Registration Type
SAE / ECE
Assembly Requirement
Assembly by qualified personnel required
Fulfils ECE Standard
R10 / R112
Diffusing Lens Material
Plastic
Protection Type IP Code
IP6K9K
Left-hand Right-hand Traffic
For right-hand traffic
Manufacturer
HELLA
