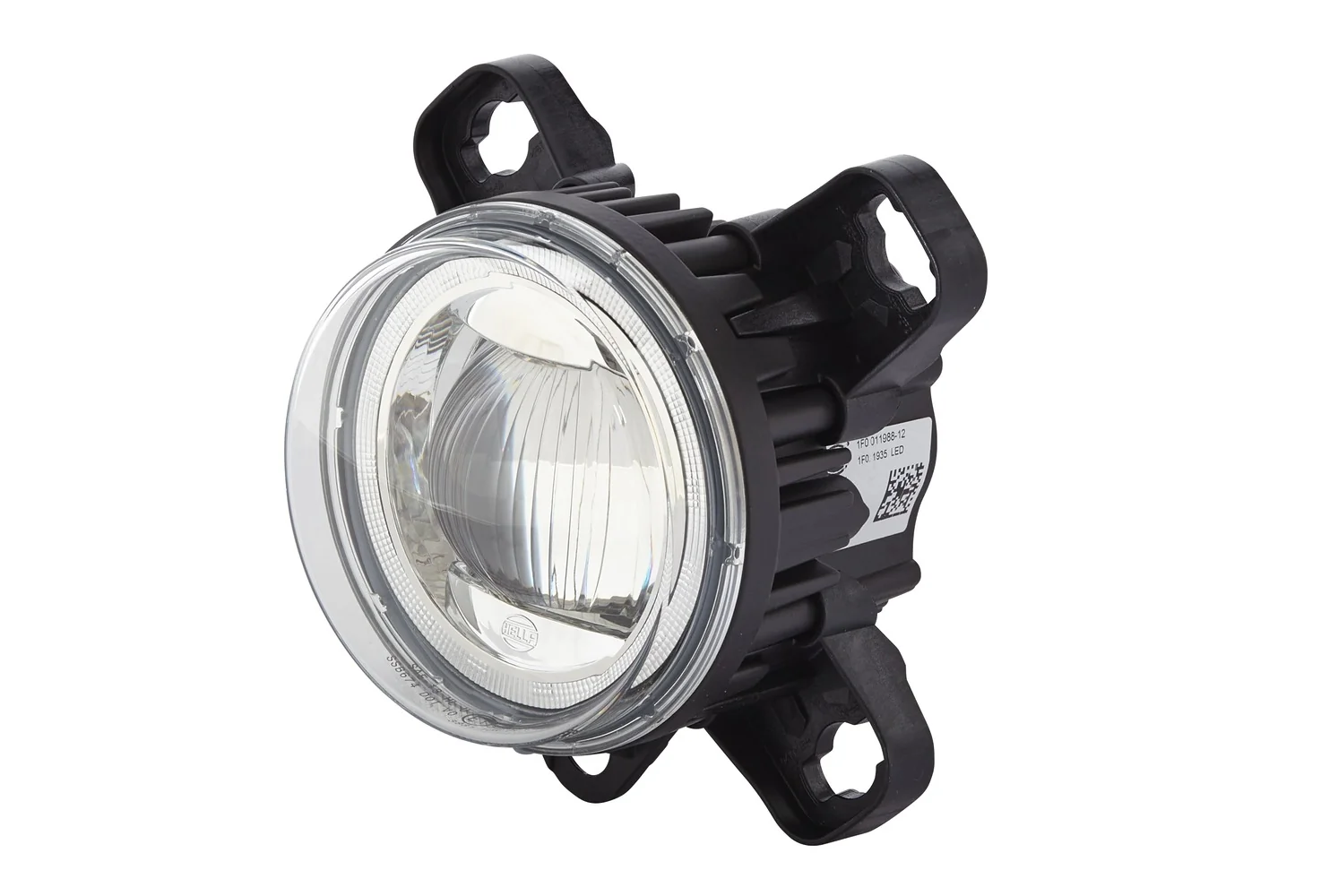

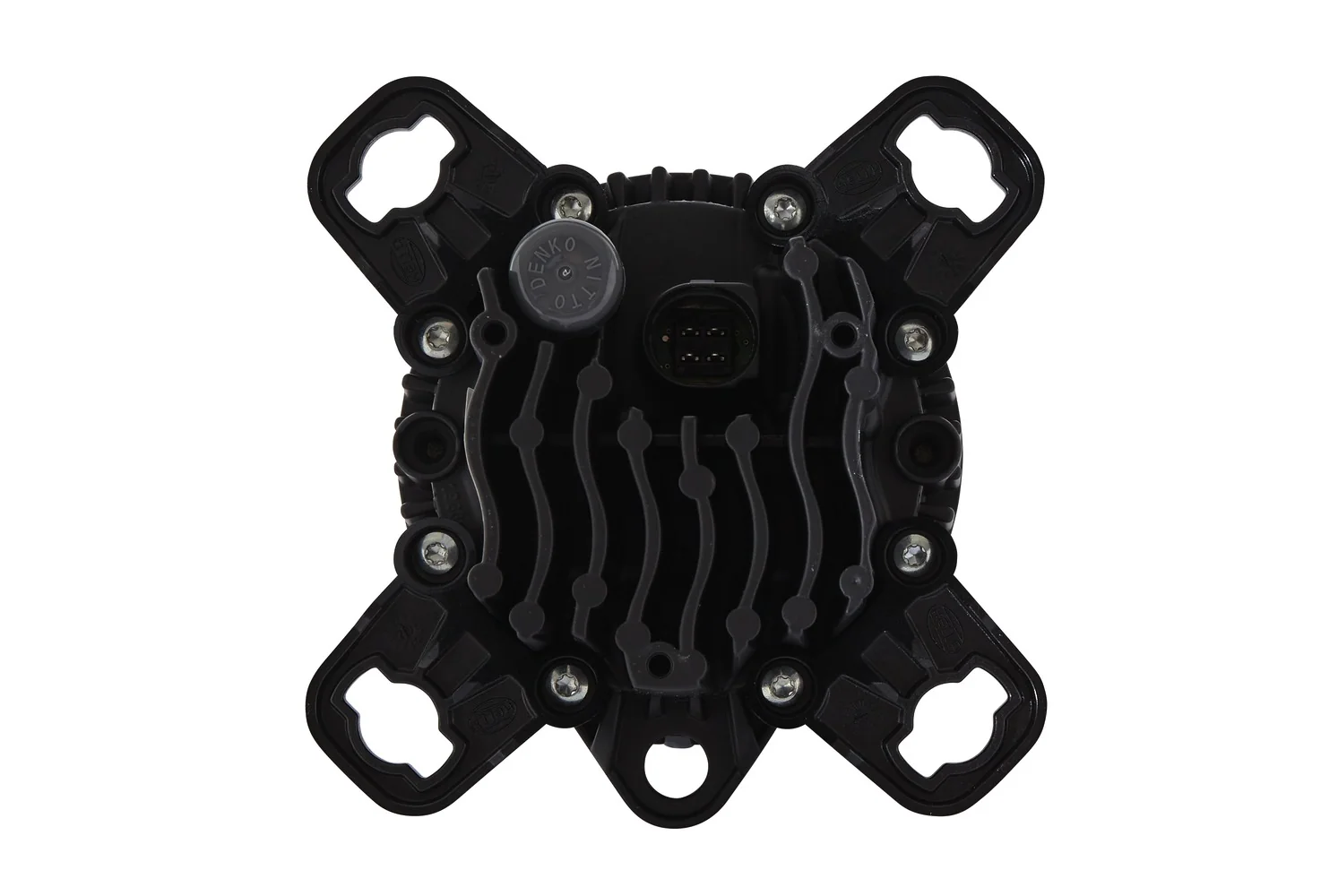

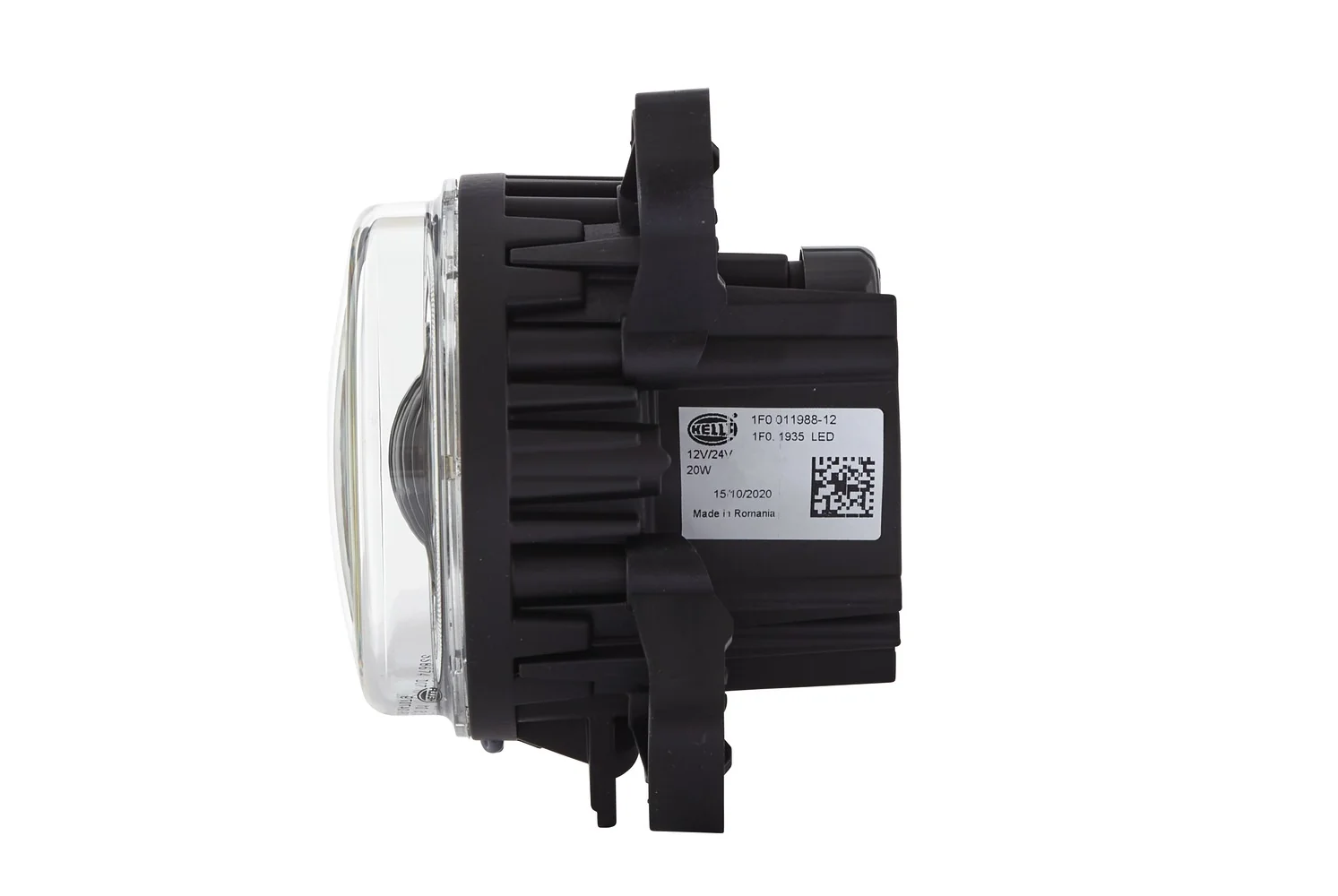

HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V
HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping

Pay Securely with

HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V

HELLA - 1F0 011 988-121 - DE/LED-High Beam Headlight, 90mm Performance L4060, 12/24V

€144.78

(Excl. VAT)

Price

(Excl. VAT)

€144.78

Product Description

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Aebi

1312302-3

Agrifac

7700226

Alexander dennis

76102172

Claas

181 284 10

Daf

1552095

Hymer

2918368

Iveco

5802349706E5802349706

Jcb

400/E5253

Knaus

R0101P01076

Mci

07071572

Mercedes Benz

514 908 15 40514908154 000 00956 820 06 39A 514 908 15 40A 956 820 06 39

Plaxton

76102172

Scania

2497628

Tatra

TW06425

Van hool

11474948

Vdl

114749483019546430212939

Vinfast

BEX40000521BEX40000521-MAIN HIGH BEAM LIGHTBEX40000521-SPOTLIGHT L4060, LED
SVHC
7439-92-1; Lead
Depth
91 mm
Shape
Round
Width
126 mm
Height
91 mm
Voltage
12 V / 24 V
Lamp Type
LED
Lens Colour
Crystal clear
Housing Type
Metal Housing
Light Design
DE / LED
Assembly Note
Assembly by qualified personnel required
Fitting Depth
55 mm
Mounting Type
Screw Connection
Fastening Type
3-point attachment
Housing Colour
Black
Light Function
With high beam (LED)
Overall Height
126 mm
Light Functions
1
Fitting Position
Right / left
Reference Number
12.5
Registration Type
SAE
Diffusing Lens Type
Clear diffusing lens
Fulfils ECE Standard
R10 / R112 / R149
Fulfils SAE Standard
SSB 674
Supplementary Article/Supplementary Info
With LED
Supplementary Article/Supplementary Info 2
Without carrier frame
Manufacturer
HELLA
