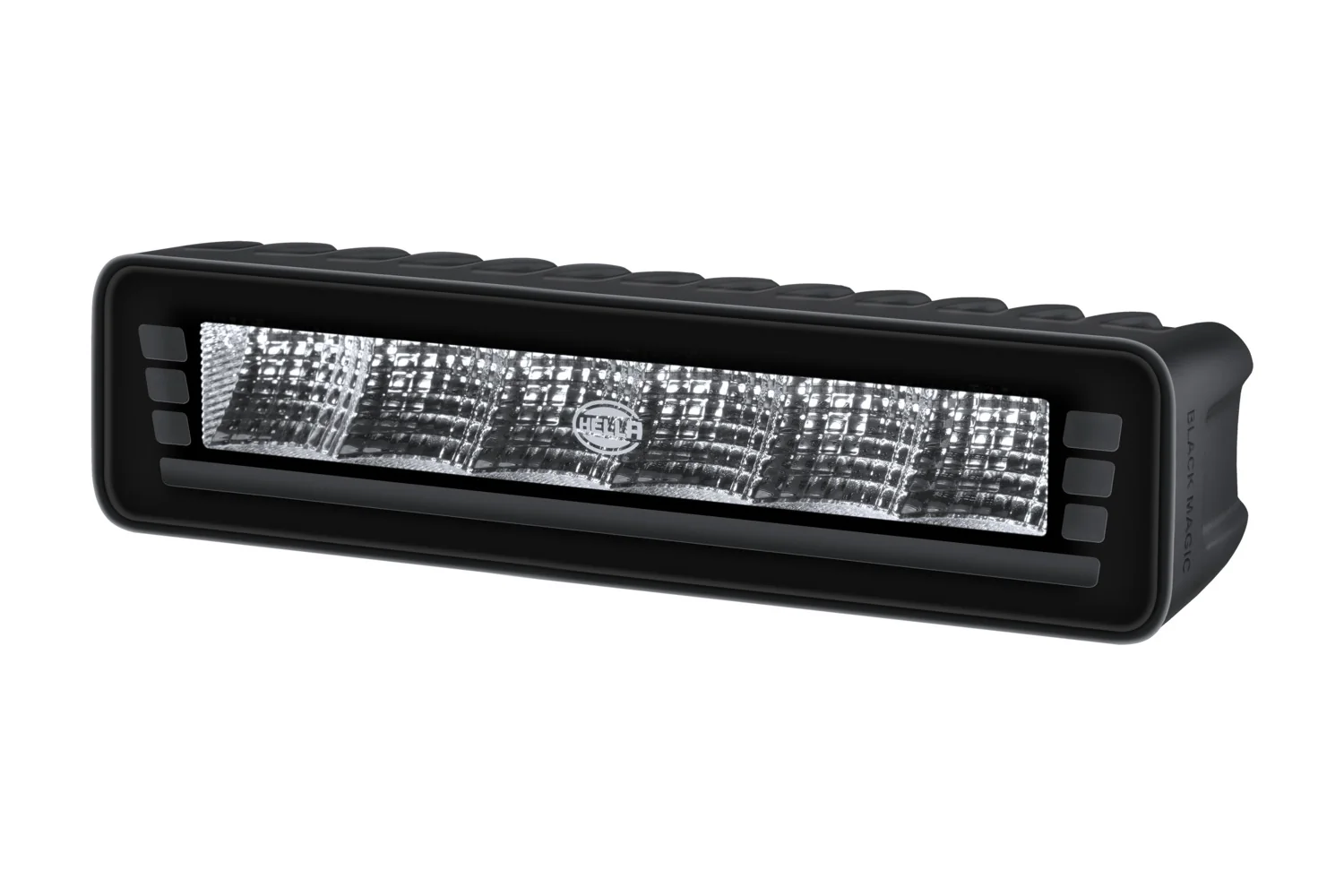

HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21
HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21
HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21
HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21
HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21
HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21

HELLA - 1FB 358 236-231 - Lightbar, Black Magic Edgeless Pro 7" Mini, 12/24V, white/yellow (amber), 21

€54.23

(Excl. VAT)

Price

(Excl. VAT)

€54.23

Product Description

The 7" HELLA Black Magic Edgeless Pro Mini Light Bar with floodlight and position light (white or amber) offers uniform and powerful illumination in a compact design. With up to 2,125 lumens, it is ideal for all commercial applications where a warning flash function is not required. The aluminium housing has an electrophoretic coating that makes it resistant to water, dust and mechanical stress – durable and reliable in any environment.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Cable
800 mm
Depth
64.8 mm
Shape
Slim
Height
44.1 mm
Length
176.6 mm
Weight
500 g
Voltage
12 V / 24 V
Lamp Type
LED
Voltage To
30 V
Lens Colour
Crystal clear
Rated Power
24 W
Frame Colour
Black
Light Colour
White / yellow (amber)
Voltage From
10 V
Assembly Note
Assembly by qualified personnel required
Luminous Flux
2125 lm
Mounting Type
Bolted / Screw Connection
Housing Colour
Black
Light Function
With high beam (LED) / with position light (LED)
Number of LEDs
6
Overall Height
56.7 mm
Light Functions
2
Fitting Position
Front
Housing Material
Aluminium
Registration Type
ECE
Colour Temperature
5700 K
Diffusing Lens Type
Clear diffusing lens
Fulfils ECE Standard
R148 / R10
Temperature Range To
+65 °C
Temperature Range From
-30 °C
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP69K / IP68
Theoretical Luminous Flux
3540 lm
Max. Light Cone Range At 1 Lux (Main Light Function)
53 m
Manufacturer
HELLA
