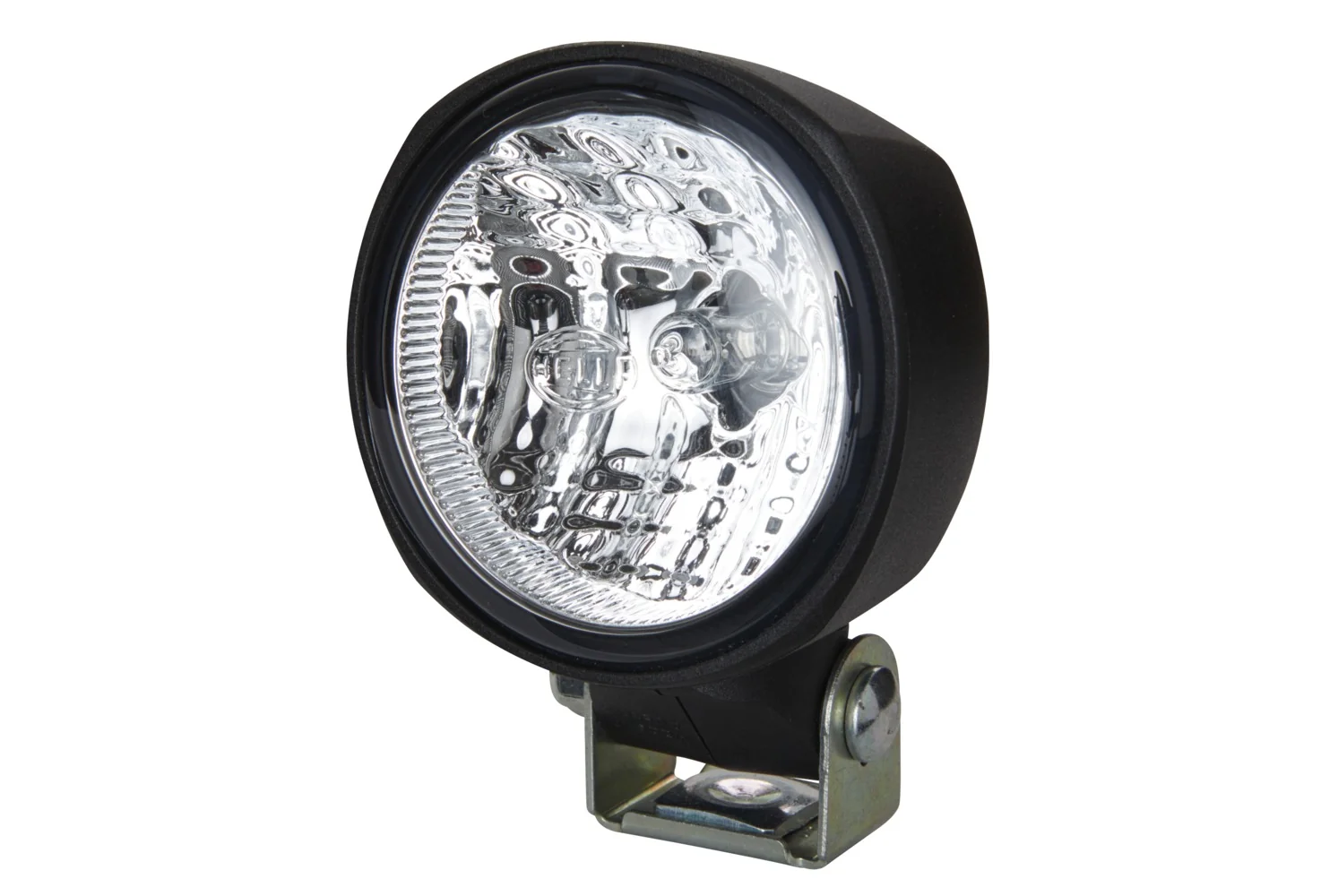

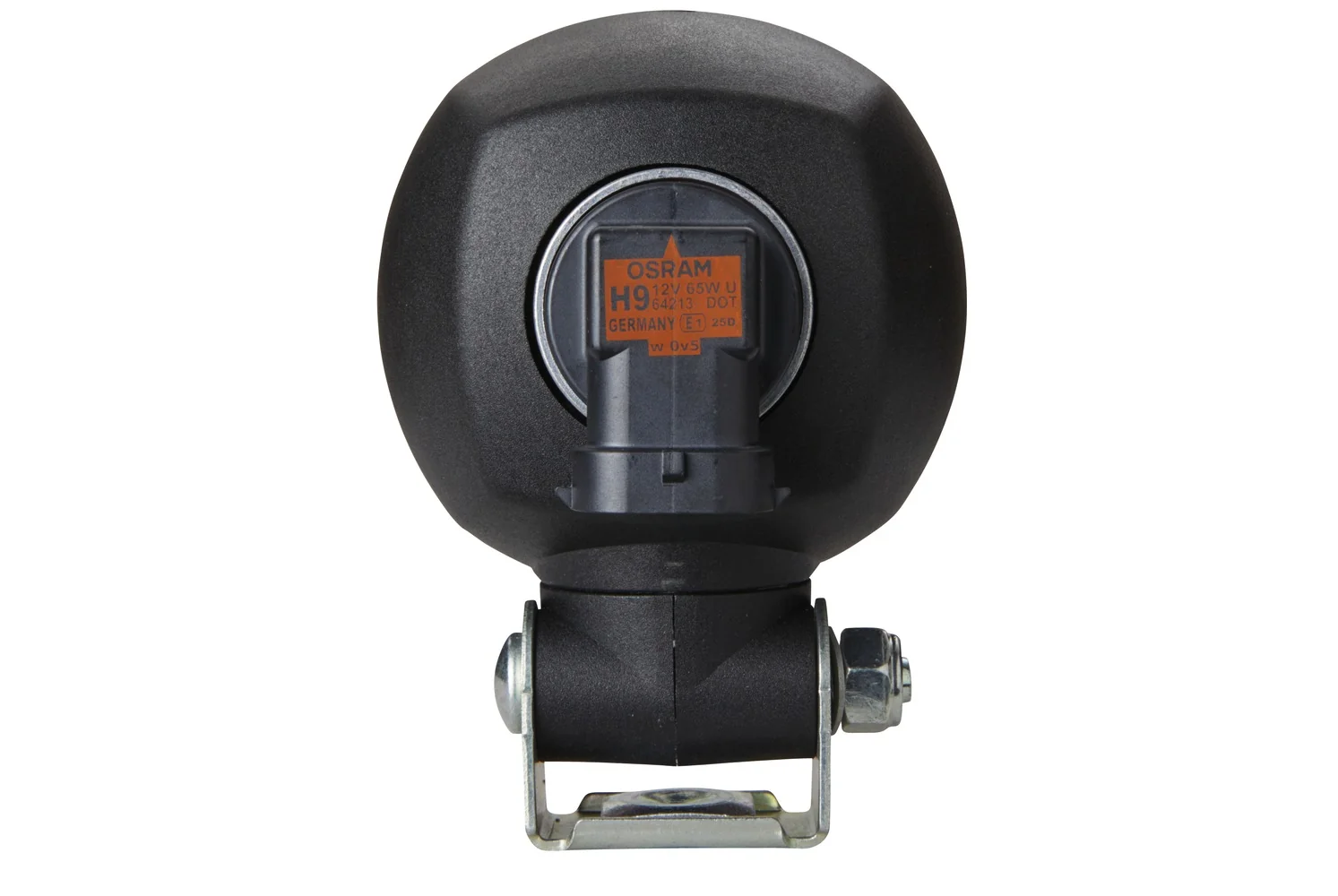

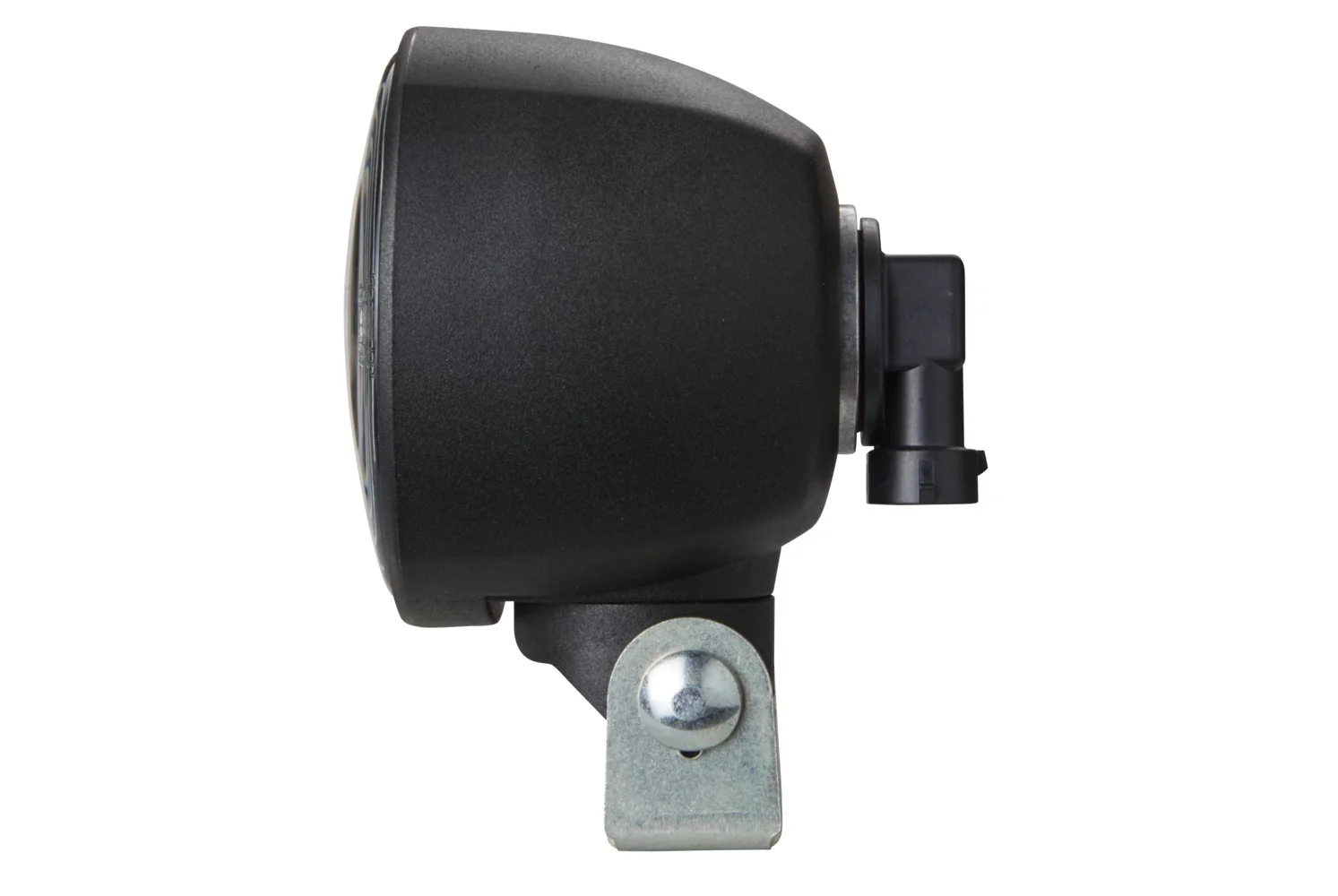

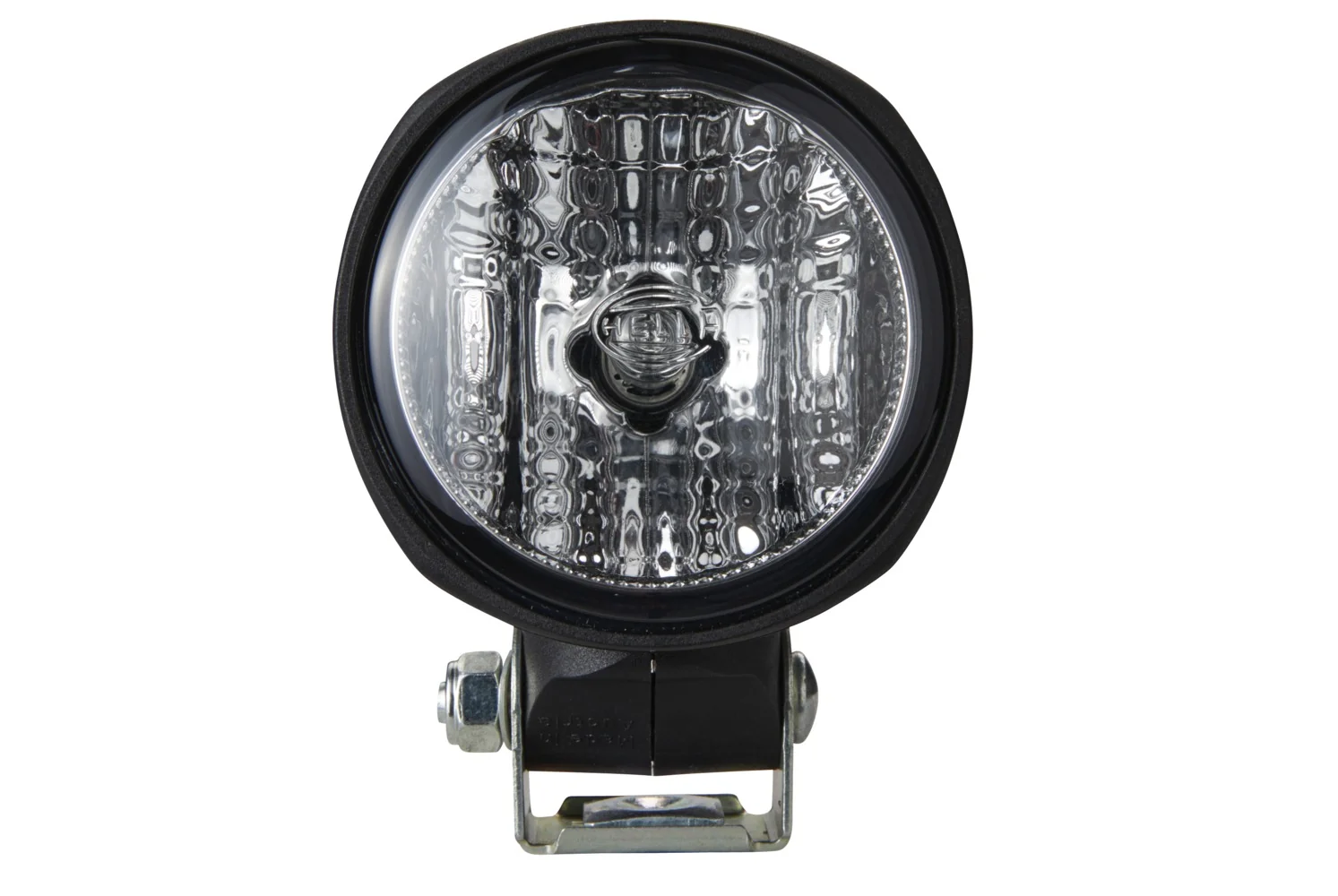

HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V

HELLA - 1G0 996 176-041 - Halogen-Worklight, Modul 70, 12V

€29.64

(Excl. VAT)

Price

(Excl. VAT)

€29.64

Product Description

The Module 70 with H9 bulb is a compact worklight with an extremely small installation space. Despite its small size, the free-form reflector made of die-cast aluminium produces excellent light output. Thanks to the optics-free, hardened diffusing lens, the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The use of the H9 bulb results in significant advantages for the customer. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions, the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The plug-in connection is made directly via the bulb. Fast, tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted headlamp (depending on the version: upright, or suspended) and as a recessed version.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

003234457000G650 902 112 010LA323445700

Agromehanika

304970

Atlas copco

8020551

Deutz Fahr

2.8039.023.02.8039.024.0

Fendt

G 650 902 112 010

Hako

05104150003

Landini

6515367J90/P6515367M91

Massey ferguson

3234458000

Reform

900530204

Terex

8020551
Plug
Open Cable Ends
Depth
85 Mm
Width
83 Mm
Height
113 Mm
Voltage
12 V
Lamp Type
H9
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly By Qualified Personnel Required
Mounting Type
Bolted / Mounting
Fastening Type
Swivelling Mounting Bracket / Vertical
Housing Colour
Black
Power Consumption
65 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Supplementary Article
Without Cable
Diffusing Lens Material
Glass
Protection Type (IP Code)
IP5K9K
Manufacturer
HELLA

Similar items you might like

  • Hella

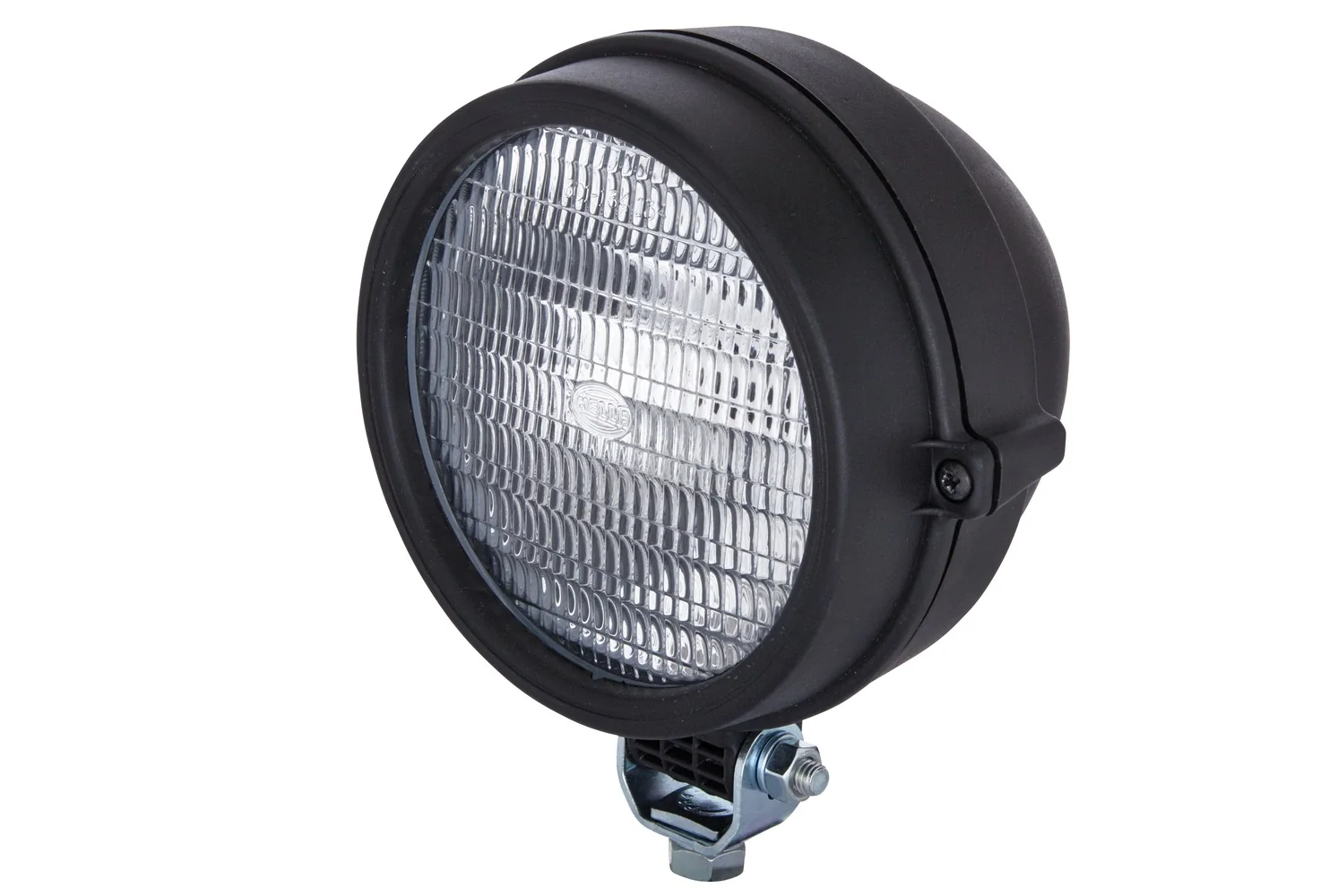

    HELLA - 1G3 005 760-221 - Halogen-Worklight, Torero 5760, 12/24V

    Hella

    €35.69

  • Hella

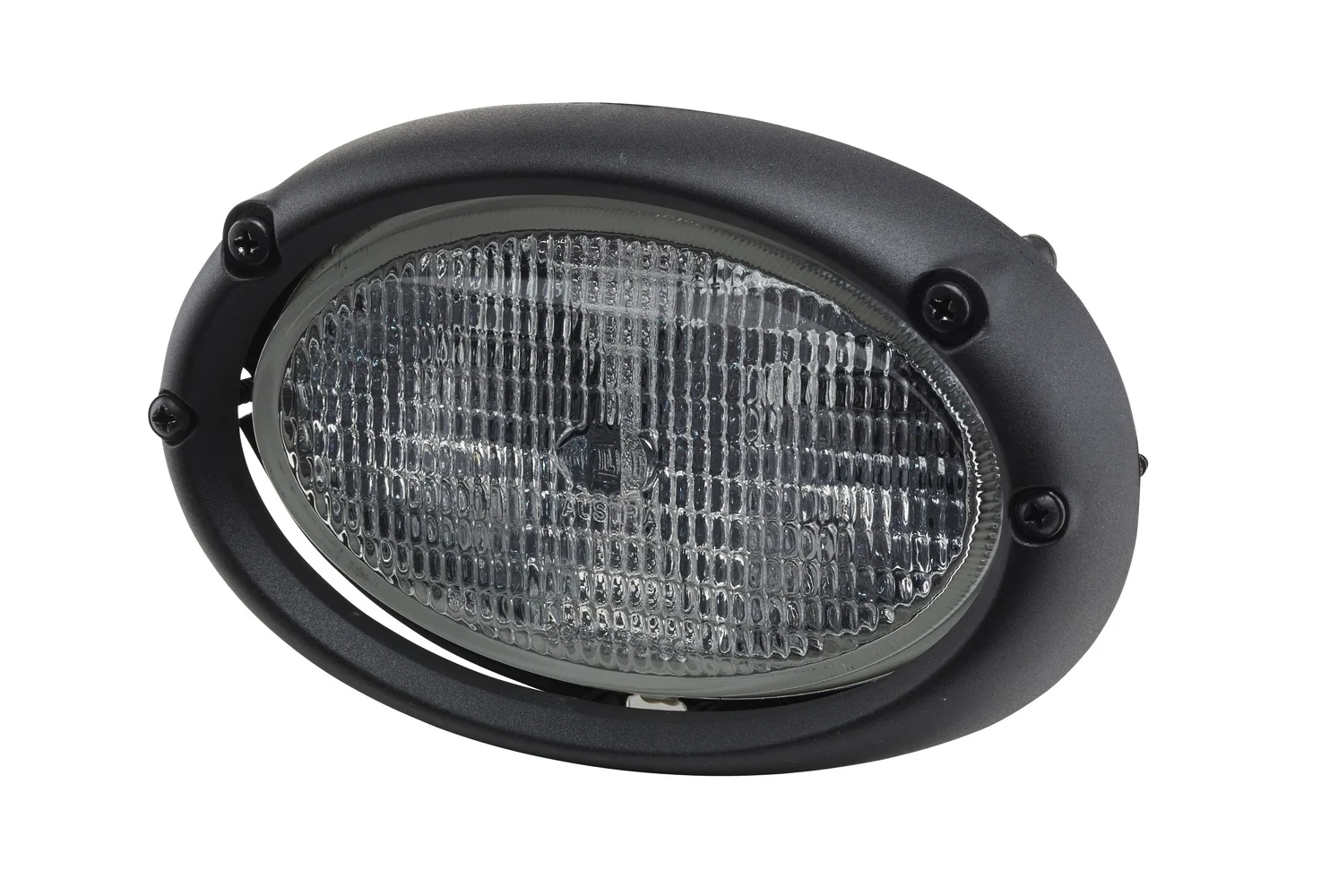

    HELLA - 1GA 996 161-111 - Halogen-Worklight, Oval 100, 12V

    Hella

    €37.37

  • Hella

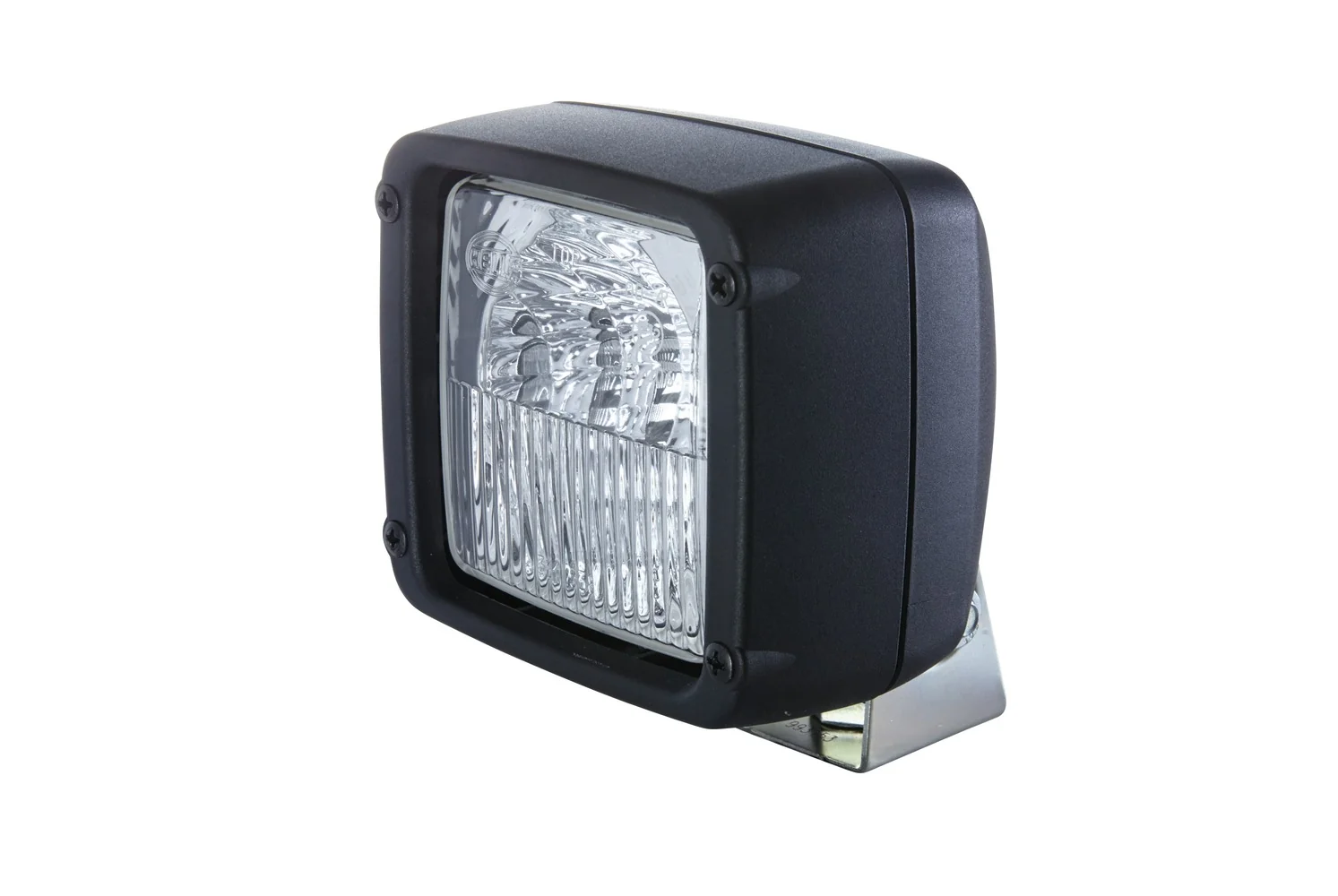

    HELLA - 2ZR 996 506-501 - Halogen-Reverse Light, Ultra Beam, 24V

    Hella

    €32.39

  • Hella

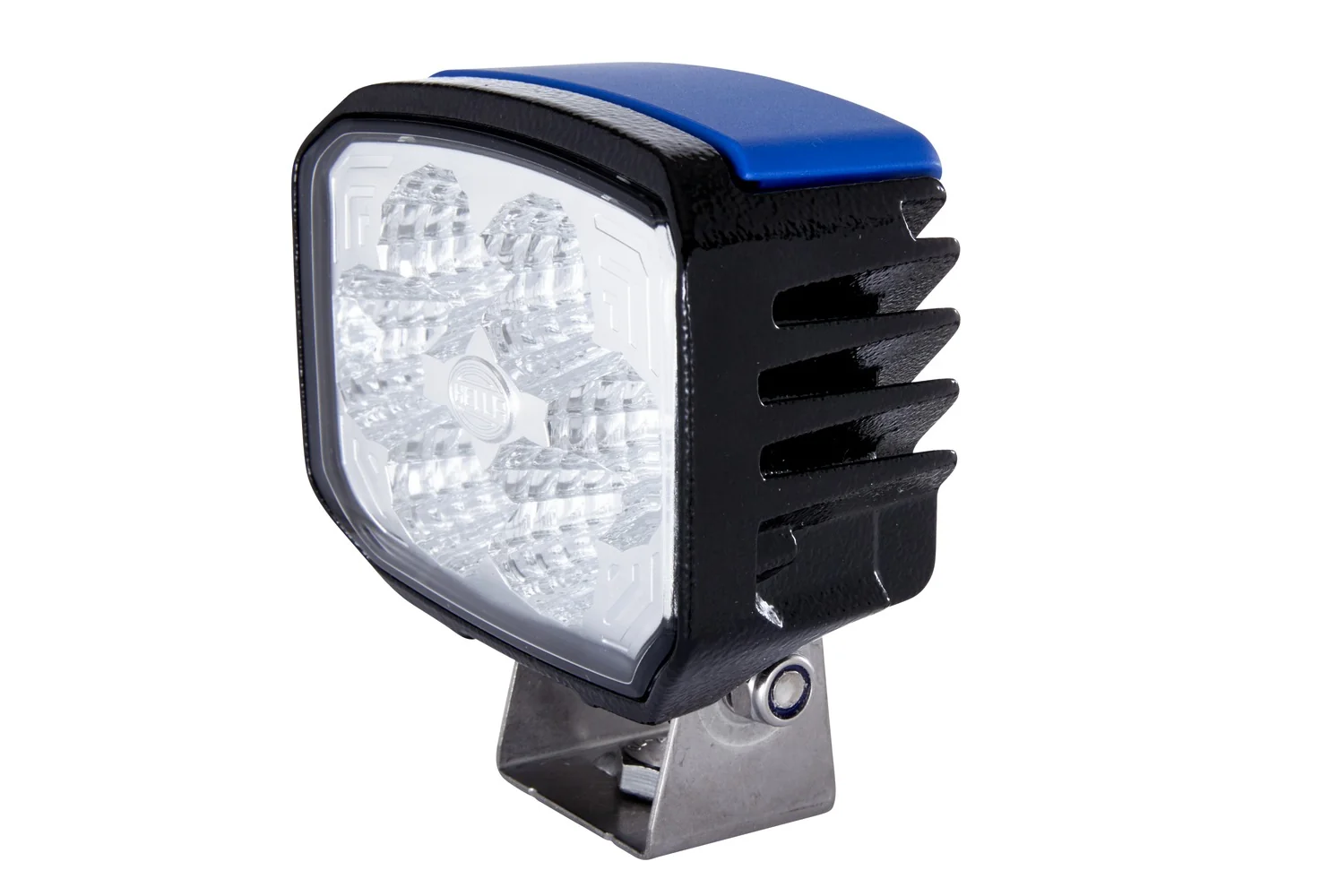

    HELLA - 1GA 996 188-001 - LED-Worklight, Power Beam 1000, 24/12V

    Hella

    €117.18

  • Hella

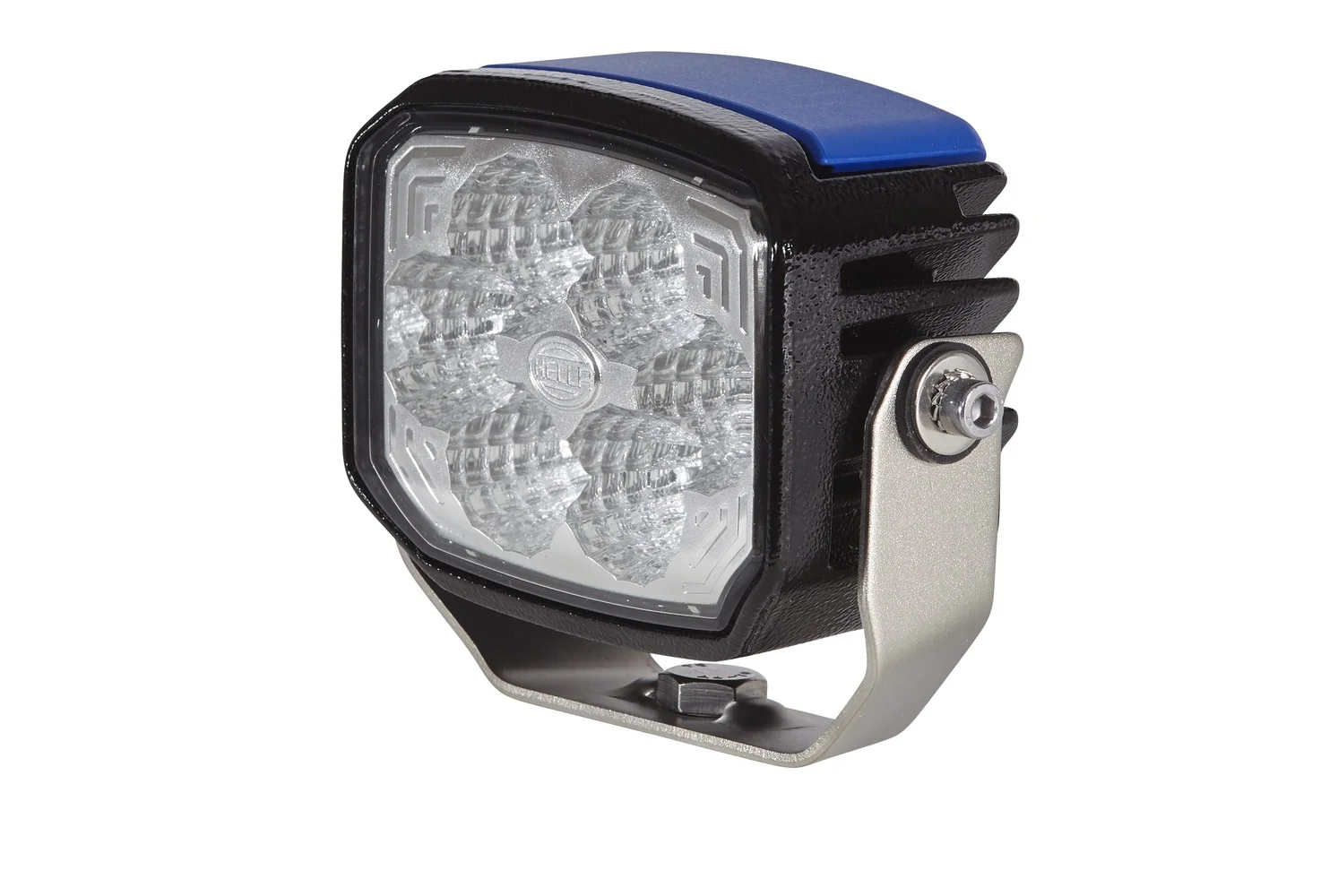

    HELLA - 1GA 996 188-011 - LED-Worklight, Power Beam 1000, 24/12V

    Hella

    €134.89

  • Hella

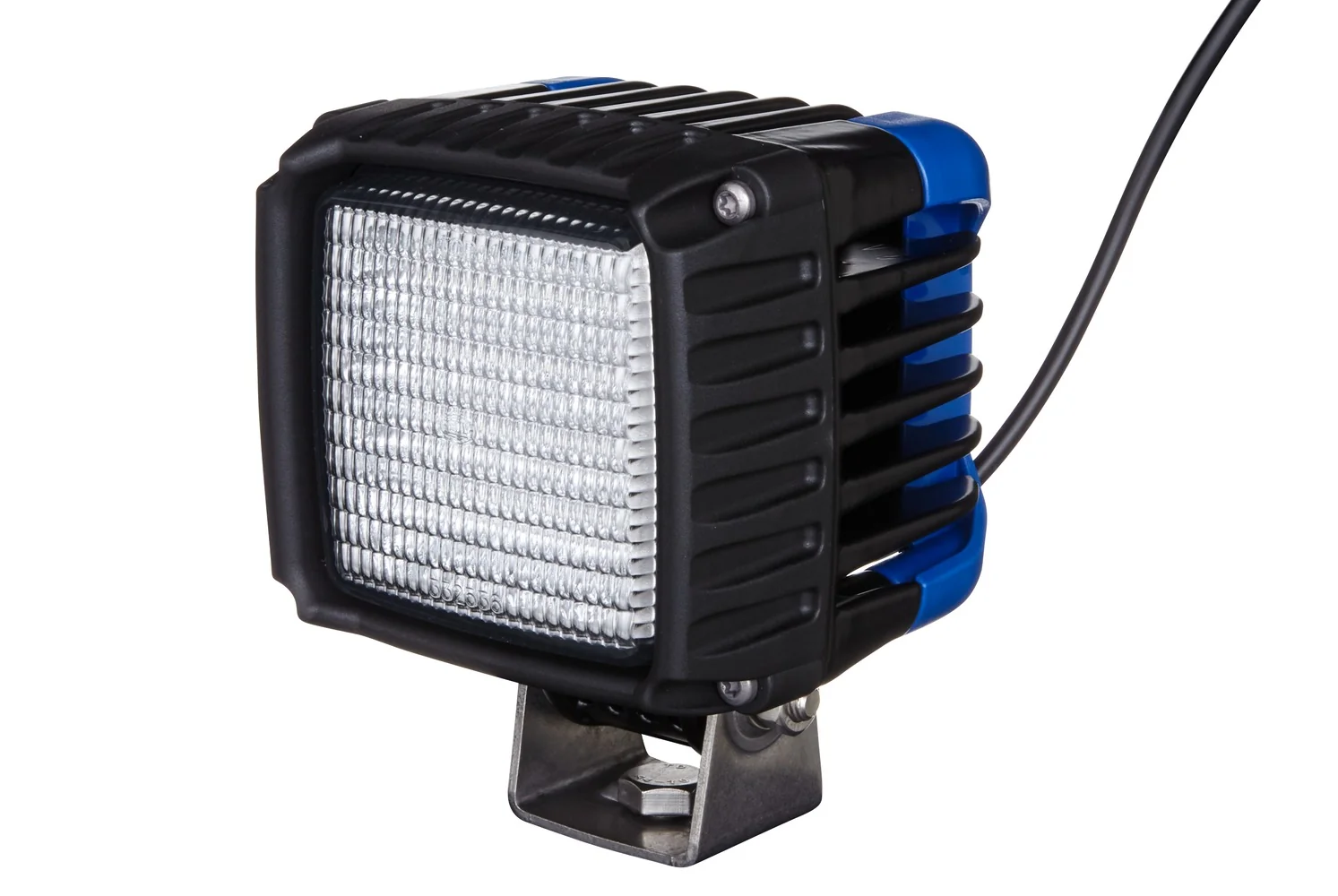

    HELLA - 1GA 996 189-001 - LED-Worklight, Power Beam 2000, 12/24V

    Hella

    €214.49

  • Hella

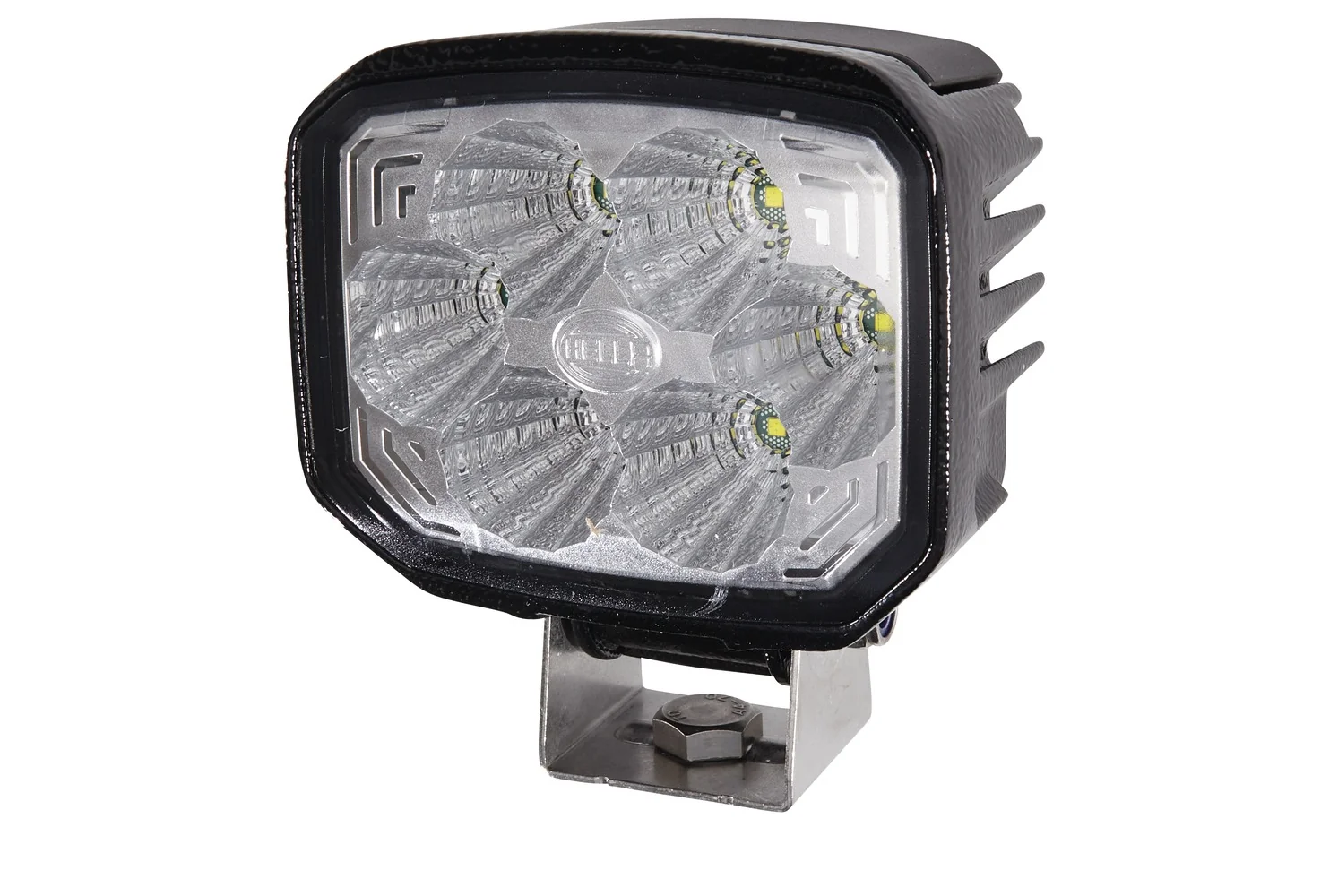

    HELLA - 1GA 996 188-021 - LED-Worklight, Power Beam 1000, 12/24V

    Hella

    €114.10

  • Hella

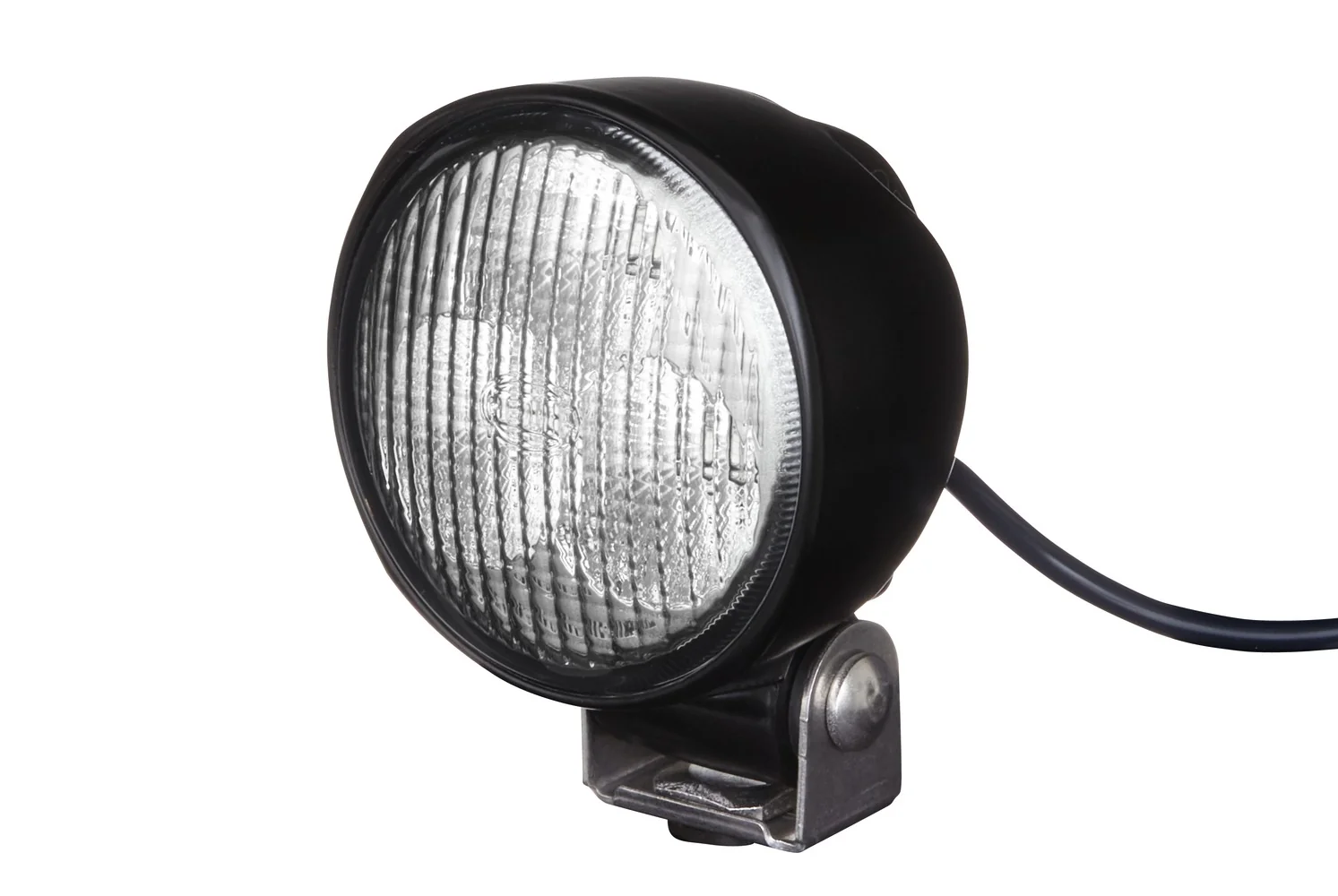

    HELLA - 1G0 996 476-001 - LED-Worklight, Modul 70 Gen. IV, 12/24V

    Hella

    €112.00

  • Hella

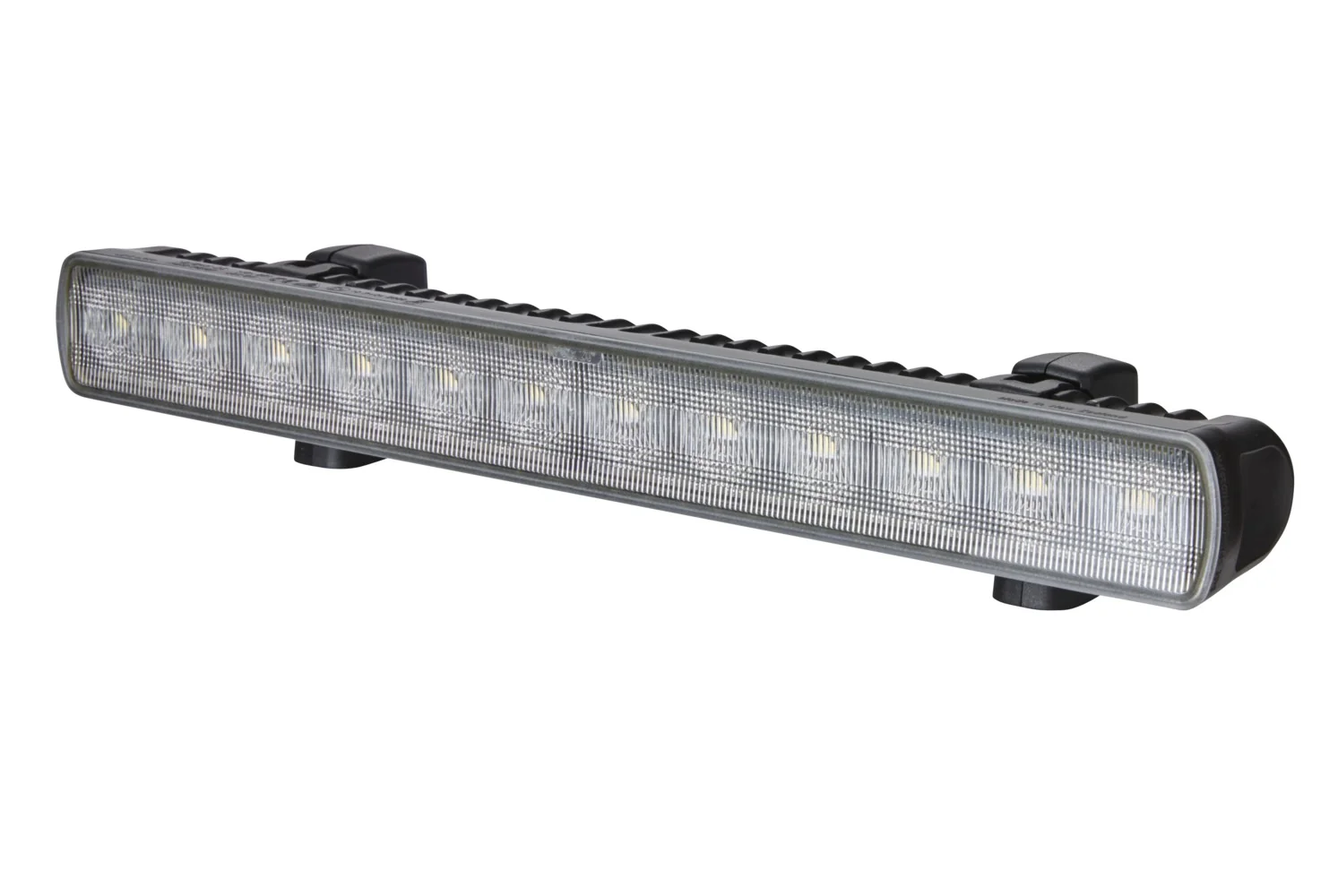

    HELLA - 1GJ 958 040-501 - LED-Worklight, Light Bar LB350, 24/12V

    Hella

    €150.02

  • Hella

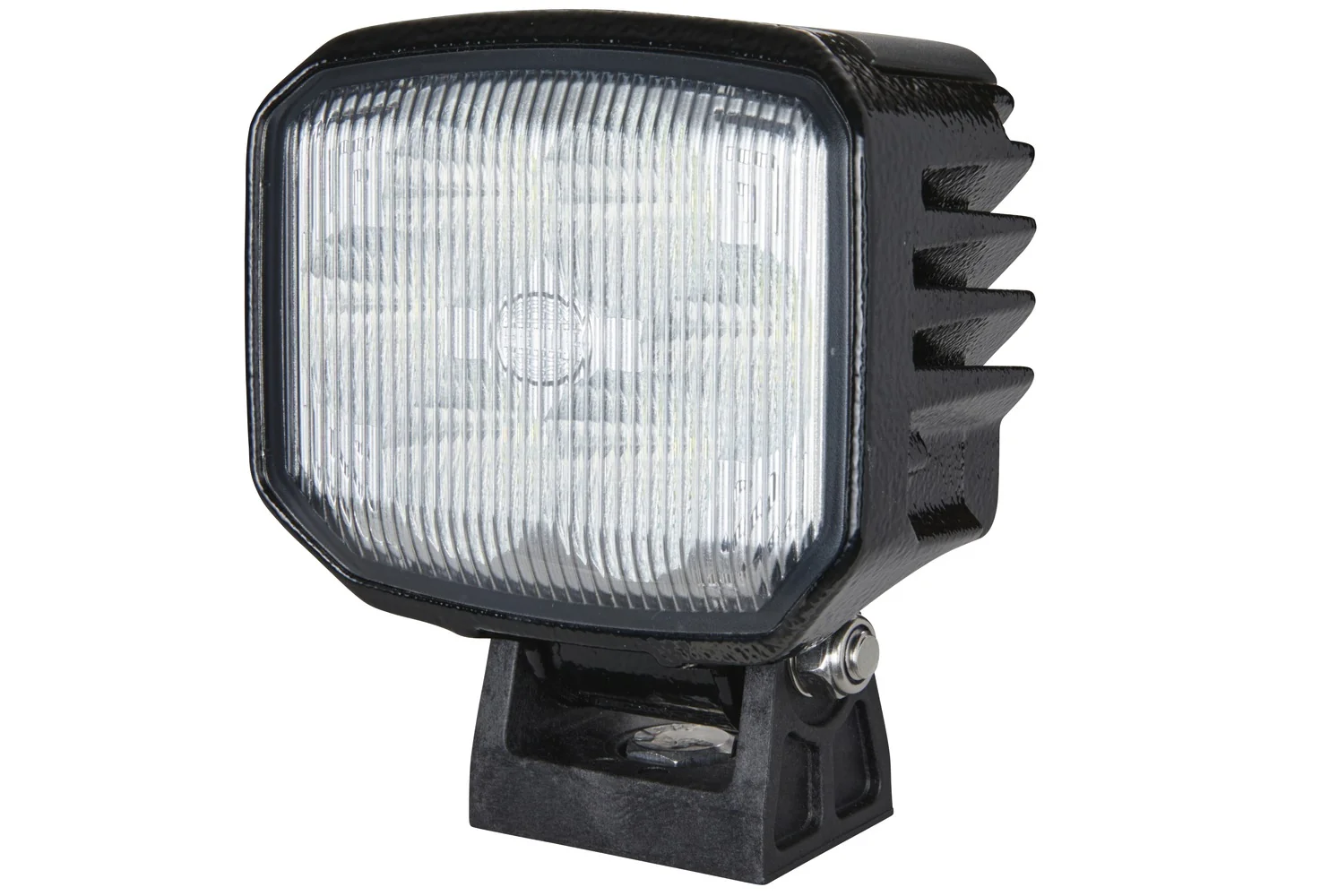

    HELLA - 1GA 996 388-001 - LED-Worklight, Power Beam 1800, 12V
