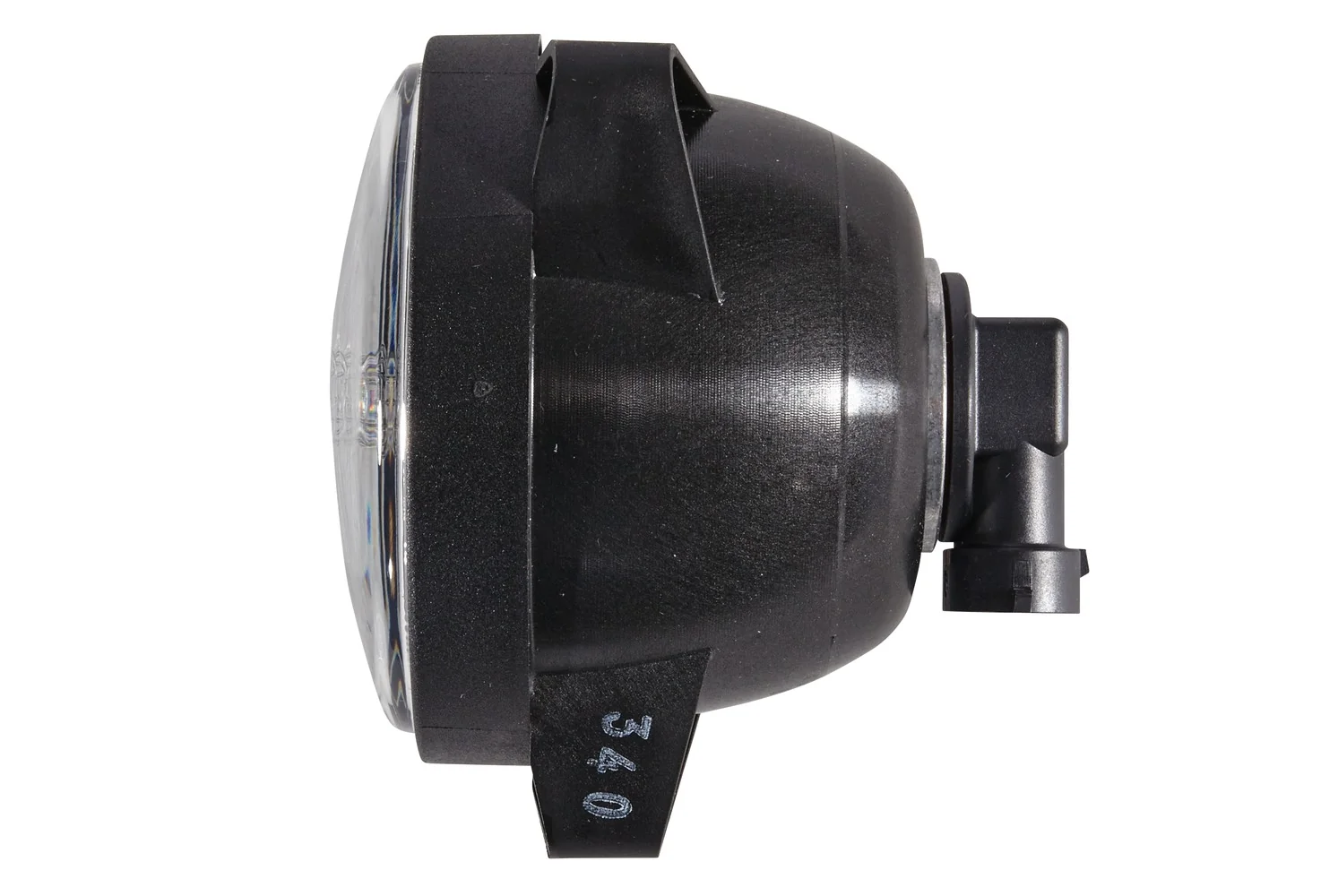

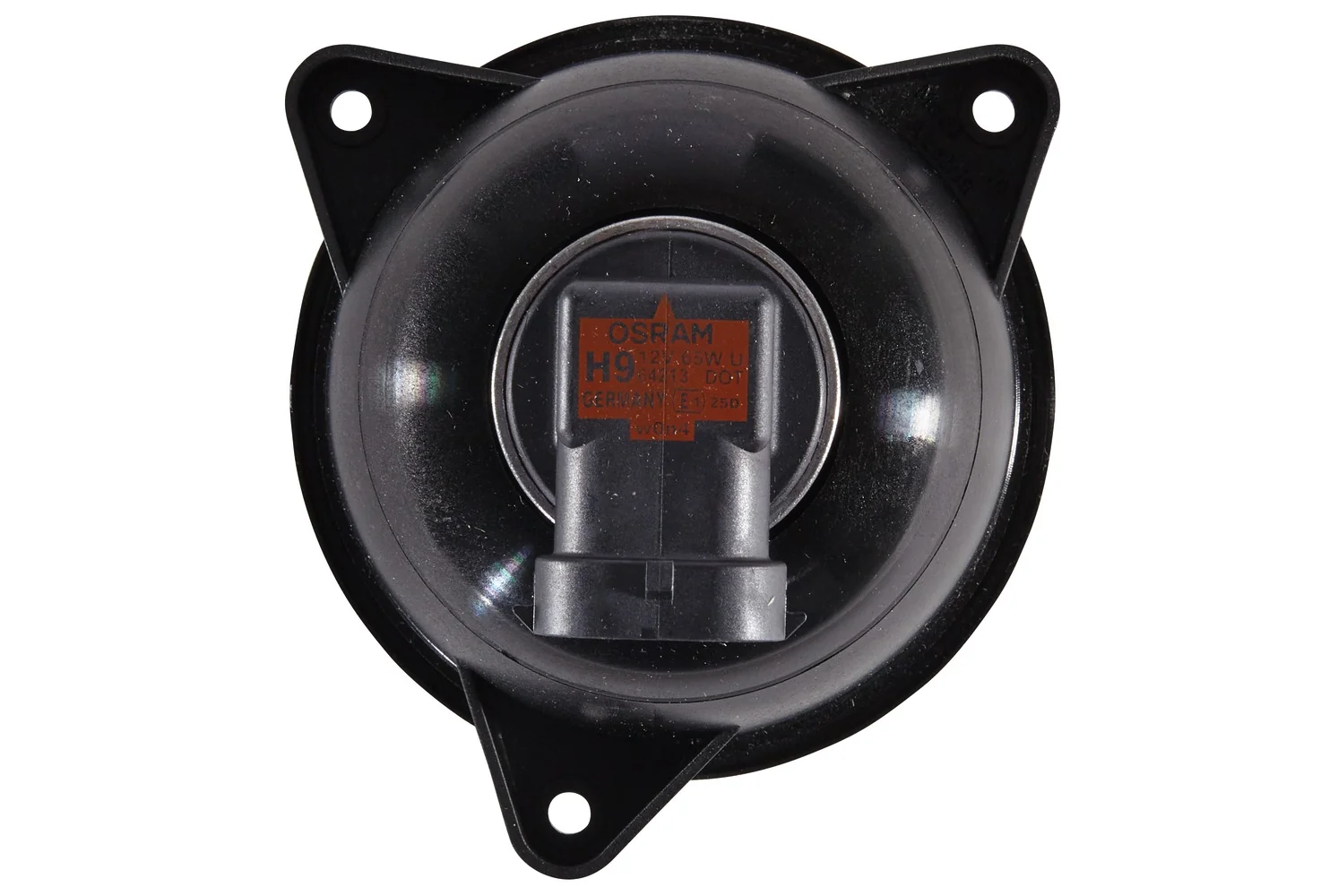

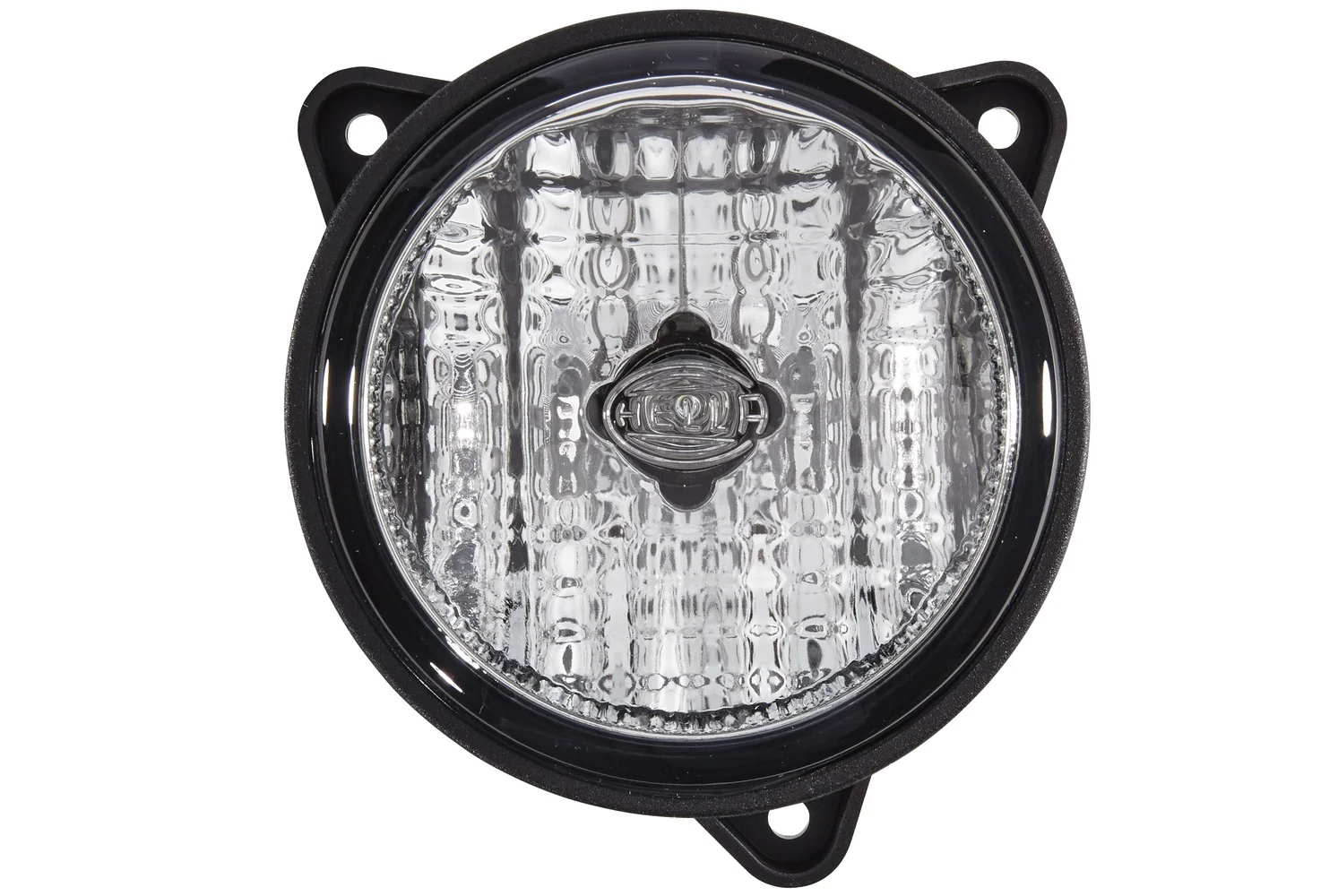

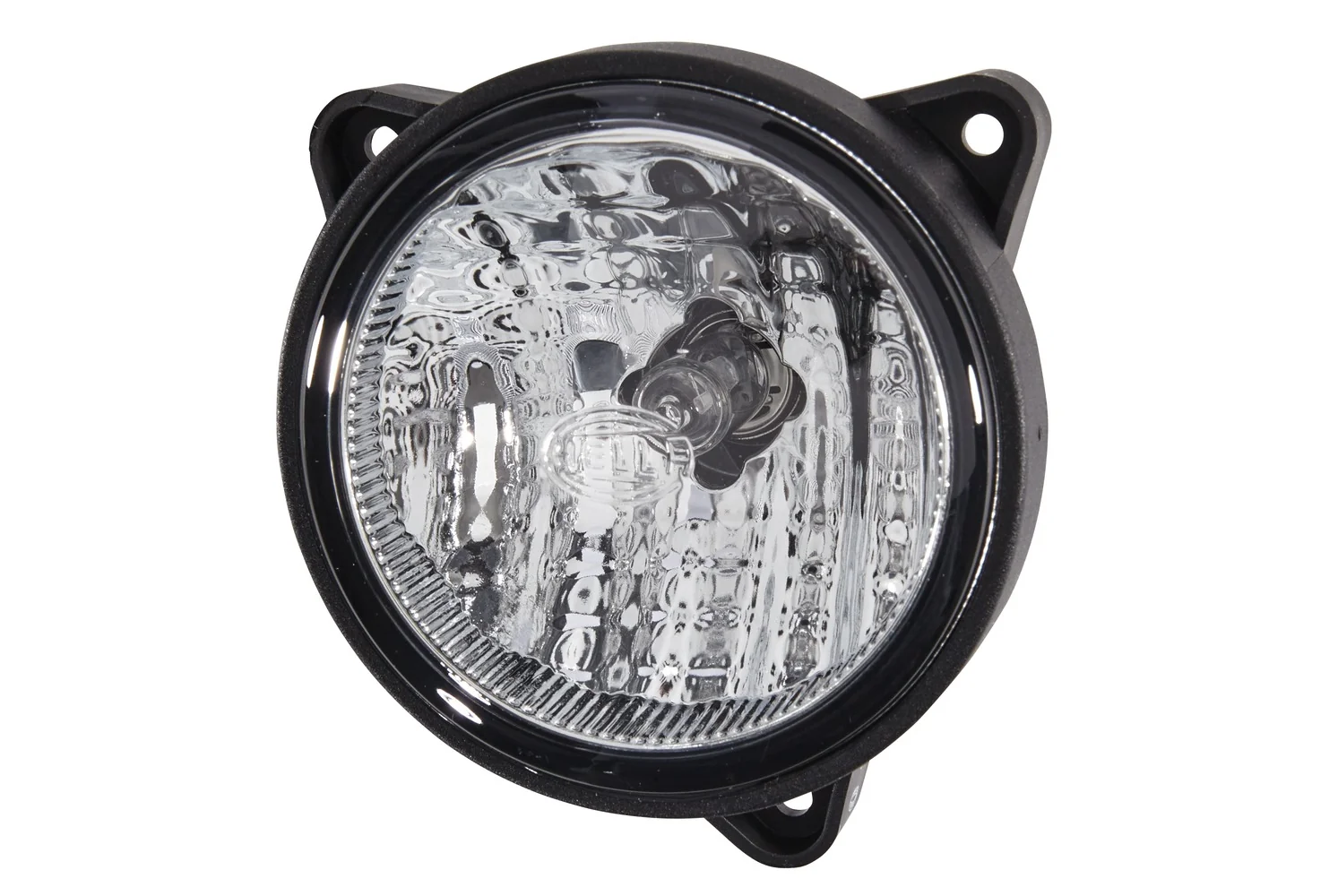

HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V

HELLA - 1G0 996 176-061 - Halogen-Worklight, Modul 70, 12V

€27.78

(Excl. VAT)

Price

(Excl. VAT)

€27.78

Product Description

The Module 70 with H9 bulb is a compact worklight with an extremely small installation space. Despite its small size, the free-form reflector made of die-cast aluminium produces excellent light output. Thanks to the optics-free, hardened diffusing lens, the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The use of the H9 bulb results in significant advantages for the customer. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions, the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The plug-in connection is made directly via the bulb. Fast, tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted headlamp (depending on the version: upright, or suspended) and as a recessed version.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

519438D1G334 900 111 020

Case ih

8 752 189 0

Claas

11244010

Deutz Fahr

2.8039.017.0

Fendt

G334.900.111.020

Hamm

2074846

Landini

6514943M91

Reform

900530202

Same

2.8039.017.0

Versatile

86066078
Fits

Fendt

208 (01.01.2003 - 01.01.2008)209 (01.01.2003 - 01.01.2008)207 (01.01.2003 - 01.01.2008)
Plug
Open cable ends
Depth
85 mm
Width
85 mm
Height
95 mm
Voltage
12 V
Lamp Type
H9
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly by qualified personnel required
Mounting Type
Fitting / Screw Connection
Fastening Type
3-point attachment
Housing Colour
Black
Power Consumption
65 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Supplementary Article
Without cable
Diffusing Lens Material
Glass
Protection Type IP Code
IP5K9K
Manufacturer
HELLA

Similar items you might like

  • Hella

    HELLA - 1AD 996 018-197 - Headlight, Modul 6213, 24/12V

    Hella

    €45.40

  • Hella

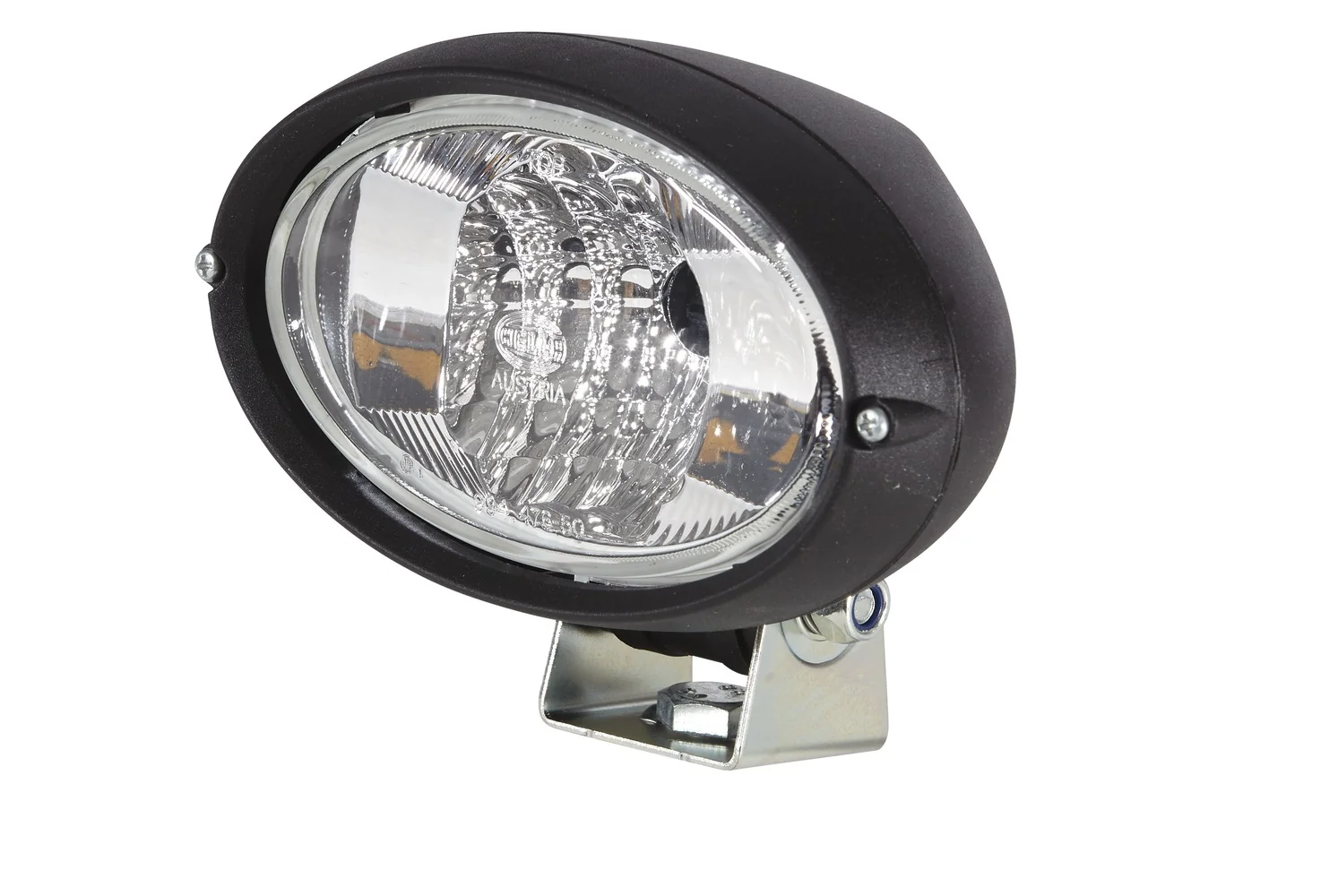

    HELLA - 1GA 996 361-501 - Halogen-Worklight, Oval 100, 24/12V

    Hella

    €28.51

  • Hella

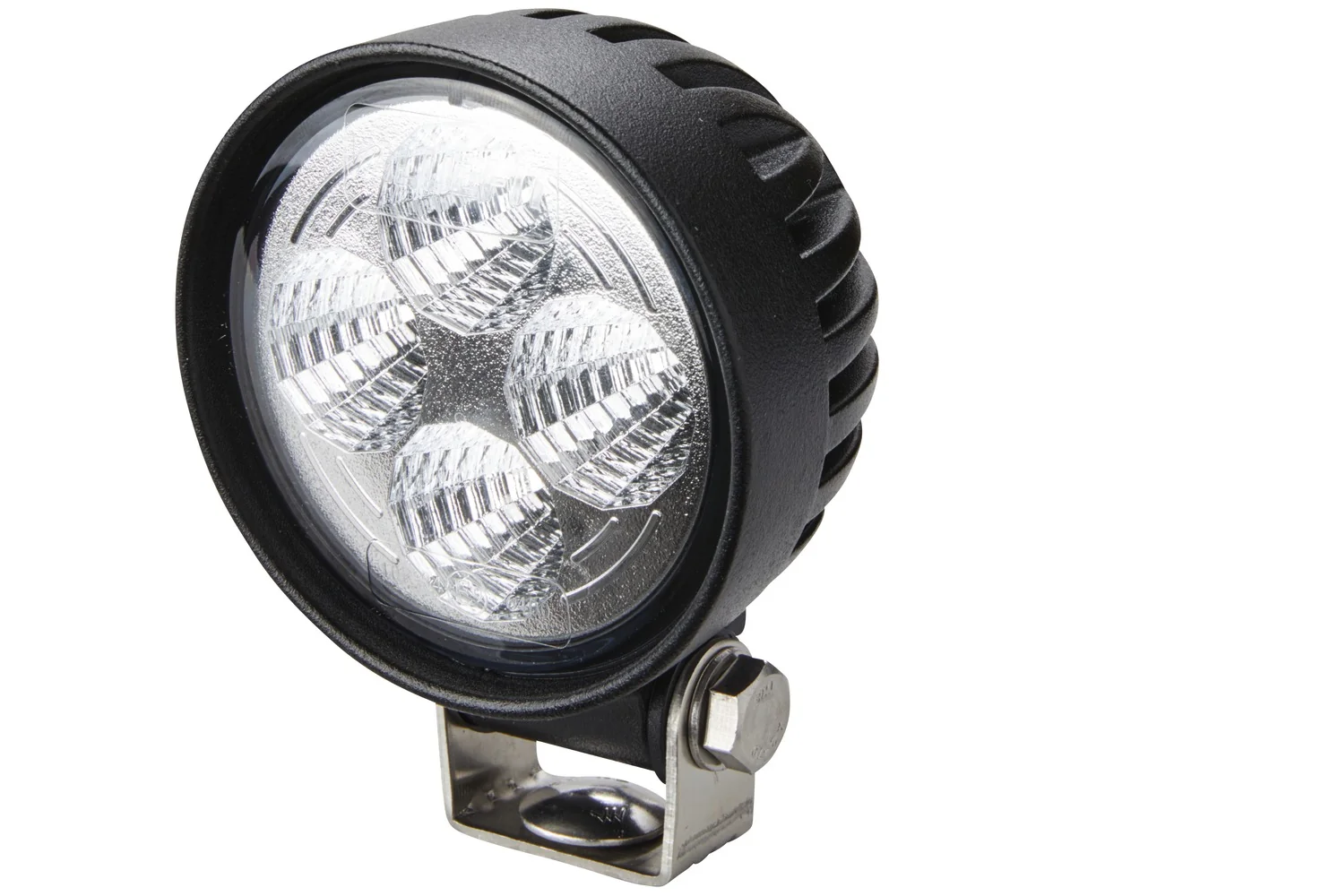

    HELLA - 1G0 357 000-011 - LED-Worklight R600, 12/24V

    Hella

    €29.19

  • Hella

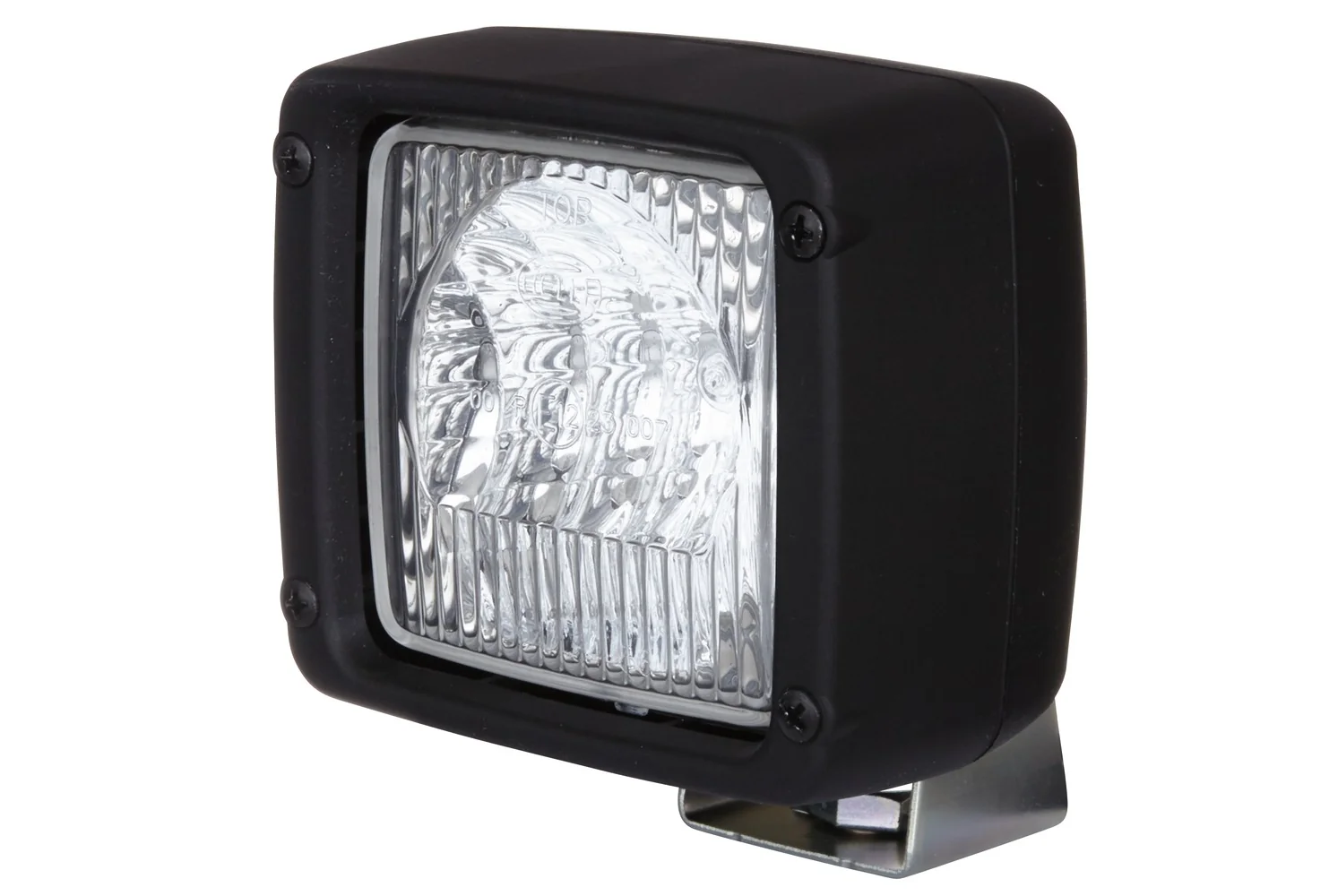

    HELLA - 2ZR 997 506-691 - Halogen-Reverse Light, Ultra Beam, 24V

    Hella

    €32.39

  • Hella

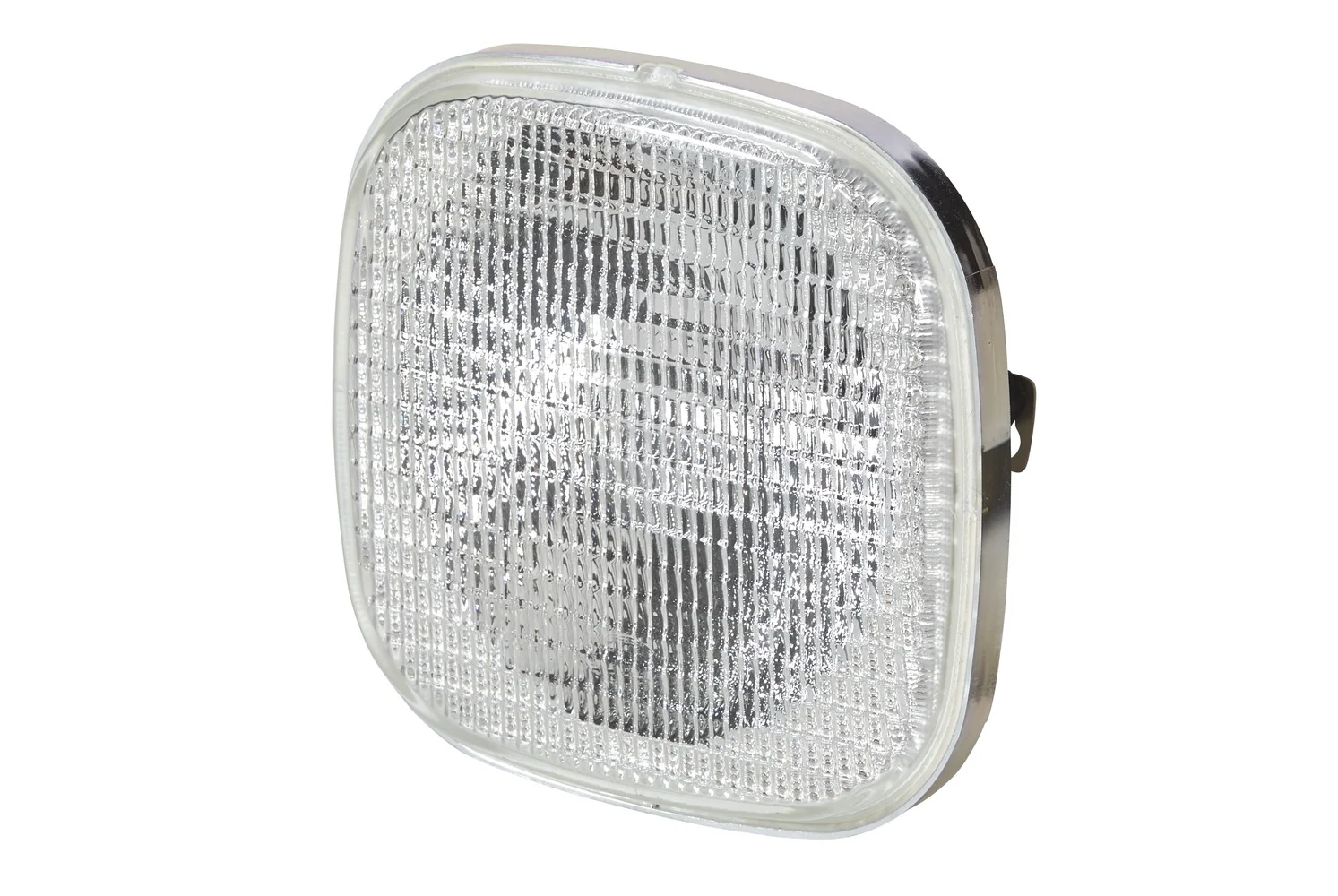

    HELLA - 1GA 990 305-001 - Insert, worklight, AS 200, 12/24V

    Hella

    €27.61

  • Hella

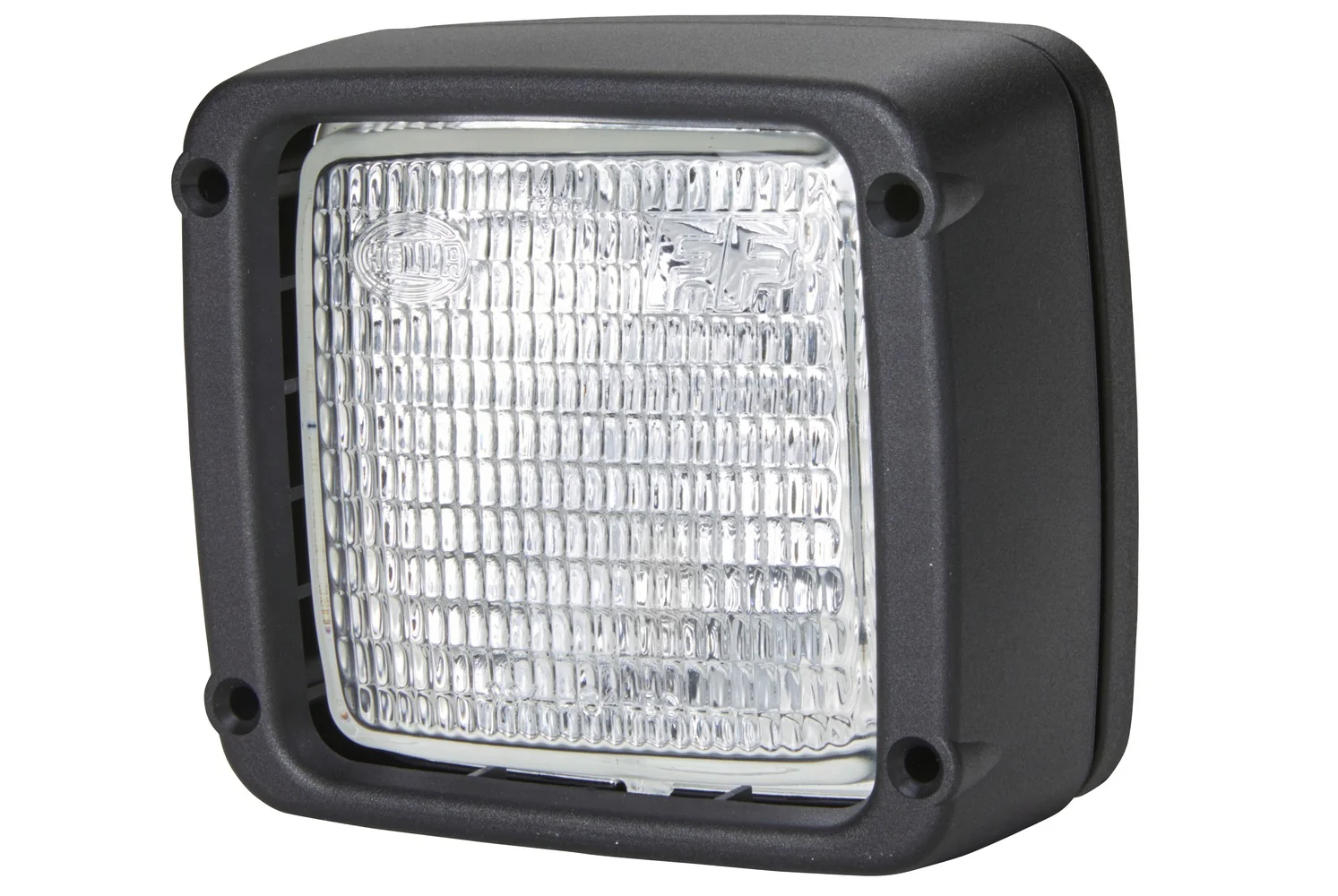

    HELLA - 1GA 007 506-061 - Halogen-Worklight, Ultra Beam, 12V

    Hella

    €23.31

  • Hella

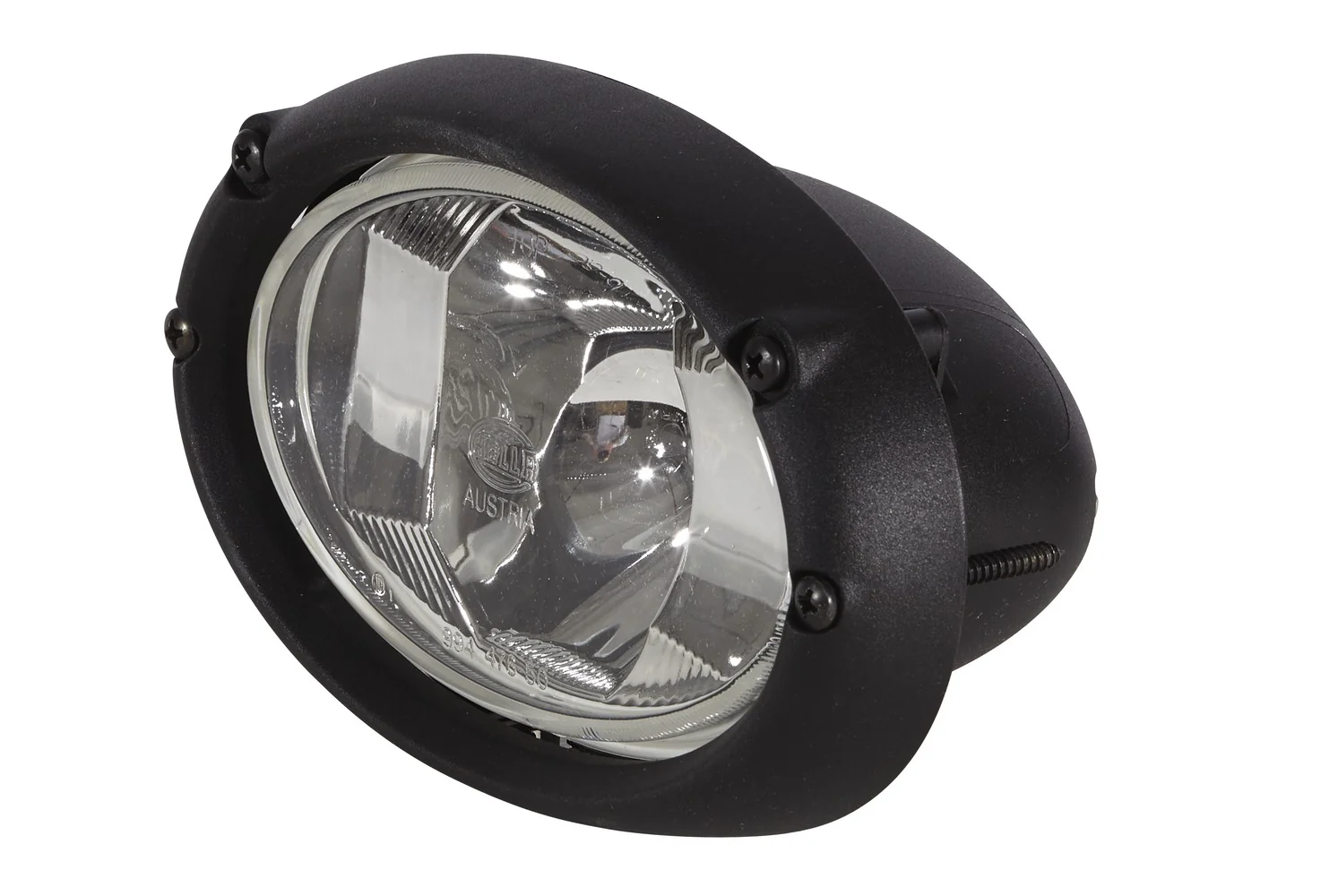

    HELLA - 1GA 996 361-431 - Halogen-Worklight, Oval 100, 24/12V

    Hella

    €25.75

  • Hella

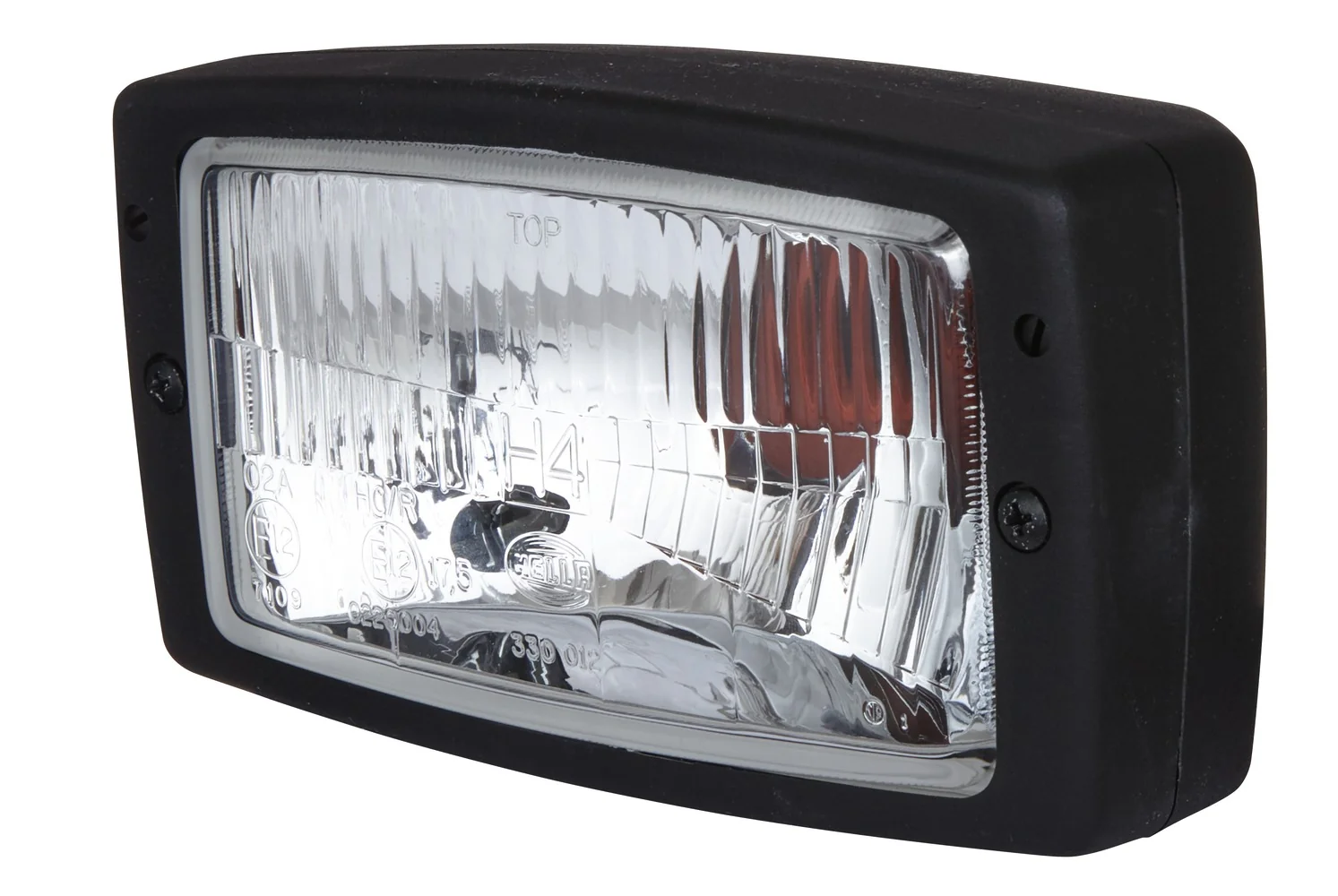

    HELLA - 1AD 996 018-661 - Headlight, Modul 6213, 12/24V

    Hella

    €37.92

  • Hella

    HELLA - 1G0 995 050-051 - LED-Worklight, Modul 50, 24/12/36/48V

    Hella

    €70.62

  • Hella

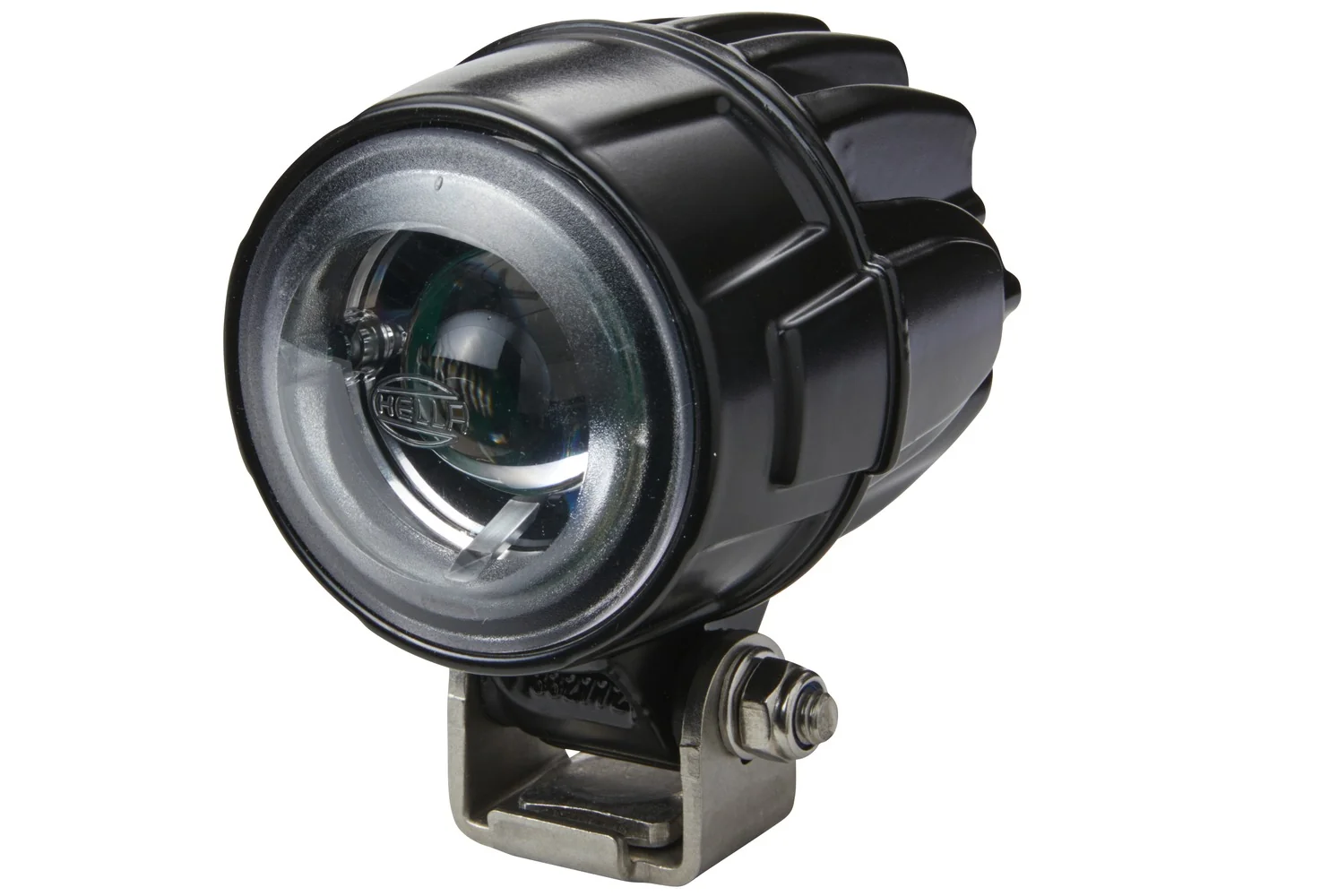

    HELLA - 1G0 995 050-061 - LED-Worklight, Modul 50, 12/24/36/48V
