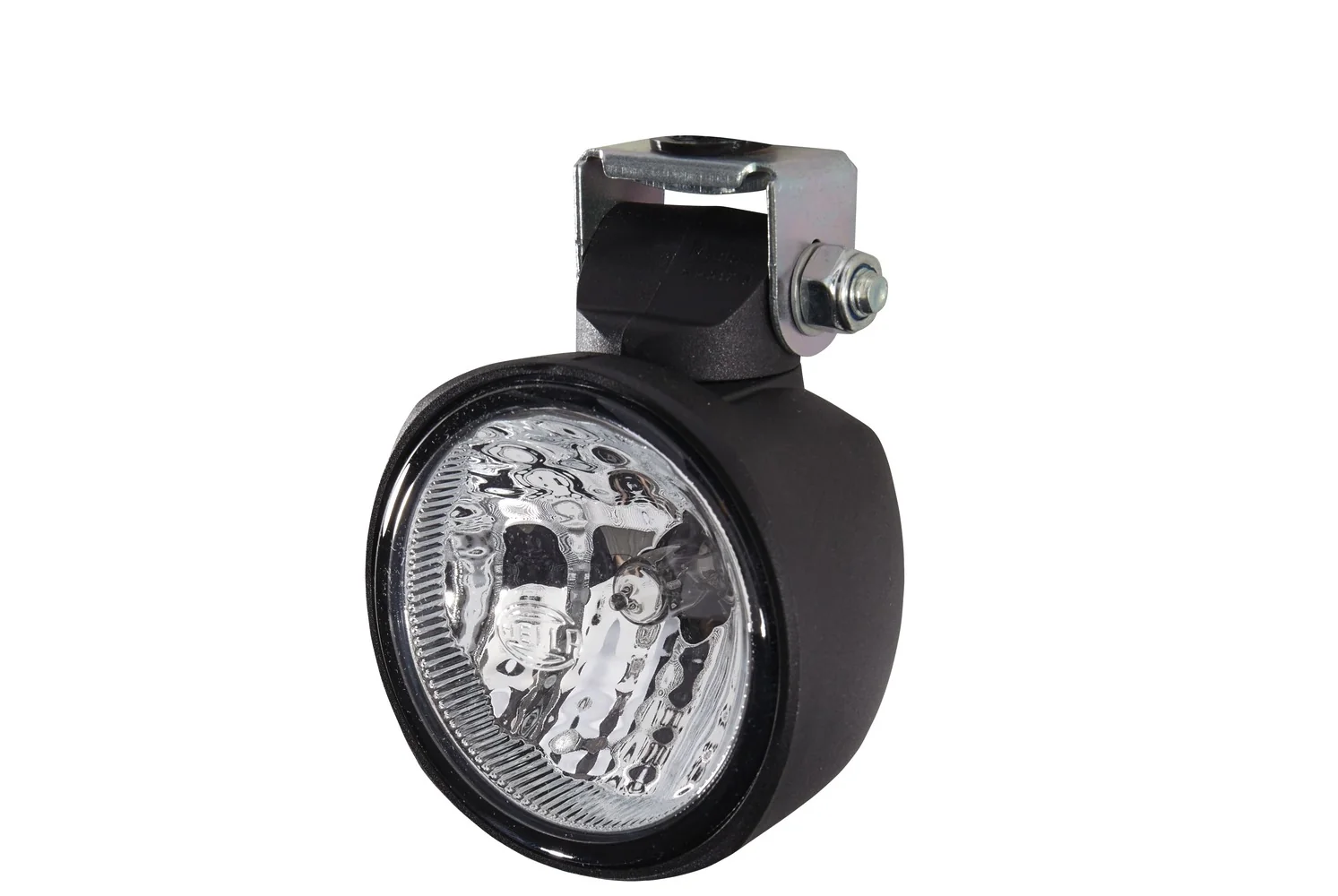

HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V
HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping on orders over €60

Pay Securely with

HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V

HELLA - 1G0 996 176-131 - Halogen-Worklight, Modul 70, 12V

€28.90

(Excl. VAT)

Price

(Excl. VAT)

€28.90

Product Description

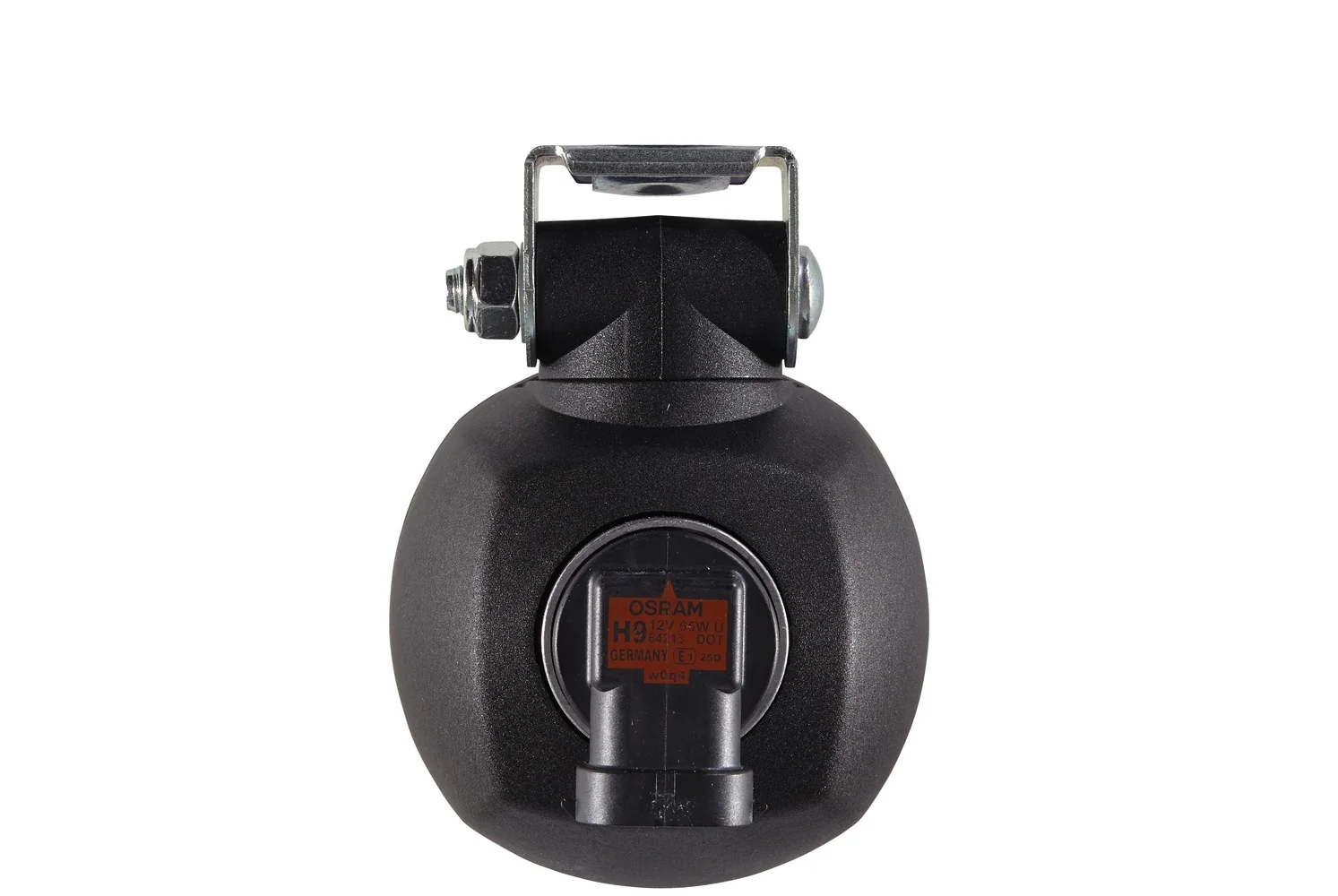

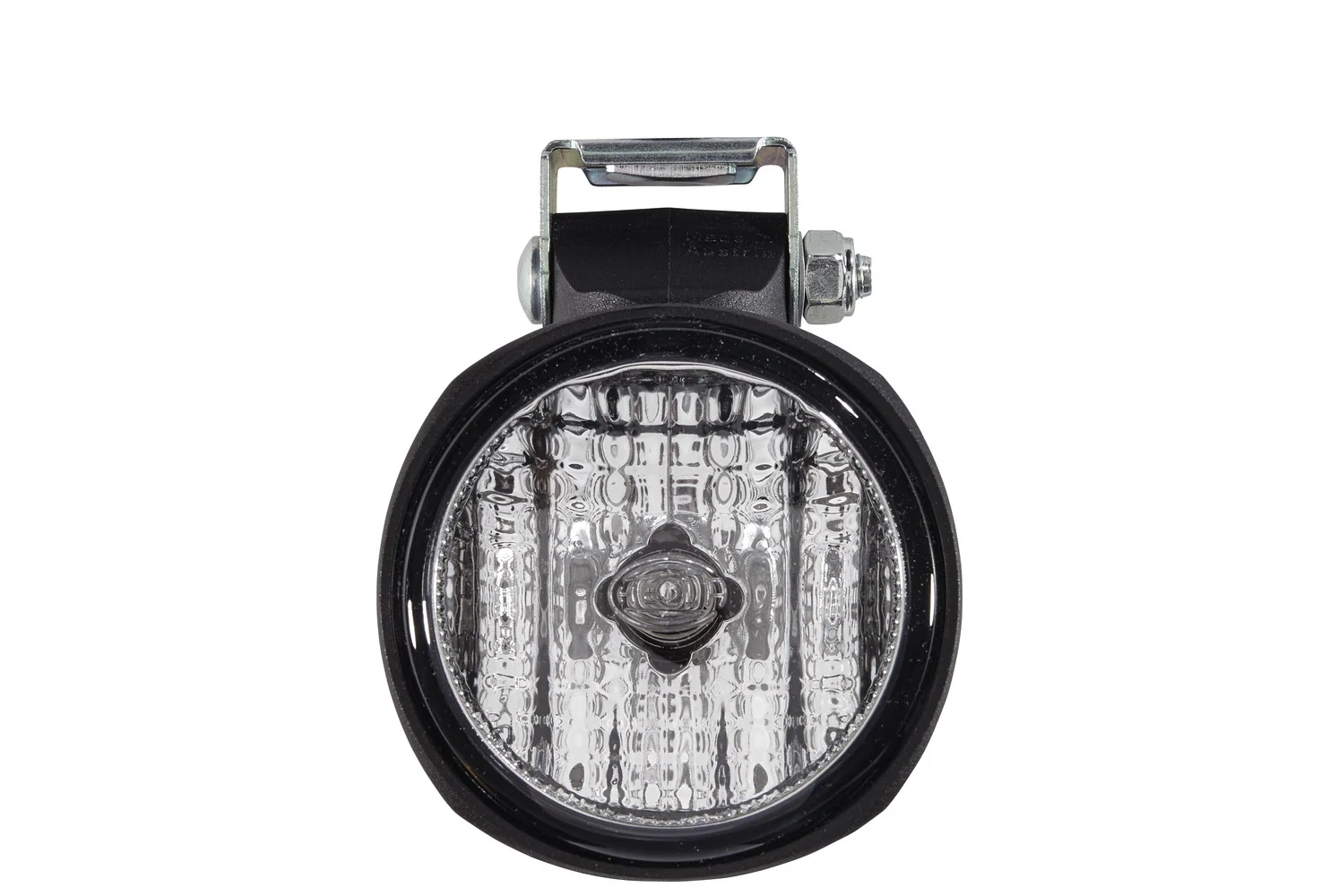

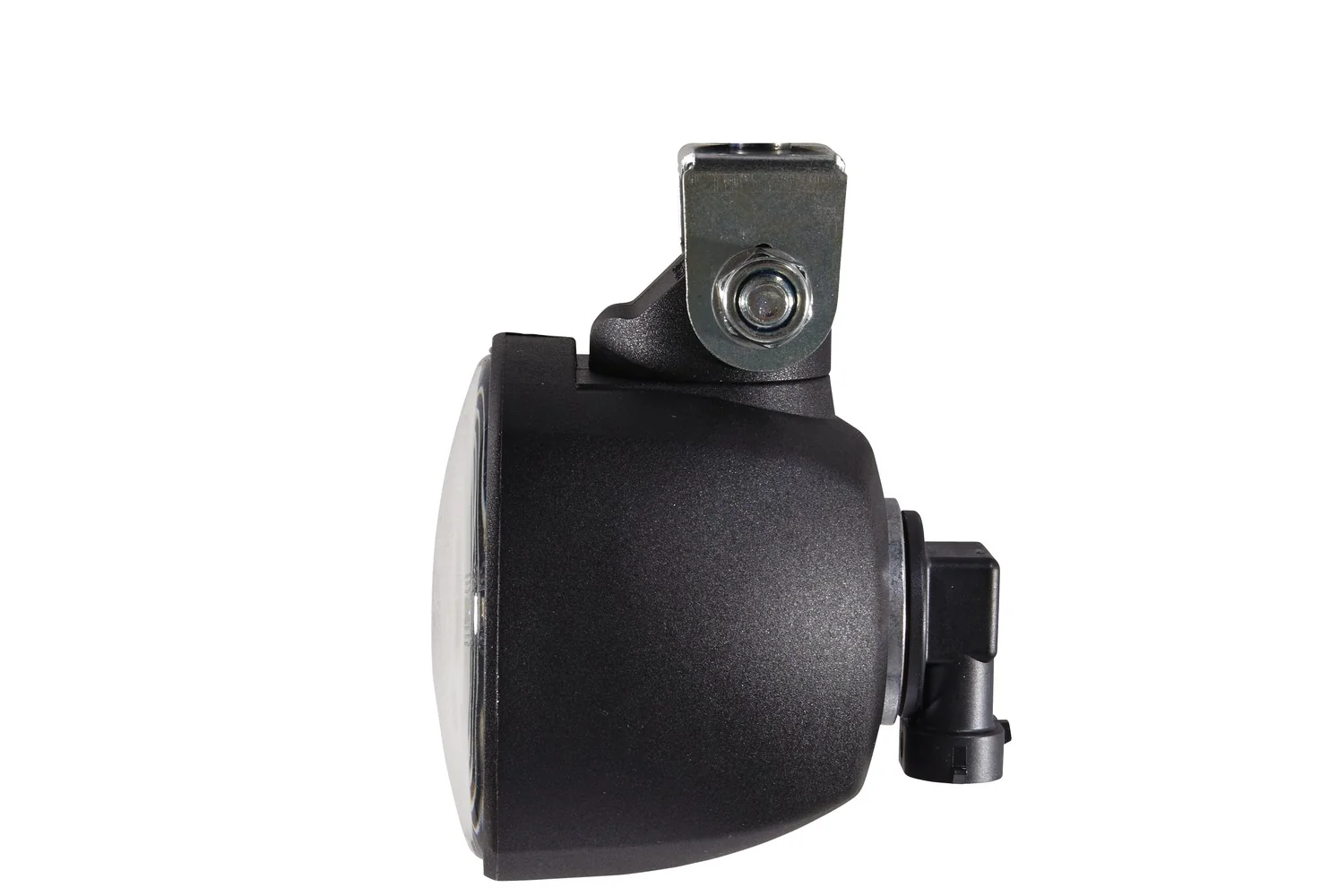

The Module 70 with H9 bulb is a compact worklight with an extremely small installation space. Despite its small size, the free-form reflector made of die-cast aluminium produces excellent light output. Thanks to the optics-free, hardened diffusing lens, the unit shines with the most modern design. Versions for illuminating the near working area or with long-range illumination are optionally available. The use of the H9 bulb results in significant advantages for the customer. The robust headlamp housing is made of glass-fibre reinforced plastic and is resistant to acid and corrosion. Due to its compact dimensions, the worklight can be used universally. The housing is firmly glued to the reflector and the diffusing lens. The plug-in connection is made directly via the bulb. Fast, tool-free bulb replacement is guaranteed with all versions. This headlamp is available as a surface-mounted headlamp (depending on the version: upright, or suspended) and as a recessed version.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

G650 901 110 010

Atlas copco

7700168

Claas

001 664 50112 440 80112 440 90166454-43000000180

Deutz Fahr

2.8039.018.02.8039.019.02.8039.024.0

Fendt

G650.901.110.010

John deere

AX E1 1057AX E2 0661

Landini

6518900J90/P

Same

2.8039.018.0

Terex

53506612377700168

Versatile

86066080

Yanmar

5350661237
Fits

John deere

S 685 (01.01.2015 - 01.01.2017)S 780 (01.01.2018 - 01.01.2018)8500 (01.01.2018 >)S 690 (01.01.2015 - 01.01.2017)S 790 (01.01.2018 - 01.01.2020)8600 (01.01.2014 - 01.01.2016)S 780 (01.01.2020 >)S 770 (01.01.2018 - 01.01.2020)W 550 (01.01.2013 - 01.01.2015)W 660 (01.01.2015 - 01.01.2016)S 660 (01.01.2011 - 01.01.2015)W 650 (01.01.2013 - 01.01.2015)8600 (01.01.2017 >)8200 (01.01.2014 - 01.01.2017)8300 (01.01.2015 - 01.01.2017)8700 (01.01.2017 - 01.01.2018)W 660 (01.01.2015 - 01.01.2018)T 670 (01.01.2008 - 01.01.2015)8500 (01.01.2014 - 01.01.2017)S 680 (01.01.2015 - 01.01.2017)9600 (01.01.2018 >)W 540 (01.01.2015 - 01.01.2018)S 790 (01.01.2018 - 01.01.2018)S 785 (01.01.2018 - 01.01.2020)S 680 (01.01.2013 - 01.01.2015)S 670 (01.01.2011 - 01.01.2015)S550 (01.01.2021 >)8800 (01.01.2017 - 01.01.2018)S 785 (01.01.2018 - 01.01.2018)W 540 (01.01.2008 - 01.01.2015)S 790 (01.01.2020 >)S 690 (01.01.2013 - 01.01.2015)W 550 (01.01.2015 - 01.01.2016)W 660 (01.01.2013 - 01.01.2015)S 690 (01.01.2014 - 01.01.2015)S 670 (01.01.2015 - 01.01.2017)W 650 (01.01.2008 - 01.01.2015)W 550 (01.01.2008 - 01.01.2015)S 660 (01.01.2015 - 01.01.2017)S 785 (01.01.2020 >)8700 (01.01.2015 - 01.01.2016)S 685 (01.01.2013 - 01.01.2015)W 650 (01.01.2015 - 01.01.2018)8600 (01.01.2017 - 01.01.2017)8400 (01.01.2014 - 01.01.2017)8600 (01.01.2018 >)8800 (01.01.2014 - 01.01.2016)T 550 (01.01.2008 - 01.01.2015)T 560 (01.01.2008 - 01.01.2015)T 660 (01.01.2008 - 01.01.2015)W 660 (01.01.2008 - 01.01.2015)W 650 (01.01.2015 - 01.01.2016)W 550 (01.01.2015 - 01.01.2018)S 770 (01.01.2020 >)8200 (01.01.2018 >)S 780 (01.01.2018 - 01.01.2020)9800 (01.01.2018 >)S (01.01.2013 - 01.01.2015)8400 (01.01.2018 >)8700 (01.01.2014 - 01.01.2016)S 760 (01.01.2018 - 01.01.2020)8100 (01.01.2014 - 01.01.2017)S 690 (01.01.2008 - 01.01.2015)9700 (01.01.2018 >)S 690 (01.01.2008 - 01.01.2011)T 670 (01.01.2015 - 01.01.2017)T 560 (01.01.2015 - 01.01.2017)S 680 (01.01.2011 - 01.01.2015)T 660 (01.01.2015 - 01.01.2017)S 690 (01.01.2008 - 01.01.2008)9900 (01.01.2018 >)W 550 (01.01.2012 - 01.01.2014)8300 (01.01.2018 >)S 770 (01.01.2018 - 01.01.2018)W 540 (01.01.2008 - 01.01.2014)S 690 (01.01.2007 - 01.01.2015)8100 (01.01.2018 >)8800 (01.01.2015 - 01.01.2016)

Claas

Lexion 740 (01.01.2010 - 01.01.2012)Lexion 750 (01.01.2010 - 01.01.2012)Lexion 740 (01.01.2013 - 01.01.2015)Lexion 750 (01.01.2013 - 01.01.2015)Lexion 750 (01.01.2015 - 01.01.2020)Lexion 750 (01.01.2015 - 01.01.2019)Lexion 750 (01.01.2012 - 01.01.2015)Lexion 740 (01.01.2015 - 01.01.2020)
Plug
Protected Contact Plug
Depth
88 mm
Width
83 mm
Height
113 mm
Voltage
12 V
Lamp Type
H9
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly By Qualified Personnel Required
Mounting Type
Bolted / Mounting
Fastening Type
Swivelling Mounting Bracket / Suspended
Housing Colour
Black
Power Consumption
65 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Supplementary Article
Without Cable
Diffusing Lens Material
Polyamid 12
Protection Type IP Code
IP5K9K
Manufacturer
HELLA

Similar items you might like

  • Hella

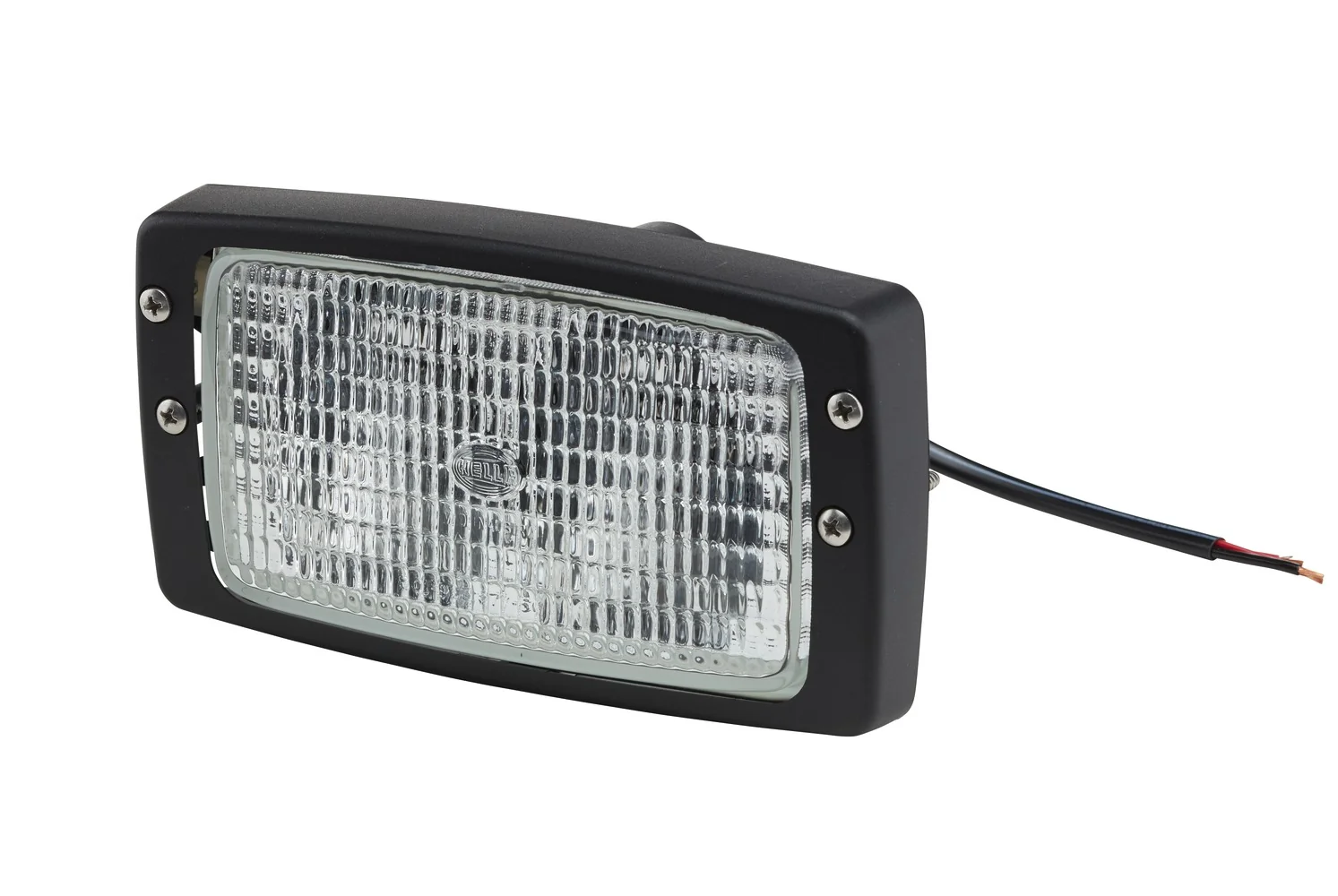

    HELLA - 1GB 996 080-011 - Halogen-Worklight, Double-Beam, 12V

    Hella

    €37.92

  • Hella

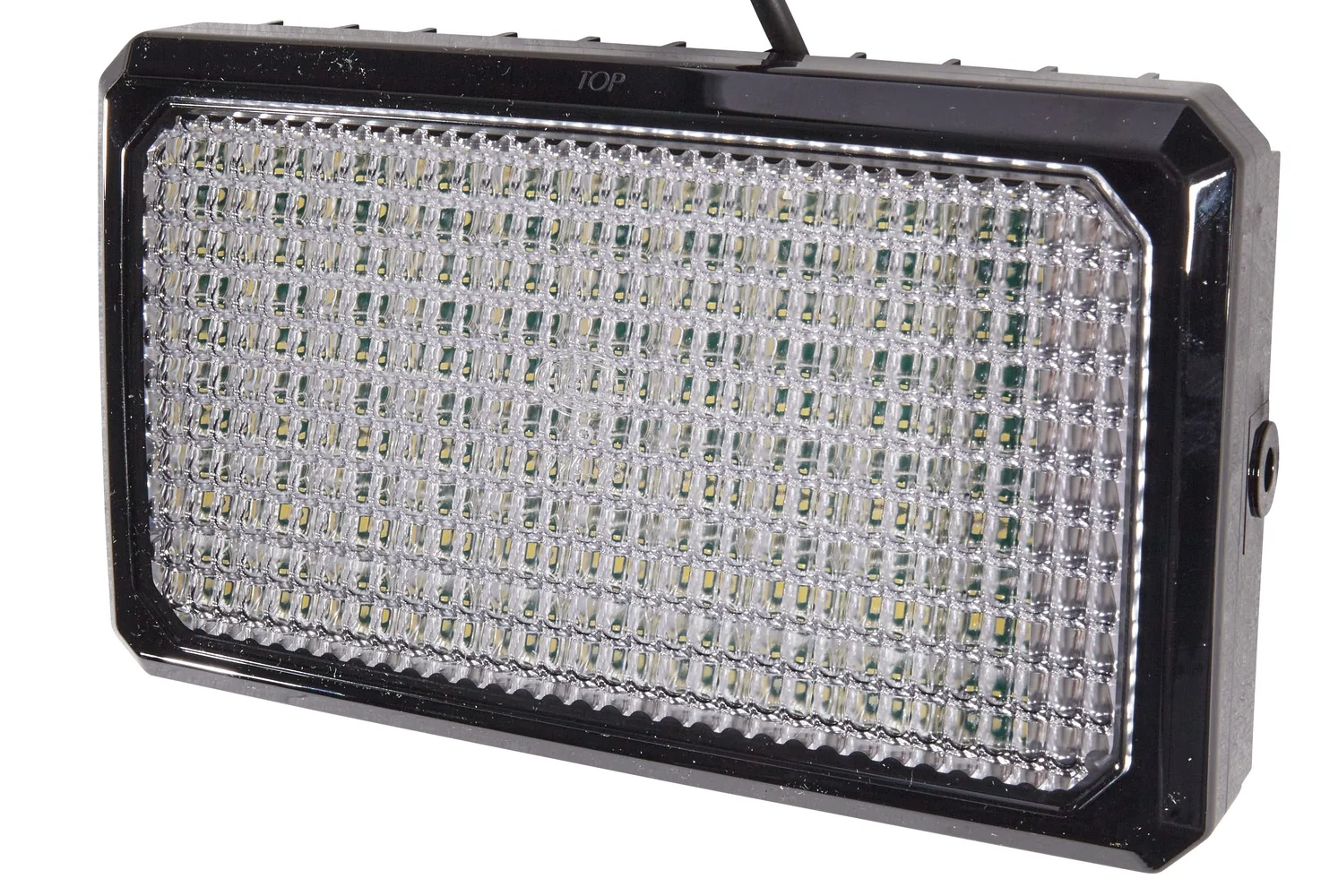

    HELLA - 1GD 996 193-011 - LED-Worklight, Flat Beam 1000, 24/12V

    Hella

    €143.65

  • Hella

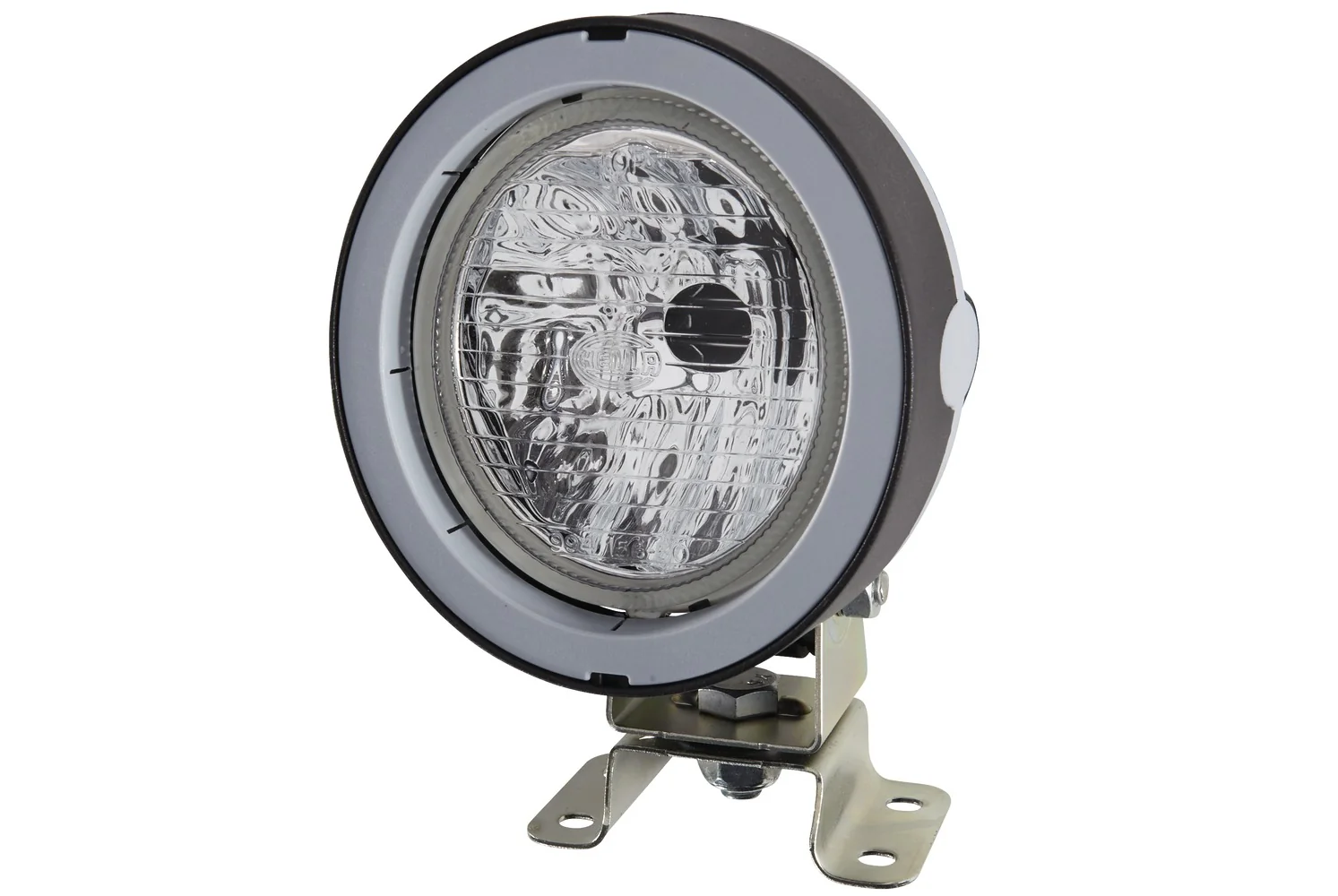

    HELLA - 1GM 996 134-061 - Halogen-Worklight, Mega Beam, 12/24V

    Hella

    €29.62

  • Hella

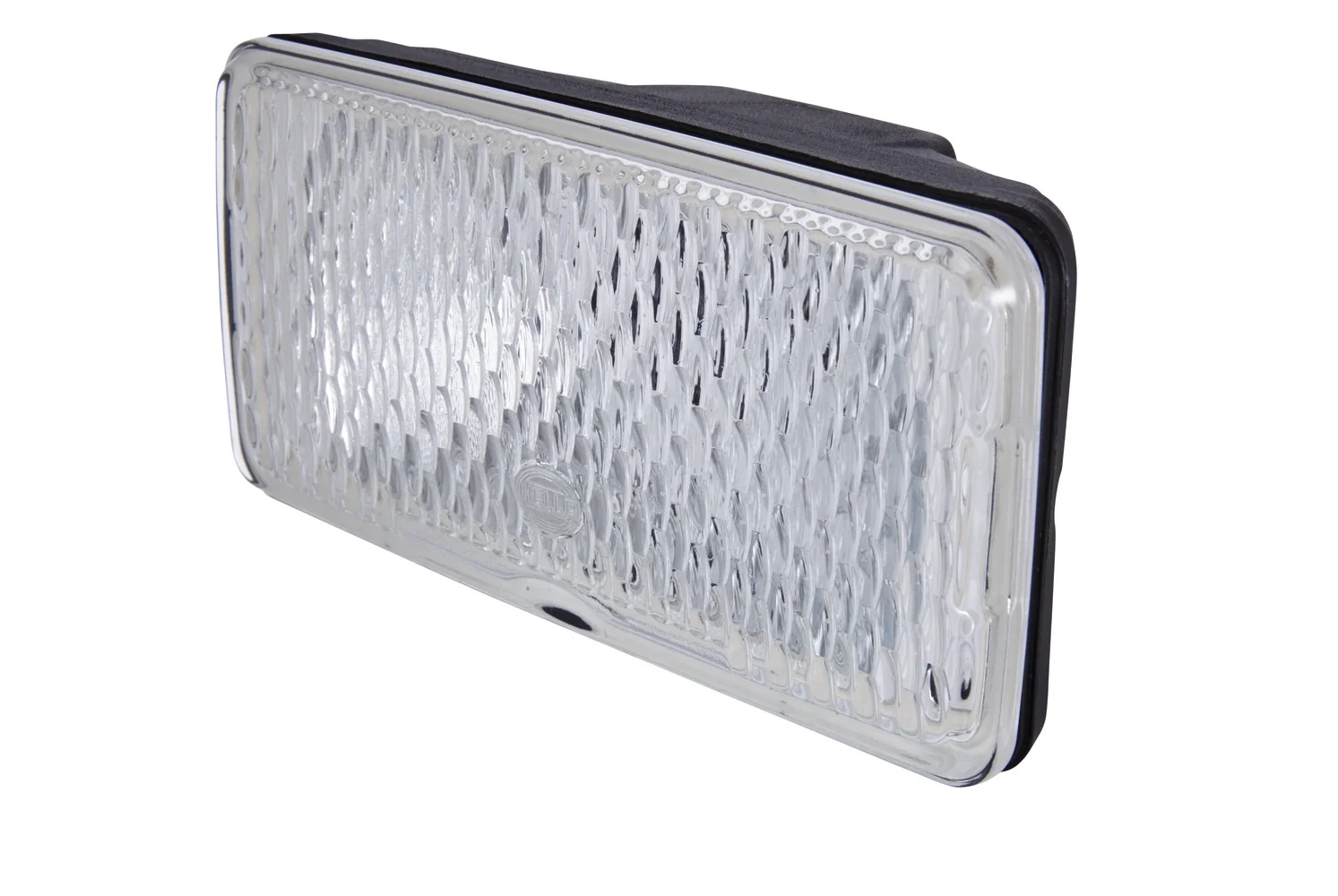

    HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V

    Hella

    €36.80

  • Hella

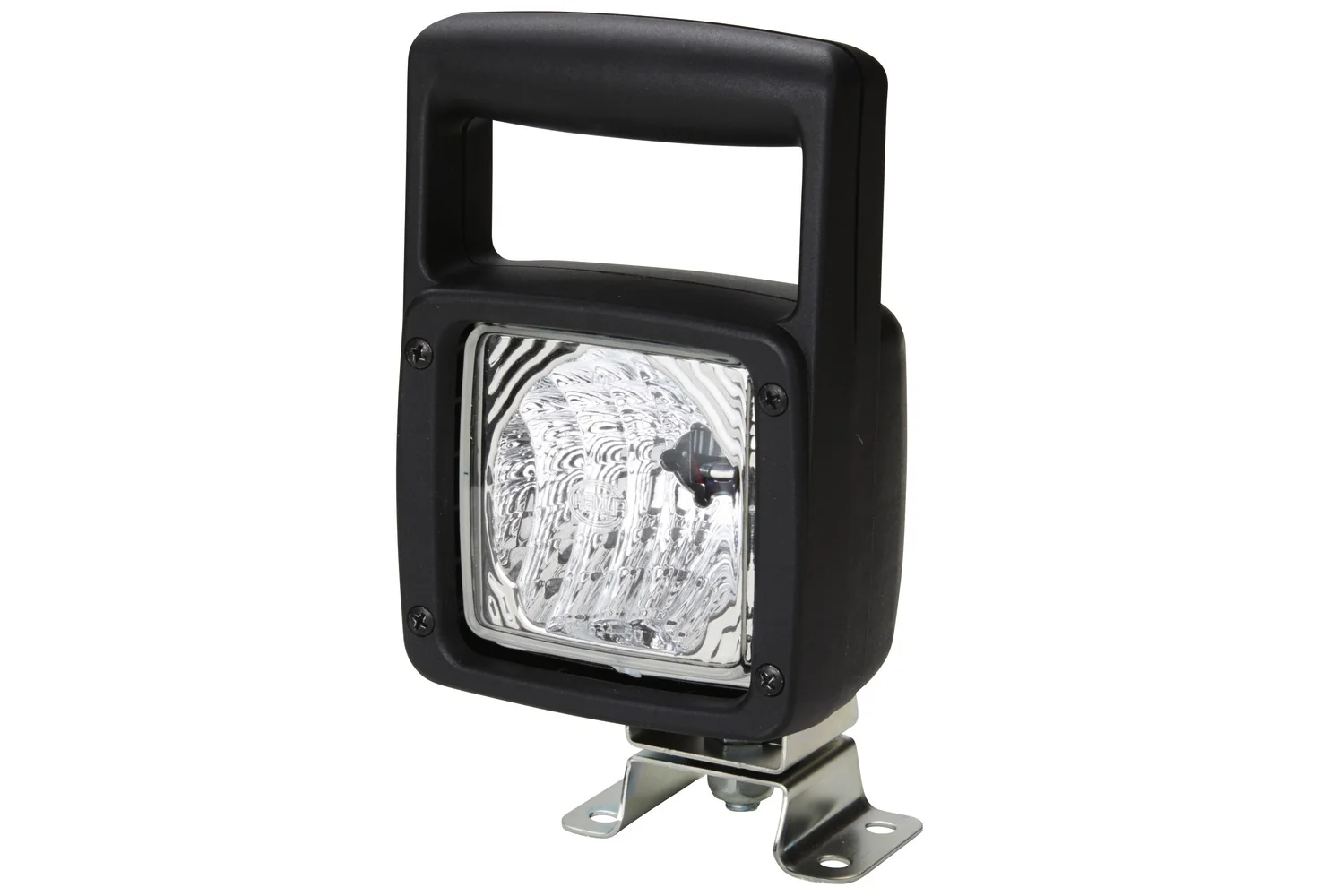

    HELLA - 1GA 997 506-631 - Halogen-Worklight, Ultra Beam, 24/12V

    Hella

    €57.34

  • Hella

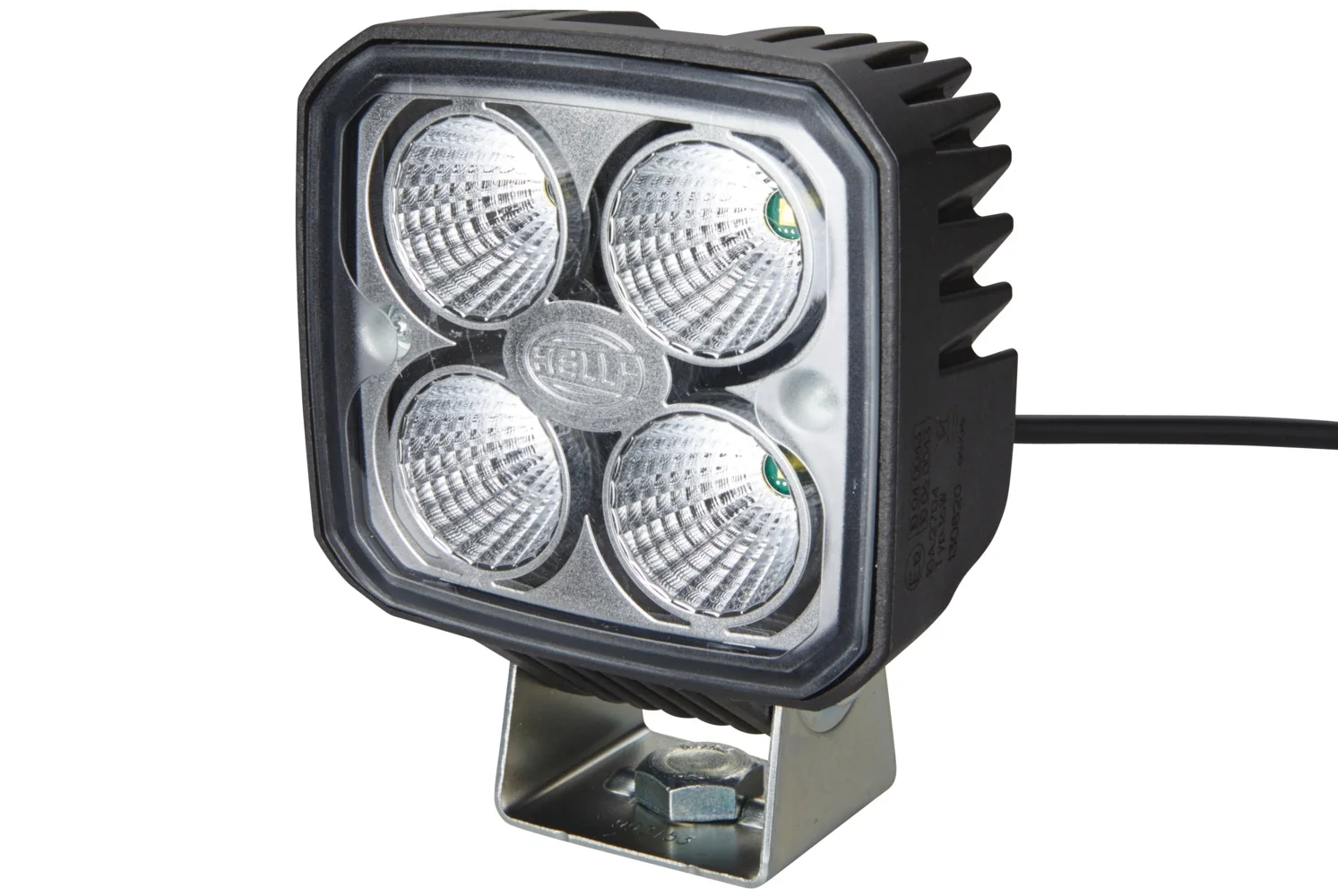

    HELLA - 1GA 996 284-012 - LED-Worklight, Q90 compact, 12/24V

    Hella

    €57.29

  • Hella

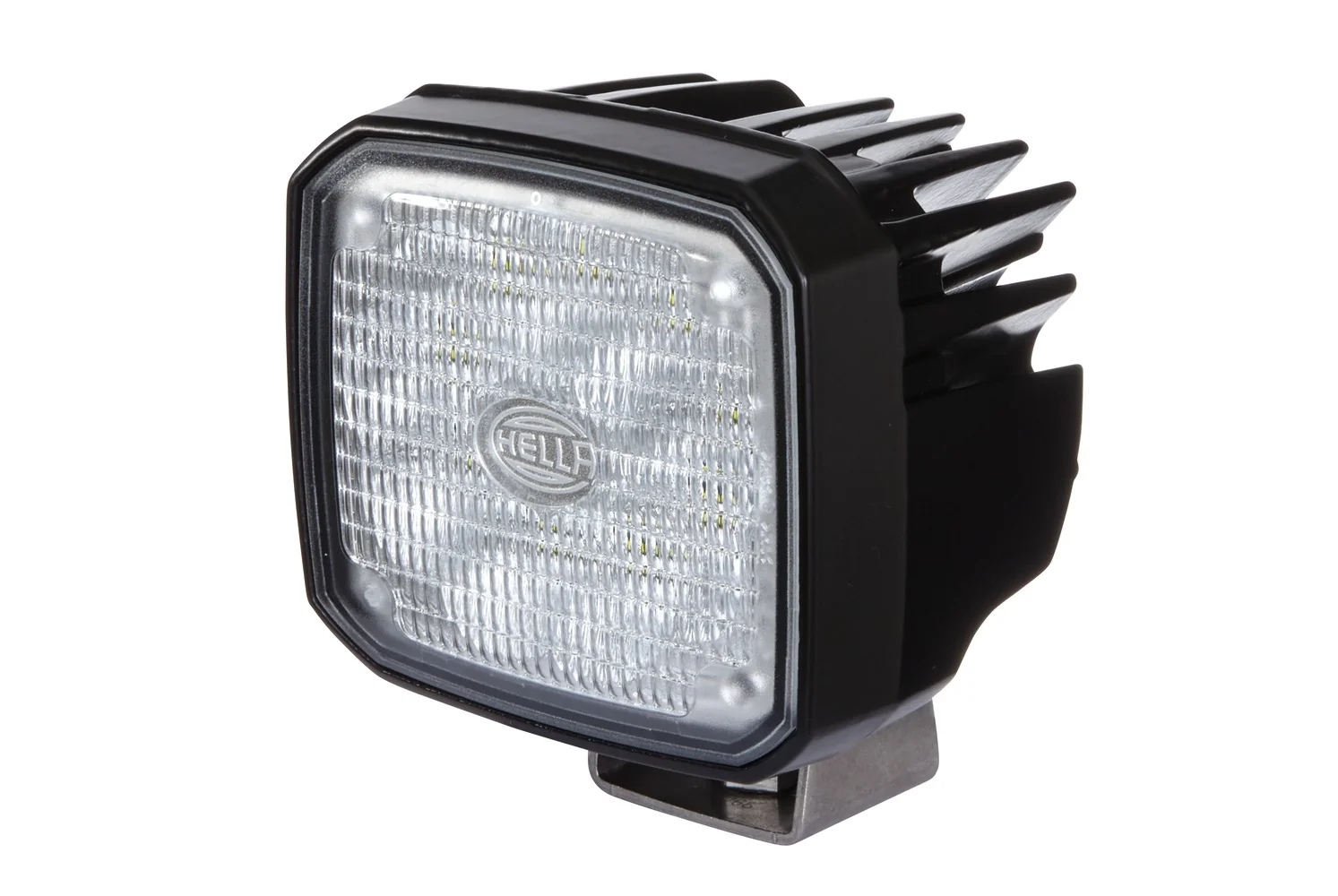

    HELLA - 1GA 995 506-002 - LED-Worklight, Ultra Beam, 12/24V

    Hella

    €135.35

  • Hella

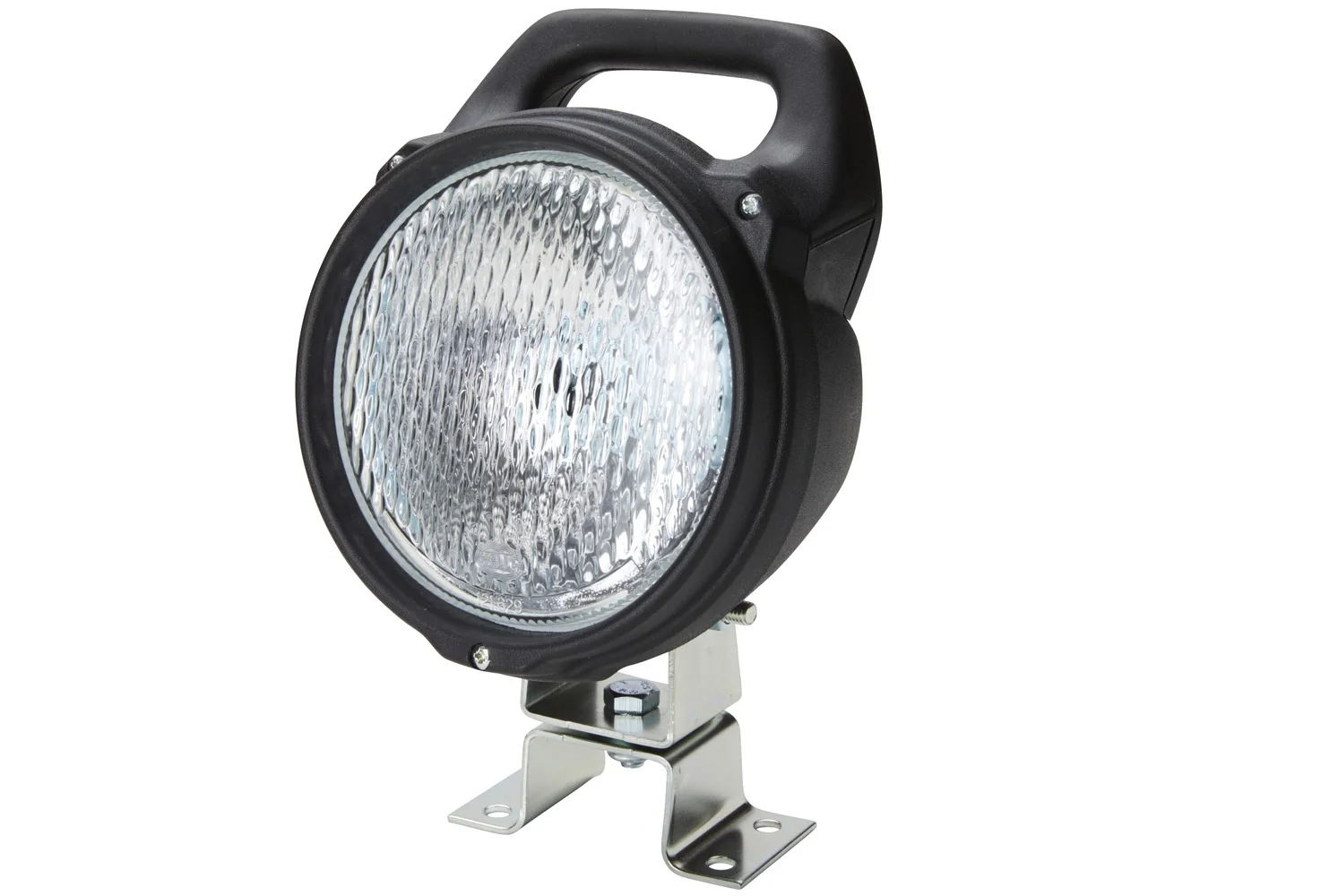

    HELLA - 1G4 003 470-001 - Halogen-Worklight, Matador, 12/24V

    Hella

    €37.70

  • Hella

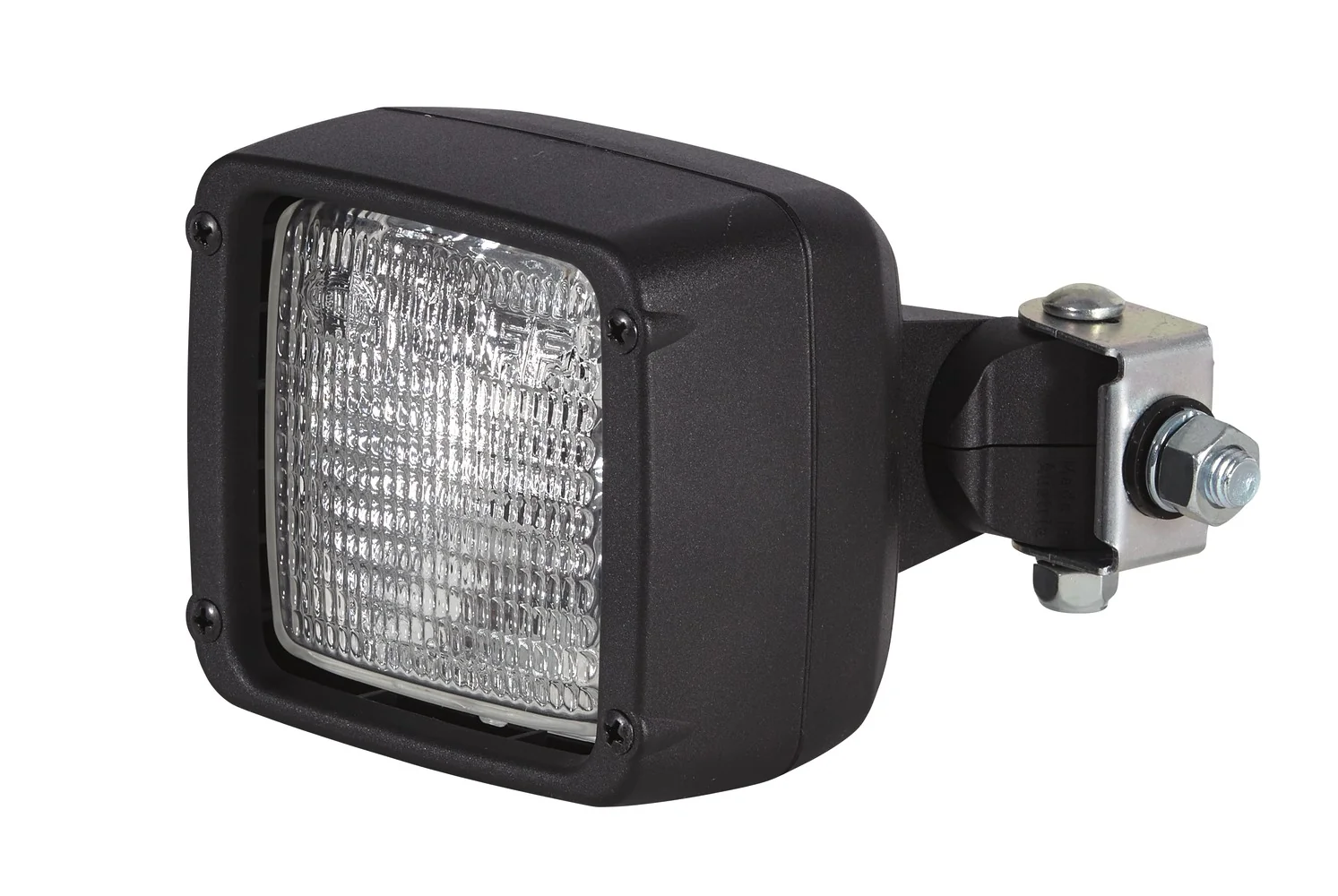

    HELLA - 1GA 996 083-001 - Halogen-Worklight, Ultra Beam, 24/12V

    Hella

    €26.85

  • Hella

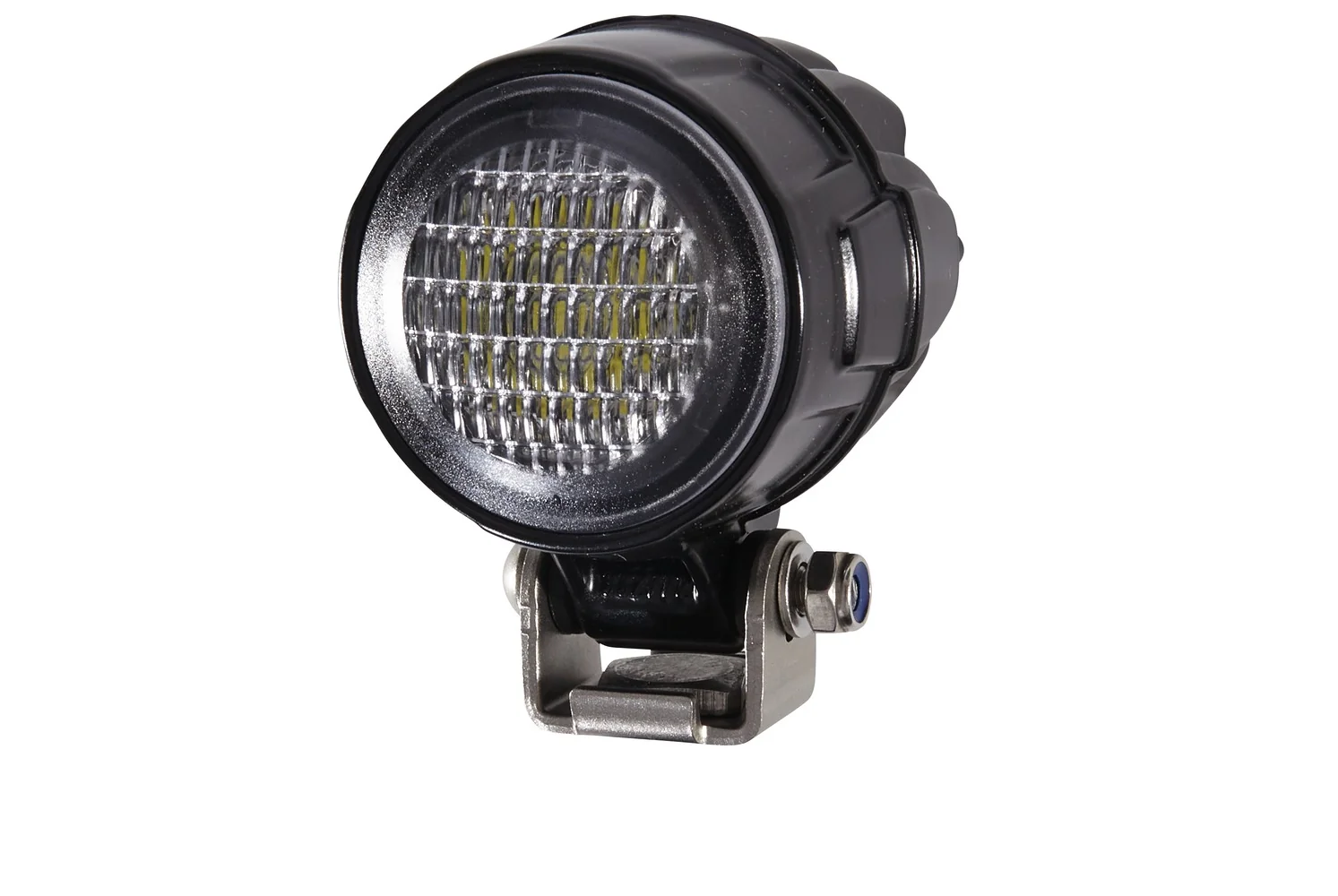

    HELLA - 1G0 995 050-011 - LED-Worklight, Modul 50, 12/24/36/48V
