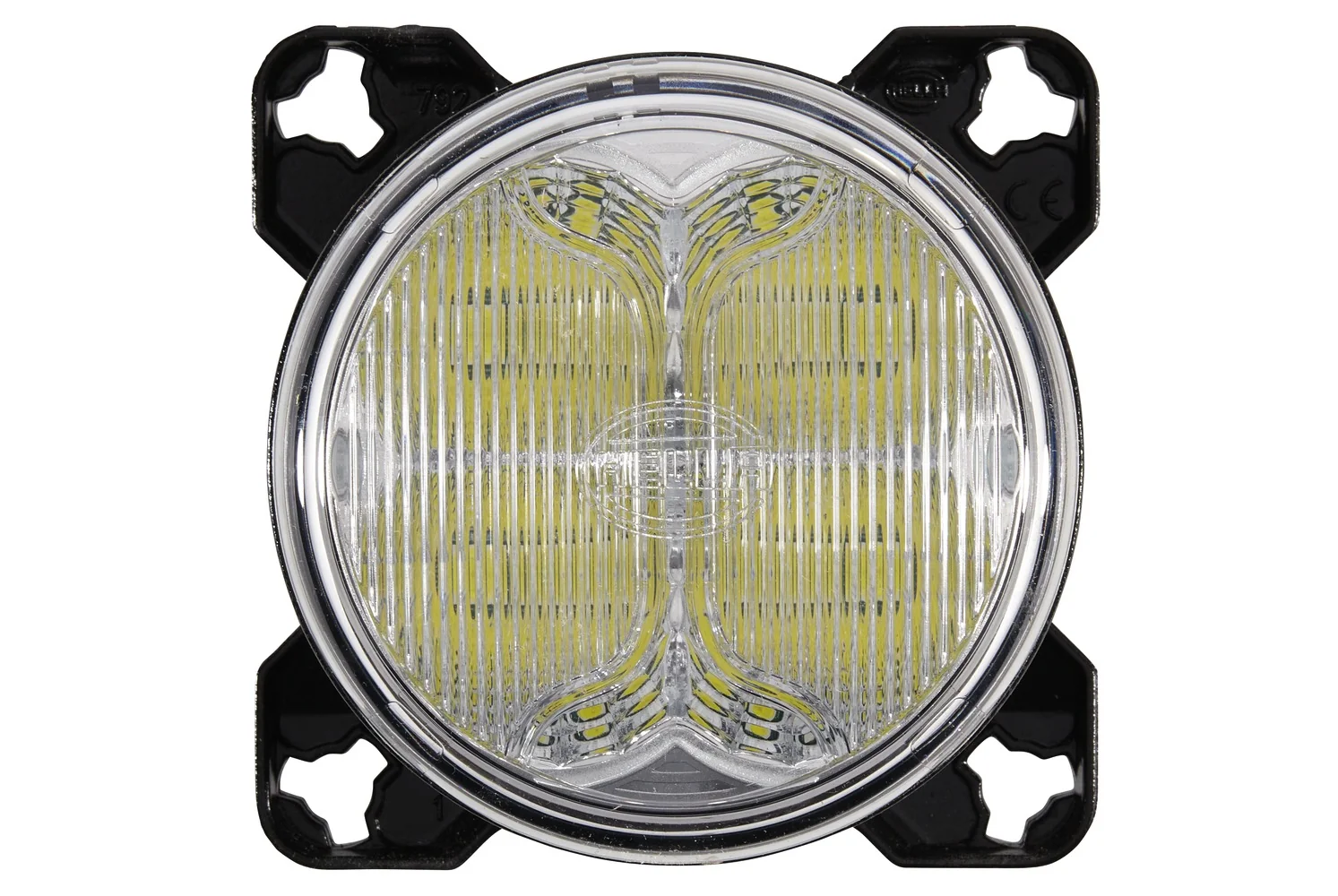

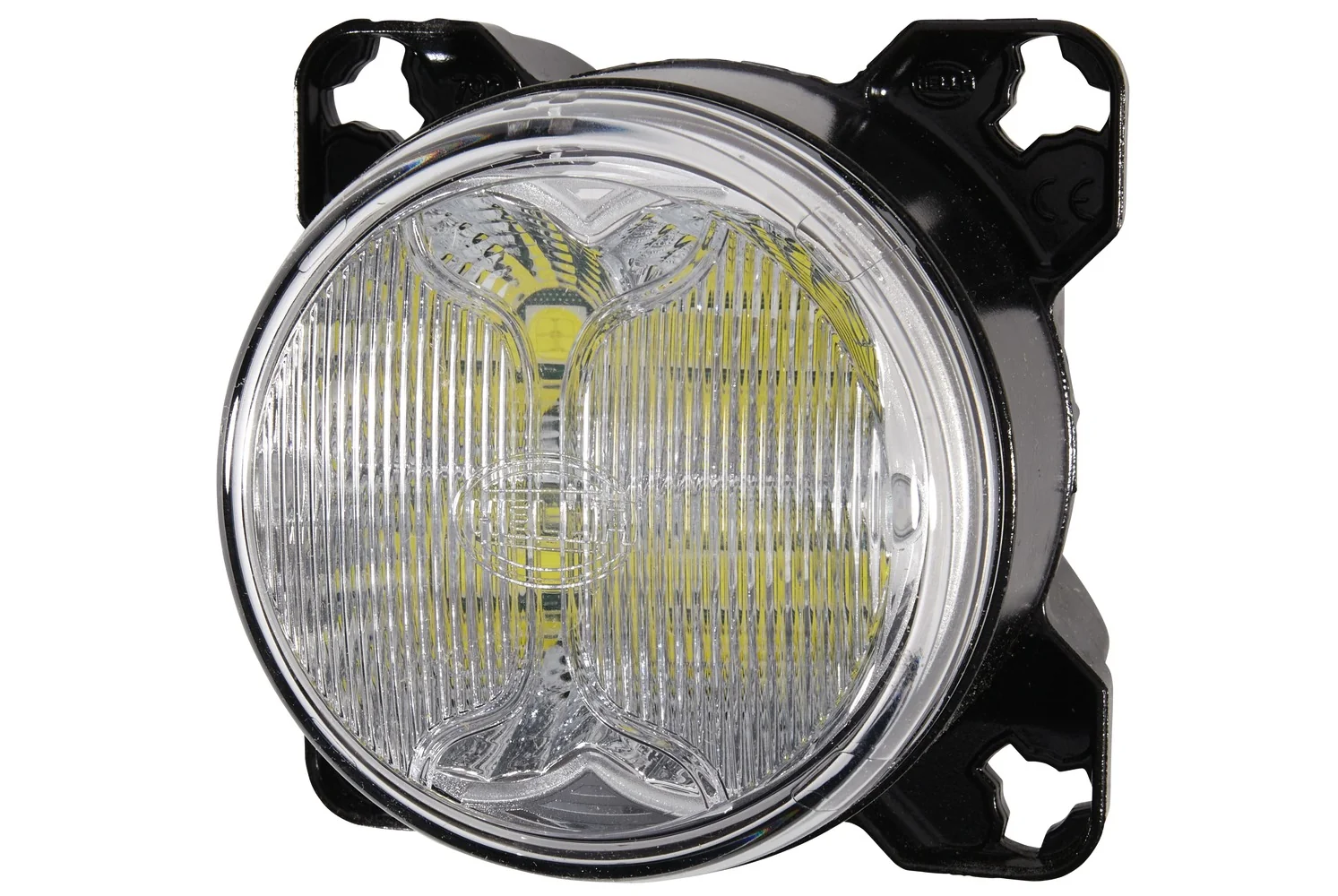

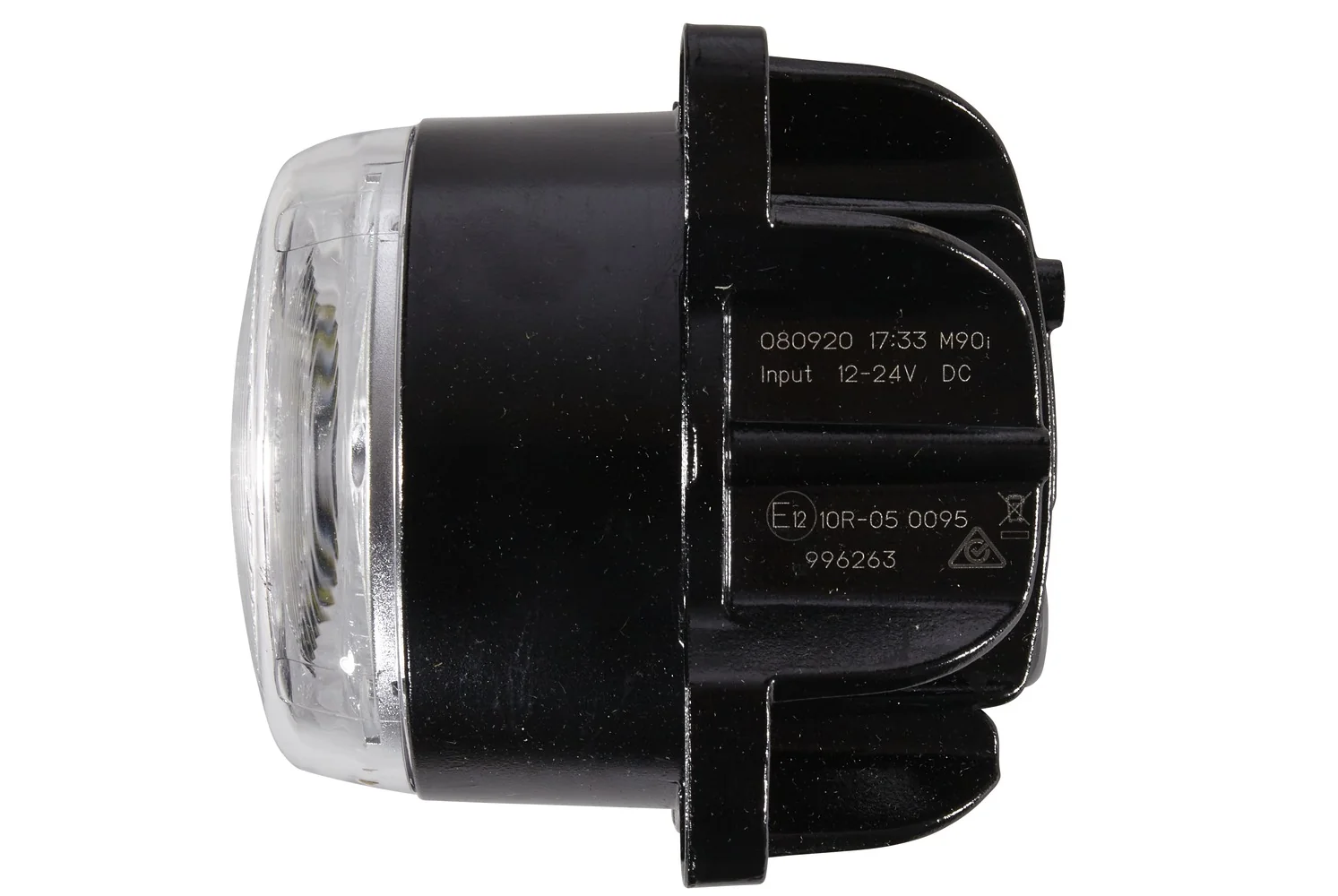

HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V
HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V
HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V
HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V
HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V
HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V

HELLA - 1G0 996 263-501 - LED-Worklight, Modul 90i, 12/24V

€161.36

(Excl. VAT)

Price

(Excl. VAT)

€161.36

Product Description

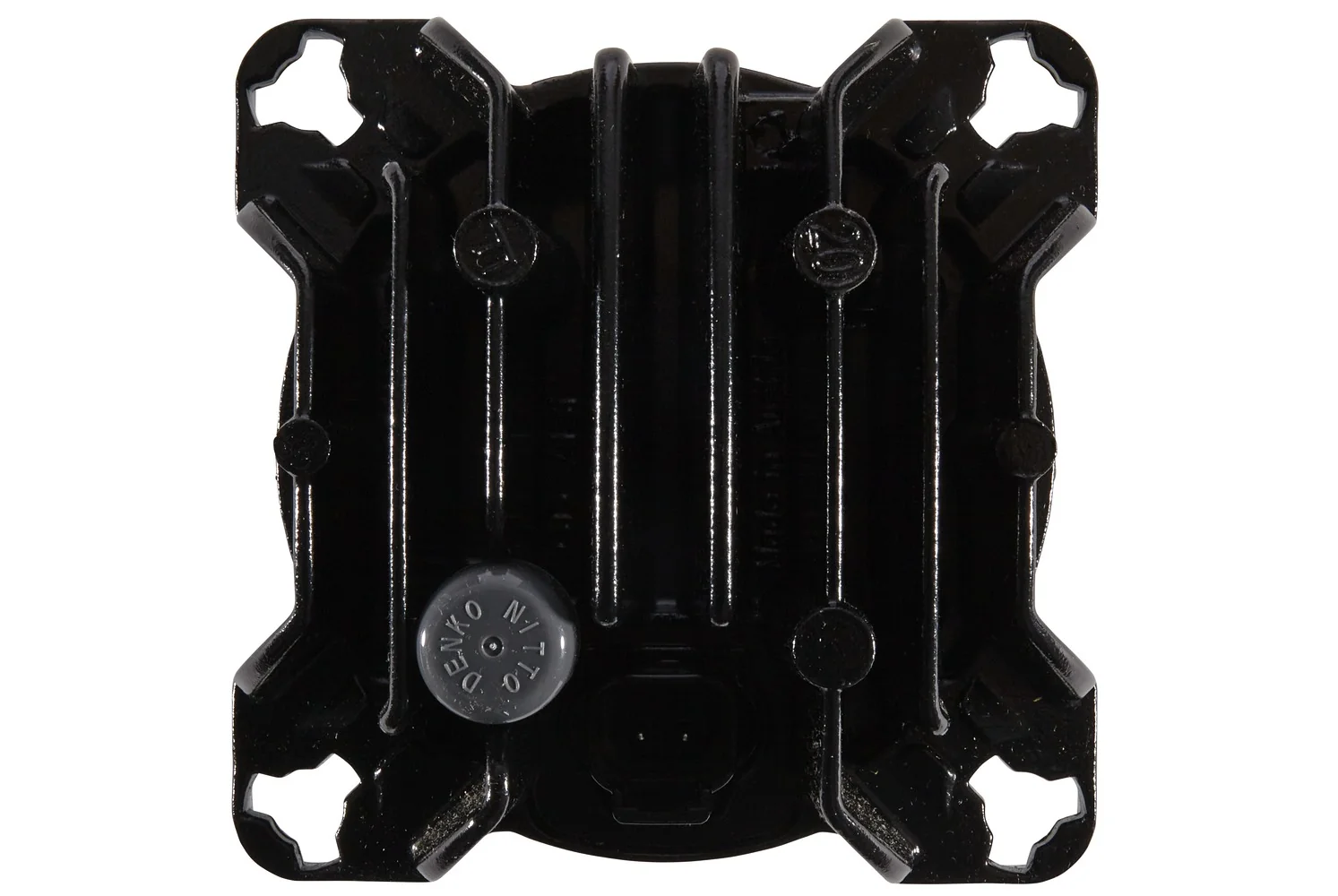

The Modul 90i LED is a compact recessed worklight with powerful light output. The installation housing was dimensioned to add an LED worklight to HELLA's existing 90 module series. The black aluminium housing has cooling fins that provide the necessary heat dissipation for the four high-performance multi-chip LEDs. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. Thanks to its powerful light output of 3,800 lumens, the Modul 90i LED can replace xenon worklights - with a power consumption of only 36 watts. This makes the worklight ideal for use on battery-operated vehicles and vehicles whose alternator is already heavily loaded. The light is distributed with a specially developed multi-facet reflector that ensures homogeneous illumination. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye. Thus preventing rapid eye fatigue when working at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

ACW0511960ACW051196AG842900110070H218PB2526010

Case ih

47855631

Holmer

1019055634

Kässbohrer

7.517.168.000.0

Liebherr

12211942

Versatile

86066077
Plug
DEUTSCH plug
SVHC
7439-92-1; Lead
Depth
108 mm
Width
103 mm
Height
103 mm
IP Code
IP6K7 / IP6K9K
Voltage
12 V / 24 V
Lamp Type
LED
ECE Standard
R10
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Mounting Type
Screw Connection / Fitting
Fastening Type
Four-point attachment
Housing Colour
Black
Number of LEDs
4
Power Consumption
42 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Diffusing Lens Material
Polyamid 12
Manufacturer
HELLA
