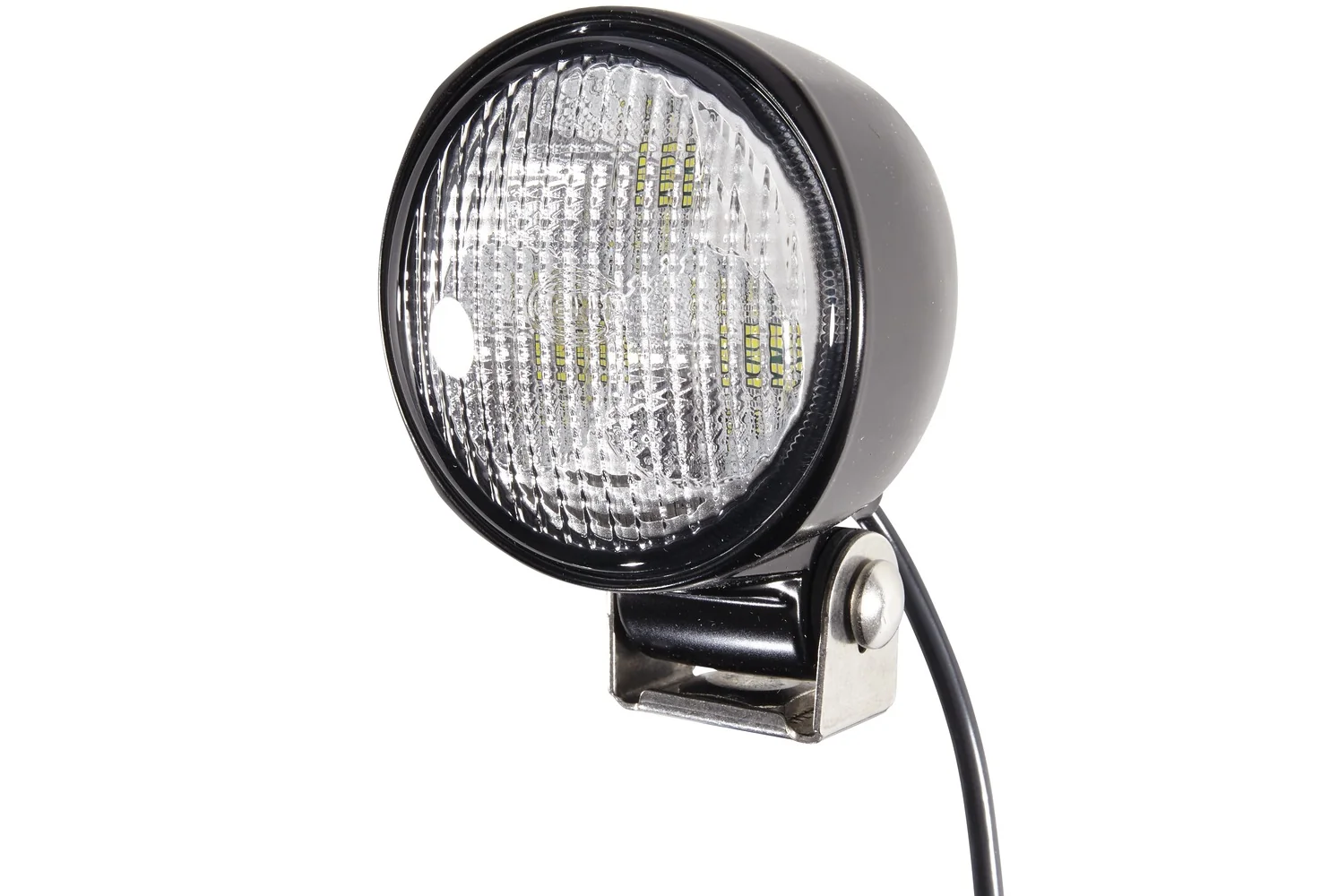

HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V
HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V
HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V
HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V
HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V
HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V

HELLA - 1G0 996 576-031 - LED-Worklight, Modul 70 Gen. 3.2, 24/12V

€77.00

(Excl. VAT)

Price

(Excl. VAT)

€77.00

Product Description

With the Module 70 LED Generation 3.2, HELLA brings a light upgrade of the established Module 70 LED Generation 3. Equipped with 3 high-power multichip LEDs, the module produces 70 LED Generation 3.2 now 1,800 measured lumens with an energy consumption of only 20 watts. (Comparison: Generation 3 only produced 800 lumens). The worklight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. In addition to the standard cable version, the compact Module 70 LED Generation 3.2 also comes with an integrated DEUTSCH plug for the first time. The electronics of the worklight are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. Despite its compact design, this is a very robust worklight for numerous applications. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making it much easier for the human eye to perceive the senses and preventing fatigue. The Module 70 LED Generation 3.2 is also available as a reversing spotlight.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Claas

2668954026689550
Fits

Claas

Axion 850 (01.01.2020 >)Arion 630 (01.01.2017 - 01.01.2020)Axion 920 (01.01.2020 >)Arion 530 (01.01.2020 >)Axion 920 (01.01.2018 - 01.01.2020)Arion 530 (01.01.2018 - 01.01.2020)Arion 610 (01.01.2007 - 01.01.2013)Axion 810 (01.01.2020 >)Axion 950 (01.01.2020 >)Arion 630 (01.01.2007 - 01.01.2013)Arion 520 (01.01.2007 - 01.01.2011)Axion 800 (01.01.2017 - 01.01.2020)Arion 630 (01.01.2018 - 01.01.2020)Axion 820 (01.01.2007 - 01.01.2013)Axion 840 (01.01.2007 - 01.01.2013)Arion 640 (01.01.2007 - 01.01.2012)Arion 510 (01.01.2007 - 01.01.2011)Axion 960 (01.01.2020 >)Arion 550 (01.01.2014 - 01.01.2017)Arion 530 (01.01.2007 - 01.01.2011)Axion 880 (01.01.2018 >)Axion 860 (01.01.2018 >)Arion 540 (01.01.2007 - 01.01.2013)Axion 940 (01.01.2011 - 01.01.2017)Axion 850 (01.01.2007 - 01.01.2011)Axion 830 (01.01.2014 - 01.01.2020)Arion 520 (01.01.2007 - 01.01.2013)Arion 620 (01.01.2007 - 01.01.2012)Arion 610 (01.01.2011 - 01.01.2012)Arion 620 (01.01.2011 - 01.01.2017)Arion 650 (01.01.2019 >)Axion 830 (01.01.2017 - 01.01.2020)Arion 550 (01.01.2018 - 01.01.2020)Arion 510 (01.01.2020 >)Arion 630 (01.01.2019 >)Axion 940 (01.01.2018 - 01.01.2020)Arion 610 (01.01.2019 >)Axion 830 (01.01.2020 >)Arion 530 (01.01.2007 - 01.01.2013)Axion 870 (01.01.2020 >)Arion 610 (01.01.2007 - 01.01.2011)Arion 640 (01.01.2007 - 01.01.2011)Axion 810 (01.01.2011 - 01.01.2013)Axion 850 (01.01.2011 - 01.01.2013)Arion 550 (01.01.2020 >)Axion 800 (01.01.2020 >)Axion 850 (01.01.2007 - 01.01.2012)Arion 650 (01.01.2018 - 01.01.2020)Axion 930 (01.01.2020 >)Axion 940 (01.01.2020 >)Arion 510 (01.01.2018 - 01.01.2020)Arion 630 (01.01.2007 - 01.01.2012)Arion 540 (01.01.2011 - 01.01.2013)Arion 610 (01.01.2007 - 01.01.2012)Arion 630 (01.01.2007 - 01.01.2011)Axion 850 (01.01.2017 - 01.01.2020)Arion 650 (01.01.2017 - 01.01.2020)Arion 610 (01.01.2017 - 01.01.2020)Axion 850 (01.01.2014 - 01.01.2020)Arion 660 (01.01.2017 - 01.01.2020)Axion 810 (01.01.2017 - 01.01.2020)Axion 810 (01.01.2007 - 01.01.2013)Arion 660 (01.01.2019 >)Arion 640 (01.01.2014 - 01.01.2017)Axion 830 (01.01.2007 - 01.01.2010)Axion 840 (01.01.2018 - 01.01.2021)Arion 620 (01.01.2007 - 01.01.2009)Arion 650 (01.01.2013 - 01.01.2014)Arion 550 (01.01.2012 - 01.01.2017)Axion 820 (01.01.2011 - 01.01.2013)Arion 530 (01.01.2011 - 01.01.2017)Axion 850 (01.01.2013 - 01.01.2020)Arion 510 (01.01.2007 - 01.01.2013)Arion 530 (01.01.2014 - 01.01.2017)Axion 820 (01.01.2007 - 01.01.2011)Axion 960 (01.01.2017 - 01.01.2020)Arion 650 (01.01.2014 - 01.01.2017)Arion 620 (01.01.2007 - 01.01.2013)Arion 640 (01.01.2011 - 01.01.2017)Axion 810 (01.01.2013 - 01.01.2020)Arion 520 (01.01.2011 - 01.01.2013)Arion 630 (01.01.2011 - 01.01.2013)Axion 830 (01.01.2013 - 01.01.2020)Axion 950 (01.01.2011 - 01.01.2017)Arion 540 (01.01.2007 - 01.01.2011)Axion 810 (01.01.2007 - 01.01.2012)Arion 610 (01.01.2018 - 01.01.2020)Arion 620 (01.01.2014 - 01.01.2017)Axion 810 (01.01.2014 - 01.01.2020)Axion 820 (01.01.2007 - 01.01.2012)Axion 870 (01.01.2015 - 01.01.2020)Arion 510 (01.01.2011 - 01.01.2013)Axion 930 (01.01.2018 - 01.01.2020)Axion 950 (01.01.2018 - 01.01.2020)Axion 840 (01.01.2007 - 01.01.2012)Arion 650 (01.01.2012 - 01.01.2013)Axion 930 (01.01.2011 - 01.01.2017)Arion 650 (01.01.2015 - 01.01.2017)Axion 840 (01.01.2011 - 01.01.2013)Axion 840 (01.01.2007 - 01.01.2011)Axion 920 (01.01.2011 - 01.01.2017)Axion 810 (01.01.2007 - 01.01.2011)
Plug
Open cable ends
Cable
2000 mm
Depth
74 mm
Width
83 mm
Height
110 mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
1800 lm
Mounting Type
Bolted / mounting
Fastening Type
Swivelling Mounting Bracket
Housing Colour
Black
Number of LEDs
3
Power Consumption
20 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Fulfils ECE Standard
R10
Fulfils Test Standard
RCM
Protection Type (IP Code)
IP6K7 / IP6K9K
Manufacturer
HELLA
