HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V
HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V
HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V
HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V
HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V
HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V

HELLA - 1G4 003 470-011 - Halogen-Worklight, Matador, 24/12V

€34.93

(Excl. VAT)

Price

(Excl. VAT)

€34.93

Product Description

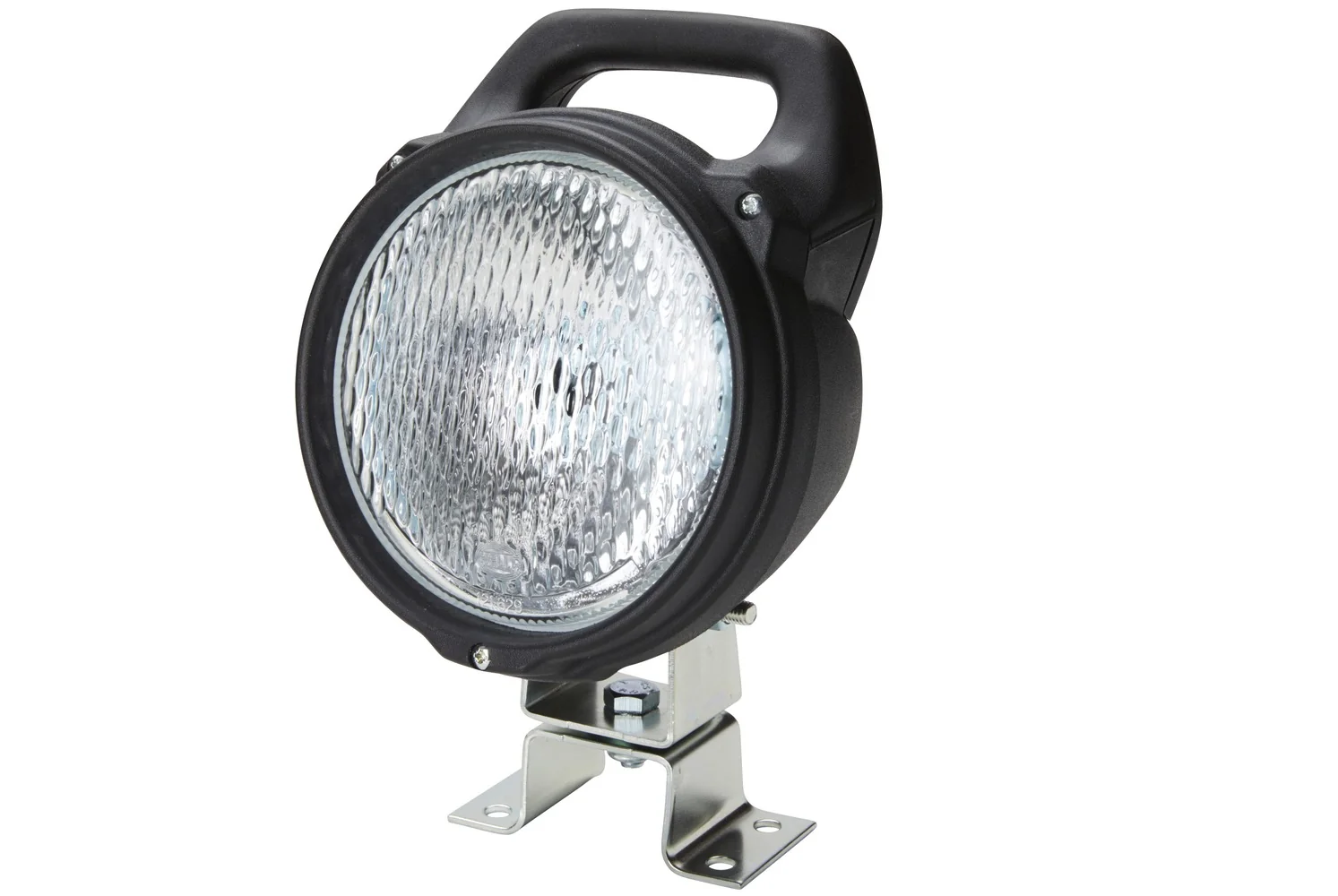

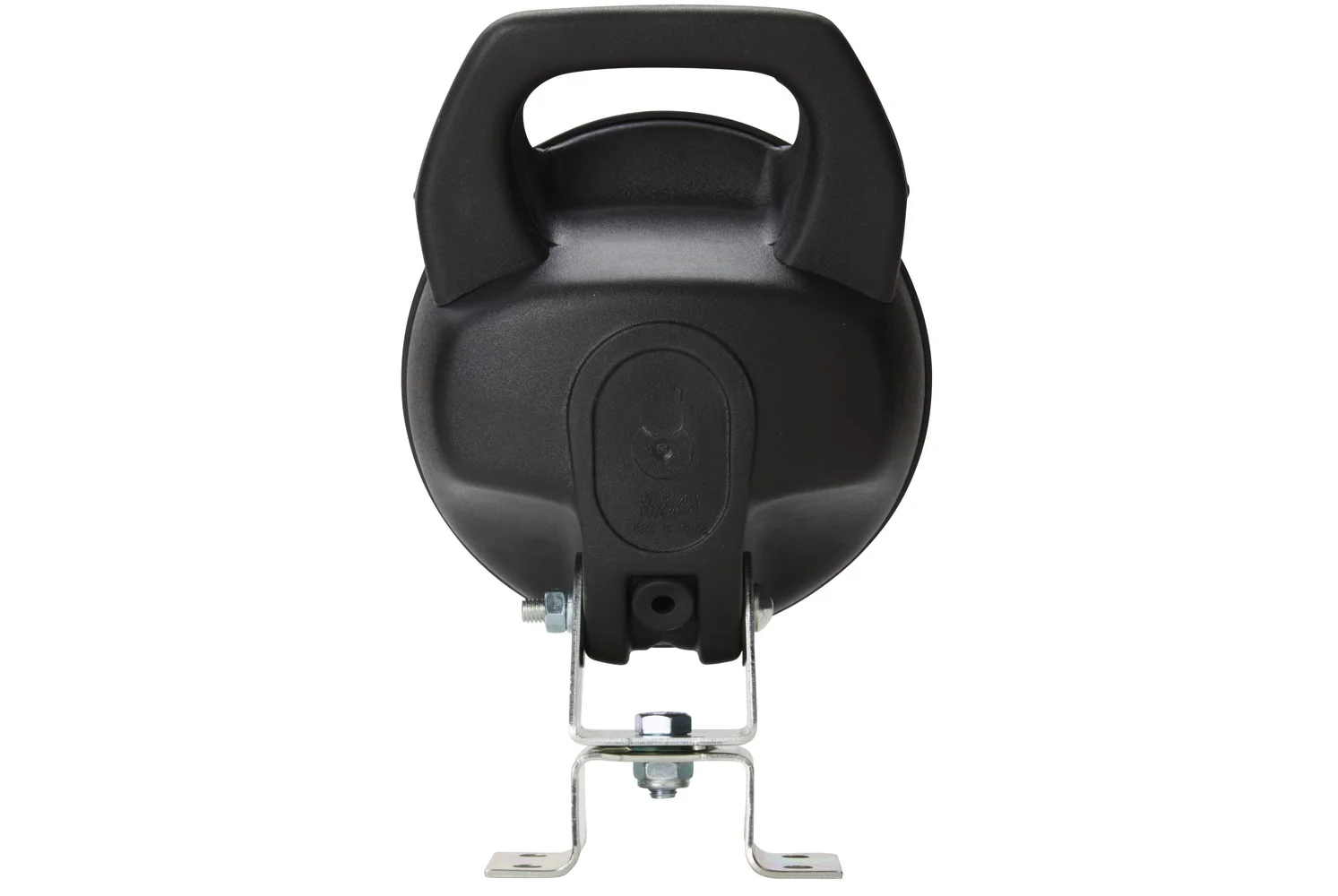

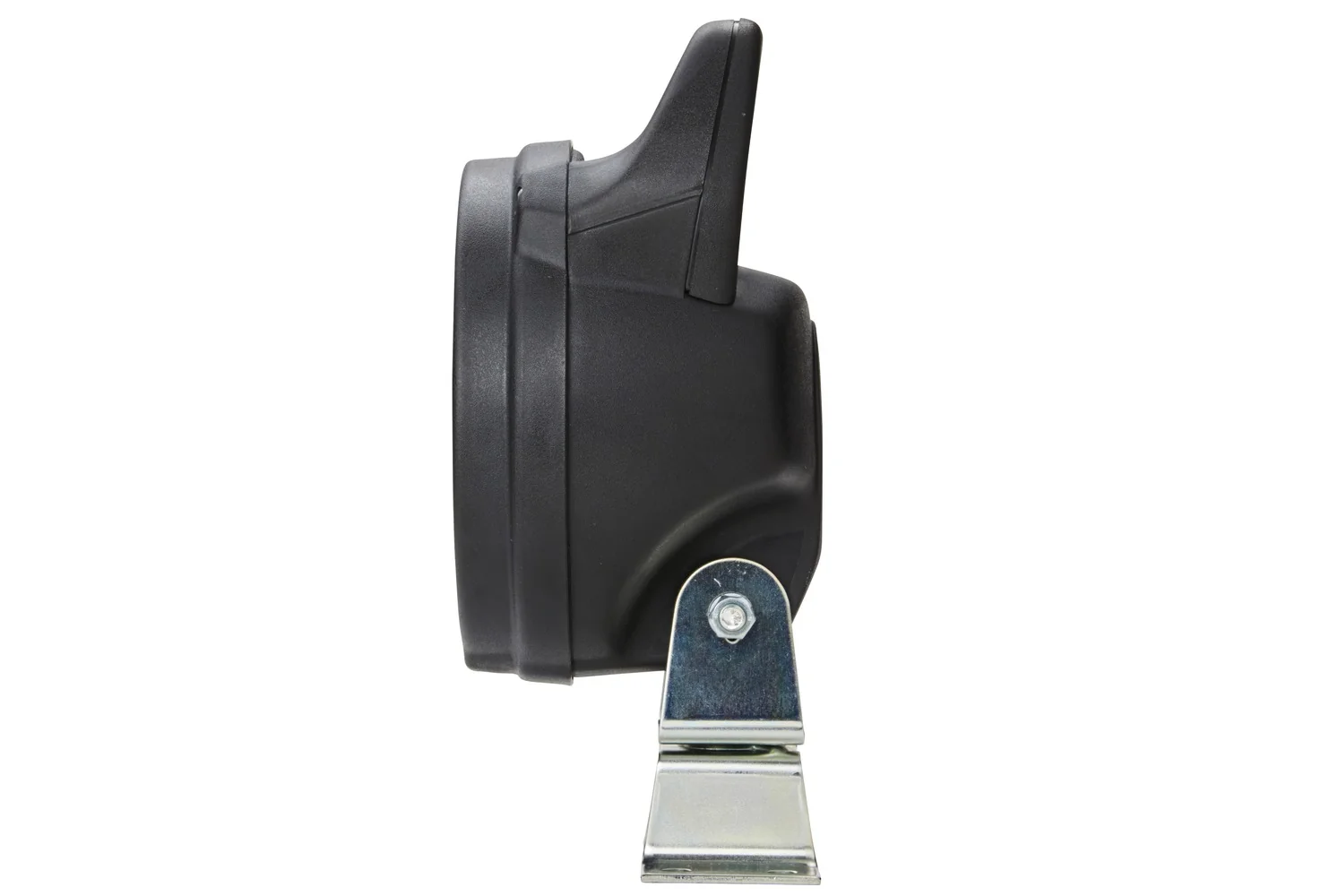

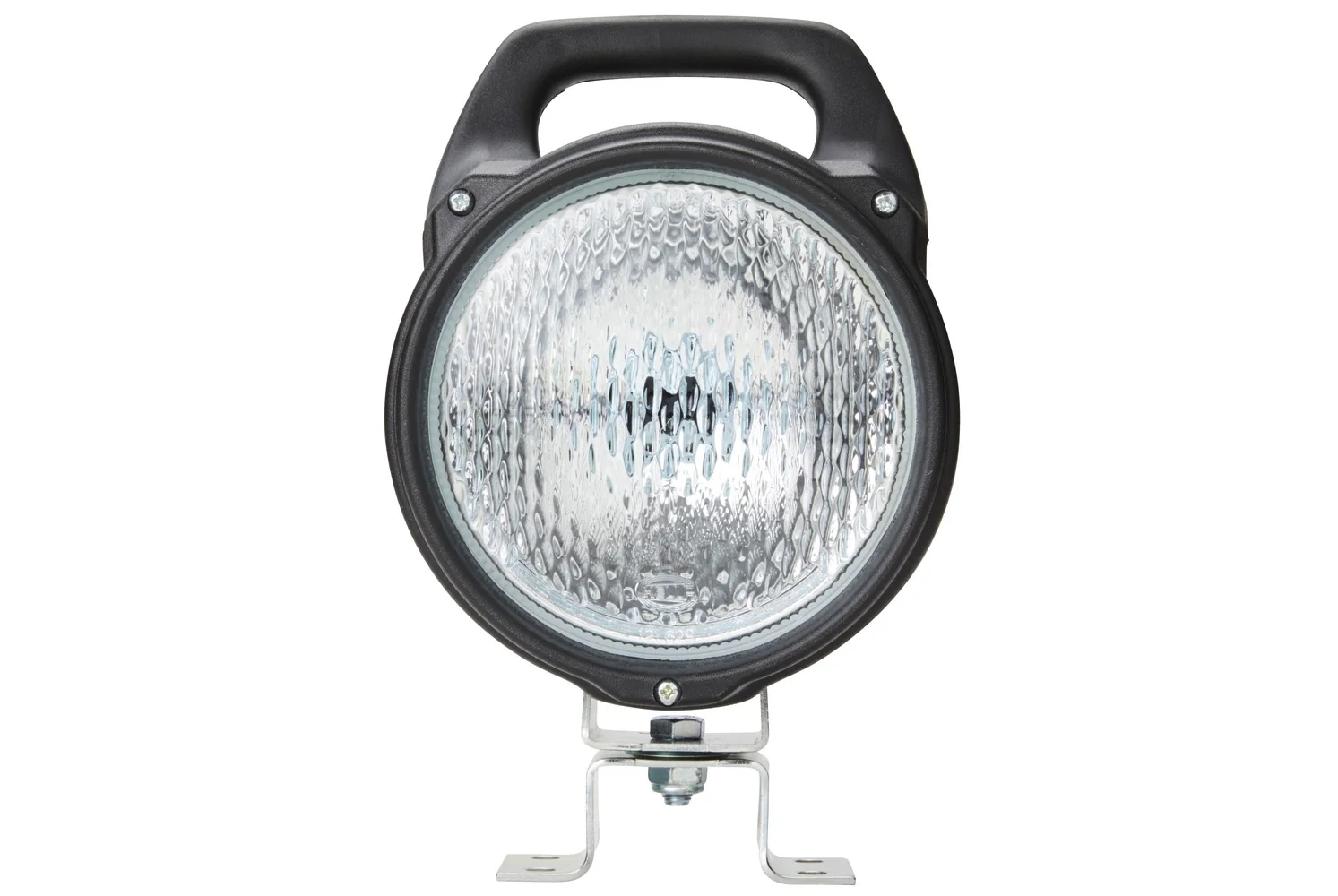

Together with the special honeycomb pattern in the diffusing lens, the parabolic reflector enables homogeneous illumination of the working field at close range. The light source is an H3 bulb (not included in all versions). The worklight can be used (depending on the bulb) with both 12V and 24V on-board voltage. The black housing of this robust worklight is made of glass-fibre reinforced plastic. To protect the diffusing lens, the housing is provided with a protruding rim at its front. The handle, together with the swivel foot, simplifies the adjustment of the work lights so that the working area can be optimally illuminated. The bracket enables a stable four-point attachment of the worklight. The cable entry is sealed by a grommet. Depending on the version, the Matador offers additional advantages such as rotary switches (for versions -001 and -031) or protective grids (for versions -031 and -051). Article 1G4 003 470-141 is only suitable for vertical mounting, as the power connection is made via an easily detachable pipe socket that fits onto push-on tubes (Ø 24 mm) for beacons.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agrifac

7788705

Ahlmann

18291784195269A

Bucher

7655-3321

Daf

841981

Mafi

000,580,0033

Manitou

4195269A

Scania

1906625

Steyr

34-172-010

Valmet

586340

Ziegler

407201
Plug
Open cable ends
Depth
116 mm
Width
168 mm
Height
263 mm
Voltage
24 V / 12 V
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly by qualified personnel required
Mounting Type
Mounting / Screw Connection
Fastening Type
Four-point attachment
Housing Colour
Black
Power Consumption
70 W / 35 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Supplementary Article
Without bulbs / without switch
Diffusing Lens Material
Glass
Protection Type IP Code
IP5K4K
Manufacturer
HELLA
