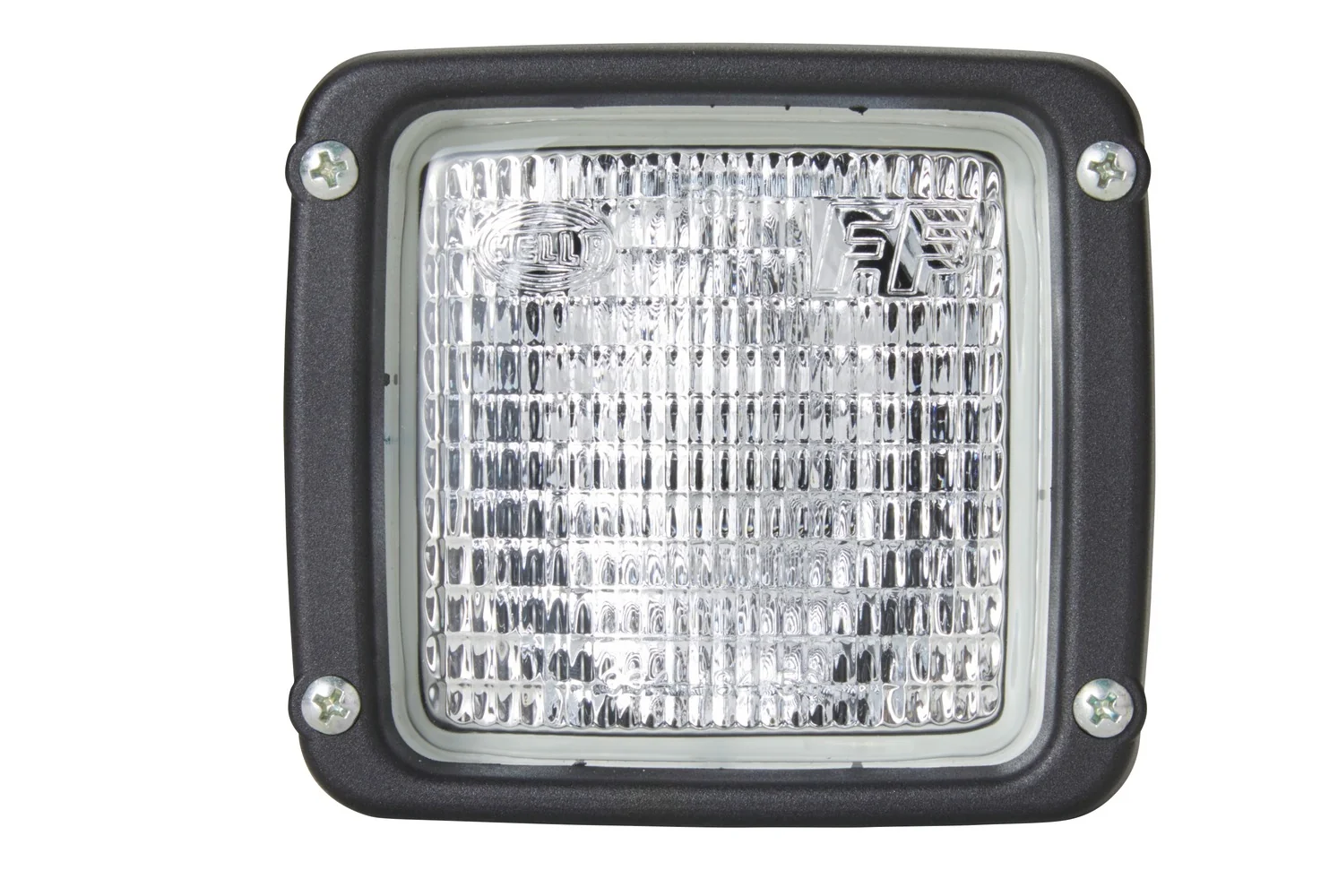

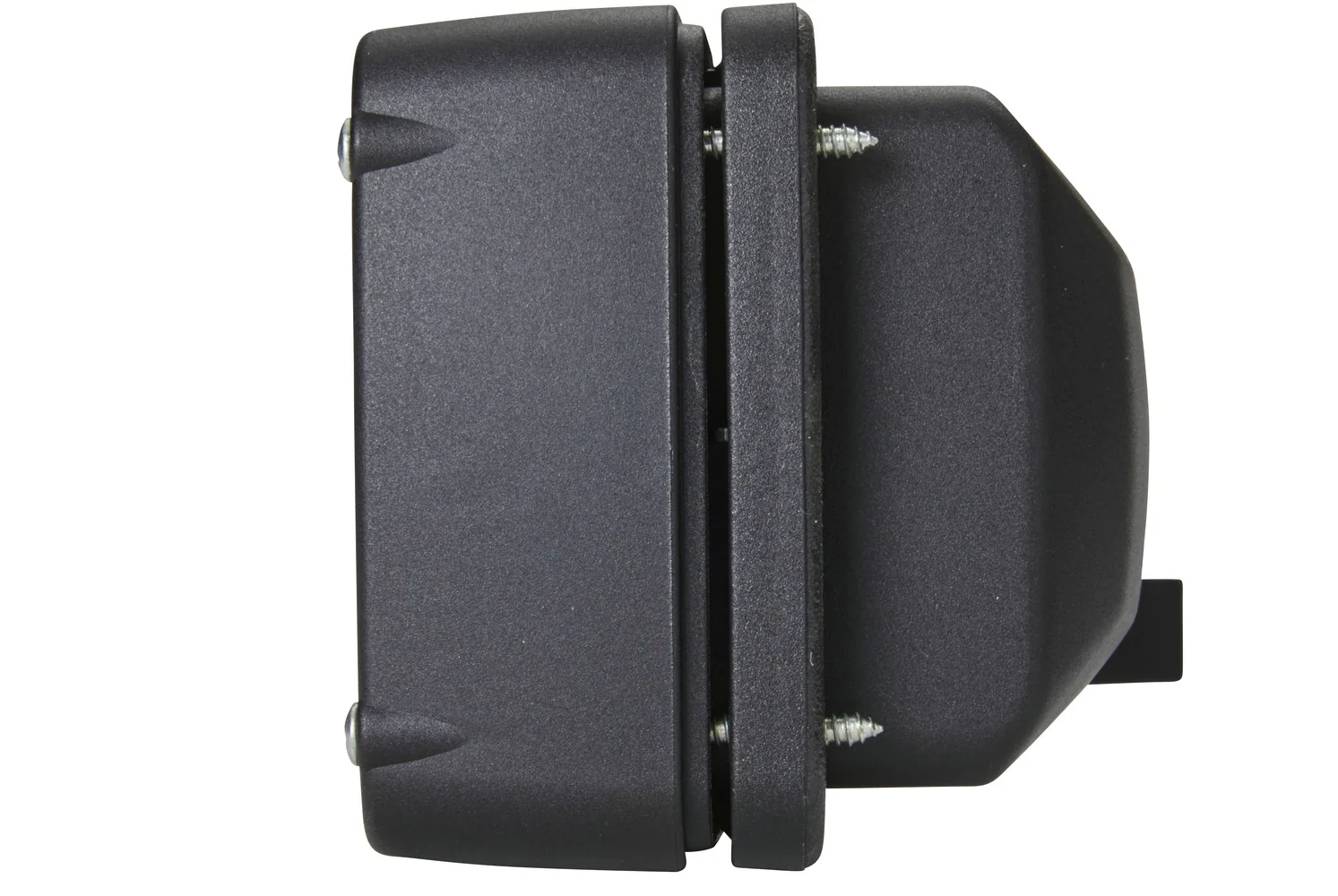

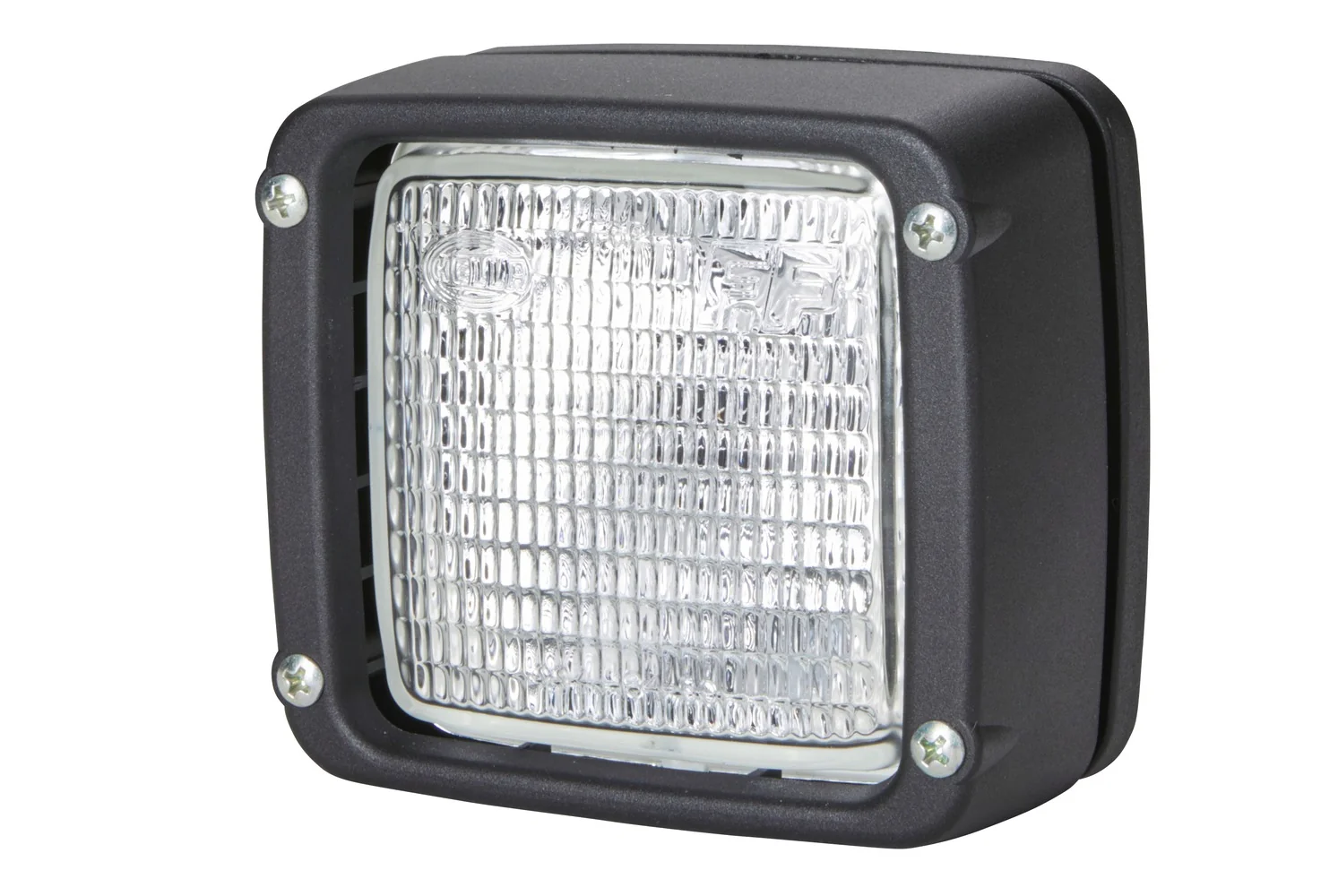

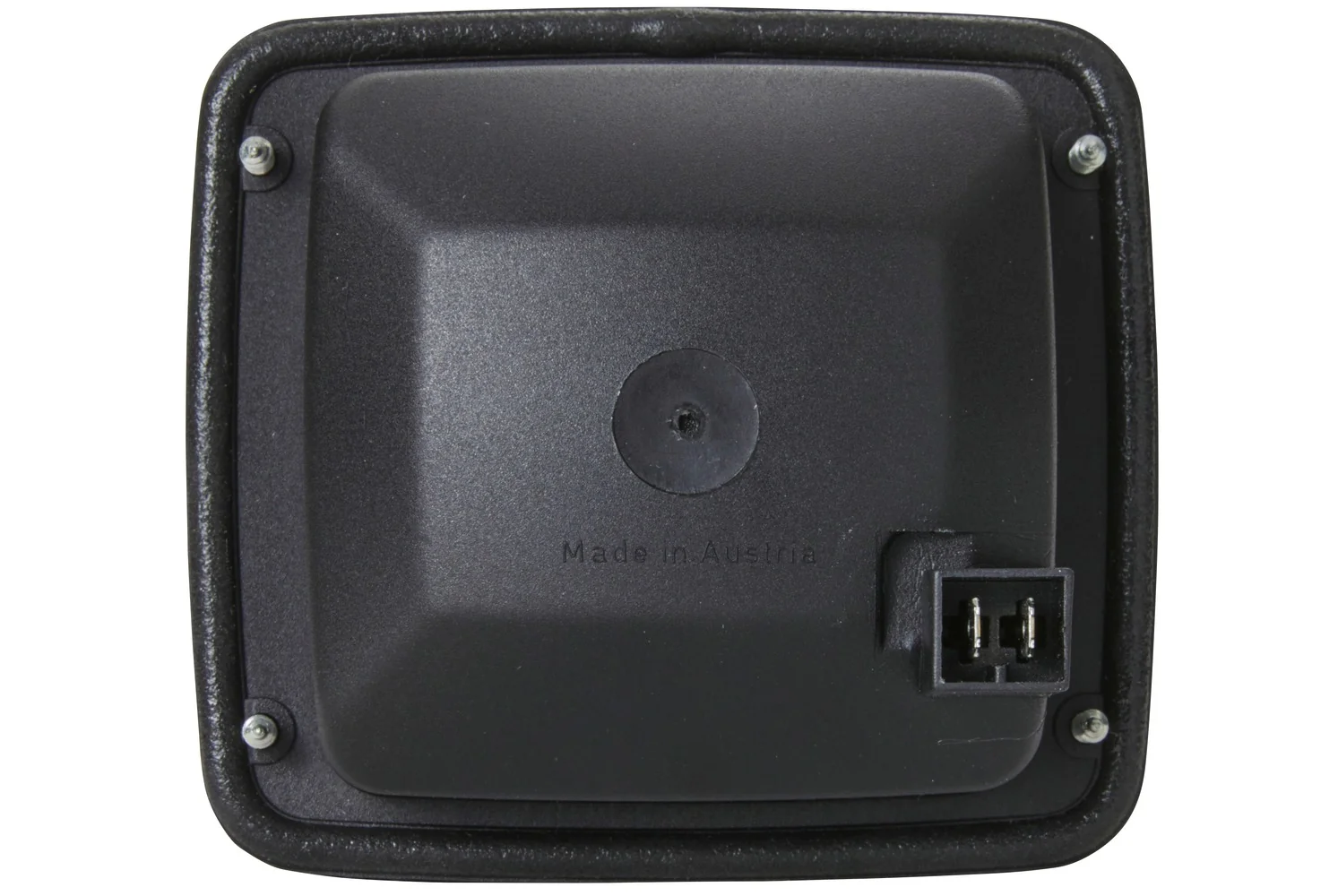

HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V
HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V
HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V
HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V
HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V
HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping on orders over €60

Pay Securely with

HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V

HELLA - 1GA 007 506-431 - Halogen-Worklight, Ultra Beam, 24V

€27.18

(Excl. VAT)

Price

(Excl. VAT)

€27.18

Product Description

The Ultra Beam is a compact and robust halogen worklight. The aluminium reflector of the worklight is based on free-form technology, which makes it possible to illuminate the working area in a very targeted manner. Despite its compact dimensions, the reflector provides excellent light output. The black lamp housing of this robust worklight is made of glass-fibre reinforced plastic, which is acid-resistant and corrosion-resistant. The housing has a protruding rim to protect the diffusing lens. Due to its compact dimensions, the worklight can be used universally.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Claas

02188950

Daf

906487

Faun

99707016499

Liebherr

21008039732200

Mafi

0005800054

Rosenbauer

569977

Still

634743

Terex

02184112

Van hool

11054418

Vdl

11054418
Plug
AMP
Depth
94 mm
Width
112 mm
Height
102 mm
Voltage
24 V
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly by qualified personnel required
Mounting Type
Fitting / Screw Connection
Fastening Type
Four-point attachment
Housing Colour
Black
Power Consumption
70 W / 55 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Diffusing Lens Material
Glass
Protection Type IP Code
IP6K9K
Manufacturer
HELLA
