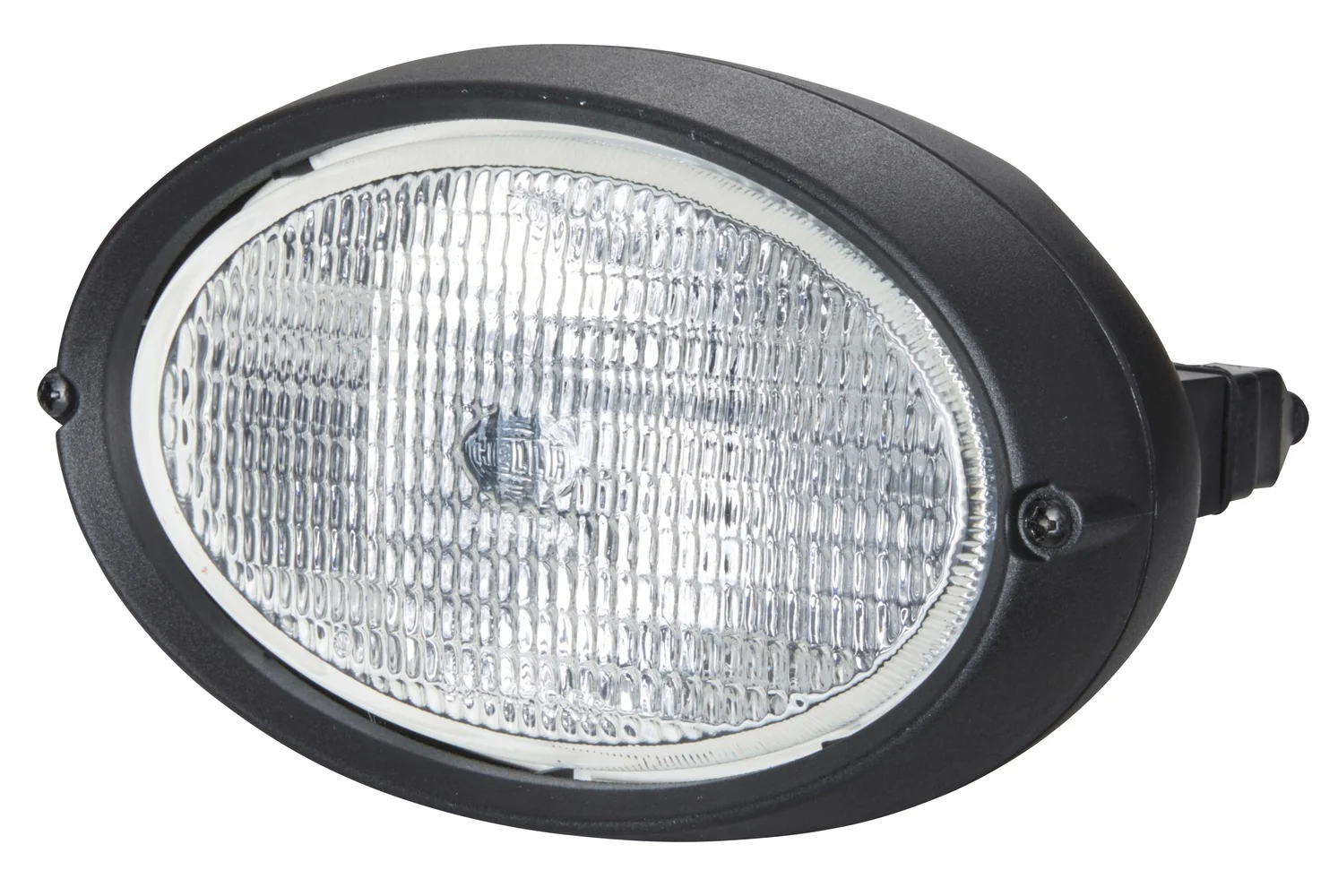

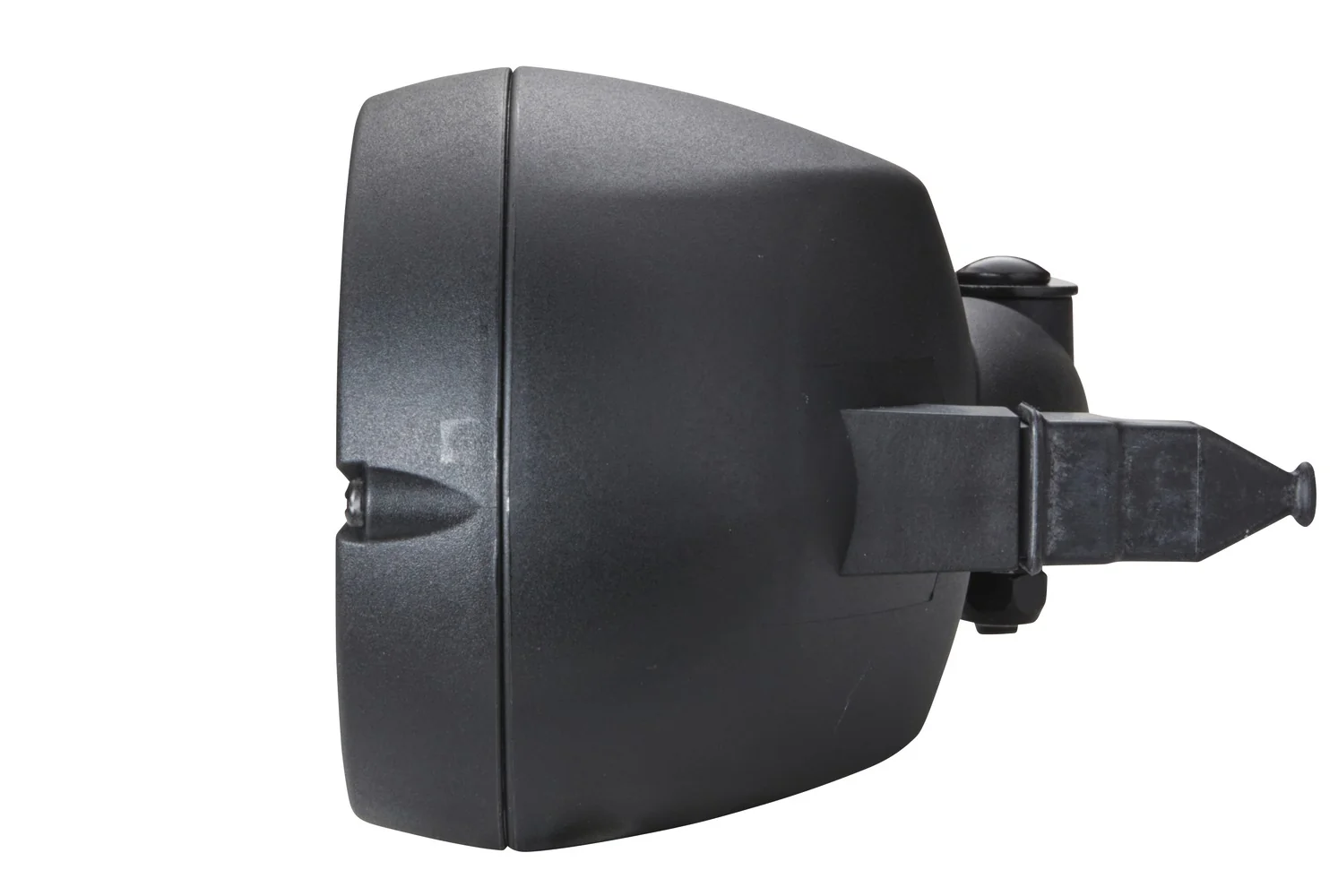

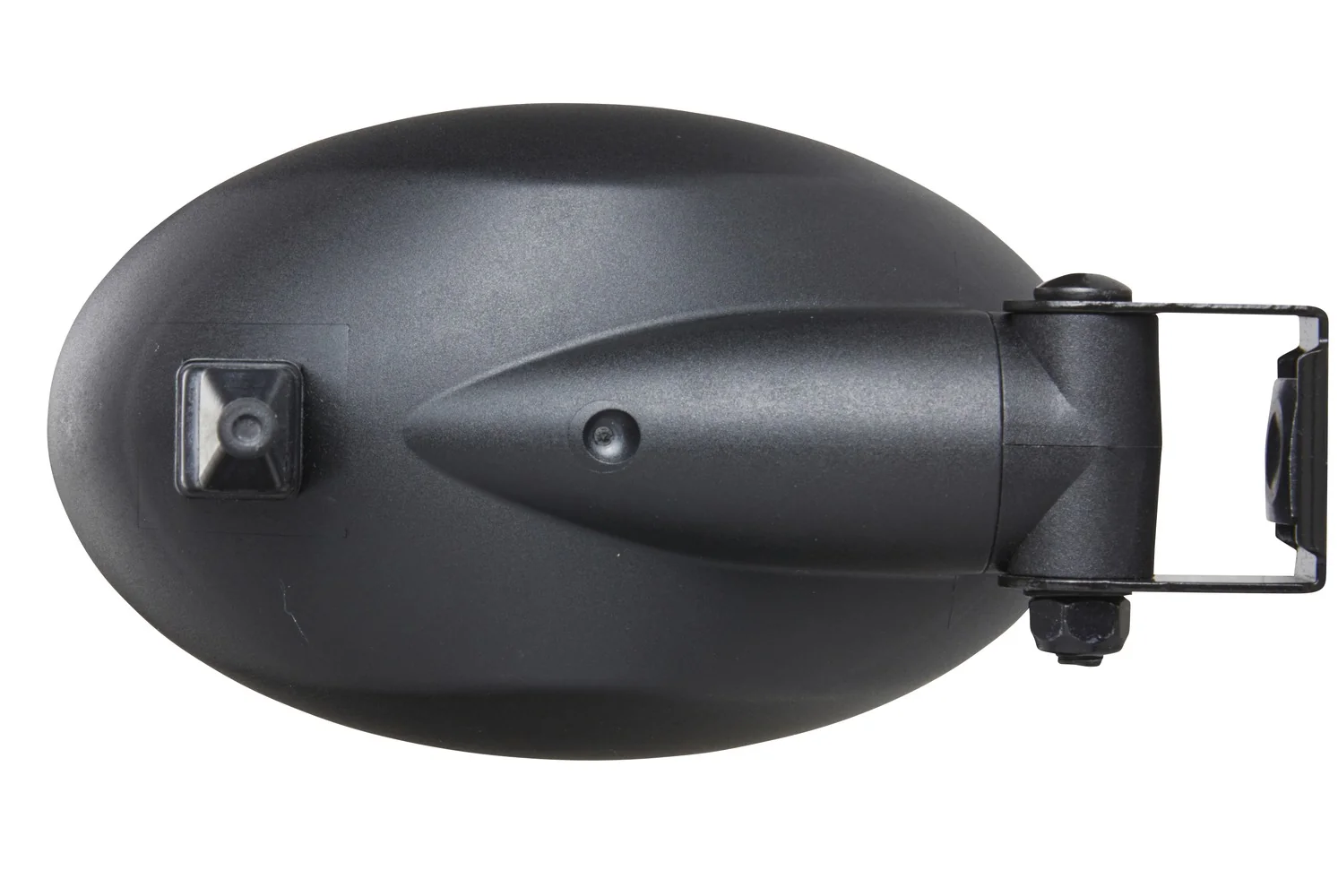

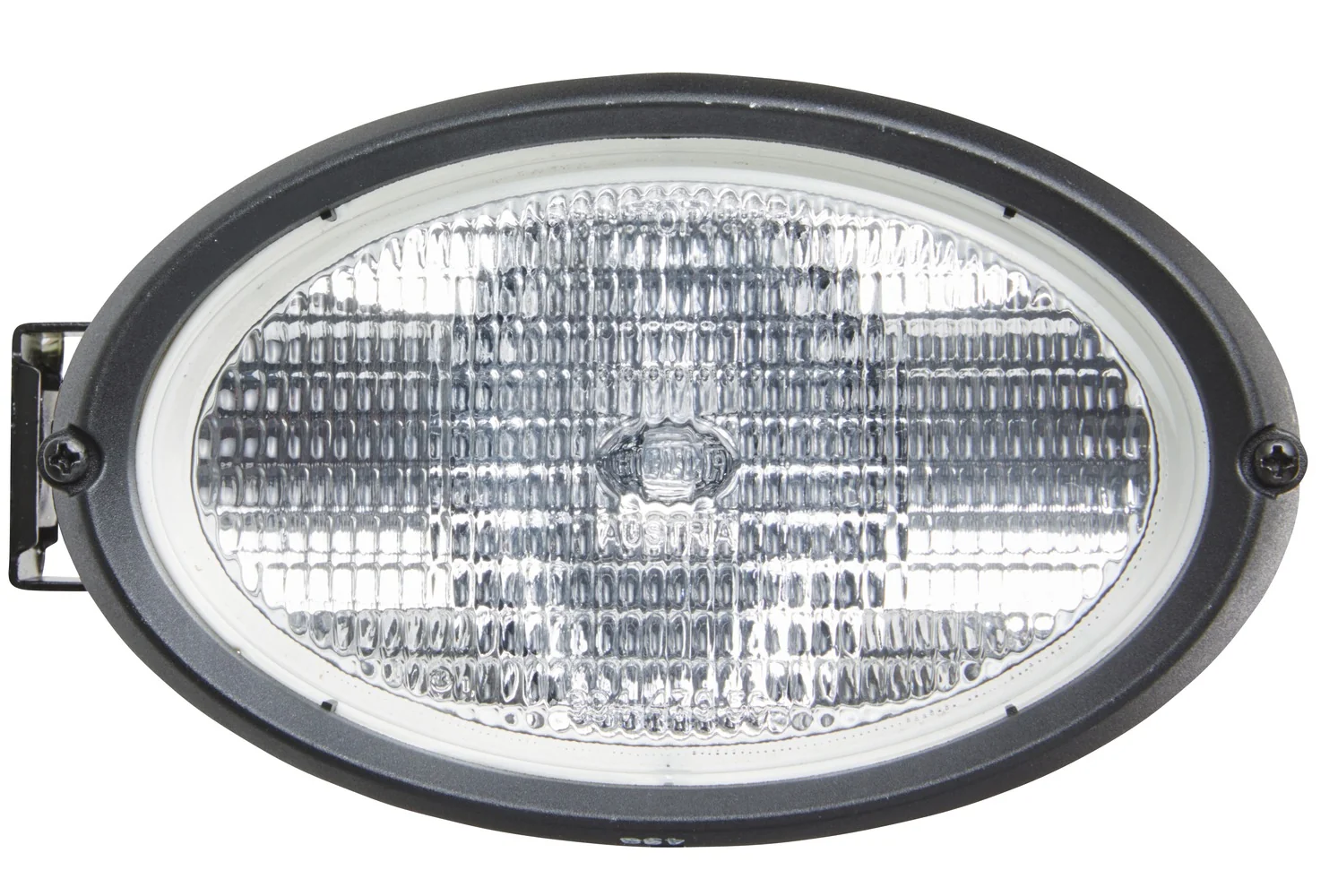

HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V
HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V
HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V
HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V
HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V
HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V

HELLA - 1GA 996 161-301 - Halogen-Worklight, Oval 100, 12V

€36.80

(Excl. VAT)

Price

(Excl. VAT)

€36.80

Product Description

The halogen worklight with FF reflector made of die-cast aluminium is available with extremely wide and homogeneous close-range illumination or with long-range illumination. Both illuminators are available as clear glass versions. In addition to the standard single-chamber solution (1x H3), the OVAL 100 worklight is also available as a Double Beam (2x H3) with double the light output. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic . The housing has a protruding rim to protect the diffusing lens. Versions with vibration damping use a patented damping system that protects the headlamp from vibrations, thus extending the life of the bulb.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Case ih

4705712047057125

Renault

77000745347700074535
Plug
AMP
Depth
99 mm
Width
180 mm
Height
100 mm
Voltage
12 V
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly by qualified personnel required
Mounting Type
Bolted / mounting
Fastening Type
For horizontal fastening
Housing Colour
Black
Power Consumption
110 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP5K9K
Manufacturer
HELLA
