HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V
HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V
HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V
HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V
HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V
HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V

HELLA - 1GA 996 761-011 - LED-Worklight, Oval 100 Gen. II, 24/12V

€165.74

(Excl. VAT)

Price

(Excl. VAT)

€165.74

Product Description

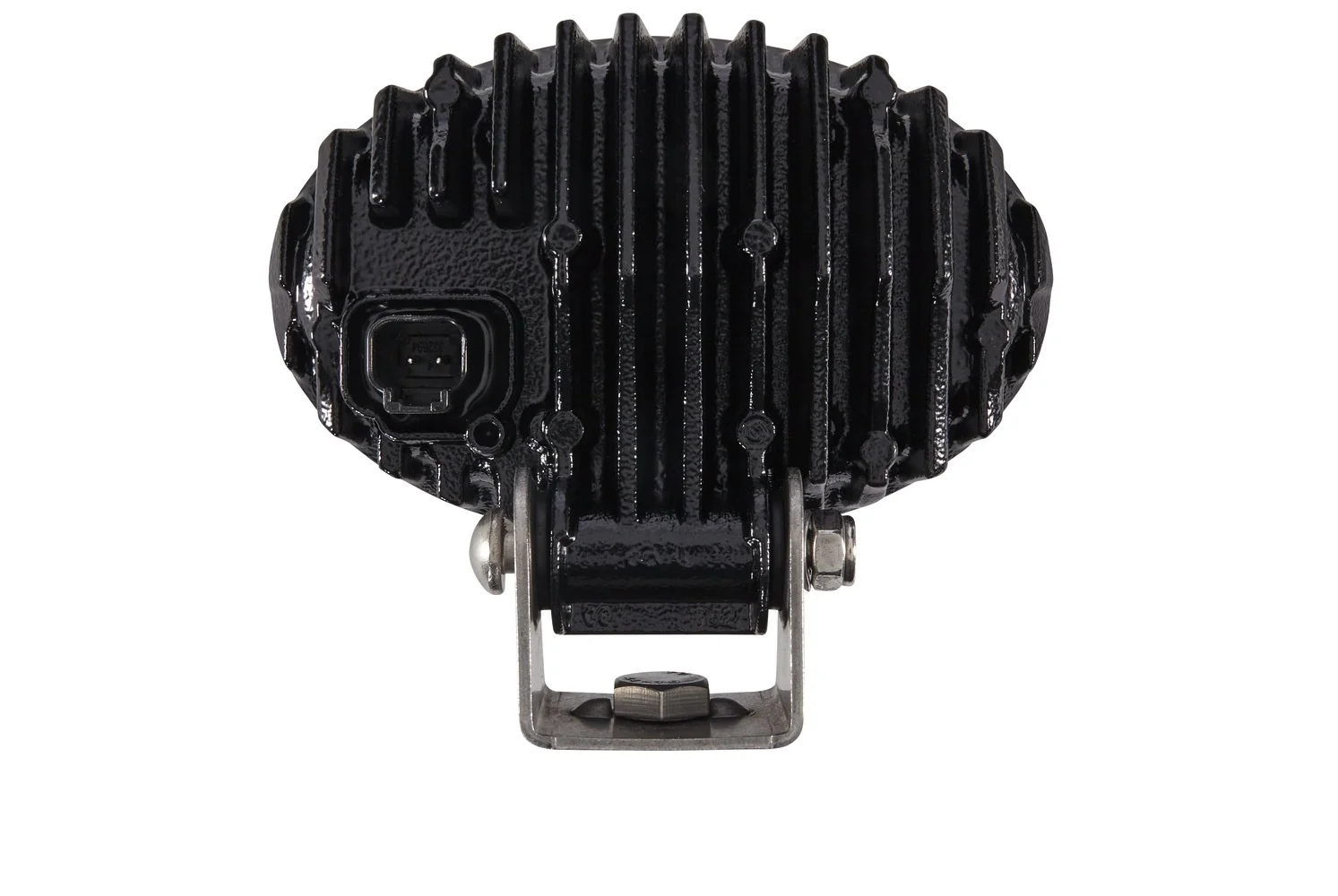

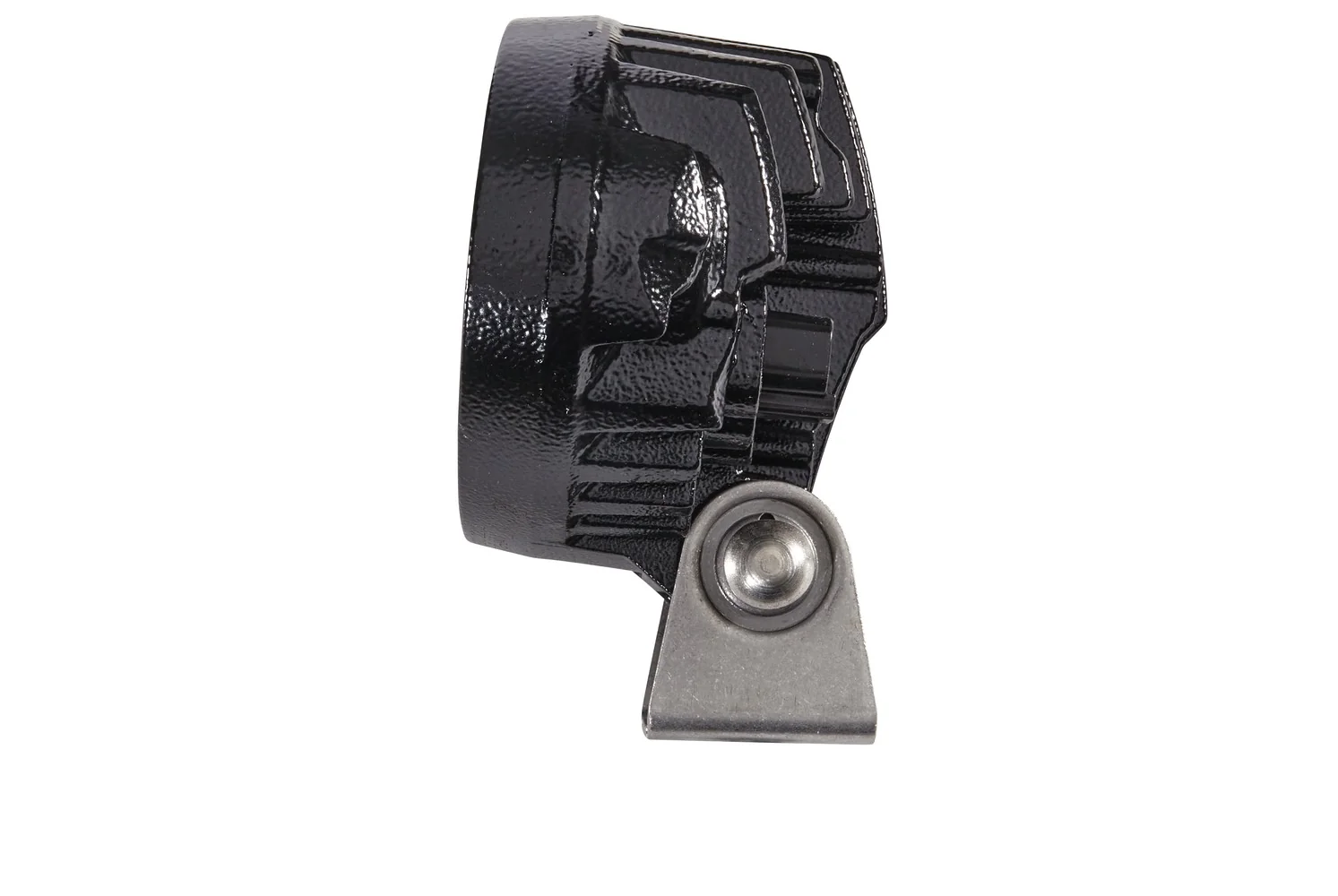

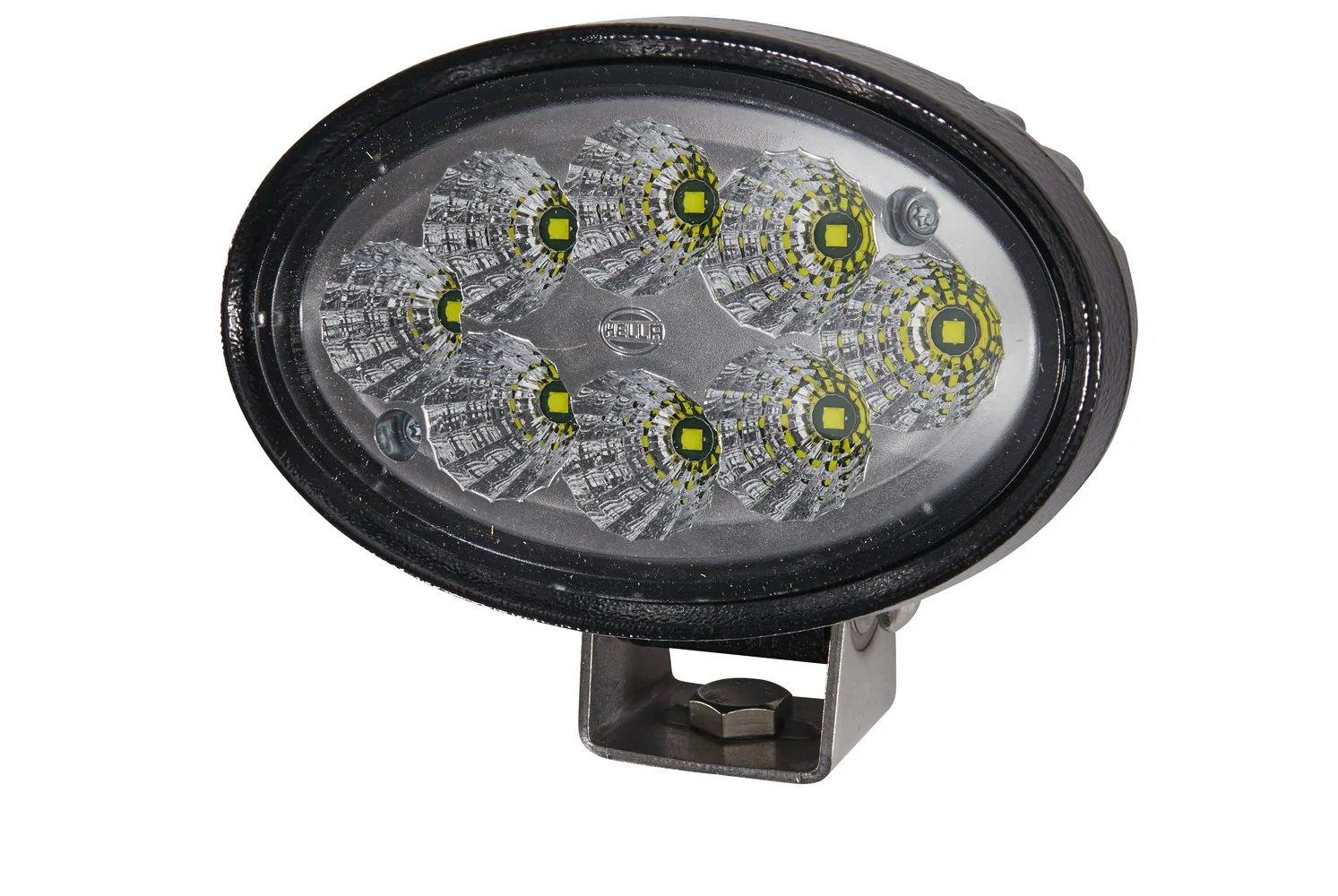

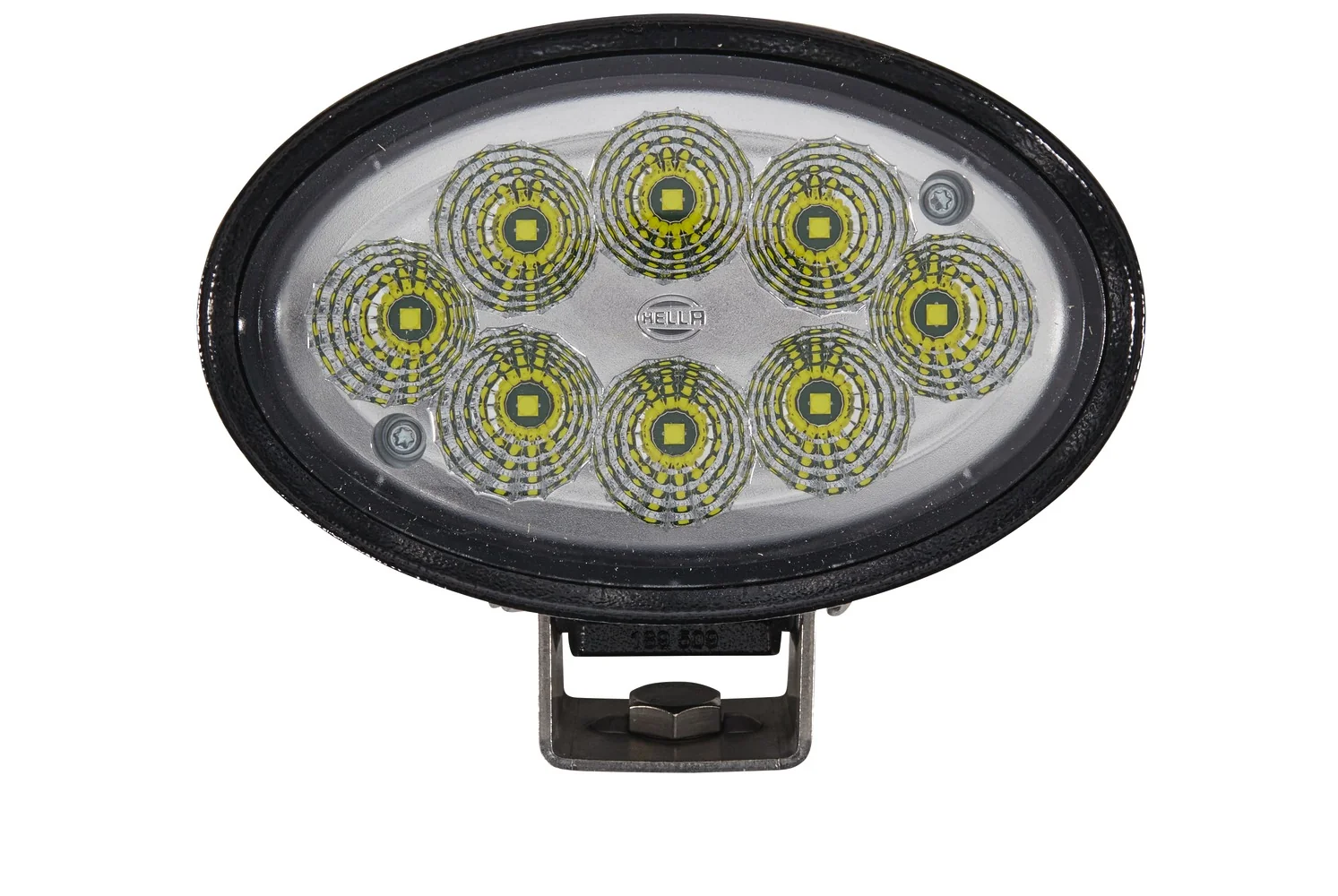

The Oval 100 LED Generation 2 complements the existing halogen and xenon versions of the modular series with an LED option. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light output is a powerful 4,400 lumens, which means the Oval 100 LED Gen. 2 can easily replace xenon worklights. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED Gen. 2 can be mounted either standing or hanging. With 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklight's black housing is made of aluminium and has cooling fins, to dissipate the heat of the 8 high-power LEDs. In addition, a sensor protects the worklight from overheating ensuring the long service life of the LEDs (up to 30 times the service life of a xenon gas discharge lamp).
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Aebi

1239026-3

Agco

71481422ACW1655200

Faymonville

319035

Kubota

3J0366244A
Plug
DEUTSCH plug
Depth
74 mm
Width
153 mm
Height
129 mm
Voltage
24 V / 12 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Luminous Flux
4400 lm
Mounting Type
Mounting / Bolted
Fastening Type
Swivelling Mounting Bracket
Housing Colour
Black
Number of LEDs
8
Power Consumption
56 W
Colour Temperature
6500 K
Light Distribution
Long-range illumination
Diffusing Lens Type
Clear diffusing lens
Assembly Requirement
Assembly by qualified personnel required
Fulfils ECE Standard
R10
Protection Type (IP Code)
IP6K9K / IP6K7
Manufacturer
HELLA
