HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V
HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V

HELLA - 1GA 996 761-101 - LED-Worklight, Oval 100 Compact, 12/24V

€93.30

(Excl. VAT)

Price

(Excl. VAT)

€93.30

Product Description

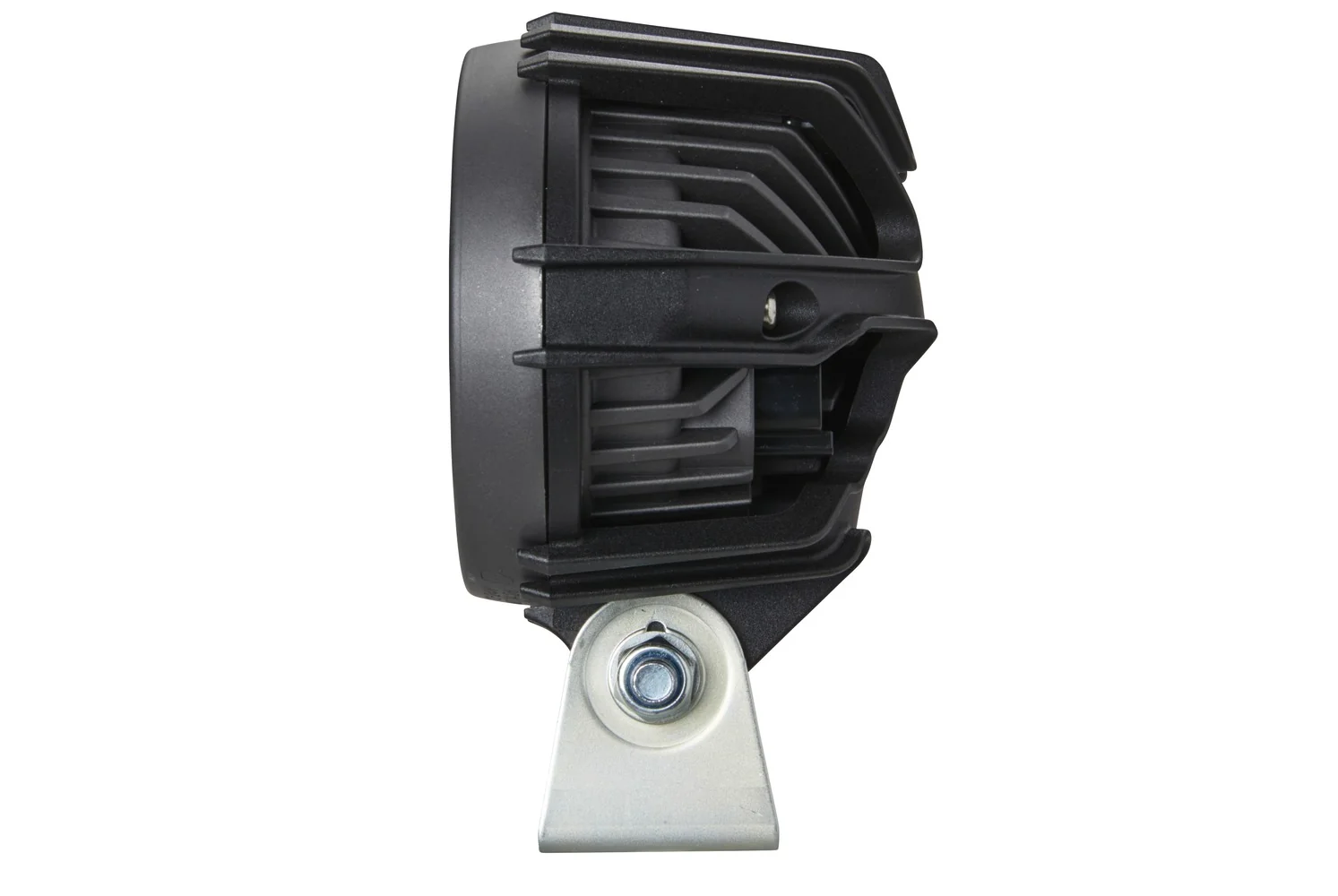

The Oval 100 LED compact is the latest version of the already extensive Oval 100 worklight series. This headlamp comes with the innovative plastic housing, which offers complete corrosion resistance as well as many new mounting options. The heat-conducting plastic housing has cooling fins on the back to provide the necessary heat dissipation for the 6 high-performance LEDs. Thanks to its light output of 1,850 lumens, the Oval 100 LED compact is ideal for replacing old halogen worklights (H3, H9) - with a power consumption of only 26 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and therefore prevent rapid eye fatigue. The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with fluctuating operating voltages of 10.5 to 32 volts. Temperature sensors protect the worklight from overheating ensuring the long service life of the LEDs and safe working at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

ACW1408200ACW2237910ACW3783570ACW5176070

Claas

18124330

Fendt

ACW3783570

Grimme

B94.09201

Kässbohrer

7.517.175.000.0

Liebherr

12101892

Manitou

52502273-A
Fits

Claas

Jaguar 900 (01.01.2010 - 01.01.2014)Xerion 4000 (01.01.2014 - 01.01.2020)Jaguar 840 (01.01.2014 - 01.01.2015)Xerion 4500 (01.01.2020 >)Jaguar 830 (01.01.2002 - 01.01.2014)Jaguar 870 (01.01.2002 - 01.01.2015)Jaguar 860 (01.01.2014 - 01.01.2015)Jaguar 970 (01.01.2016 - 01.01.2019)Jaguar 930 (01.01.2015 - 01.01.2019)Jaguar 960 (01.01.2015 - 01.01.2019)Jaguar 870 (01.01.2003 - 01.01.2015)Jaguar 950 (01.01.2015 - 01.01.2019)Jaguar 890 (01.01.2010 - 01.01.2014)Jaguar 890 (01.01.2002 - 01.01.2008)Xerion 4500 (01.01.2014 - 01.01.2020)Jaguar 970 (01.01.2020 >)Jaguar 860 (01.01.2015 - 01.01.2019)Xerion 4500 (01.01.2011 - 01.01.2014)Xerion 5000 (01.01.2020 >)Jaguar 930 (01.01.2009 - 01.01.2016)Jaguar 870 (01.01.2020 >)Jaguar 860 (01.01.2020 >)Xerion 5000 (01.01.2011 - 01.01.2014)Jaguar 980 (01.01.2016 - 01.01.2019)Jaguar 890 (01.01.2005 - 01.01.2007)Xerion 4500 (01.01.2014 - 01.01.2019)Xerion 5000 (01.01.2014 - 01.01.2020)Xerion 4200 (01.01.2020 >)Jaguar 990 (01.01.2020 >)Jaguar 960 (01.01.2007 - 01.01.2015)Jaguar 830 (01.01.2003 - 01.01.2014)Jaguar 890 (01.01.2003 - 01.01.2008)Jaguar 850 (01.01.2020 >)Jaguar 970 (01.01.2011 - 01.01.2015)Jaguar 980 (01.01.2011 - 01.01.2015)Jaguar 960 (01.01.2020 >)Jaguar 840 (01.01.2015 - 01.01.2019)Jaguar 850 (01.01.2015 - 01.01.2019)Jaguar 980 (01.01.2007 - 01.01.2011)Jaguar 940 (01.01.2015 - 01.01.2019)Jaguar 850 (01.01.2003 - 01.01.2015)Jaguar 840 (01.01.2020 >)Jaguar 900 (01.01.2005 - 01.01.2009)Jaguar 870 (01.01.2014 - 01.01.2019)Jaguar 940 (01.01.2020 >)Jaguar 970 (01.01.2007 - 01.01.2011)Jaguar 950 (01.01.2020 >)Jaguar 850 (01.01.2002 - 01.01.2015)Jaguar 950 (01.01.2007 - 01.01.2016)Jaguar 930 (01.01.2020 >)Jaguar 940 (01.01.2009 - 01.01.2016)Jaguar 980 (01.01.2020 >)Jaguar 870 (01.01.2015 - 01.01.2019)Jaguar 960 (01.01.2019 >)

Massey ferguson

MF 7718 (01.01.2017 - 01.01.2019)MF 7716 (01.01.2020 - 01.01.2021)MF 5713 (01.01.2018 - 01.01.2021)MF 5711 (01.01.2019 >)MF 7724 (01.01.2015 - 01.01.2017)MF 7716 (01.01.2017 - 01.01.2019)MF 7724 (01.01.2017 - 01.01.2020)MF 8740 (01.01.2017 - 01.01.2021)MF 6718 (01.01.2017 - 01.01.2021)MF 6715 (01.01.2017 - 01.01.2020)MF 8727 (01.01.2017 - 01.01.2021)MF 5711 (01.01.2018 - 01.01.2021)MF 7726 (01.01.2015 - 01.01.2017)MF 6715 (01.01.2017 - 01.01.2021)MF 7716 (01.01.2015 - 01.01.2017)MF 7718 (01.01.2015 - 01.01.2017)MF 7715 (01.01.2015 - 01.01.2017)MF 8735 (01.01.2017 - 01.01.2019)MF 8730 (01.01.2021 >)MF 7715 (01.01.2017 - 01.01.2019)MF 7719 (01.01.2015 - 01.01.2017)MF 5712 (01.01.2015 - 01.01.2017)MF 7720 (01.01.2015 - 01.01.2017)MF 5712 (01.01.2018 - 01.01.2021)MF 7715 (01.01.2020 - 01.01.2021)MF 7722 (01.01.2017 - 01.01.2020)MF 5711 (01.01.2015 - 01.01.2017)MF 8732 (01.01.2014 - 01.01.2017)MF 8730 (01.01.2014 - 01.01.2017)MF 6714 (01.01.2017 - 01.01.2021)MF 5713 (01.01.2015 - 01.01.2017)MF 6713 (01.01.2017 - 01.01.2021)MF 7720 (01.01.2017 - 01.01.2020)MF 7722 (01.01.2015 - 01.01.2017)MF 8732 (01.01.2020 >)MF 7726 (01.01.2017 - 01.01.2020)MF 7719 (01.01.2020 - 01.01.2021)MF 7718 (01.01.2020 - 01.01.2021)MF 8737 (01.01.2021 >)MF 7714 (01.01.2017 - 01.01.2020)MF 8735 (01.01.2020 >)MF 6714 (01.01.2017 - 01.01.2020)MF 6716 (01.01.2017 - 01.01.2021)MF 8735 (01.01.2014 - 01.01.2017)MF 8727 (01.01.2014 - 01.01.2017)MF 8737 (01.01.2017 - 01.01.2021)MF 9545 (01.01.2021 >)MF 8737 (01.01.2014 - 01.01.2017)MF 8740 (01.01.2021 >)MF 6713 (01.01.2017 - 01.01.2020)MF 5711 (01.01.2017 - 01.01.2021)MF 9565 (01.01.2021 >)MF 8732 (01.01.2017 - 01.01.2019)MF 7714 (01.01.2015 - 01.01.2017)MF 8730 (01.01.2017 - 01.01.2021)MF 7715 (01.01.2017 - 01.01.2020)MF 8727 (01.01.2021 >)
Plug
DEUTSCH Plug
Depth
83 mm
Width
166 mm
Height
146 mm
Voltage
24 V / 12 V
Lamp Type
LED
Housing Type
Synthetic Material Housing
Light Design
LED
Luminous Flux
1850 lm
Mounting Type
Mounting / Bolted
Fastening Type
Swivelling Mounting Bracket
Housing Colour
Black
Number of LEDs
6
Power Consumption
26 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Assembly Requirement
Assembly By Qualified Personnel Required
Fulfils ECE Standard
R10
Protection Type (IP Code)
IP6K9K / IP6K7
Manufacturer
HELLA

Similar items you might like

  • Hella

    HELLA - 1GA 996 761-111 - LED-Worklight, Oval 100 Compact, 12/24V

    Hella

    €91.40

  • Hella

    HELLA - 1GE 360 000-002 - LED-Worklight Lightbar LBX-220, 12/24V

    Hella

    €46.04

  • Hella

    HELLA - 1GJ 958 130-461 - LED-Worklight, Light Bar LB470 Combi, 24/12V

    Hella

    €350.02

  • Hella

    HELLA - 1GA 996 579-001 - LED-Worklight, Eco 26, 24/12V

    Hella

    €70.84

  • Hella

    HELLA - 1GA 996 579-011 - LED-Worklight, Eco 26, 24/12V

    Hella

    €70.84

  • Hella

    HELLA - 1GJ 360 002-002 - LED-Worklight Lightbar LBX-540, 12/24V

    Hella

    €125.61

  • Hella

    HELLA - 1GJ 360 003-002 - LED-Worklight Lightbar LBX-720, 12/24V

    Hella

    €152.00

  • Hella

    HELLA - 8RA 009 226-127 - Reflector, Lens Colour: yellow (amber), oval, Glued/mounting

    Hella

    €7.26

  • Hella

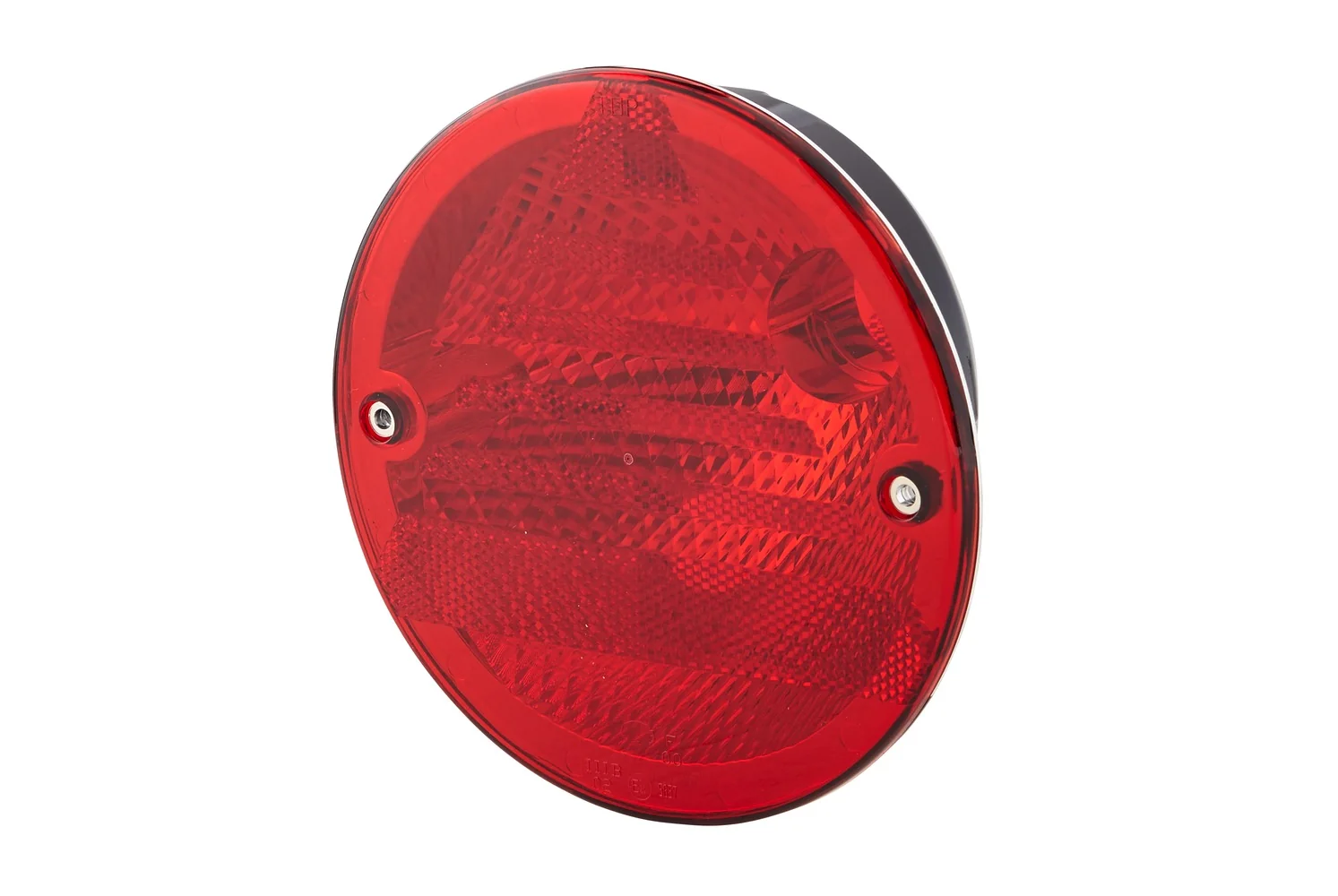

    HELLA - 8RA 344 610-017 - Reflector, Lens Colour: Red, round, Screw Connection/Fitting

    Hella

    €11.11

  • Hella

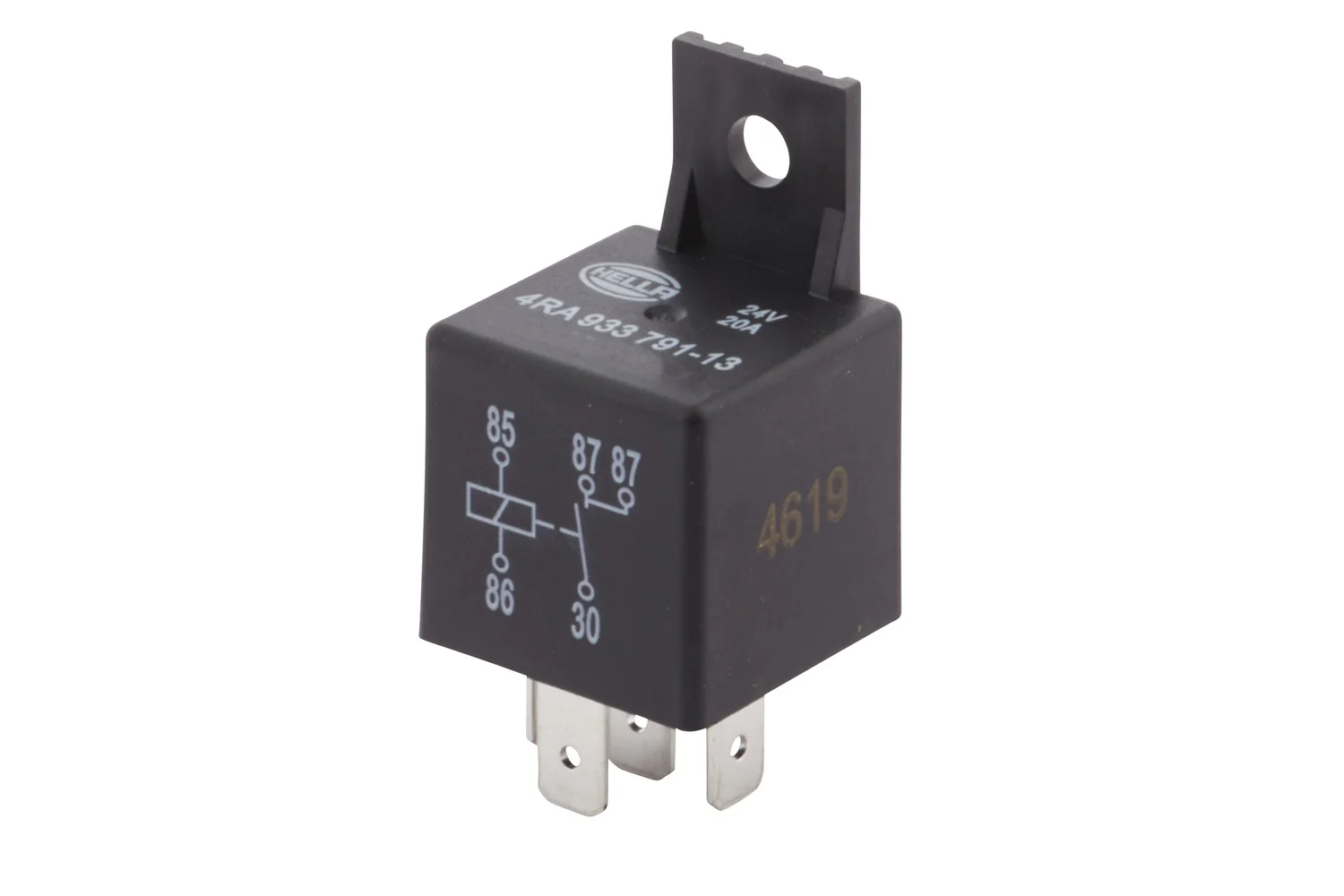

    HELLA - 4RA 933 791-131 - Relay, main current, 24V, 5-pin connector
