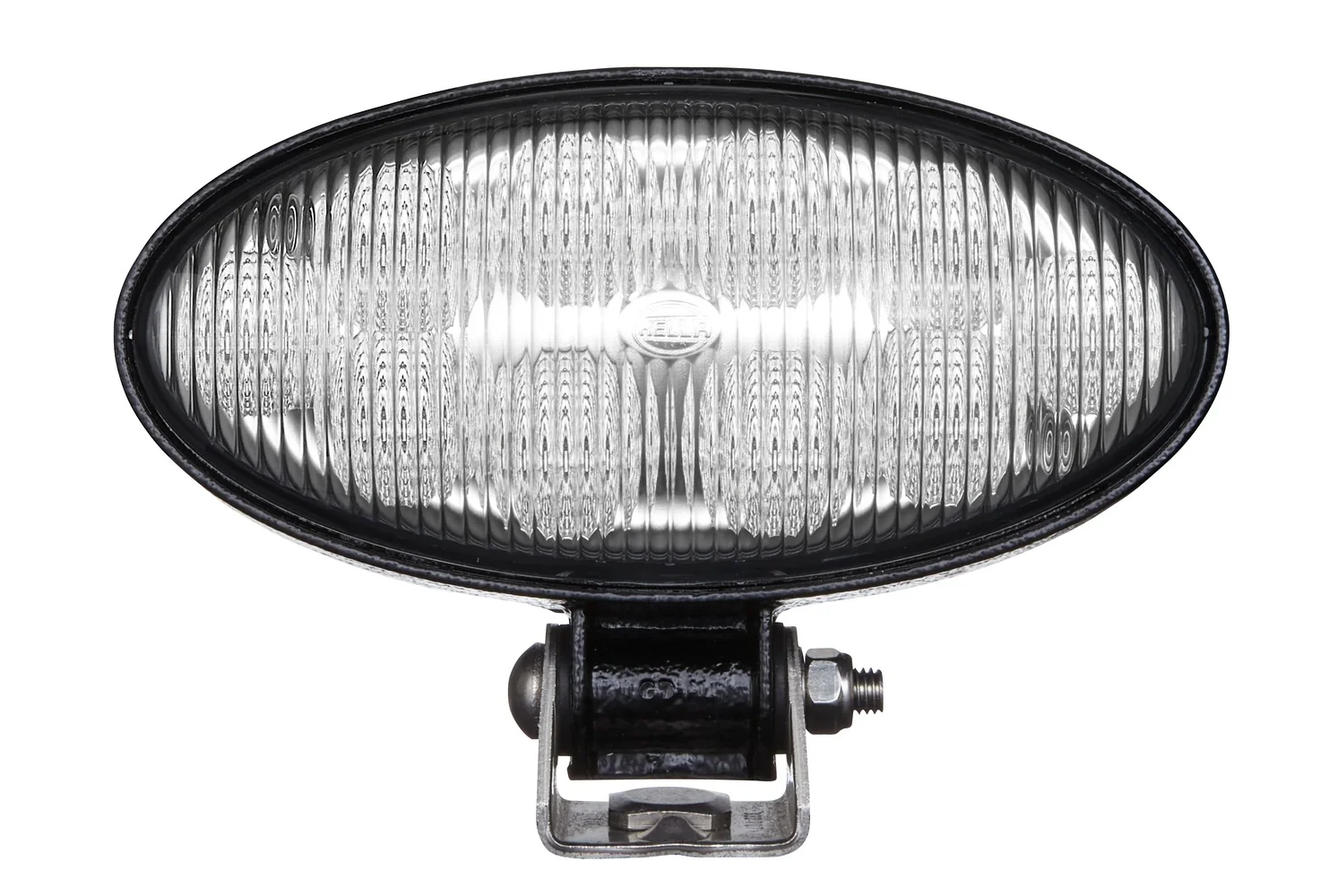

HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V
HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V
HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V
HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V
HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V
HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V

HELLA - 1GB 996 386-001 - LED-Worklight, Oval 90, 12/24V

€136.46

(Excl. VAT)

Price

(Excl. VAT)

€136.46

Product Description

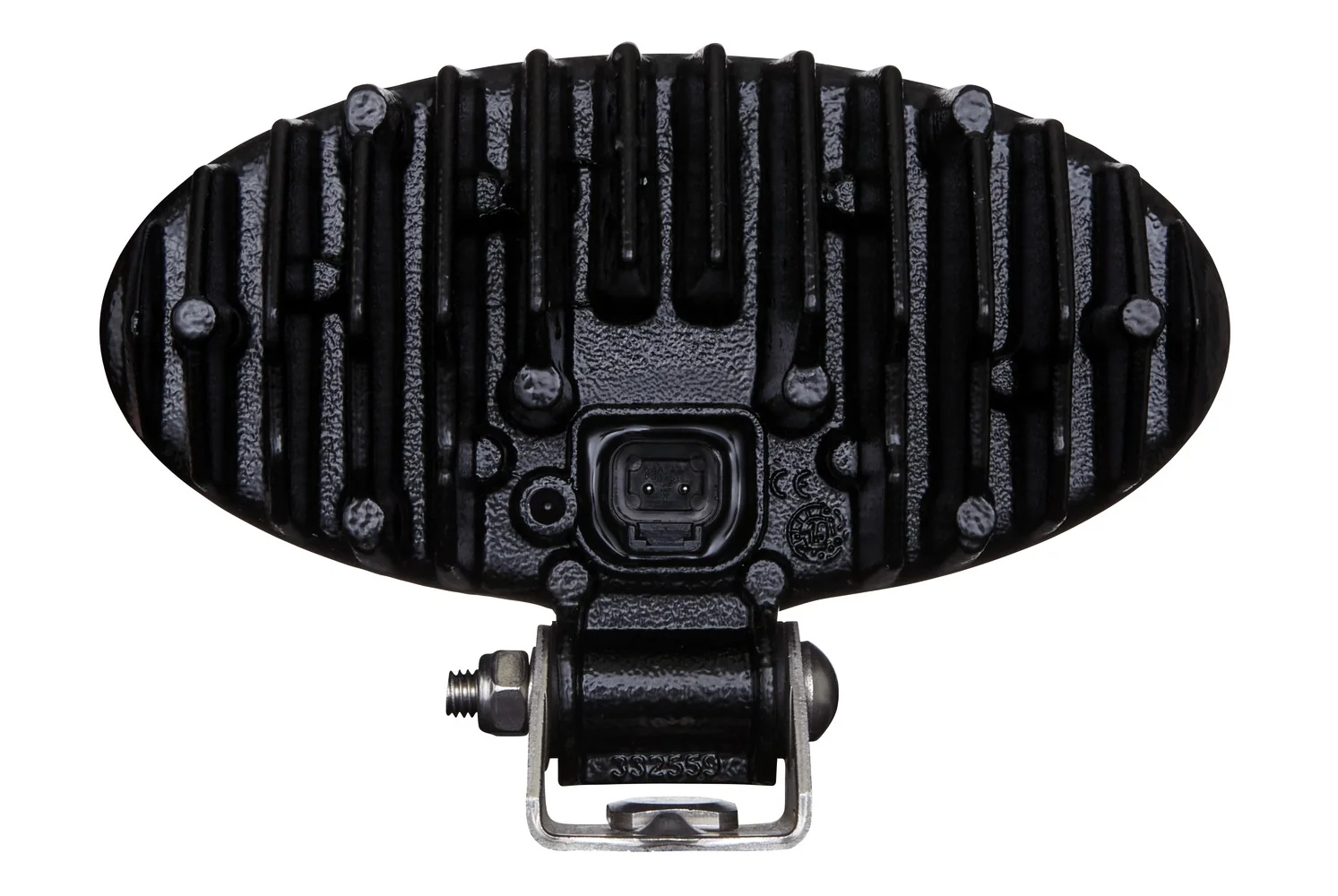

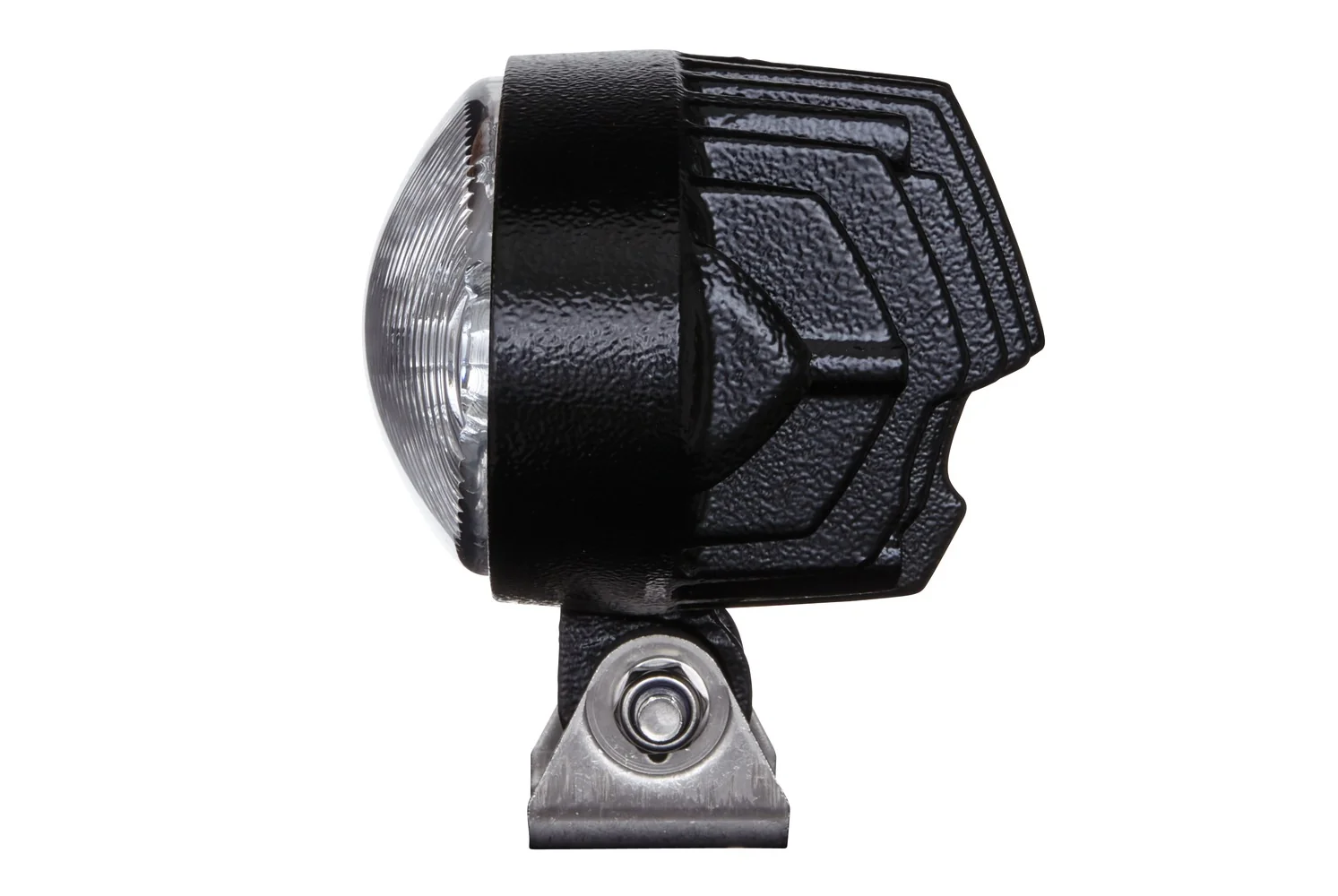

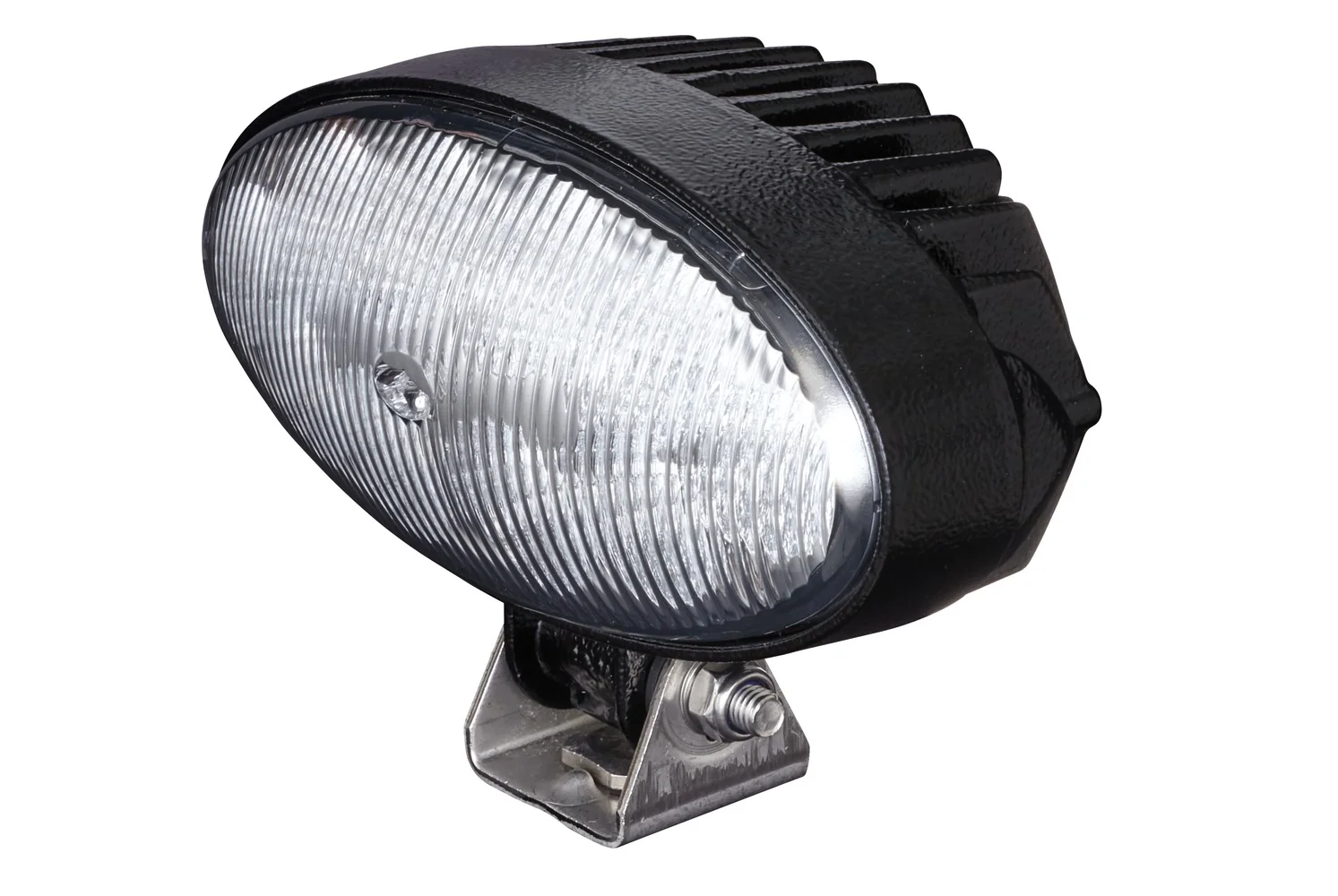

The Oval 90 from HELLA is a compact worklight with a modern, attractive design. The product range of the Oval 90 worklights includes halogen and xenon versions. The modular series is expanded with the Oval 90 LED to include efficient LED technology. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. Thanks to its powerful light output, the Oval 90 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 28 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 90 LED can be mounted either upright (0°) or suspended (180°). The light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklights' black housing is made of aluminium and has cooling fins ensuring the necessary heat dissipation of the 10 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

ACW0481970

Hamm

2229436

Weidemann

1000297050
Fits

John deere

1023E (01.01.2019 >)8 RT (01.01.2011 - 01.01.2015)6170 (01.01.2012 - 01.01.2014)8335 (01.01.2015 - 01.01.2017)6190 (01.01.2015 - 01.01.2016)8400 (01.01.2017 - 01.01.2020)8345 (01.01.2015 - 01.01.2020)8360 (01.01.2011 - 01.01.2015)7260 (01.01.2011 - 01.01.2014)8310 (01.01.2015 - 01.01.2016)6125 (01.01.2012 - 01.01.2015)6130 (01.01.2012 - 01.01.2014)6105 (01.01.2012 - 01.01.2015)7200 (01.01.2011 - 01.01.2014)9510 (01.01.2011 - 01.01.2014)6210 (01.01.2015 - 01.01.2016)7280 R (01.01.2011 - 01.01.2014)7210 (01.01.2013 - 01.01.2017)7280 R (01.01.2015 - 01.01.2017)7260 (01.01.2015 - 01.01.2017)8245 (01.01.2010 - 01.01.2012)7230 (01.01.2017 - 01.01.2020)6195 (01.01.2014 - 01.01.2020)6140 (01.01.2012 - 01.01.2015)8295 (01.01.2015 - 01.01.2020)8270 (01.01.2014 - 01.01.2015)8335 (01.01.2015 - 01.01.2016)8285 (01.01.2015 - 01.01.2016)8270 (01.01.2015 - 01.01.2020)8245 (01.01.2015 - 01.01.2020)8270 (01.01.2010 - 01.01.2012)8320 (01.01.2015 - 01.01.2020)6150 (01.01.2012 - 01.01.2014)8370 (01.01.2015 - 01.01.2020)9560 (01.01.2011 - 01.01.2014)6195 (01.01.2020 >)8370 (01.01.2014 - 01.01.2015)8345 (01.01.2010 - 01.01.2012)6115 (01.01.2012 - 01.01.2014)7230 (01.01.2015 - 01.01.2017)8295 (01.01.2010 - 01.01.2012)6215 (01.01.2020 >)8360 (01.01.2015 - 01.01.2016)61 (01.01.2011 - 01.01.2015)8345 (01.01.2014 - 01.01.2015)8310 (01.01.2011 - 01.01.2015)9 RT (01.01.2011 - 01.01.2014)6170 (01.01.2015 - 01.01.2016)9410 (01.01.2011 - 01.01.2014)6125 (01.01.2012 - 01.01.2014)7210 (01.01.2017 - 01.01.2018)7230 (01.01.2011 - 01.01.2014)9460 (01.01.2011 - 01.01.2014)8335 (01.01.2011 - 01.01.2015)6175 (01.01.2014 - 01.01.2020)7215 (01.01.2015 - 01.01.2017)7215 (01.01.2011 - 01.01.2014)6215 (01.01.2014 - 01.01.2020)8260 (01.01.2015 - 01.01.2016)8285 (01.01.2011 - 01.01.2015)6210 (01.01.2011 - 01.01.2014)6115 (01.01.2012 - 01.01.2015)7200 (01.01.2015 - 01.01.2016)8 RT (01.01.2010 - 01.01.2012)8320 (01.01.2014 - 01.01.2015)7250 (01.01.2013 - 01.01.2015)6210 (01.01.2011 - 01.01.2015)8260 (01.01.2011 - 01.01.2015)6140 (01.01.2012 - 01.01.2014)6190 (01.01.2012 - 01.01.2014)8310 (01.01.1999 - 01.01.2001)8295 (01.01.2014 - 01.01.2015)8320 (01.01.2010 - 01.01.2012)6175 (01.01.2020 >)6170 (01.01.2011 - 01.01.2015)
Plug
DEUTSCH Plug
Cable
200 Mm
Depth
105 Mm
Width
177 Mm
Height
126 Mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly By Qualified Personnel Required
Luminous Flux
2000 Lm
Mounting Type
Mounting / Bolted
Fastening Type
Swivelling Mounting Bracket
Housing Colour
Black
Number of LEDs
10
Power Consumption
28 W
Registration Type
ADR/GGVS
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Fulfils ECE Standard
R10
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP6K9K / IP6K7
Manufacturer
HELLA

Similar items you might like

  • Hella

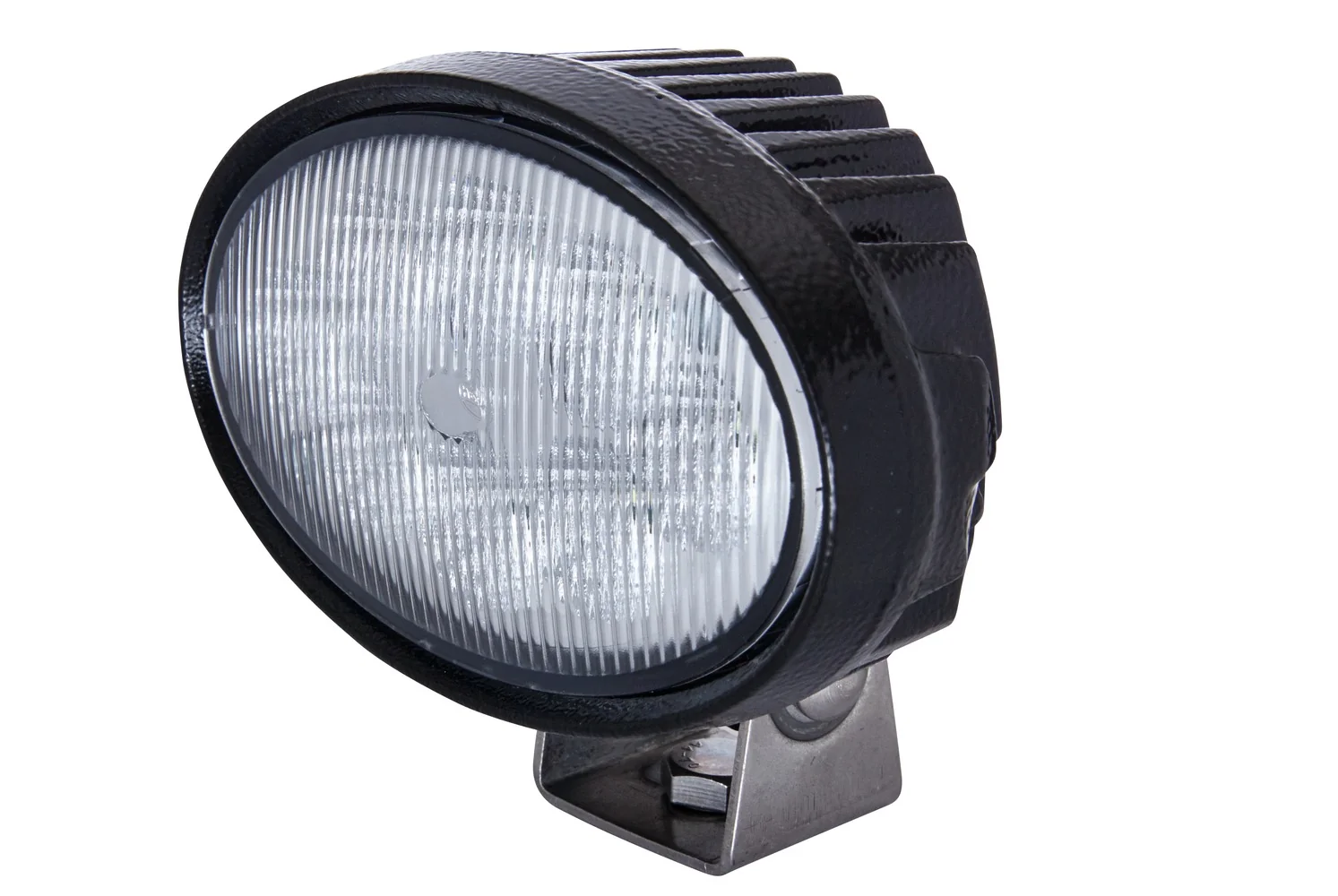

    HELLA - 1GA 996 661-001 - LED-Worklight, Oval 100, 12/24V

    Hella

    €134.88

  • Hella

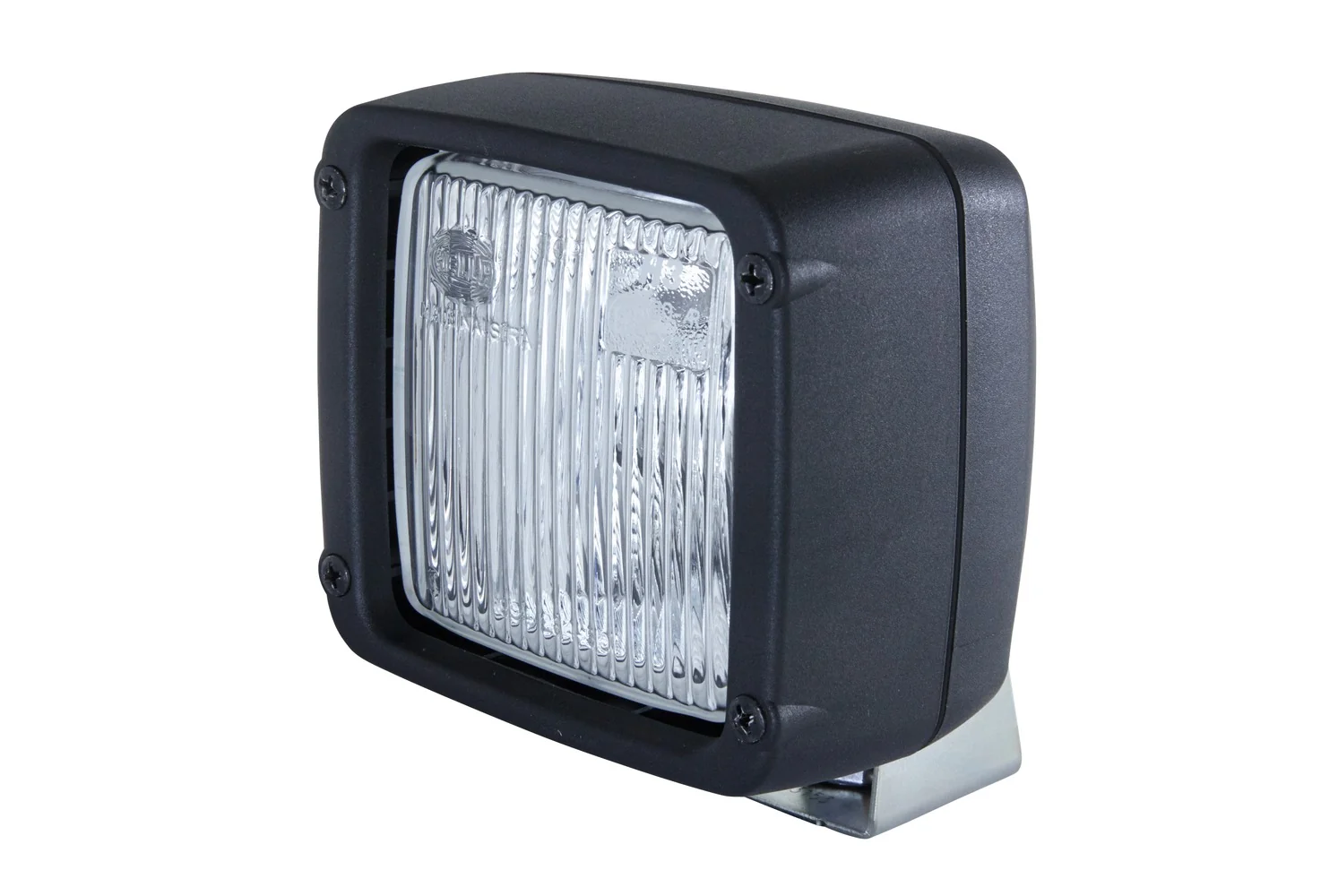

    HELLA - 2ZR 997 506-391 - Halogen-Reverse Light, Ultra Beam, 24V

    Hella

    €32.39

  • Hella

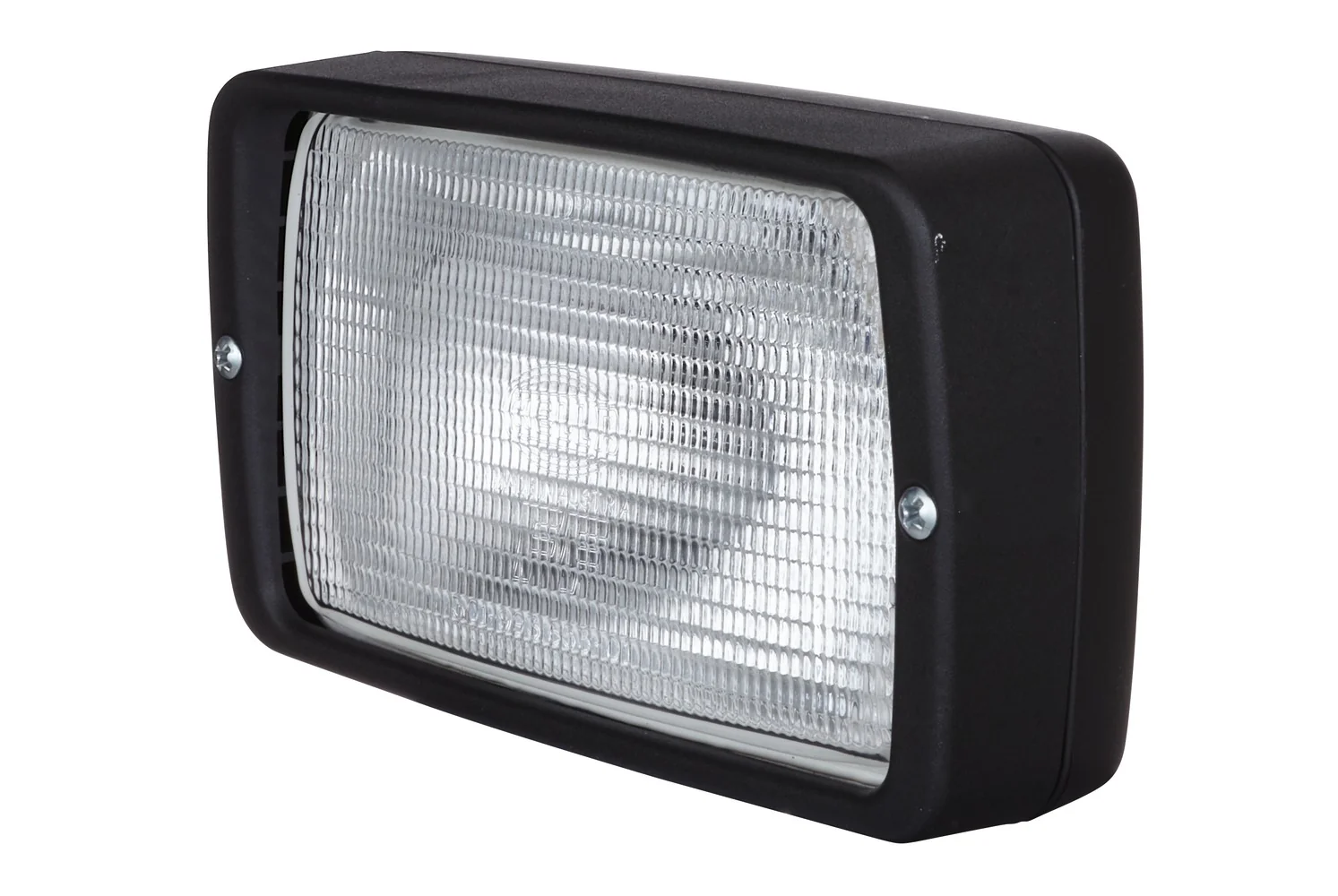

    HELLA - 1GA 998 522-011 - Halogen-Worklight, Picador 8522, 24/12V

    Hella

    €18.89

  • Hella

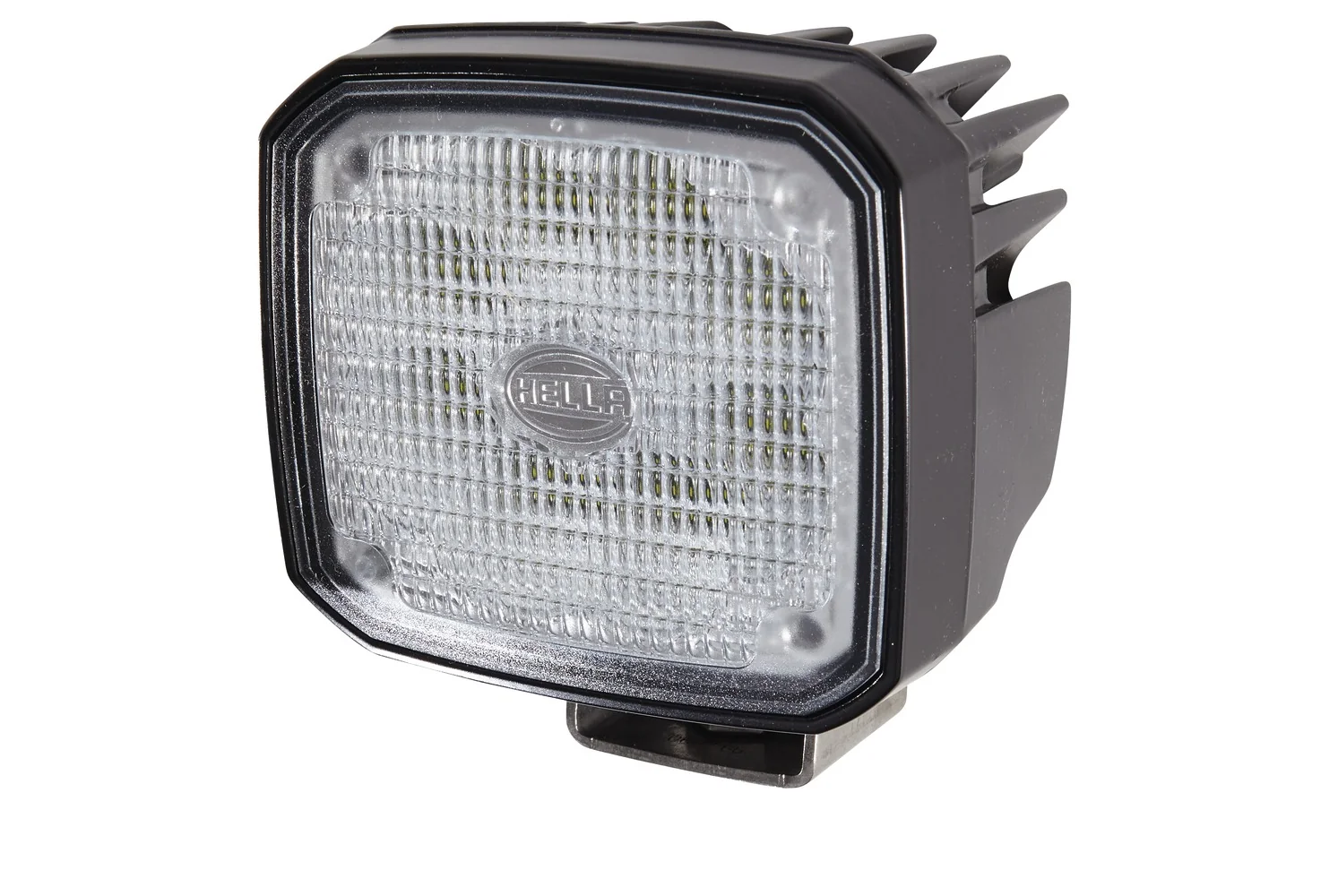

    HELLA - 1GA 995 606-001 - LED-Worklight, Ultra Beam Gen. II, 12/24V

    Hella

    €167.42

  • Hella

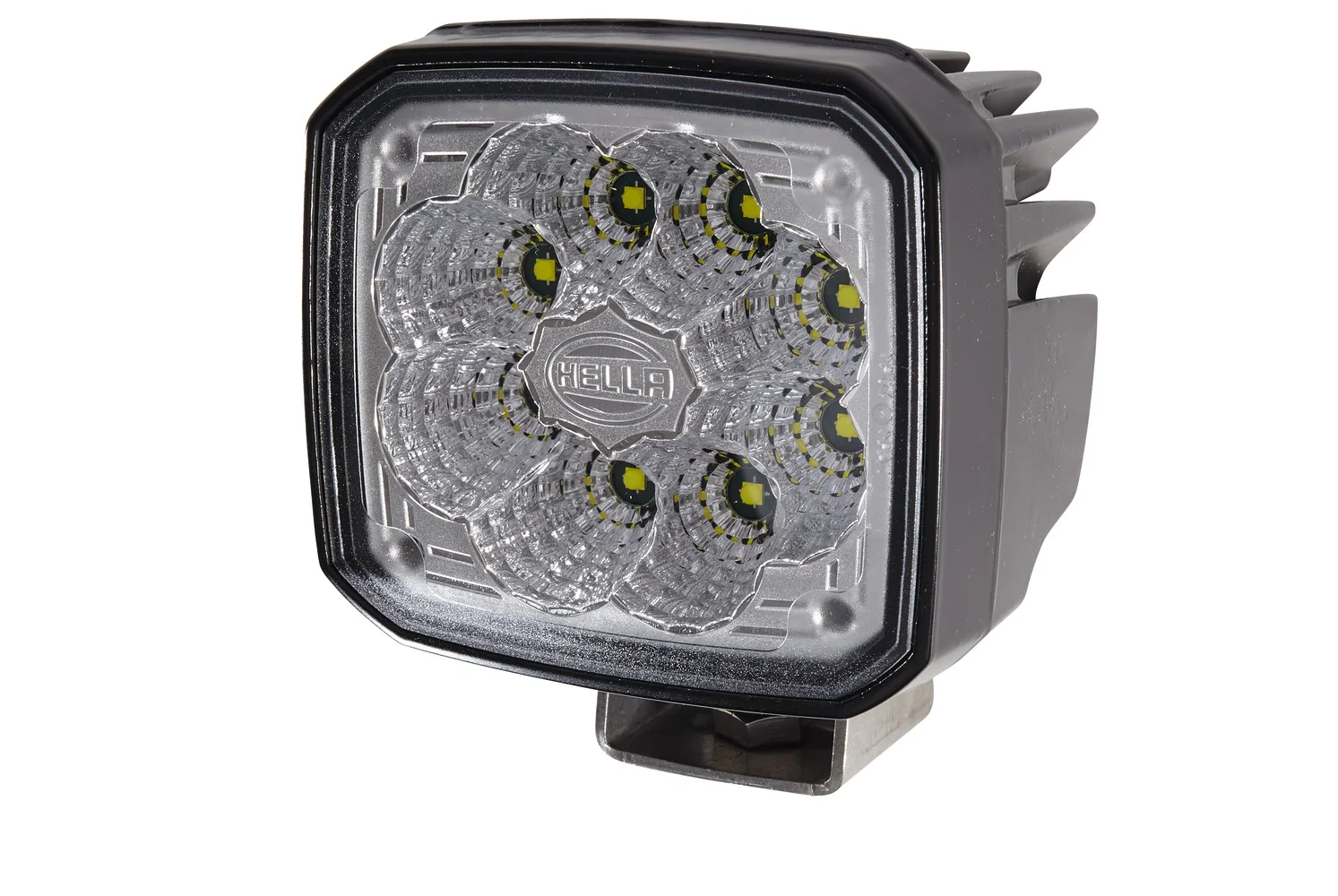

    HELLA - 1GA 995 606-011 - LED-Worklight, Ultra Beam Gen. II, 12/24V

    Hella

    €167.42

  • Hella

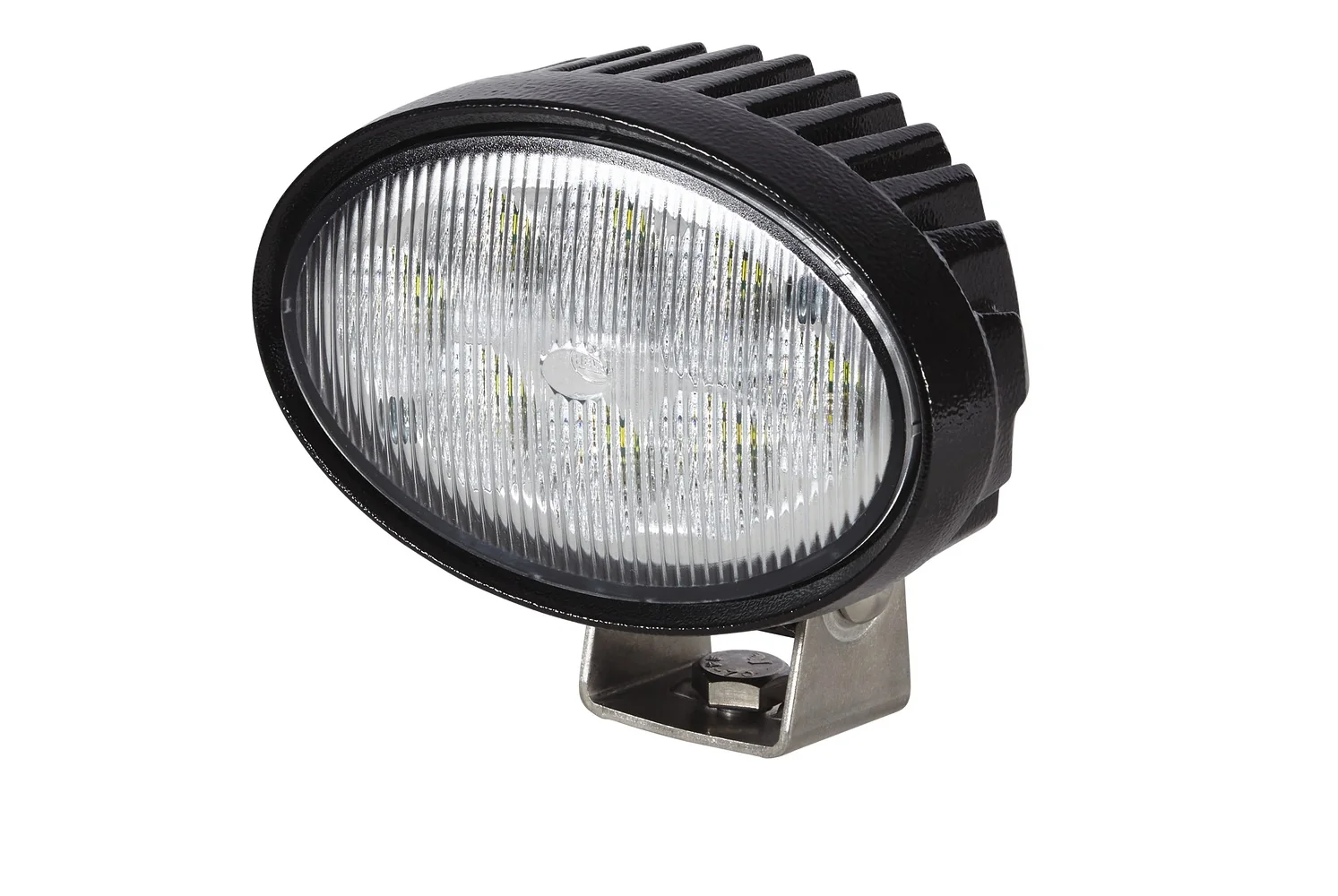

    HELLA - 1GA 996 761-001 - LED-Worklight, Oval 100 Gen. II, 12/24V

    Hella

    €165.23

  • Hella

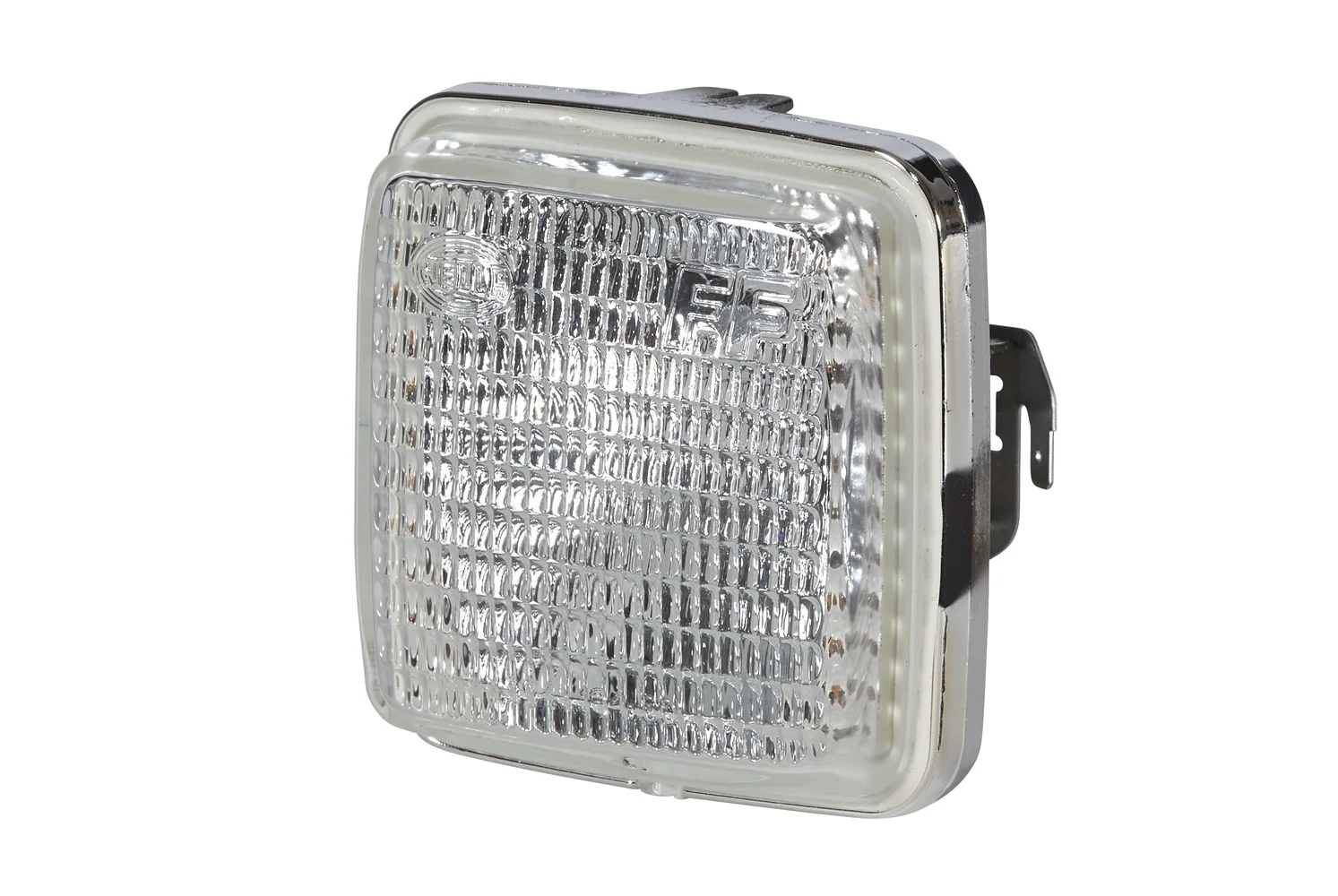

    HELLA - 1GA 998 525-001 - Insert, worklight, 12/24V

    Hella

    €26.62

  • Hella

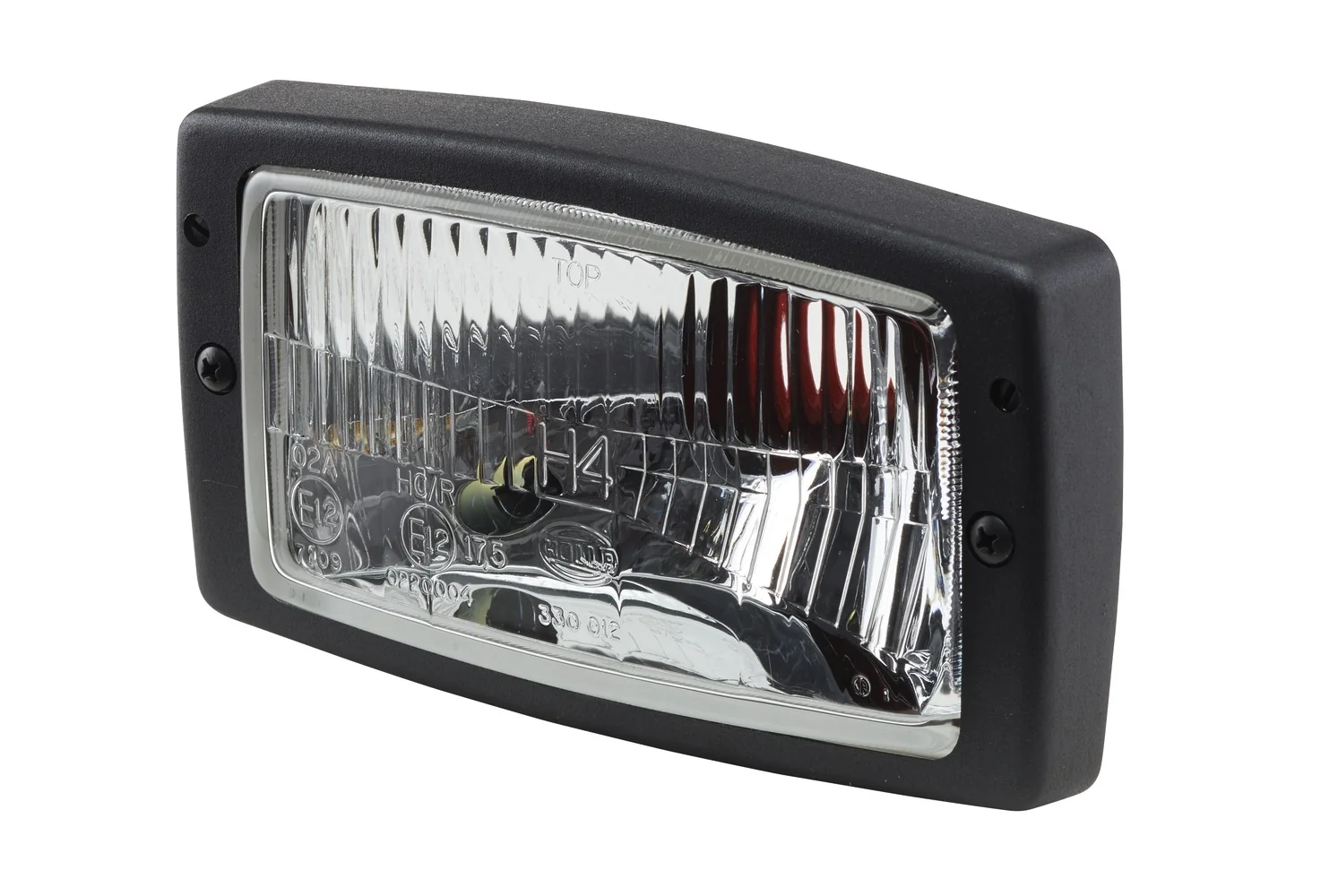

    HELLA - 1AD 996 018-641 - Halogen-Headlight, Modul 6213, 12/24V

    Hella

    €28.41

  • Hella

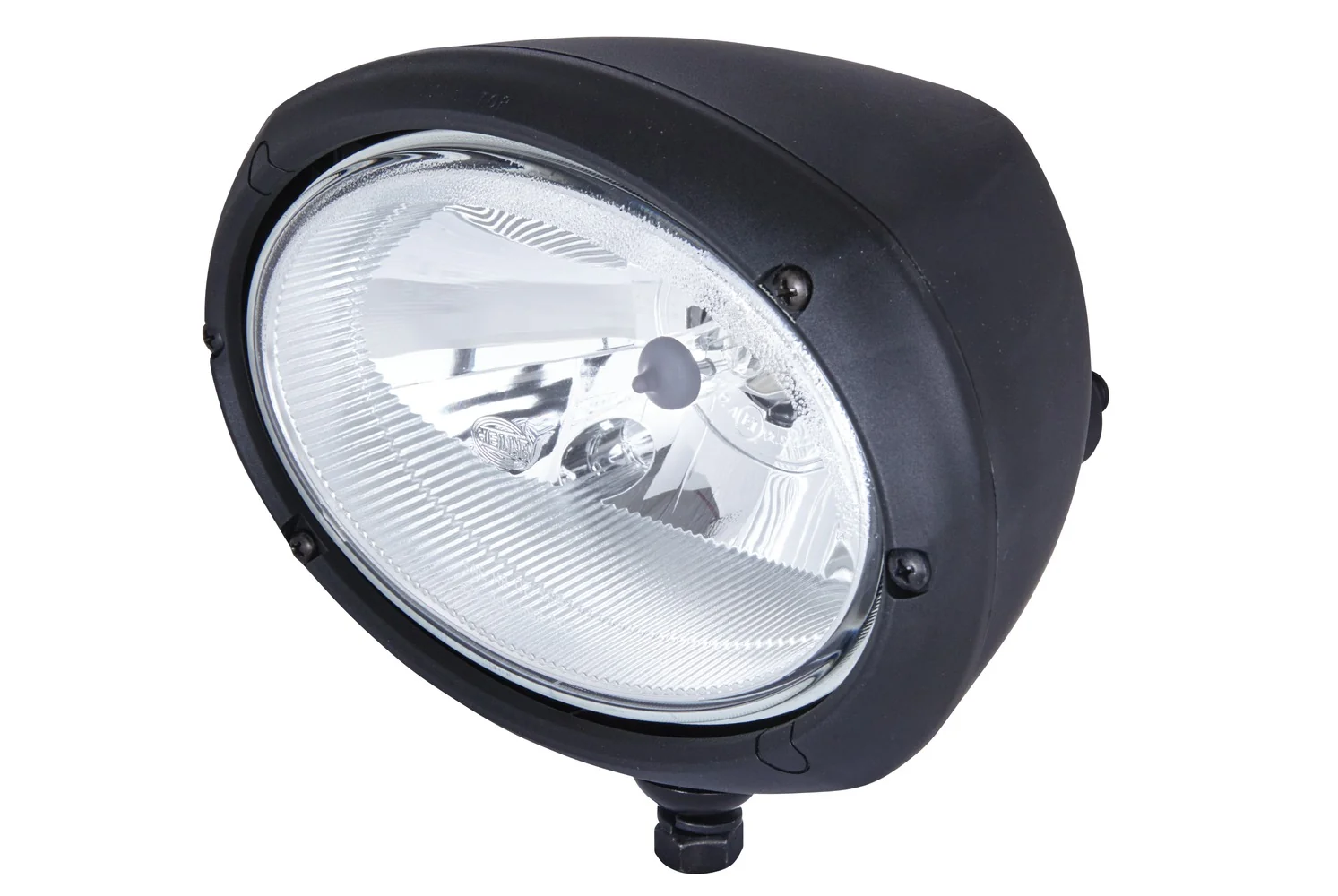

    HELLA - 1AB 996 157-131 - Halogen-Headlight, Oval 120, 12V
