Home
Electrical, Lighting & Batteries
Lighting
Work Lights

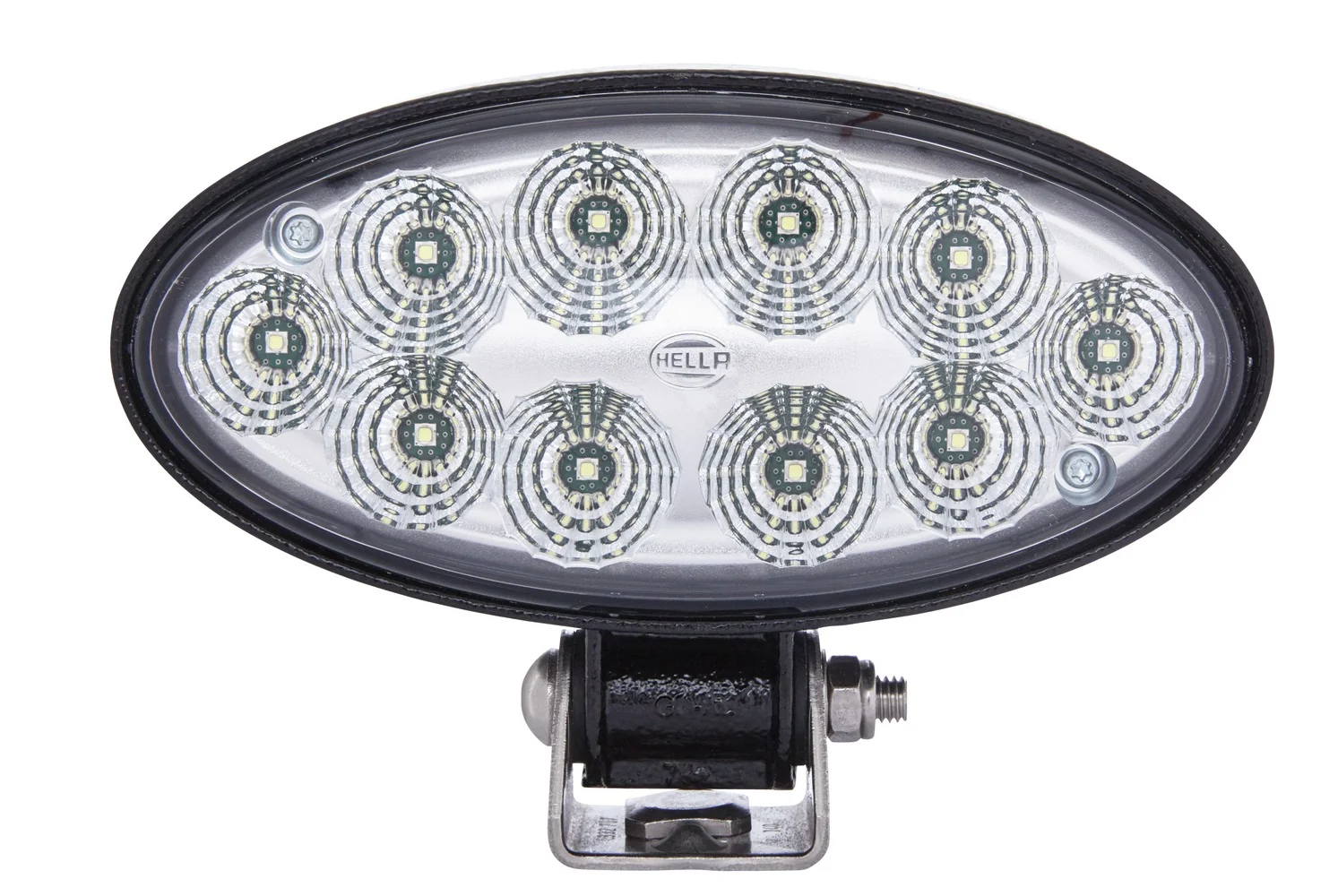

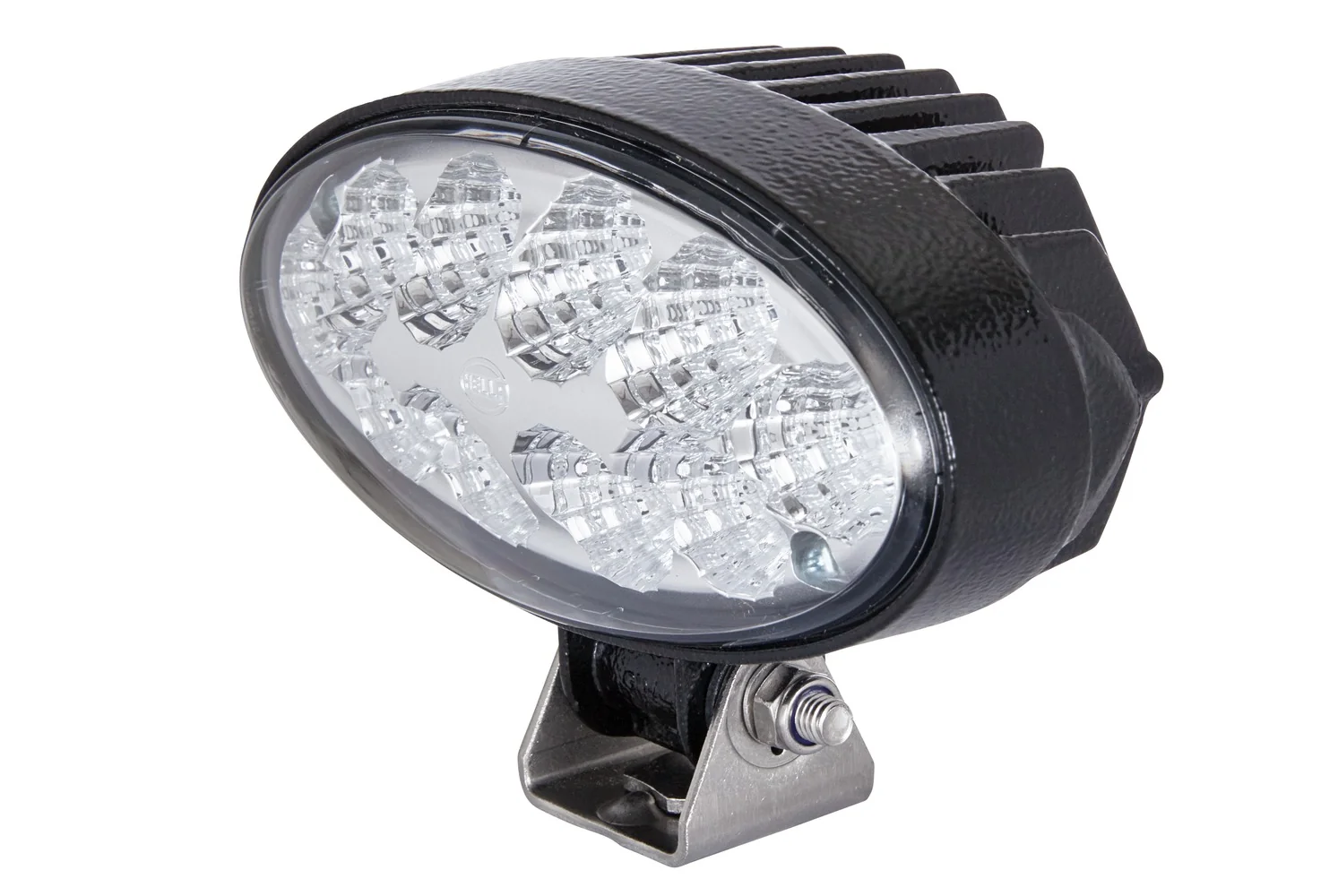

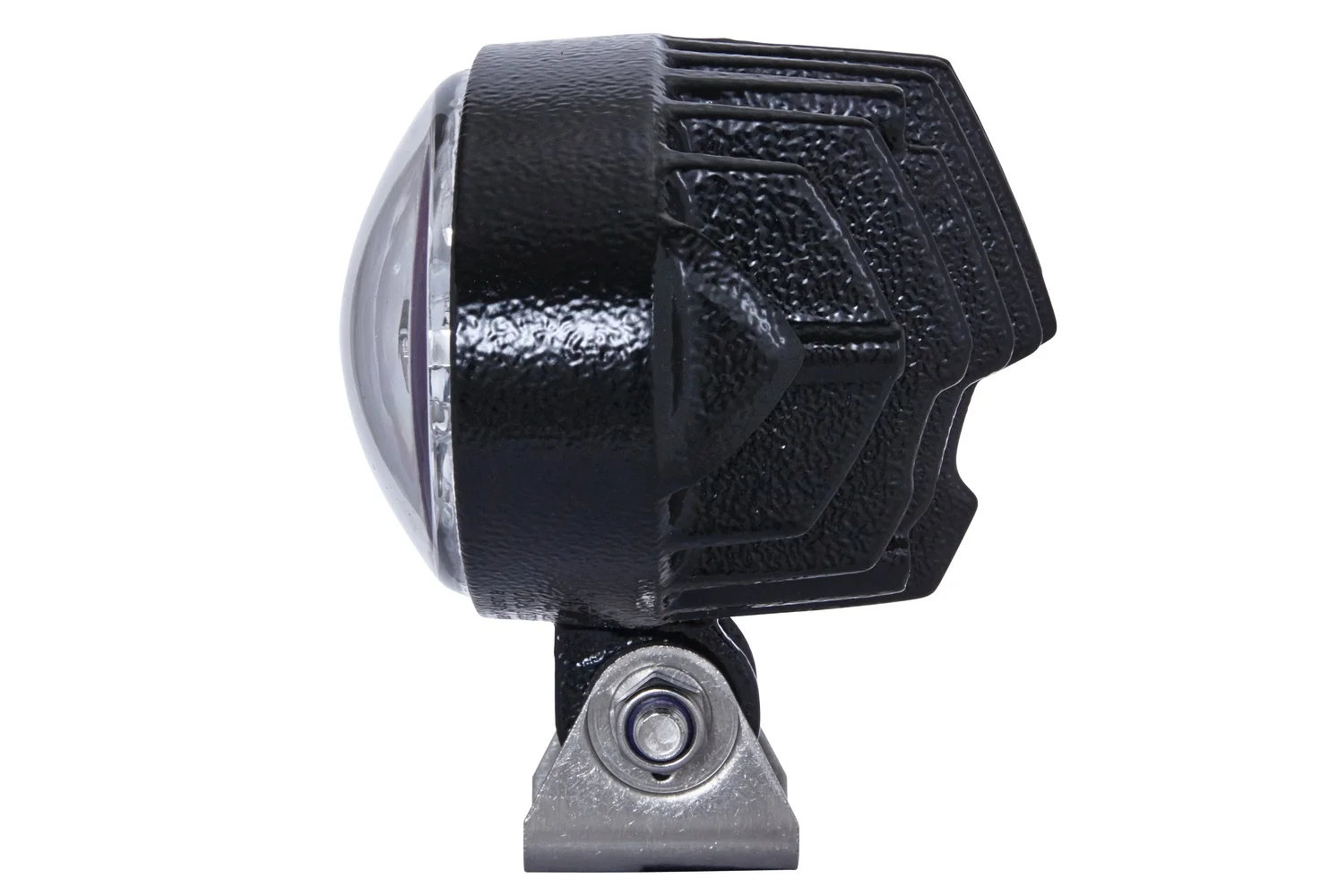

HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V
HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V
HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V
HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V
HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V
HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V

HELLA - 1GB 996 386-021 - LED-Worklight, Oval 90, 24/12V

€143.65

(Excl. VAT)

Price

(Excl. VAT)

€143.65

Product Description

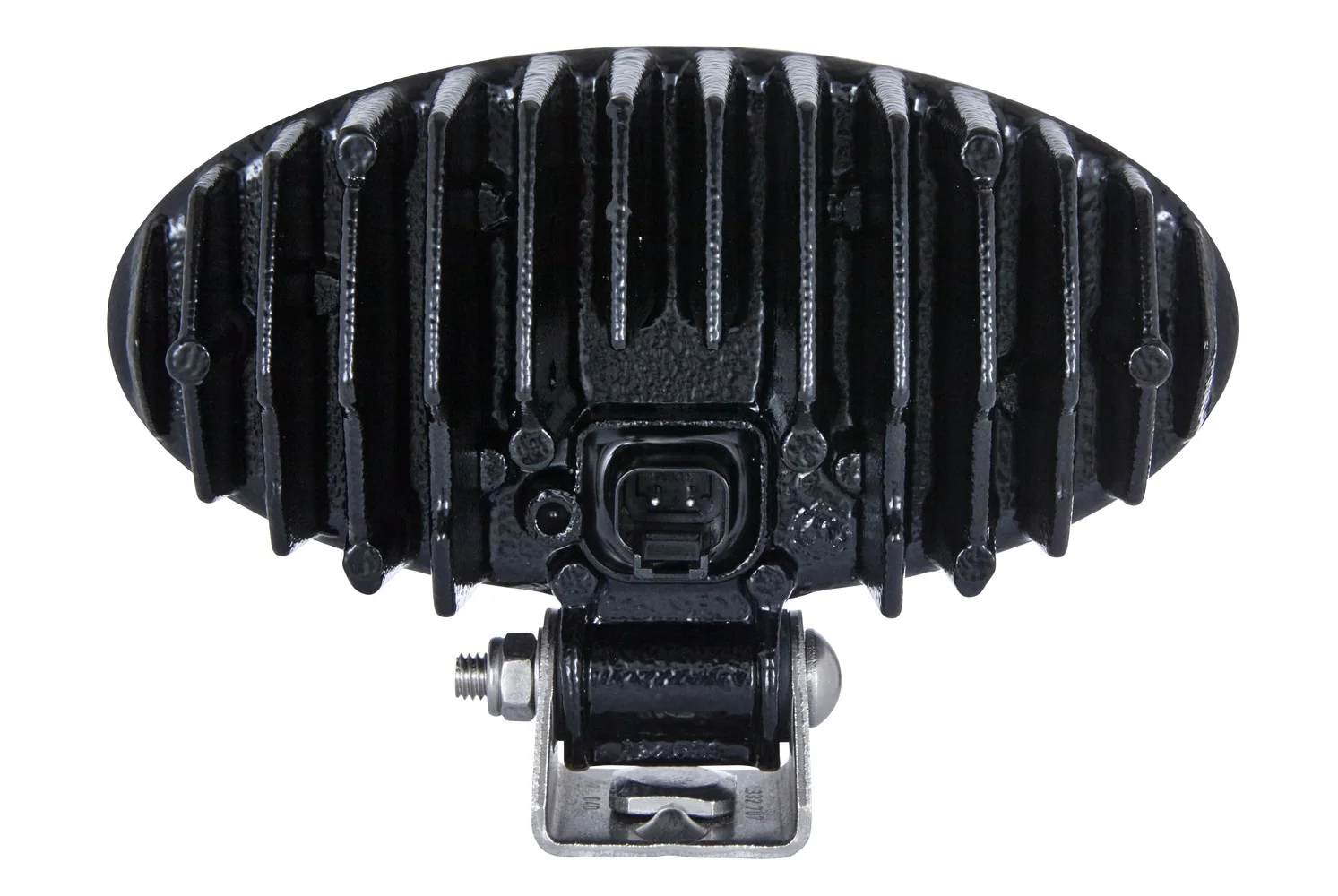

The Oval 90 from HELLA is a compact worklight with a modern, attractive design. The product range of the Oval 90 worklights includes halogen and xenon versions. The modular series is expanded with the Oval 90 LED to include efficient LED technology. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. Thanks to its powerful light output, the Oval 90 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 28 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 90 LED can be mounted either upright (0°) or suspended (180°). The light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklights' black housing is made of aluminium and has cooling fins ensuring the necessary heat dissipation of the 10 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Plug
DEUTSCH plug
Depth
105 mm
Width
177 mm
Height
126 mm
Voltage
12 V / 24 V
LampType
LED
HousingType
Aluminium Housing
LightDesign
LED
AssemblyNote
Assembly by qualified personnel required
LuminousFlux
2000 lm
MountingType
Mounting / Bolted
NumberOfLeds
10
FasteningType
Swivelling Mounting Bracket
HousingColour
Black
PowerConsumption
28 W
RegistrationType
ADR/GGVS
ColourTemperature
6500 K
DiffusingLensType
Clear diffusing lens
LightDistribution
Long-range illumination
FulfilsEceStandard
R10
ProtectionTypeIpCode
IP6K9K / IP6K7
DiffusingLensMaterial
PC (Polycarbonate)
Manufacturer
HELLA
