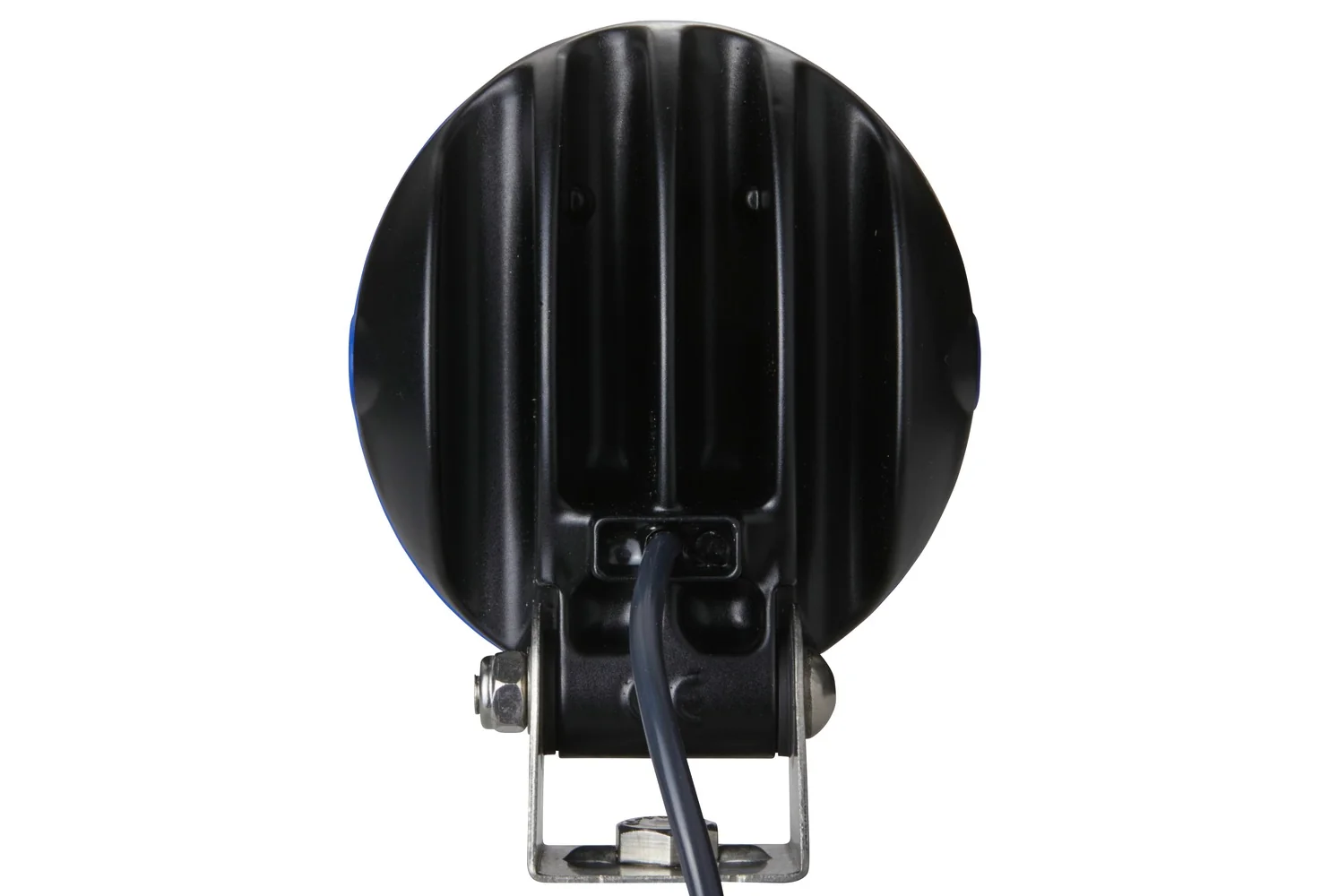

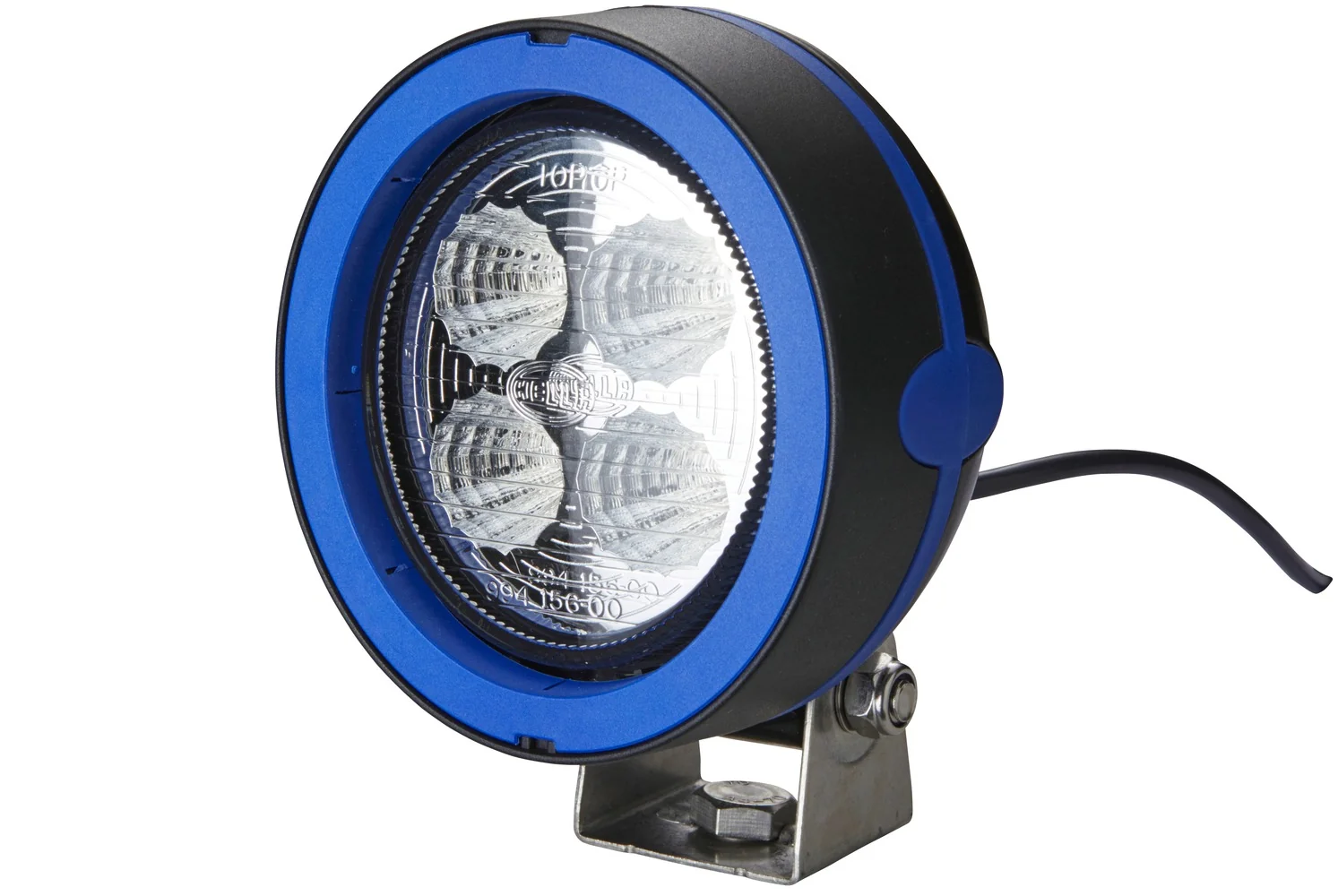

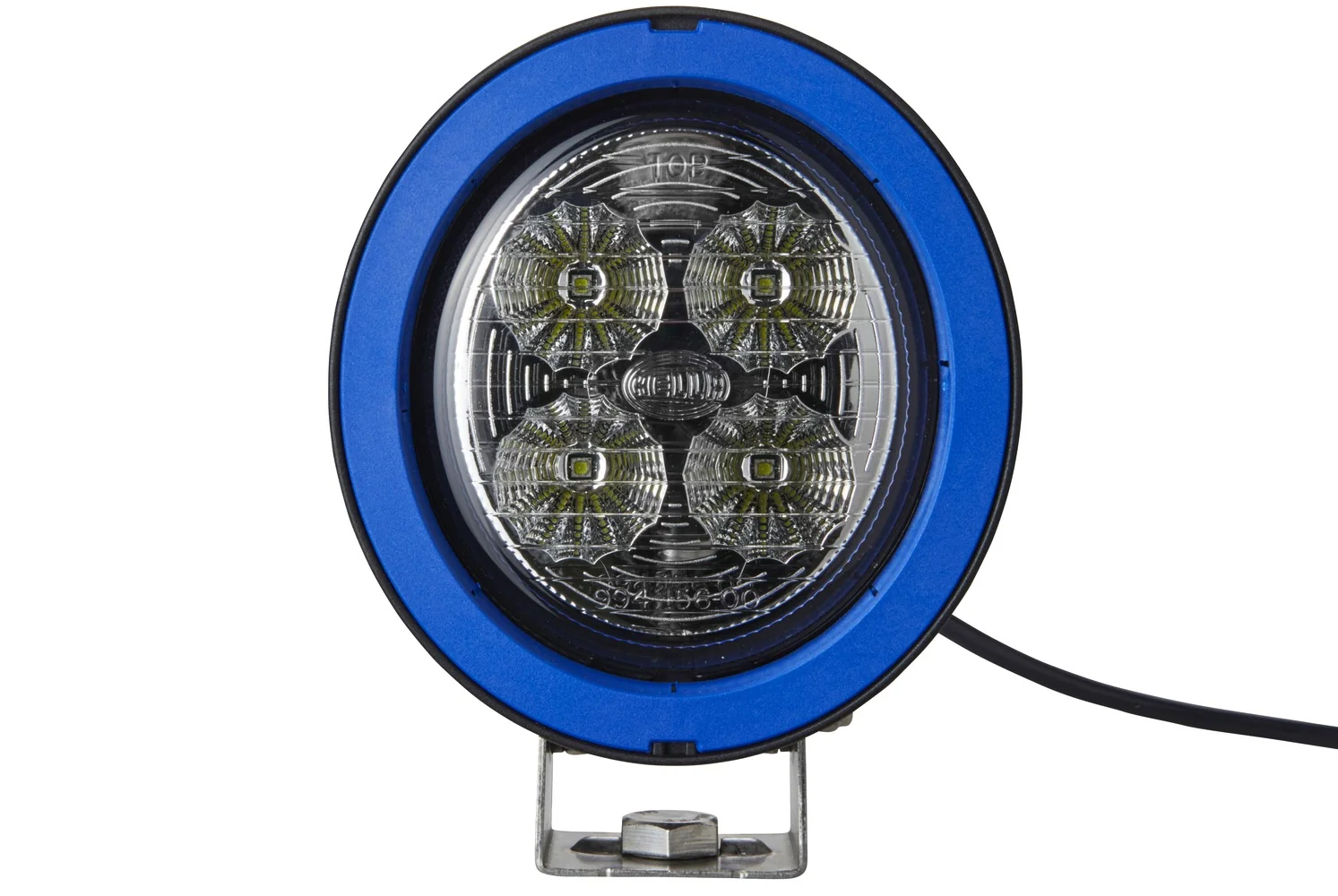

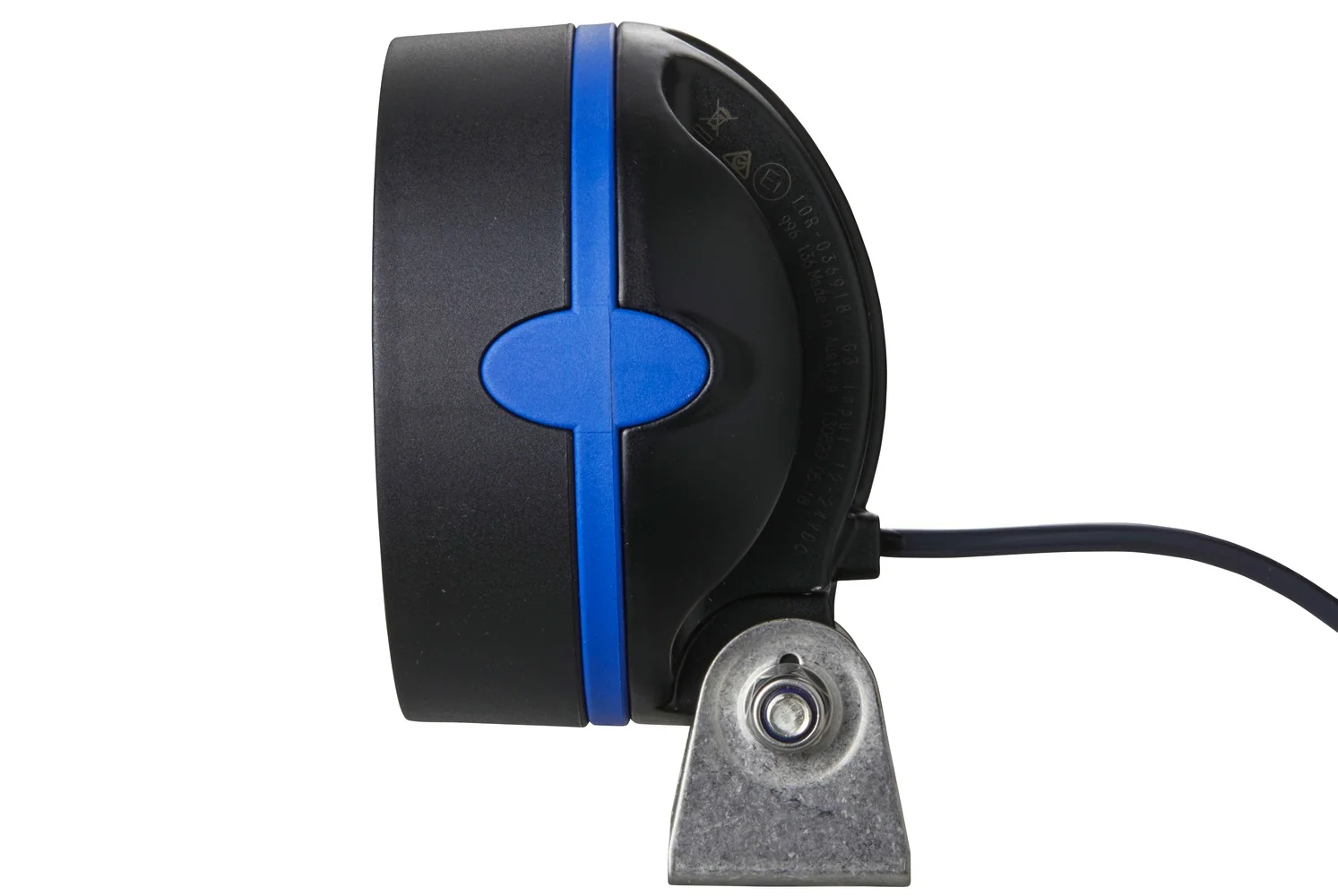

HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V
HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V
HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V
HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V
HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V
HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V

HELLA - 1GM 996 136-311 - LED-Worklight, Mega Beam Gen. III, 12/24V

€87.11

(Excl. VAT)

Price

(Excl. VAT)

€87.11

Product Description

This worklight uses four high-power LEDs as its light source. The LEDs are multivolt-compatible (12 and 24 V). Due to its low power consumption, the Mega Beam LED is ideal for use on vehicles with battery operation or whose alternator is already heavily loaded. The Mega Beam LED Generation II is resistant to shocks, vibrations and voltage fluctuations. The worklight does not require any maintenance after installation. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 33 volts. With 6500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The rear of the housing is made of aluminium and has large cooling fins that ensure optimal heat dissipation to ensure a long service life of the LED. Due to its compact dimensions, the worklight can be used universally. The robust worklight is resistant to high-pressure cleaning. To protect the glass pane, the housing has a protruding rim on its front. The power connection is made via a permanently mounted 2-pole cable, 2,000 mm long.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Broshuis

35186269

Caterpillar

146-2312371-21315342669

Faun

5171 5475641 475

Feldbinder

1075458

Hydrema

7400917

Krone

515025952

Manitou

314124

O&k

1462312

Schwarzmueller

78360

Toyota

0050201

Van hool

11425775

Vdl

11425775

Yanmar

5350661300
Plug
Open cable ends
Cable
2000 mm
Depth
84 mm
Width
110 mm
Height
120 mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
800 lm
Mounting Type
Bolted / mounting
Fastening Type
Vertical
Housing Colour
Black/blue
Number of LEDs
4
Power Consumption
13 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Fulfils ECE Standard
R10
Diffusing Lens Material
Glass
Protection Type (IP Code)
IP6K9K / IP6K7
Supplementary Article/Supplementary Info 2
With cable
Manufacturer
HELLA
