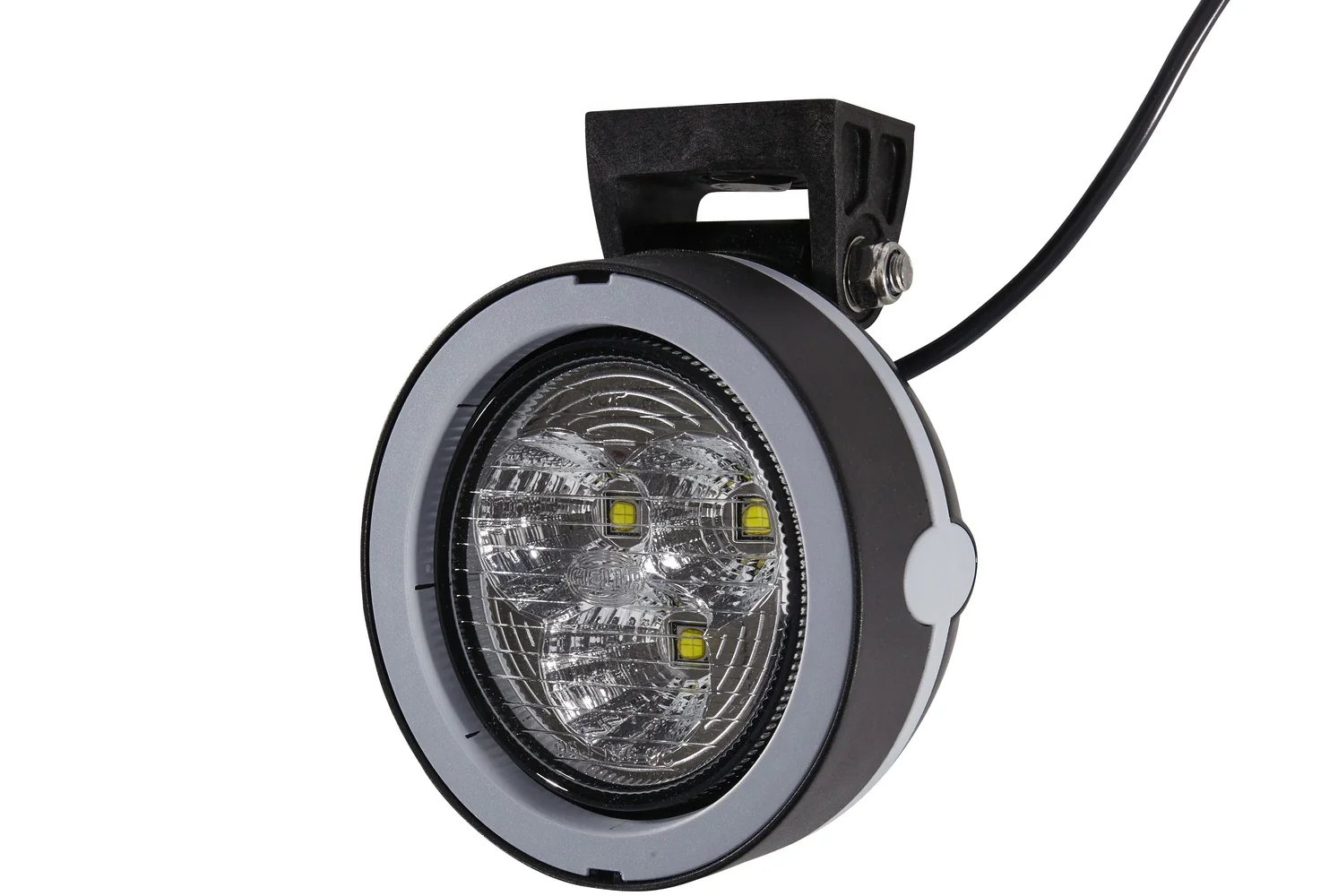

HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V
HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V
HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V
HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V
HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V
HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V

HELLA - 1GM 996 136-511 - LED-Worklight, Mega Beam Gen. IV, 24/12V

€111.56

(Excl. VAT)

Price

(Excl. VAT)

€111.56

Product Description

With the Mega Beam LED Generation IV, HELLA is launching a compact worklight with very powerful light output. For the first time, LED light output at xenon level could be achieved in this compact design. Equipped with 3 high-performance multi-chip LEDs, the Mega Beam LED produces 2,500 measured lumens with an energy consumption of only 30 watts. The black housing of this worklight is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs (comparison: Mega Beam LED Generation 3 had only 800 lumens). Despite its compact form, the Mega Beam LED Generation IV is a robust worklight for various applications. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish themselves more clearly in the dark, making it much easier for the human eye to perceive the senses and thus preventing fatigue. The electronics of the Mega Beam LED are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 33 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Holmer

1019055632
Plug
DEUTSCH plug
Cable
190 mm
Depth
83 mm
Width
110 mm
Height
147 mm
Voltage
12 V / 24 V
LampType
LED
HousingType
Aluminium Housing
LightDesign
LED
AssemblyNote
Assembly by qualified personnel required
LuminousFlux
2500 lm
MountingType
Mounting / Bolted
NumberOfLeds
3
FasteningType
Suspended
HousingColour
Black
PowerConsumption
30 W
DiffusingLensType
Patterned diffusing lens
LightDistribution
Short-Range Illumination
FulfilsEceStandard
R10
ProtectionTypeIpCode
IP6K9K / IP6K7
DiffusingLensMaterial
Polyamid 12
Manufacturer
HELLA
