HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V
HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V
HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V
HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V
HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V
HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V

HELLA - 1H0 996 376-491 - LED-Searchlight, Modul 70 Gen. III, 12/24V

€148.63

(Excl. VAT)

Price

(Excl. VAT)

€148.63

Product Description

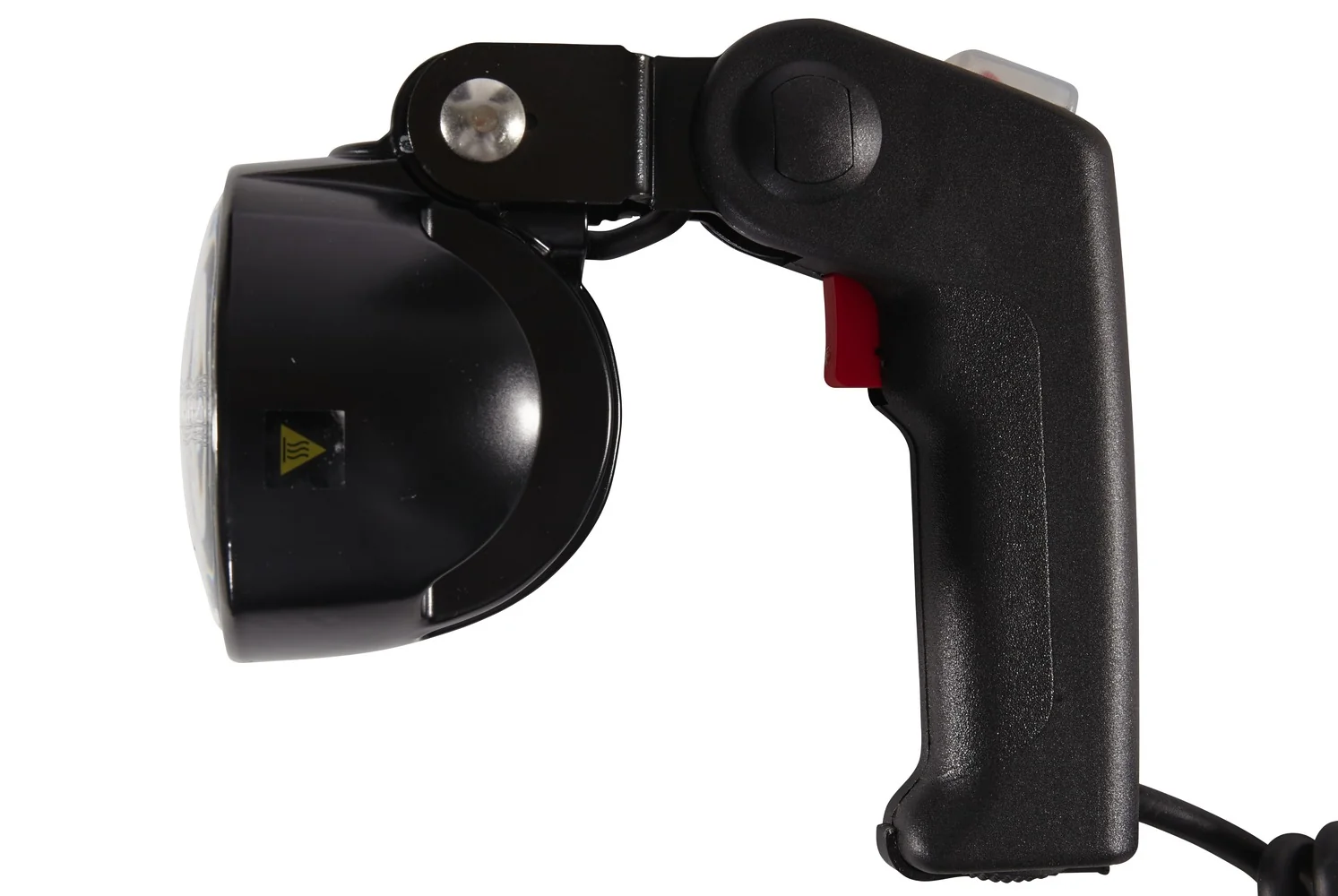

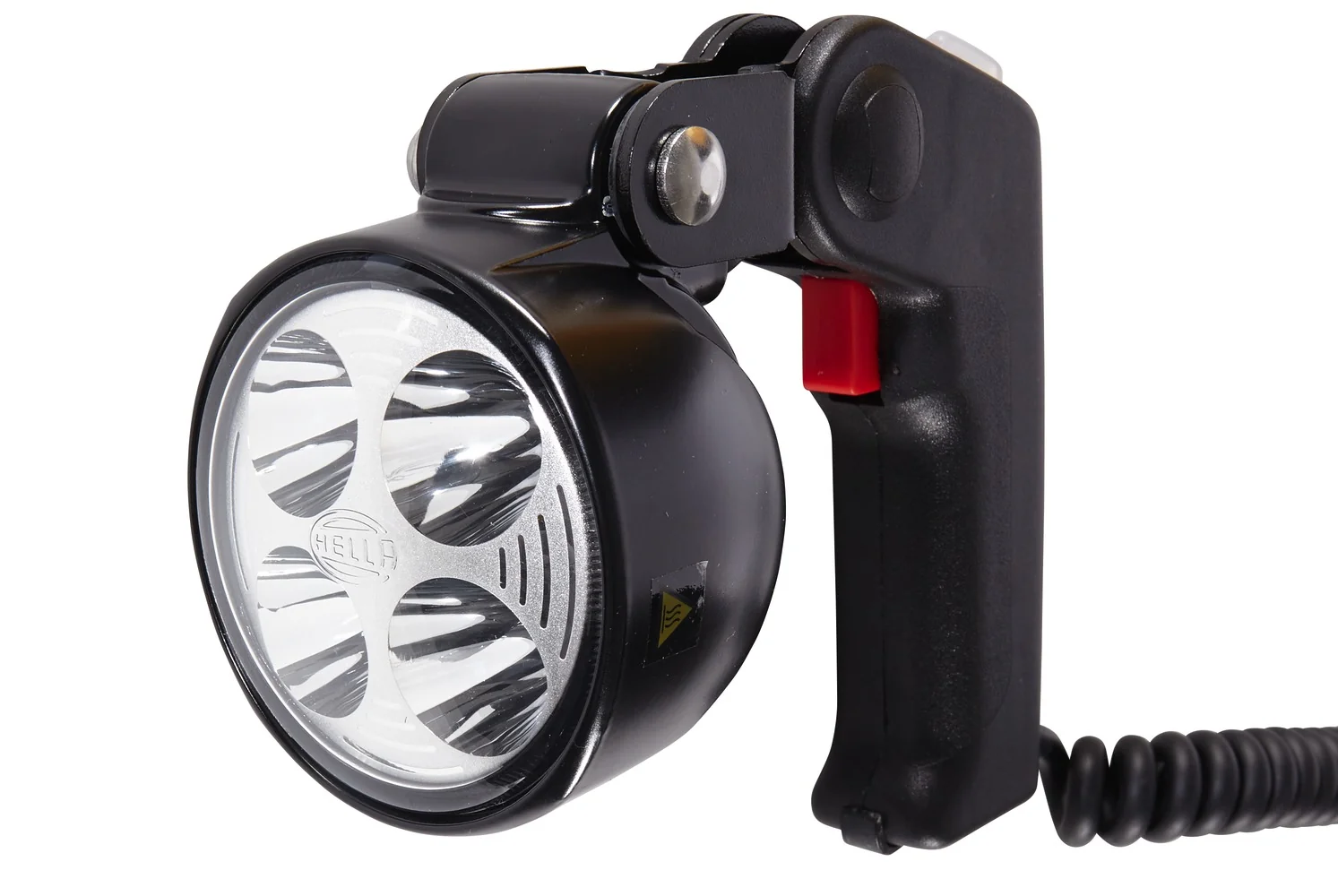

The Module 70 LED hand-held searchlight adds another variant to the already established Module 70 series. The handheld searchlight can be used flexibly thanks to the practical handle. In addition to a switch for continuous operation, the handle also has a push-button switch for short-time operation, which additionally enables a Morse function. Thanks to the specially developed reflector, the light from the worklight is directed extremely far into the distance. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish themselves more clearly in the dark, making it much easier for the human eye to perceive them. Due to its low energy consumption, the Module 70 LED hand-held searchlight is ideal for use on vehicles with battery operation. The electronics are multi-voltage compatible and can be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of polarity reversal and ensure constant brightness even with a fluctuating operating voltage of 9 - 32 volts. The hand-held searchlight is resistant to shocks, vibrations and voltage fluctuations. The worklight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the four high-performance LEDs, thereby extending their service life. Thanks to the CoroSafe coating, the LED worklight is additionally protected against corrosion to withstand even the toughest conditions. This makes the LED hand-held searchlight ideal for use in areas with high levels of salt and water.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Iveco

5038244546

Rosenbauer

28013AFE6313

Ziegler

10004512
Width
83 mm
Length
145 mm
Voltage
24 V / 12 V
Lamp Type
LED
Cable Length
3500 mm
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
800 lm
Mounting Type
Mounting
Housing Colour
Black
Number of LEDs
4
Illuminated Area
70 mm
Searchlight Type
Handheld searchlight
Colour Temperature
6500 K
Reflector Material
Plastic
Supplementary Info 2
Electromagnetic Compatibility (EMC)
Vertical Swivel Range
20 °
Protection Type (IP Code)
IP6K9K / IPX7
Manufacturer
HELLA
