Home
Electrical, Lighting & Batteries
Lighting
Headlights

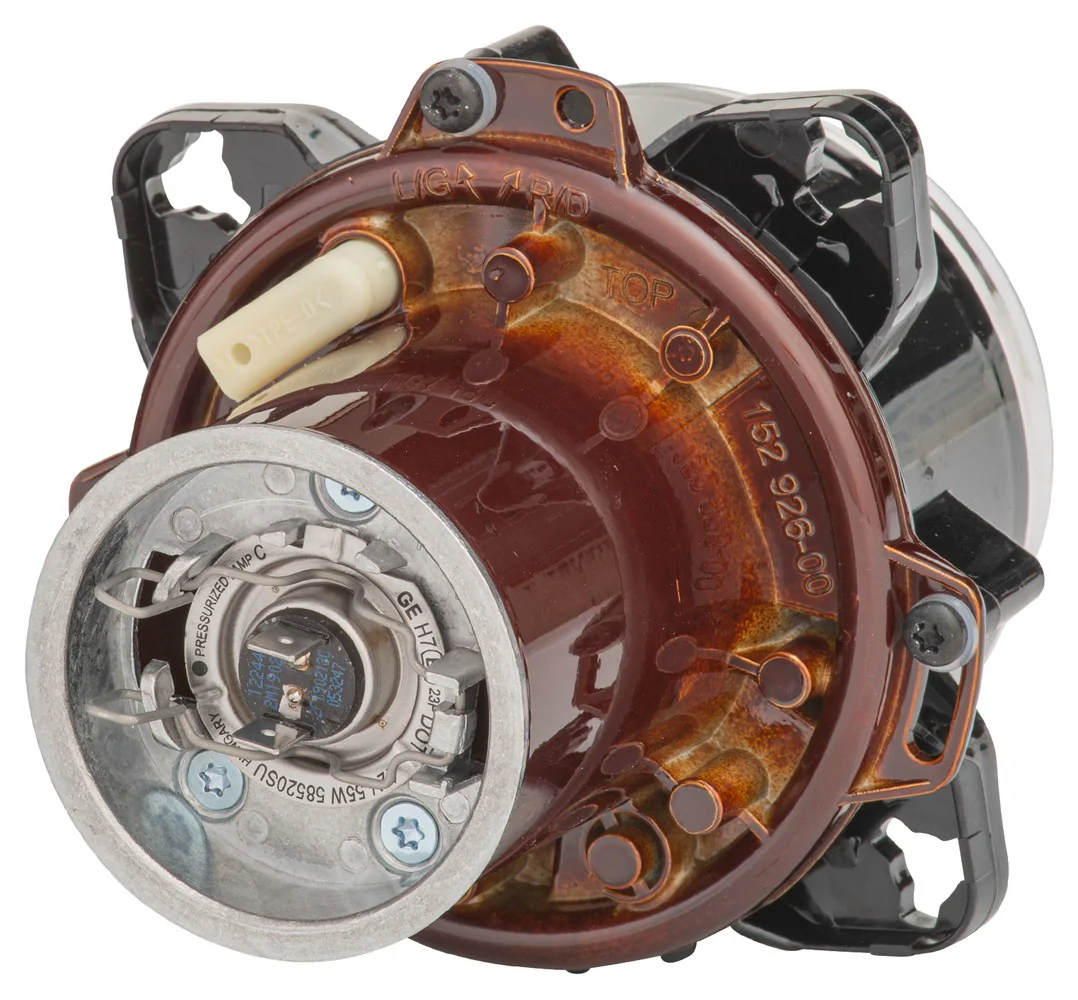

HELLA - 1LL 008 193-117 - Halogen/Asymmetric/DE-Insert, headlight, 90mm Essential, 12V
HELLA - 1LL 008 193-117 - Halogen/Asymmetric/DE-Insert, headlight, 90mm Essential, 12V
HELLA - 1LL 008 193-117 - Halogen/Asymmetric/DE-Insert, headlight, 90mm Essential, 12V
HELLA - 1LL 008 193-117 - Halogen/Asymmetric/DE-Insert, headlight, 90mm Essential, 12V
HELLA - 1LL 008 193-117 - Halogen/Asymmetric/DE-Insert, headlight, 90mm Essential, 12V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping on orders over €60

Pay Securely with

HELLA - 1LL 008 193-117 - Halogen/Asymmetric/DE-Insert, headlight, 90mm Essential, 12V

HELLA - 1LL 008 193-117 - Halogen/Asymmetric/DE-Insert, headlight, 90mm Essential, 12V

€55.39

(Excl. VAT)

Price

(Excl. VAT)

€55.39

Product Description

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

7105368M9172437699ACW1979240F931901020010G931901020180

Fendt

4296404M272437699ACW1979240F931901020010G931901020180

Hako

45614159000

Hitachi

AA01BAW

Iveco

69502067

Massey ferguson

4296404M2

Mitsubishi

SMME31640S9

Wiesmann

063-05-03-ET-009
Fits

Fendt

828 (01.01.2010 - 01.01.2014)822 (01.01.2010 - 01.01.2014)824 (01.01.2010 - 01.01.2014)826 (01.01.2010 - 01.01.2014)819 (01.01.2010 - 01.01.2011)
Plug
Blade Terminal
SVHC
7439-92-1; Lead
Depth
151 mm
Shape
Round
Width
113 mm
Height
118 mm
Length
140 mm
Voltage
12 V
Diameter
90 mm
LampType
H7
Quantity
36
LensColour
Crystal clear
LightDesign
Asymmetric / Halogen / DE
AssemblyNote
Assembly by qualified personnel required
MountingType
Mounting / Fitting
FasteningType
3-Point attachment
HousingColour
Black
LightFunction
With low beam
FittingPosition
Front
IlluminatedArea
90 mm
ReferenceNumber
12.5
SupplementaryInfo
With bulb
FulfilsEceStandard
R112 / R8
SupplementaryInfo2
With fastening material
TrafficOrientation
For left-hand traffic
LightFunctionsCount
1
DiffusingLensMaterial
Glass
Manufacturer
HELLA
