HELLA - 2PT 177 696-761 - LED-Daytime Running Light Set, LEDayFlex, 24/12V
HELLA - 2PT 177 696-761 - LED-Daytime Running Light Set, LEDayFlex, 24/12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 2PT 177 696-761 - LED-Daytime Running Light Set, LEDayFlex, 24/12V

HELLA - 2PT 177 696-761 - LED-Daytime Running Light Set, LEDayFlex, 24/12V

€182.84

(Excl. VAT)

Price

(Excl. VAT)

€182.84

Product Description

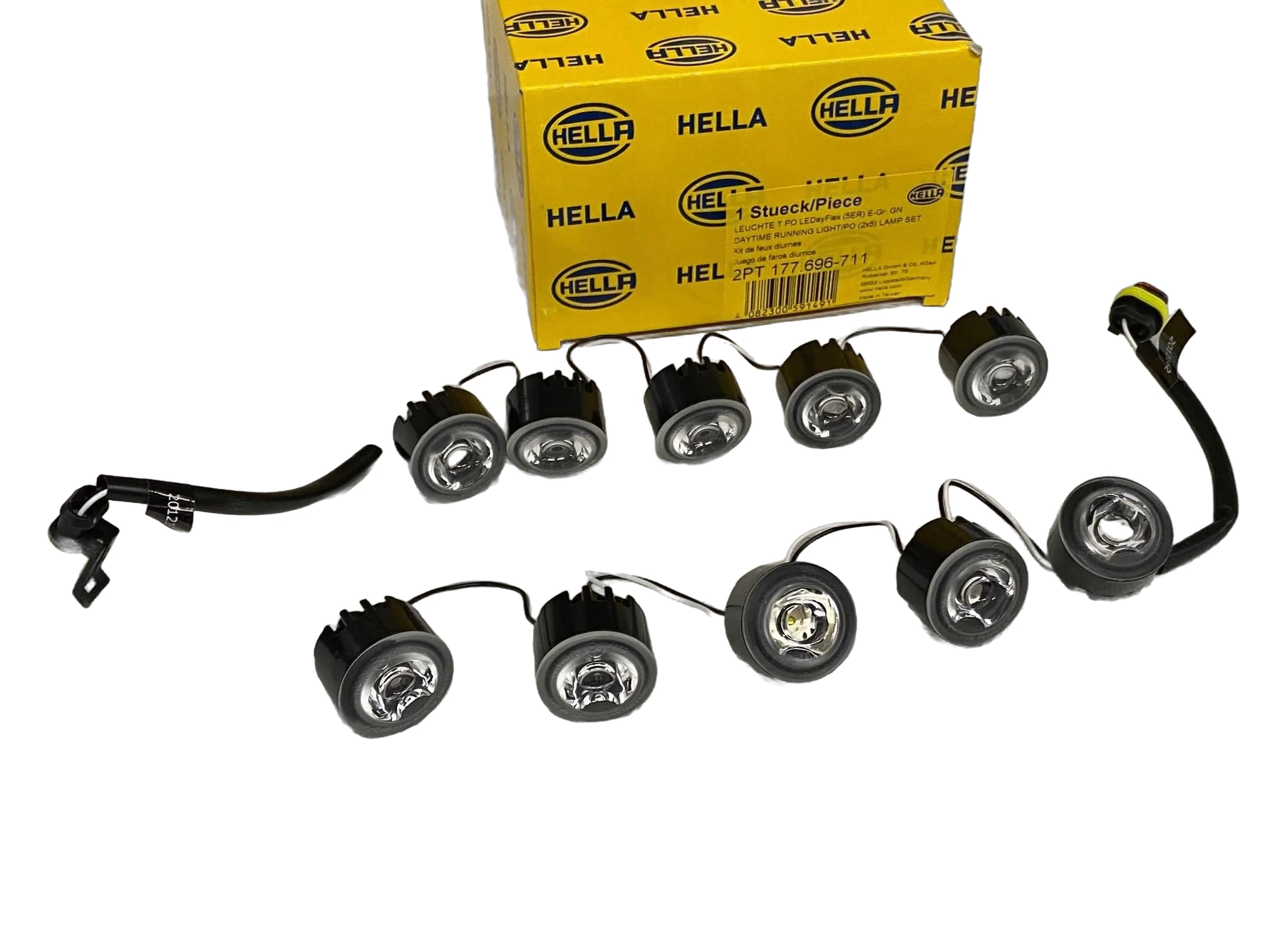

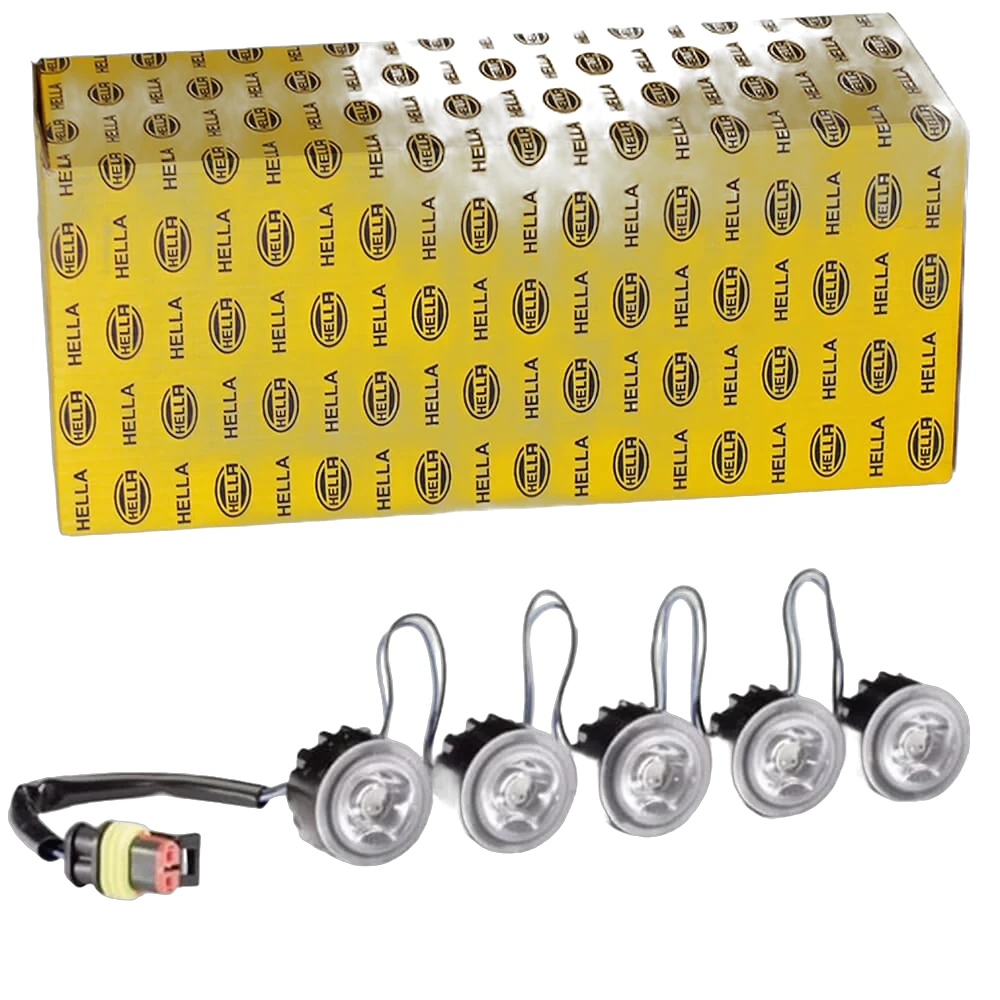

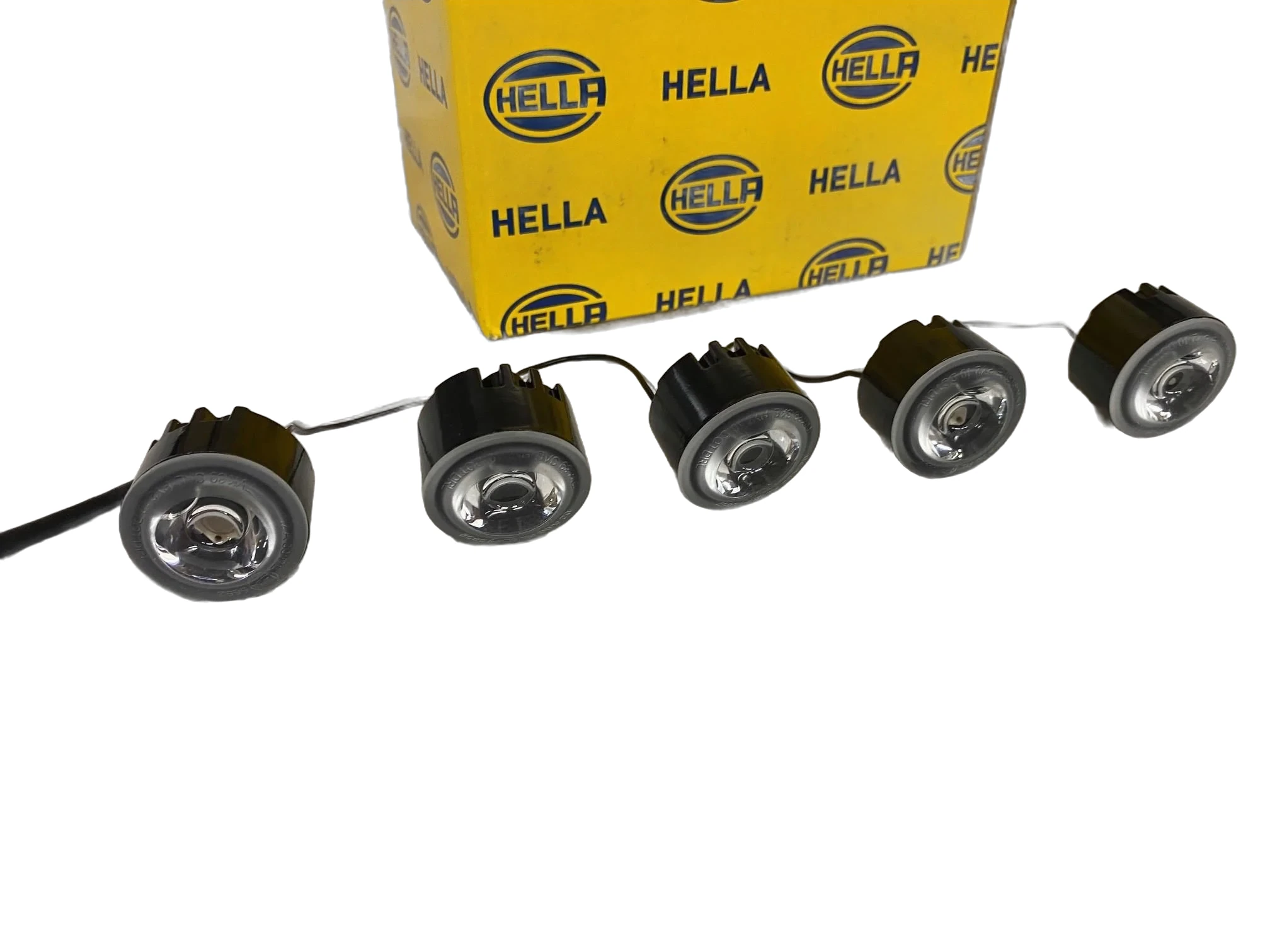

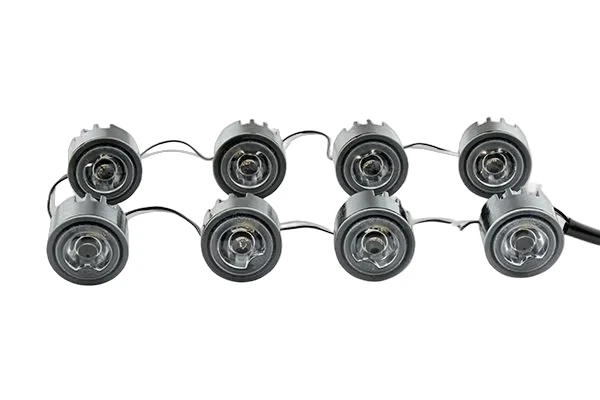

Those who want to add a personal touch to their vehicle with daytime running lights too will find just what they need with LEDayFlex: Modules for flexible arrangement allow an individual frontlighting design. Even better: This unique appearance doesn’t have to be limited to the daytime – LEDayFlex is also available with position light circuitry for night-time use. LED daytime running lights set with or without position light, comprising 2 module chains with between 5 and 8 round LED modules that can be configured into a lighting system in the vehicle front-end. The individual modules are circular and have a diameter of around 30 mm. Each individual module contains one highpower LED. Light distribution is eff ected by the lentil-shaped computer-calculated lens. The metal housing safely protects the lighting electronics against outer influences and is used for heat dissipation at the same time.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Iveco

503141859

Man

36.25101-6051
Shape
Round
Height
30 mm
Voltage
12 V / 24 V
Diameter
30 mm
Lamp Type
LED
Lens Colour
Crystal clear
Cable Length
120 mm
Light Design
LED
Assembly Note
Assembly by qualified personnel required
ECE Standards
R10 / R7 / R148 / R87
Mounting Type
Fitting
Quantity Unit
Set
Fastening Type
Horizontal fastening
Light Function
With daytime running light (LED)
Number of LEDs
16
Fitting Position
Vehicle Front
Power Consumption
6 W
Light Functions Count
1
Supplementary Article
Series Connection
Diffusing Lens Material
Acrylic
Protection Type IP Code
IP6K9K
Reverse Polarity Protection
Yes
Manufacturer
HELLA
