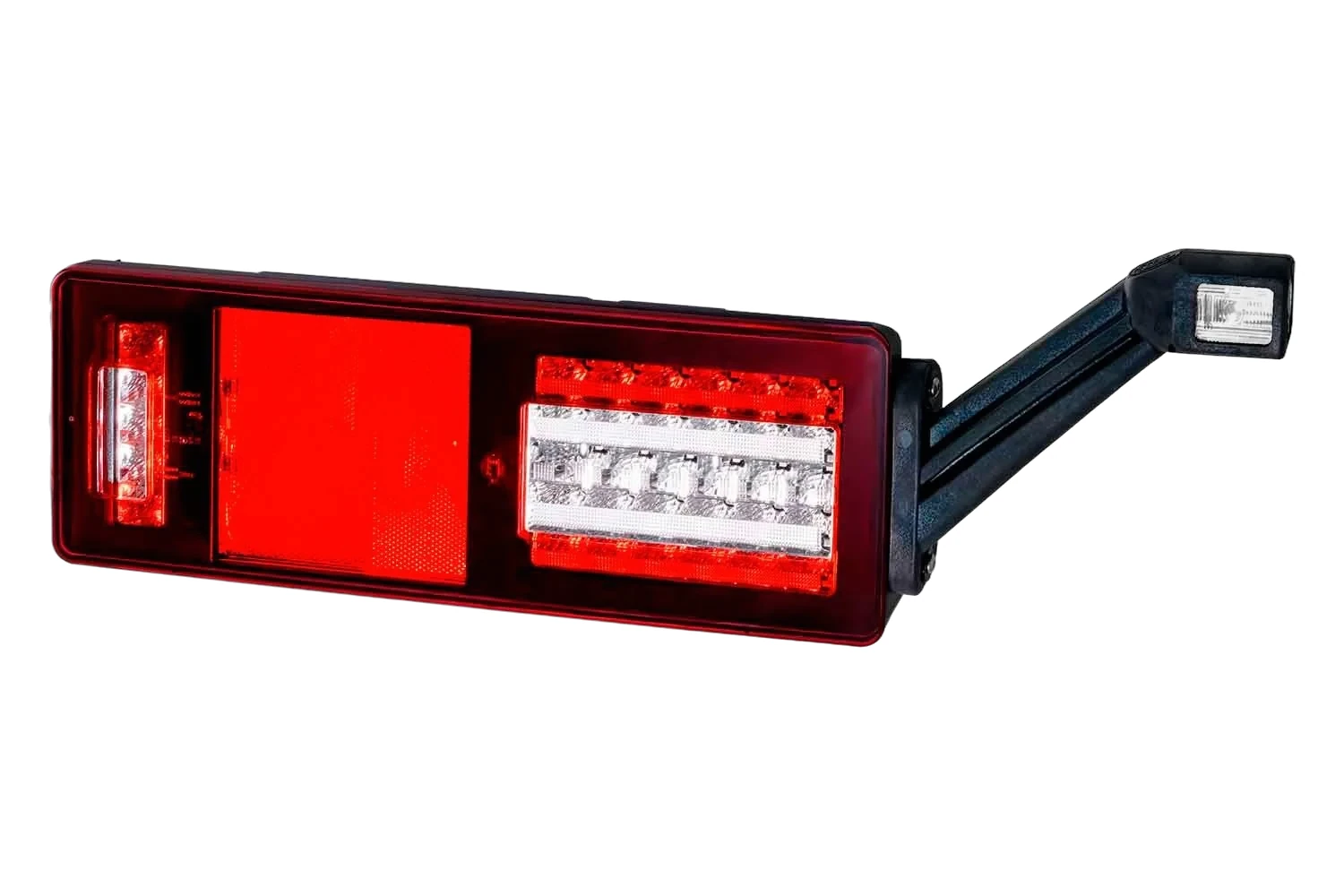

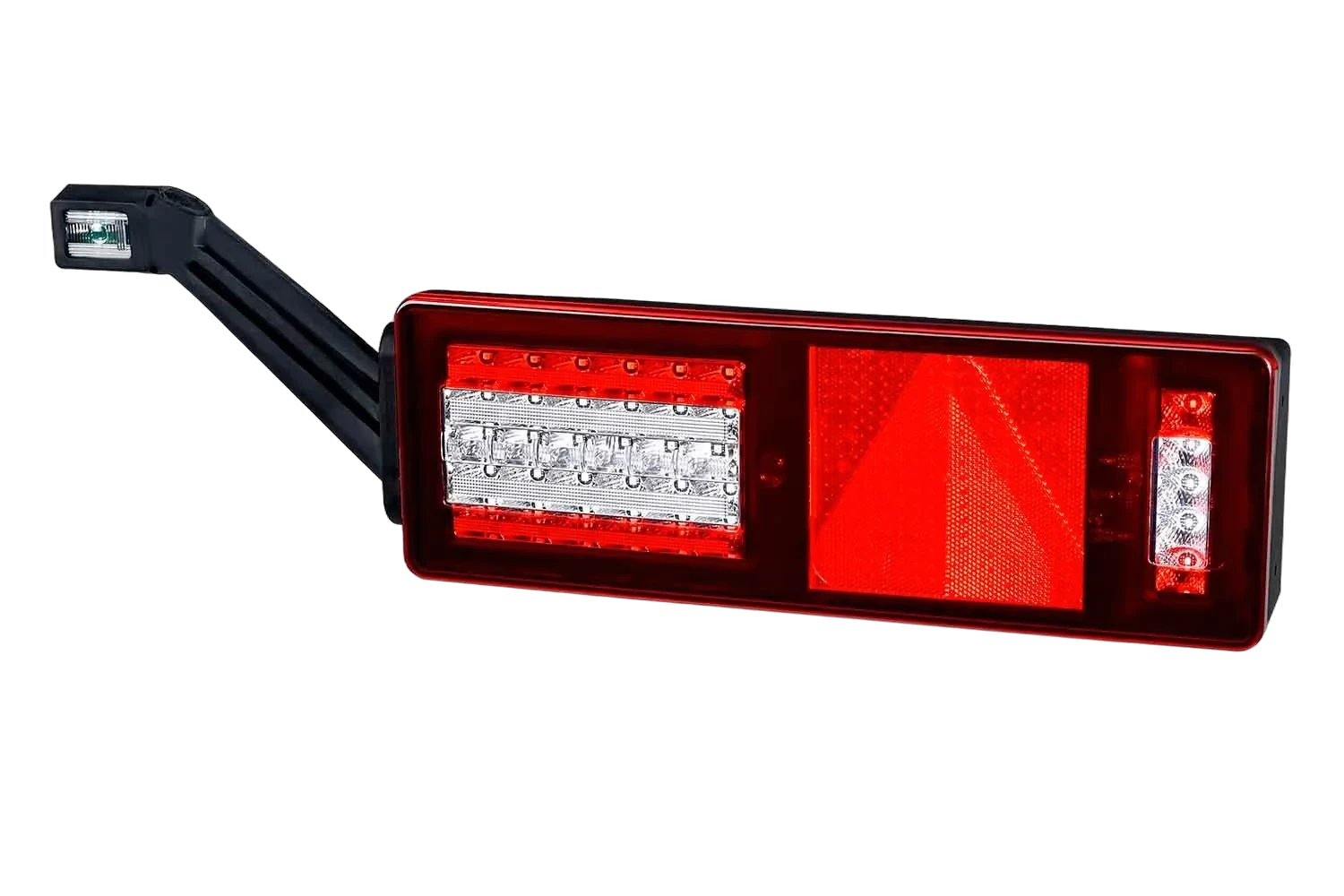

HELLA - 2VP 340 970-541 - Rearlight, LED, 24V
HELLA - 2VP 340 970-541 - Rearlight, LED, 24V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 2VP 340 970-541 - Rearlight, LED, 24V

HELLA - 2VP 340 970-541 - Rearlight, LED, 24V

€185.74

(Excl. VAT)

Price

(Excl. VAT)

€185.74

Product Description

The full-LED combination rearlight for 24 V trucks and trailers impresses at first glance with its innovative design. Particularly striking is the patented LED light curtain with an area of 144 cm² for the tail light and the rear reflector behind it, as well as the dynamic flashing light. Due to the large light area, optimum visibility of the vehicle is ensured. This ensures a high level of safety. The combination rearlight is also extremely robust. The lens is bonded to the housing, the two-colour outer lens made of polycarbonate (PC) is impact-resistant. With a size of 410 x 140 mm and an installation depth of only 55.5 mm, it is also extremely compact. The electronics also meet the highest requirements. The high-power LEDs have a long service life and low power consumption. There are also versions of the light where the control for flashing side marker lights and the load simulation for brake and indicator lights are integrated into the system. This ensures a high level of compatibility. Another plus point of the combination rearlight is its future viability. It has a mechanical interface for sensors so that, for example, ultrasonic sensors can be connected on both sides.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Shape
Rectangular
Width
86 mm
Height
180 mm
Length
586 mm
Weight
1900 g
Voltage
24 V
Quantity
1
Lamp Type
LED
Thread Size
M8 x 30
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Mounting Type
Mounting
Quantity Unit
Piece
Connector Type
Central 7 poles-DIN / AMP-superseal
Fastening Type
For horizontal fastening
Housing Colour
Black
Light Function
With marker lamp (LED) / with rear fog light (LED) / with stop light (LED) / with taillight (LED) / with indicator (LED) / with dynamic indicator light / with reverse light (LED) / with reflector (triangular)
Number Of Pins
2 -pin connector / 7 -pin connector
Light Functions
7
Fitting Position
Right
Housing Material
ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) / PC (Polycarbonate)
Registration Type
ADR/GGVS / ECE
Number Of Connectors
5
Temperature Range To
+60 °C
Paired Article Number
2VP 340 970-531
Temperature Range From
-40 °C
Protection Type IP Code
IP6K9K
Supplementary Article Info
Electromagnetic Compatibility (EMC) / with ballast / with direction indicator failure control / with plug / for trailer
Manufacturer
HELLA
