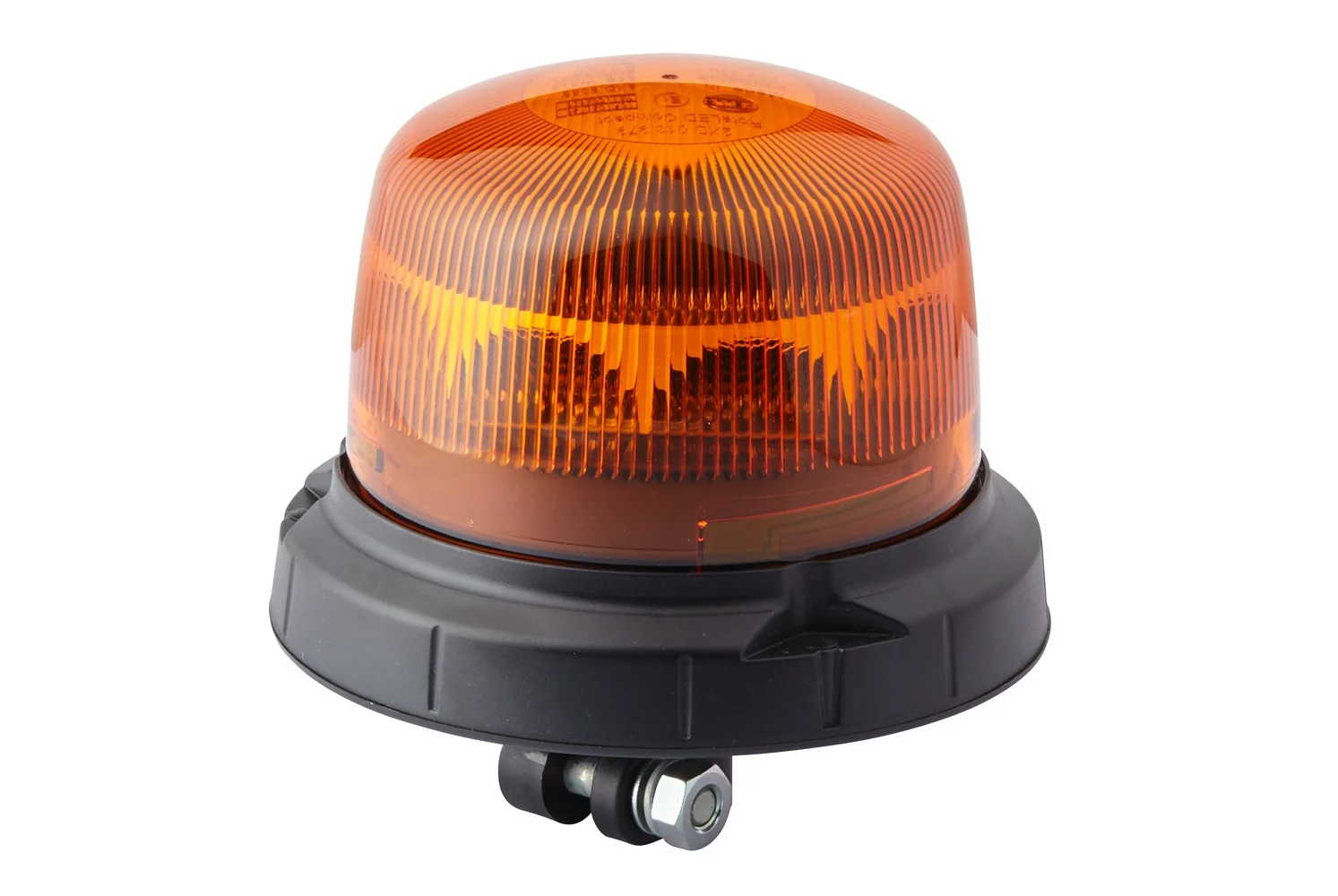

HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)
HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)
HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)
HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)
HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)
HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)

HELLA - 2XD 013 979-011 - LED-Strobe-type Beacon, RotaLED Compact, 12/24V, yellow (amber)

€65.02

(Excl. VAT)

Price

(Excl. VAT)

€65.02

Product Description

The RotaLED Compact beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 118 mm (F) to 164 mm (FL), depending on the design. The RotaLED Compact beacon meets the requirements of IP 67 and IP X9K and is therefore dust-tight and resistant to high-pressure cleaners. Even short-term immersion up to 1 metre under water is possible. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The RotaLED Compact is the successor to the halogen beacon series Rotafix, Rotaflex and Rota Compact and makes a 1:1 exchange to LED technology possible.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

ACX2968670

Ammann

1859299

Bobcat

7324271_100

Daf

1551350

Kubota

W92000498AW923335121W92333512A

Liebherr

12101629

Lindner

3010829

Manitou

50328263

Versatile

86066084

Volvo

12840536
Fits

John deere

1174 (01.01.1995 - 01.01.1995)6090 (01.01.2013 - 01.01.2016)W 540 (01.01.2008 - 01.01.2015)1450 (01.01.2004 - 01.01.2007)T 550 (01.01.2008 - 01.01.2015)6210 (01.01.2011 - 01.01.2015)1177 (01.01.1992 - 01.01.1993)6310 (01.01.1998 - 01.01.2001)6220 (01.01.2002 - 01.01.2007)6510 (01.01.2000 - 01.01.2001)7400 (01.01.2002 - 01.01.2007)9580 (01.01.2004 - 01.01.2007)9540 (01.01.2004 - 01.01.2007)6820 (01.01.2001 - 01.01.2006)5065 (01.01.2010 - 01.01.2017)T 660 (01.01.2008 - 01.01.2015)6010 (01.01.2000 - 01.01.2003)9680 (01.01.2001 - 01.01.2004)8345 (01.01.2010 - 01.01.2012)6300 (01.01.1997 - 01.01.1997)2056 (01.01.1995 - 01.01.1996)6910 (01.01.1999 - 01.01.2000)7200 (01.01.2011 - 01.01.2014)6430 (01.01.2006 - 01.01.2012)7300 (01.01.2002 - 01.01.2007)1550 (01.01.2001 - 01.01.2004)1166 (01.01.1992 - 01.01.1993)2266 (01.01.1996 - 01.01.2001)6115 (01.01.2012 - 01.01.2014)1450 (01.01.2008 - 01.01.2010)T (01.01.2008 - 01.01.2015)6750 (01.01.1998 - 01.01.2003)6200 (01.01.1997 - 01.01.1997)7800 (01.01.2003 - 01.01.2007)6110 (01.01.2013 - 01.01.2016)1170 (01.01.1996 - 01.01.2001)5070 (01.01.2010 - 01.01.2015)W 650 (01.01.2008 - 01.01.2015)9660 (01.01.2001 - 01.01.2004)6310 (01.01.2000 - 01.01.2001)9410 (01.01.2011 - 01.01.2014)1155 (01.01.1992 - 01.01.1992)8360 (01.01.2011 - 01.01.2015)6800 (01.01.1997 - 01.01.1997)6320 (01.01.2002 - 01.01.2007)6125 (01.01.2012 - 01.01.2015)C 670 (01.01.2008 - 01.01.2012)6210 (01.01.1998 - 01.01.2001)9880 (01.01.2001 - 01.01.2004)2256 (01.01.1997 - 01.01.2001)W 660 (01.01.2008 - 01.01.2015)7230 (01.01.2011 - 01.01.2014)6810 (01.01.2000 - 01.01.2000)W 550 (01.01.2008 - 01.01.2015)9780 (01.01.2004 - 01.01.2007)6200 (01.01.1995 - 01.01.1997)6130 (01.01.2012 - 01.01.2016)6130 (01.01.2012 - 01.01.2014)6520 (01.01.2001 - 01.01.2006)6320 (01.01.2004 - 01.01.2006)9660 (01.01.2005 - 01.01.2007)7430 (01.01.2006 - 01.01.2012)6650 (01.01.1998 - 01.01.2003)1169 (01.01.1992 - 01.01.1993)5100 (01.01.2009 - 01.01.2014)T 670 (01.01.2008 - 01.01.2015)2064 (01.01.1995 - 01.01.1996)6220 (01.01.2001 - 01.01.2006)2266 (01.01.1998 - 01.01.2001)6600 (01.01.1995 - 01.01.1997)2054 (01.01.1995 - 01.01.1996)5055 (01.01.2010 - 01.01.2017)9560 (01.01.2001 - 01.01.2004)6620 (01.01.2001 - 01.01.2006)6950 (01.01.1998 - 01.01.2003)9640 (01.01.2001 - 01.01.2004)9880 (01.01.2006 - 01.01.2007)7280 R (01.01.2011 - 01.01.2014)7820 (01.01.2003 - 01.01.2006)2054 (01.01.1995 - 01.01.1995)9580 (01.01.2001 - 01.01.2004)6125 (01.01.2012 - 01.01.2016)8310 (01.01.2015 - 01.01.2016)6420 (01.01.2001 - 01.01.2006)95 (01.01.2004 - 01.01.2007)6100 (01.01.2013 - 01.01.2016)T 560 (01.01.2008 - 01.01.2015)6810 (01.01.1996 - 01.01.1997)6210 (01.01.2001 - 01.01.2002)6400 (01.01.1997 - 01.01.1997)1157 (01.01.1995 - 01.01.1995)9780 (01.01.2000 - 01.01.2001)8335 (01.01.2015 - 01.01.2017)1550 (01.01.2004 - 01.01.2007)6900 (01.01.1997 - 01.01.1997)6830 (01.01.2006 - 01.01.2012)6920 (01.01.2001 - 01.01.2006)8530 (01.01.2005 - 01.01.2010)7215 (01.01.2011 - 01.01.2014)6100 (01.01.1995 - 01.01.1997)5720 (01.01.2003 - 01.01.2005)6420 (01.01.2002 - 01.01.2006)6610 (01.01.1997 - 01.01.2002)9680 (01.01.2004 - 01.01.2007)8335 (01.01.2011 - 01.01.2015)9640 (01.01.2004 - 01.01.2007)6520 (01.01.2003 - 01.01.2007)6300 (01.01.1995 - 01.01.1997)6115 (01.01.2012 - 01.01.2016)6020 (01.01.2002 - 01.01.2003)663 (01.01.2006 - 01.01.2012)S 690 (01.01.2008 - 01.01.2008)S 690 (01.01.2008 - 01.01.2015)6115 (01.01.2012 - 01.01.2015)8310 (01.01.2011 - 01.01.2015)8 RT (01.01.2011 - 01.01.2015)8335 (01.01.2015 - 01.01.2016)9880 (01.01.2004 - 01.01.2007)6930 (01.01.2007 - 01.01.2012)6810 (01.01.2000 - 01.01.2001)6910 (01.01.1996 - 01.01.1997)6-120 (01.01.2002 - 01.01.2003)5620 (01.01.2003 - 01.01.2008)2058 (01.01.1995 - 01.01.1996)2258 (01.01.1996 - 01.01.2001)2264 (01.01.1996 - 01.01.2001)6620 (01.01.2003 - 01.01.2007)8430 (01.01.2005 - 01.01.2010)6310 (01.01.1997 - 01.01.2003)1450 (01.01.2001 - 01.01.2004)1169 (01.01.1992 - 01.01.1992)7260 (01.01.2011 - 01.01.2014)8260 (01.01.2015 - 01.01.2016)8360 (01.01.2015 - 01.01.2016)8295 (01.01.2010 - 01.01.2012)7530 (01.01.2007 - 01.01.2011)6020 (01.01.2003 - 01.01.2007)1550 (01.01.2008 - 01.01.2010)1177 (01.01.1992 - 01.01.1992)8320 (01.01.2010 - 01.01.2012)9510 (01.01.2011 - 01.01.2014)6610 (01.01.1997 - 01.01.2003)9540 (01.01.2001 - 01.01.2004)9680 (01.01.2005 - 01.01.2007)1166 (01.01.1992 - 01.01.1992)9780 (01.01.2001 - 01.01.2004)6110 (01.01.1998 - 01.01.2001)6900 (01.01.1995 - 01.01.1997)6910 (01.01.2000 - 01.01.2001)6506 (01.01.1995 - 01.01.1997)6210 (01.01.2015 - 01.01.2016)6320 (01.01.2001 - 01.01.2003)8430 (01.01.2007 - 01.01.2010)6400 (01.01.1995 - 01.01.1998)6420 (01.01.2001 - 01.01.2007)W 540 (01.01.2008 - 01.01.2014)2254 (01.01.1996 - 01.01.2001)97 (01.01.2001 - 01.01.2004)6710 (01.01.1996 - 01.01.1997)1023E (01.01.2019 >)6010 (01.01.2001 - 01.01.2002)6420 (01.01.2002 - 01.01.2007)5070 (01.01.2010 - 01.01.2011)6600 (01.01.1997 - 01.01.1997)2066 (01.01.1995 - 01.01.1996)9560 (01.01.2004 - 01.01.2007)6125 (01.01.2012 - 01.01.2014)5730 (01.01.1992 - 01.01.1992)9560 (01.01.2011 - 01.01.2014)8260 (01.01.2011 - 01.01.2015)2256 (01.01.1996 - 01.01.2001)6420 (01.01.2001 - 01.01.2003)8430 (01.01.2005 - 01.01.2007)6530 (01.01.2006 - 01.01.2010)6320 (01.01.2001 - 01.01.2006)7920 (01.01.2003 - 01.01.2006)7500 (01.01.2002 - 01.01.2007)9660 (01.01.2004 - 01.01.2007)7200 (01.01.2002 - 01.01.2007)6810 (01.01.1998 - 01.01.2001)5075 (01.01.2012 - 01.01.2017)8285 (01.01.2015 - 01.01.2016)1188 (01.01.1992 - 01.01.1993)7530 (01.01.2009 - 01.01.2012)6920 (01.01.2000 - 01.01.2005)6230 (01.01.2006 - 01.01.2012)7700 (01.01.2003 - 01.01.2007)6610 (01.01.2000 - 01.01.2001)6120 (01.01.2000 - 01.01.2001)7720 (01.01.2004 - 01.01.2006)5075 (01.01.2010 - 01.01.2017)9460 (01.01.2011 - 01.01.2014)6506 (01.01.1997 - 01.01.1997)6850 (01.01.1998 - 01.01.2003)5720 (01.01.2003 - 01.01.2008)6610 (01.01.1996 - 01.01.1997)61 (01.01.2008 - 01.01.2014)6120 (01.01.2004 - 01.01.2006)9 RT (01.01.2011 - 01.01.2014)5115 (01.01.2014 - 01.01.2016)8270 (01.01.2010 - 01.01.2012)8285 (01.01.2011 - 01.01.2015)6800 (01.01.1995 - 01.01.1997)6210 (01.01.2000 - 01.01.2003)1158 (01.01.1995 - 01.01.1995)6330 (01.01.2006 - 01.01.2012)S 690 (01.01.2008 - 01.01.2011)6120 (01.01.2002 - 01.01.2003)6105 (01.01.2012 - 01.01.2015)6110 (01.01.2000 - 01.01.2003)6210 (01.01.2011 - 01.01.2014)6105 (01.01.2012 - 01.01.2014)6120 (01.01.2002 - 01.01.2007)6100 (01.01.1997 - 01.01.1997)5830 (01.01.1992 - 01.01.1992)

Claas

Scorpion 9040 (01.01.2010 - 01.01.2013)Xerion 4500 (01.01.2011 - 01.01.2014)Lexion 650 (01.01.2010 - 01.01.2012)Jaguar 950 (01.01.2007 - 01.01.2016)Xerion 5000 (01.01.2014 - 01.01.2020)Lexion 480 (01.01.2000 - 01.01.2002)Lexion 460 (01.01.1996 - 01.01.2002)Jaguar 860 (01.01.2014 - 01.01.2015)Lexion 560 (01.01.2003 - 01.01.2011)Jaguar 850 (01.01.2015 - 01.01.2019)Lexion 6700 (01.01.2019 >)Mega II 204 (01.01.1996 - 01.01.1996)Lexion 550 (01.01.2003 - 01.01.2011)Lexion 740 (01.01.2015 - 01.01.2020)Lexion 7400 (01.01.2019 >)Jaguar 870 (01.01.2014 - 01.01.2019)Jaguar 930 (01.01.2015 - 01.01.2019)Xerion 4200 (01.01.2020 >)Jaguar 820 (01.01.1996 - 01.01.2002)Scorpion 9040 (01.01.2007 - 01.01.2010)Medion 310 (01.01.2003 - 01.01.2007)Tucano 450 (01.01.2018 - 01.01.2021)Jaguar 850 (01.01.2003 - 01.01.2015)Lexion 460 (01.01.2001 - 01.01.2003)Jaguar 900 (01.01.2002 - 01.01.2008)Medion 310 (01.01.2003 - 01.01.2009)Tucano 560 (01.01.2018 - 01.01.2021)Tucano 450 (01.01.2016 - 01.01.2018)Lexion 7600 (01.01.2020 >)Lexion 780 (01.01.2012 - 01.01.2015)Lexion 620 (01.01.2010 - 01.01.2012)Scorpion 7030 (01.01.2005 - 01.01.2007)Lexion 450 (01.01.1996 - 01.01.2002)Lexion 480 (01.01.2001 - 01.01.2003)Scorpion 741 (01.01.2017 - 01.01.2019)Lexion 430 (01.01.2001 - 01.01.2003)Mega 350 (01.01.2003 - 01.01.2006)Jaguar 880 (01.01.1996 - 01.01.2001)Lexion 480 (01.01.1996 - 01.01.1996)Lexion 760 (01.01.2012 - 01.01.2015)Lexion 520 (01.01.2003 - 01.01.2011)Lexion 670 (01.01.2016 - 01.01.2020)Jaguar 840 (01.01.2020 >)Tucano 420 (01.01.2013 - 01.01.2013)Avero 240 (01.01.2019 - 01.01.2021)Lexion 660 (01.01.2016 - 01.01.2020)Jaguar 870 (01.01.2003 - 01.01.2015)Lexion 540 (01.01.2003 - 01.01.2011)Jaguar 890 (01.01.2000 - 01.01.2003)Scorpion 7040 (01.01.2006 - 01.01.2007)Lexion 8700 (01.01.2019 >)Xerion 5000 (01.01.2011 - 01.01.2014)Scorpion 736 (01.01.2019 >)Lexion 760 (01.01.2010 - 01.01.2012)Avero 240 (01.01.2013 - 01.01.2019)Xerion 3800 (01.01.2005 - 01.01.2014)Dominator 108 (01.01.1998 - 01.01.2001)Tucano 450 (01.01.2007 - 01.01.2013)Tucano 320 (01.01.2018 >)Tucano 430 (01.01.2012 - 01.01.2013)Scorpion 7055 (01.01.2013 - 01.01.2017)Jaguar 860 (01.01.2000 - 01.01.2002)Jaguar 900 (01.01.2000 - 01.01.2003)Lexion 670 (01.01.2012 - 01.01.2016)Tucano 480 (01.01.2009 - 01.01.2013)Lexion 600 (01.01.2005 - 01.01.2011)Lexion 470 (01.01.2002 - 01.01.2003)Tucano 580 (01.01.2018 - 01.01.2021)Lexion 450 (01.01.2002 - 01.01.2003)Jaguar 830 (01.01.2002 - 01.01.2014)Xerion 5000 (01.01.2020 >)Jaguar 900 (01.01.2010 - 01.01.2014)Scorpion 6030 (01.01.2005 - 01.01.2007)Tucano 430 (01.01.2016 - 01.01.2018)Lexion 7700 (01.01.2019 >)Tucano 570 (01.01.2014 - 01.01.2016)Jaguar 850 (01.01.2000 - 01.01.2003)Lexion 580 (01.01.2003 - 01.01.2011)Lexion 640 (01.01.2010 - 01.01.2012)Lexion 6800 (01.01.2019 >)Jaguar 890 (01.01.2010 - 01.01.2014)Scorpion 9055 (01.01.2013 - 01.01.2017)Scorpion 7050 (01.01.2014 - 01.01.2017)Lexion 550 (01.01.2003 - 01.01.2006)Jaguar 860 (01.01.2020 >)Jaguar 990 (01.01.2020 >)Scorpion 756 (01.01.2017 - 01.01.2019)Scorpion 7030 (01.01.2014 - 01.01.2017)Jaguar 870 (01.01.2000 - 01.01.2003)Tucano 450 (01.01.2014 - 01.01.2016)Lexion 5300 (01.01.2019 >)Jaguar 970 (01.01.2020 >)Jaguar 860 (01.01.1996 - 01.01.2000)Xerion 4000 (01.01.2014 - 01.01.2020)Jaguar 870 (01.01.2015 - 01.01.2019)Lexion 5500 (01.01.2019 >)Jaguar 890 (01.01.2003 - 01.01.2008)Lexion 660 (01.01.2010 - 01.01.2012)Xerion 4500 (01.01.2014 - 01.01.2019)Scorpion 7035 (01.01.2013 - 01.01.2017)Scorpion 7030 (01.01.2012 - 01.01.2013)Jaguar 870 (01.01.2002 - 01.01.2015)Lexion 420 (01.01.2001 - 01.01.2002)Scorpion 960 (01.01.2019 >)Jaguar 900 (01.01.2003 - 01.01.2007)Tucano 430 (01.01.2018 - 01.01.2021)Medion 320 (01.01.2000 - 01.01.2002)Mega II 208 (01.01.1996 - 01.01.1996)Scorpion 6035 (01.01.2015 - 01.01.2017)Lexion 750 (01.01.2010 - 01.01.2012)Mega II 202 (01.01.1996 - 01.01.1996)Lexion 460 (01.01.2001 - 01.01.2002)Lexion 770 (01.01.2010 - 01.01.2012)Lexion 405 (01.01.1996 - 01.01.2002)Lexion 670 (01.01.2010 - 01.01.2012)Lexion 620 (01.01.2016 - 01.01.2019)Lexion 530 (01.01.2003 - 01.01.2011)Jaguar 860 (01.01.2015 - 01.01.2019)Lexion 750 (01.01.2015 - 01.01.2019)Lexion 770 (01.01.2015 - 01.01.2019)Jaguar 970 (01.01.2011 - 01.01.2015)Lexion 420 (01.01.1996 - 01.01.2002)Xerion 3300 (01.01.2005 - 01.01.2008)Medion 310 (01.01.2000 - 01.01.2003)Jaguar 880 (01.01.2000 - 01.01.2002)Tucano 420 (01.01.2014 - 01.01.2018)Jaguar 950 (01.01.2015 - 01.01.2019)Jaguar 800 (01.01.1996 - 01.01.1999)Mega II 218 (01.01.1996 - 01.01.1996)Jaguar 960 (01.01.2007 - 01.01.2015)Jaguar 960 (01.01.2020 >)Jaguar 840 (01.01.2014 - 01.01.2015)Lexion 6900 (01.01.2019 >)Scorpion 7044 (01.01.2013 - 01.01.2017)Lexion 620 (01.01.2012 - 01.01.2016)Scorpion 6030 (01.01.2007 - 01.01.2010)Lexion 5400 (01.01.2019 >)Tucano 560 (01.01.2016 - 01.01.2018)Lexion 440 (01.01.2002 - 01.01.2003)Jaguar 840 (01.01.2000 - 01.01.2002)Lexion 440 (01.01.1996 - 01.01.2002)Medion 330 (01.01.2001 - 01.01.2003)Lexion 410 (01.01.1997 - 01.01.2002)Lexion 430 (01.01.1996 - 01.01.2002)Jaguar 870 (01.01.2020 >)Jaguar 980 (01.01.2016 - 01.01.2019)Jaguar 830 (01.01.2003 - 01.01.2014)Lexion 780 (01.01.2015 - 01.01.2019)Scorpion 6030 (01.01.2013 - 01.01.2017)Jaguar 970 (01.01.2016 - 01.01.2019)Lexion 750 (01.01.2012 - 01.01.2015)Lexion 630 (01.01.2010 - 01.01.2012)Scorpion 7030 (01.01.2007 - 01.01.2014)Lexion 630 (01.01.2016 - 01.01.2020)Jaguar 980 (01.01.2020 >)Jaguar 960 (01.01.2015 - 01.01.2019)Jaguar 940 (01.01.2015 - 01.01.2019)Tucano 320 (01.01.2007 - 01.01.2013)Tucano 430 (01.01.2007 - 01.01.2013)Lexion 570 (01.01.2006 - 01.01.2011)Scorpion 7040 (01.01.2010 - 01.01.2012)Scorpion 9040 (01.01.2005 - 01.01.2007)Scorpion 6030 (01.01.2009 - 01.01.2013)Xerion 3000 (01.01.1998 - 01.01.2003)Lexion 510 (01.01.2003 - 01.01.2006)Xerion 2500 (01.01.1997 - 01.01.2001)Jaguar 840 (01.01.1996 - 01.01.2001)Jaguar 840 (01.01.2015 - 01.01.2019)Xerion 3300 (01.01.2005 - 01.01.2011)Tucano 570 (01.01.2016 - 01.01.2018)Lexion 460 (01.01.2000 - 01.01.2002)Scorpion 6030 (01.01.2014 - 01.01.2017)Tucano 420 (01.01.2018 - 01.01.2021)Scorpion 741 (01.01.2019 >)Lexion 740 (01.01.2010 - 01.01.2012)Lexion 410 (01.01.1996 - 01.01.1997)Jaguar 850 (01.01.2002 - 01.01.2015)Medion 340 (01.01.2000 - 01.01.2003)Scorpion 635 (01.01.2017 - 01.01.2019)Jaguar 960 (01.01.2019 >)Jaguar 930 (01.01.2020 >)Scorpion 732 (01.01.2017 - 01.01.2019)Lexion 480 (01.01.1996 - 01.01.2001)Lexion 430 (01.01.2002 - 01.01.2003)Scorpion 7030 (01.01.2014 - 01.01.2015)Lexion 8800 (01.01.2019 >)Lexion 760 (01.01.2015 - 01.01.2019)Lexion 770 (01.01.2015 - 01.01.2020)Tucano 550 (01.01.2018 >)Jaguar 930 (01.01.2009 - 01.01.2016)Tucano 320 (01.01.2014 - 01.01.2018)Scorpion 736 (01.01.2017 - 01.01.2019)Jaguar 900 (01.01.2005 - 01.01.2009)Jaguar 950 (01.01.2020 >)Lexion 570 (01.01.2003 - 01.01.2011)Lexion 630 (01.01.2012 - 01.01.2016)Scorpion 9040 (01.01.2007 - 01.01.2014)Lexion 750 (01.01.2013 - 01.01.2015)Scorpion 732 (01.01.2019 >)Tucano 450 (01.01.2012 - 01.01.2013)Lexion 470 (01.01.2001 - 01.01.2003)Dominator 128 (01.01.1999 - 01.01.2002)Lexion 440 (01.01.1996 - 01.01.1997)Lexion 450 (01.01.2001 - 01.01.2002)Jaguar 940 (01.01.2020 >)Xerion 4500 (01.01.2020 >)Scorpion 6030 (01.01.2014 - 01.01.2015)Lexion 600 (01.01.2006 - 01.01.2011)Lexion 6600 (01.01.2019 >)Lexion 520 (01.01.2003 - 01.01.2006)Scorpion 7040 (01.01.2007 - 01.01.2010)Dominator 88 (01.01.1998 - 01.01.2001)Lexion 770 (01.01.2012 - 01.01.2015)Lexion 8900 (01.01.2019 >)Jaguar 890 (01.01.2002 - 01.01.2008)Avero 160 (01.01.2015 - 01.01.2019)Lexion 420 (01.01.2002 - 01.01.2003)Avero 160 (01.01.2019 - 01.01.2021)Xerion 2500 (01.01.2000 - 01.01.2003)Scorpion 635 (01.01.2019 >)Scorpion 7045 (01.01.2007 - 01.01.2014)Jaguar 850 (01.01.2020 >)Scorpion 746 (01.01.2019 >)Jaguar 970 (01.01.2007 - 01.01.2011)Lexion 660 (01.01.2012 - 01.01.2016)Scorpion 756 (01.01.2019 >)Lexion 740 (01.01.2013 - 01.01.2015)Jaguar 830 (01.01.2000 - 01.01.2003)Jaguar 890 (01.01.2005 - 01.01.2007)Lexion 440 (01.01.2001 - 01.01.2002)Tucano 330 (01.01.2007 - 01.01.2009)Jaguar 980 (01.01.2007 - 01.01.2011)Xerion 4500 (01.01.2014 - 01.01.2020)Lexion 7500 (01.01.2020 >)Avero 160 (01.01.2011 - 01.01.2015)Jaguar 940 (01.01.2009 - 01.01.2016)Tucano 430 (01.01.2014 - 01.01.2016)Lexion 760 (01.01.2015 - 01.01.2020)Scorpion 7040 (01.01.2007 - 01.01.2014)Tucano 470 (01.01.2012 - 01.01.2014)Scorpion 6040 (01.01.2005 - 01.01.2007)Mega 360 (01.01.2003 - 01.01.2006)Scorpion 746 (01.01.2017 - 01.01.2019)Lexion 650 (01.01.2016 - 01.01.2020)Avero 240 (01.01.2009 - 01.01.2013)Tucano 320 (01.01.2012 - 01.01.2013)Scorpion 7040 (01.01.2009 - 01.01.2013)Lexion 750 (01.01.2015 - 01.01.2020)Lexion 650 (01.01.2012 - 01.01.2016)Dominator 98 (01.01.1998 - 01.01.2001)Tucano 440 (01.01.2007 - 01.01.2009)Jaguar 980 (01.01.2011 - 01.01.2015)
Cable
200 m
Height
118 mm
Weight
400 g
Voltage
24 V / 12 V
Quantity
1
Lamp Type
LED
Lens Colour
Yellow (amber)
Light Colour
Yellow (amber)
Light Design
LED
Mounting Type
Flexible pipe sockets
Housing Colour
Black
Light Function
With flashing warning signal
Number of LEDs
16
Housing Material
ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Outer Diameter 1
165 mm
Power Consumption
10 W
Registration Type
SAE / ADR/GGVS
Assembly Requirement
Assembly by qualified personnel required
Fulfils ECE Standard
R65 / R10
Temperature Range To
+60 °C
Flash Rate Per Minute
122
Permissible Max Speed
120 km/h
Temperature Range From
-40 °C
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP6K9K / IP6K7
Reverse Polarity Protection
Yes
Supplementary Article/Supplementary Info 2
Electromagnetic Compatibility (EMC)
Manufacturer
HELLA
