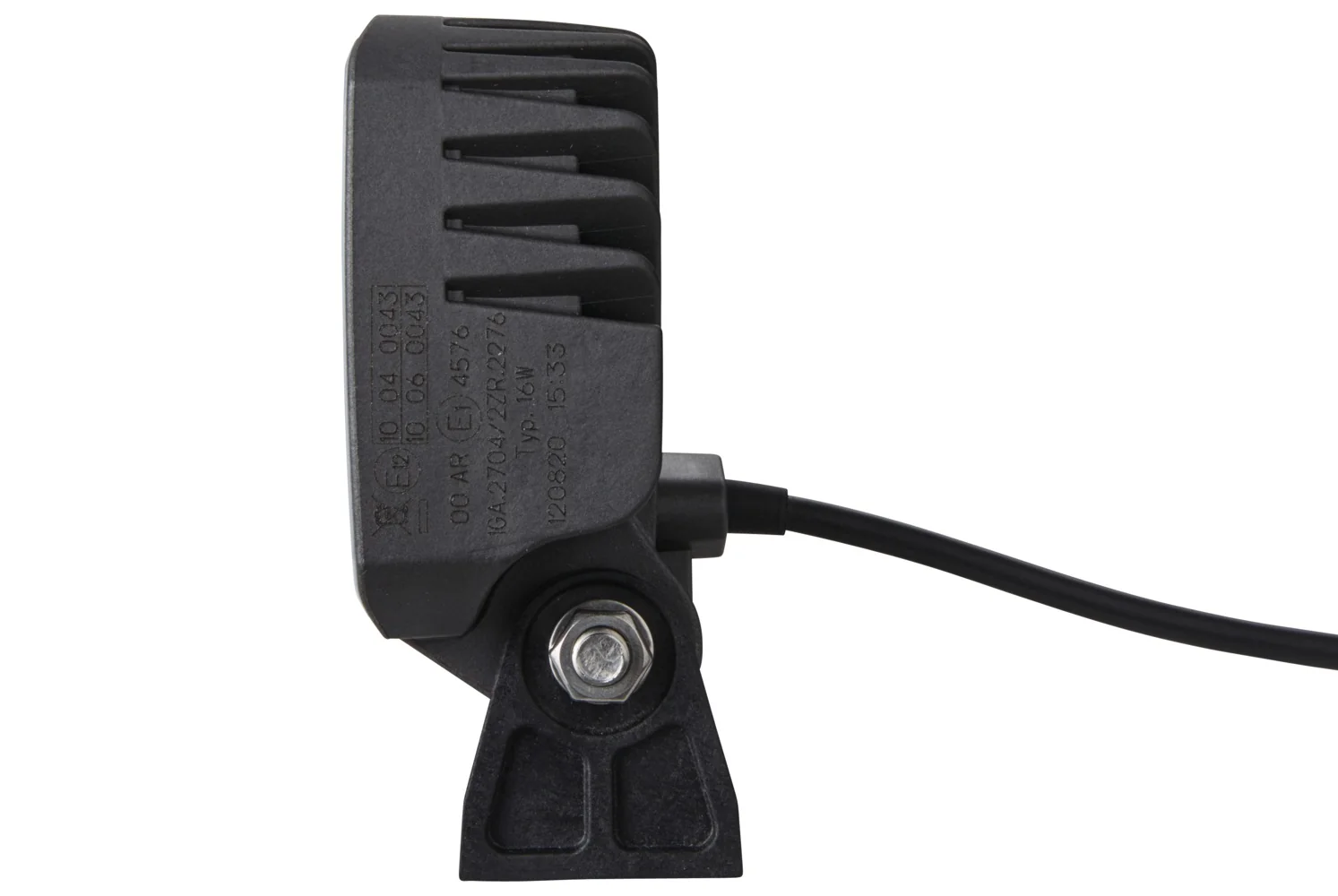

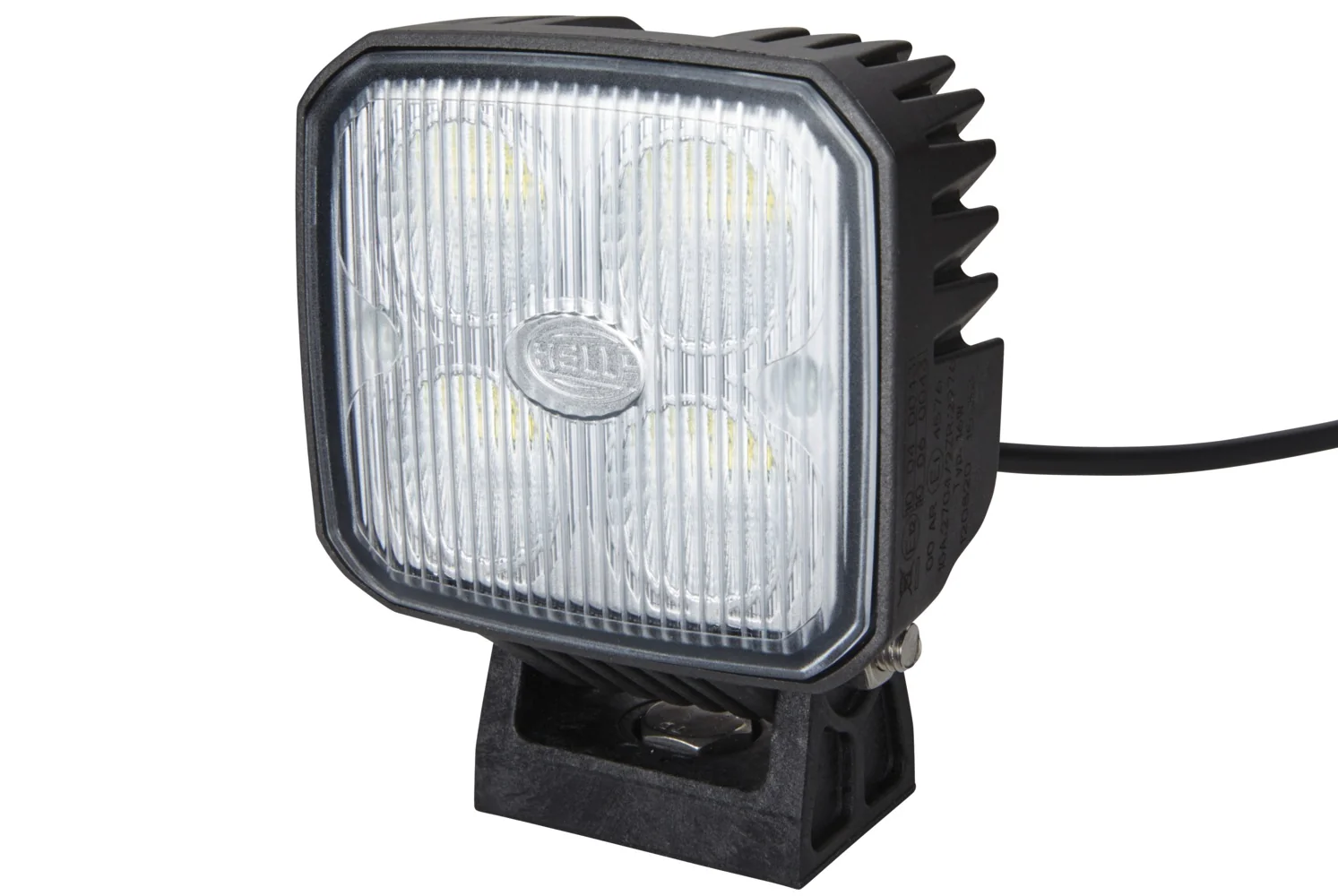

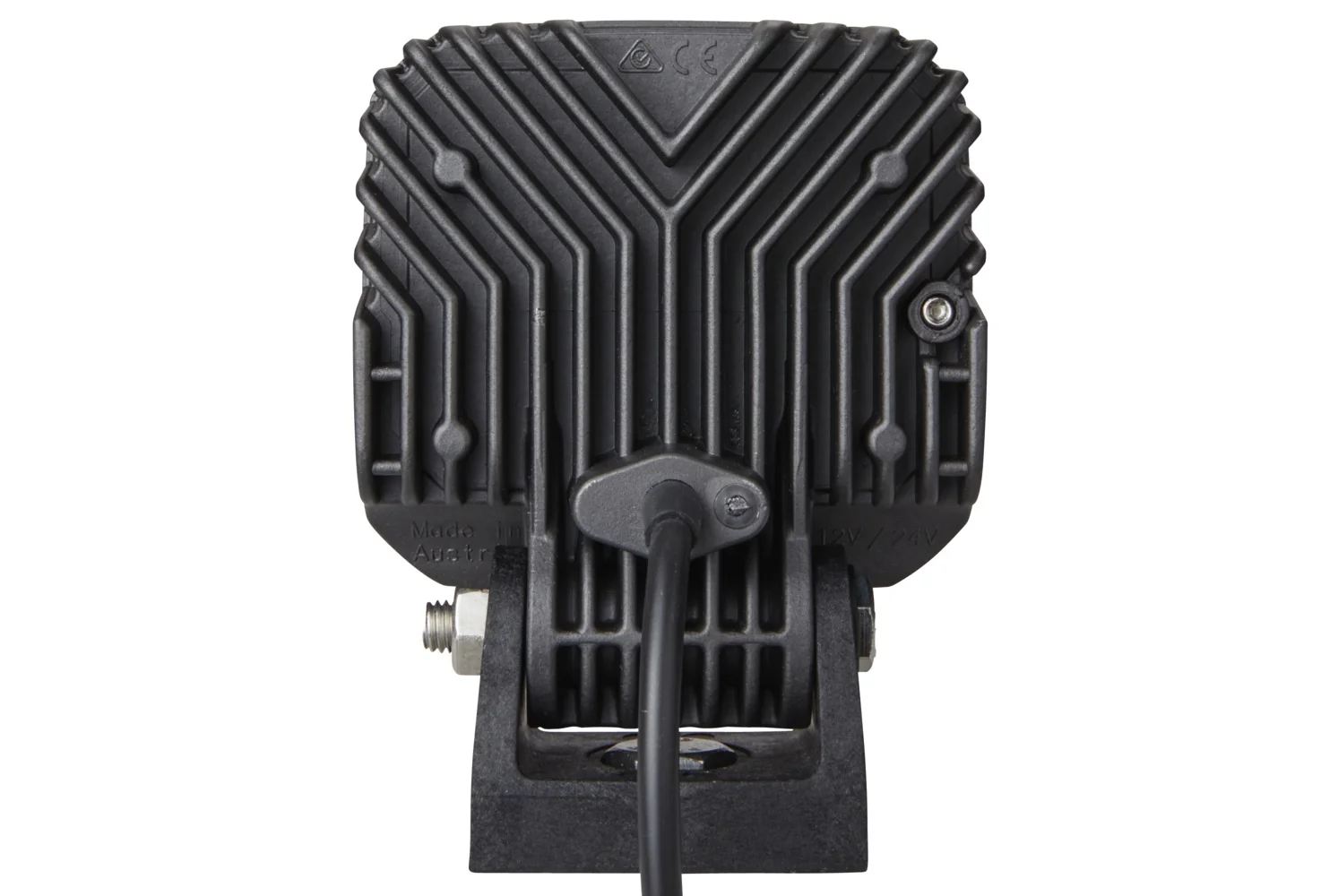

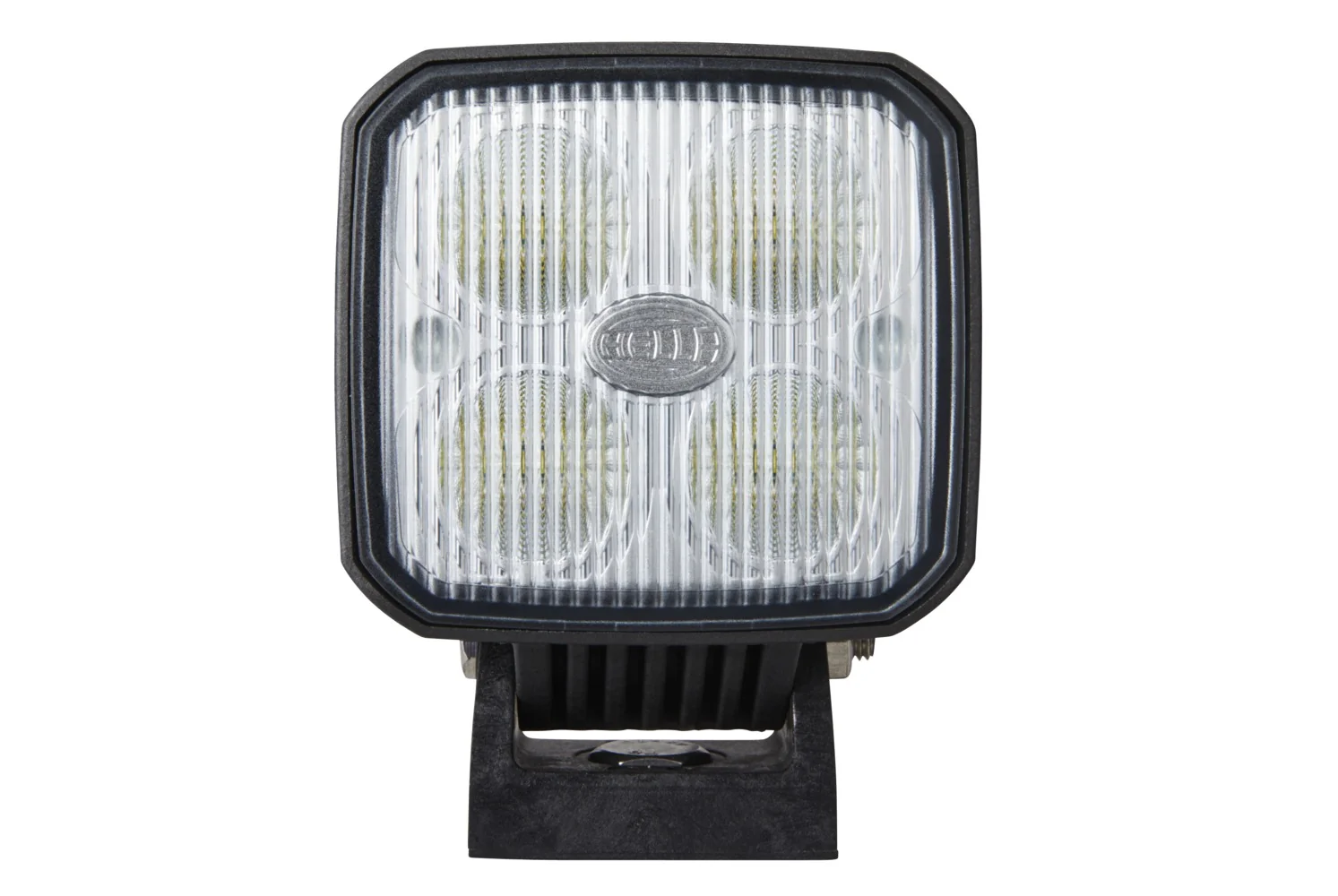

HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V
HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V
HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V
HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V
HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V
HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V

HELLA - 2ZR 996 284-511 - LED-Reverse Light, Q90 compact, 12/24V

€55.90

(Excl. VAT)

Price

(Excl. VAT)

€55.90

Product Description

The Q90 LED compact reversing spotlight is the ideal LED reversing spotlight that combines powerful light output in a practical design. Four high-power LEDs generate a light output of 1,200 lumens, which are beamed homogeneously and broadly behind the vehicle by a reflector. The Q90 LED compact reversing spotlight is ideally suited for mounting on the rear of the vehicle to enable safe manoeuvring even at night. The energy consumption is only 15 watts (in comparison: Standard halogen worklight H3 / 55 W). The low energy consumption is particularly suitable for use on vehicles with battery operation and on vehicles whose alternator is already heavily loaded. Reversing lights are exposed to particularly high demands such as water, salt and stone impact. Thanks to the innovative heat-conducting plastic housing, the Q90 LED compact reversing spotlight is optimally protected against corrosion and can withstand even the toughest conditions. With 5,000 Kelvin colour temperature, the light of the LED reversing spotlight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Faun

5333690

Lindner

30054443005555
Plug
DEUTSCH plug
SVHC
7439-92-1; Lead / 96-45-7; Imidazolidine-2-thione; (2-imidazoline-2-thiol)
Cable
500 mm
Width
95 mm
Length
139 mm
Voltage
12 V / 24 V
Lamp Type
LED
Lens Colour
Crystal clear
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
1000 lm
Mounting Type
Bolted
Fastening Type
Suspended / Vertical
Housing Colour
Black
Light Function
With reverse light (LED)
Number of LEDs
4
Number of Pins
2 -pin connector
Light Functions
1
Fitting Position
Rear
Power Consumption
15 W
Registration Type
ADR/GGVS
Colour Temperature
5000 K
Light Distribution
Short-Range Illumination
Fulfils ECE Standard
R23 / R10
Protection Type (IP Code)
IP6K9K / IP6K7
Supplementary Article/Supplementary Info 2
Electromagnetic Compatibility (EMC)
Manufacturer
HELLA
