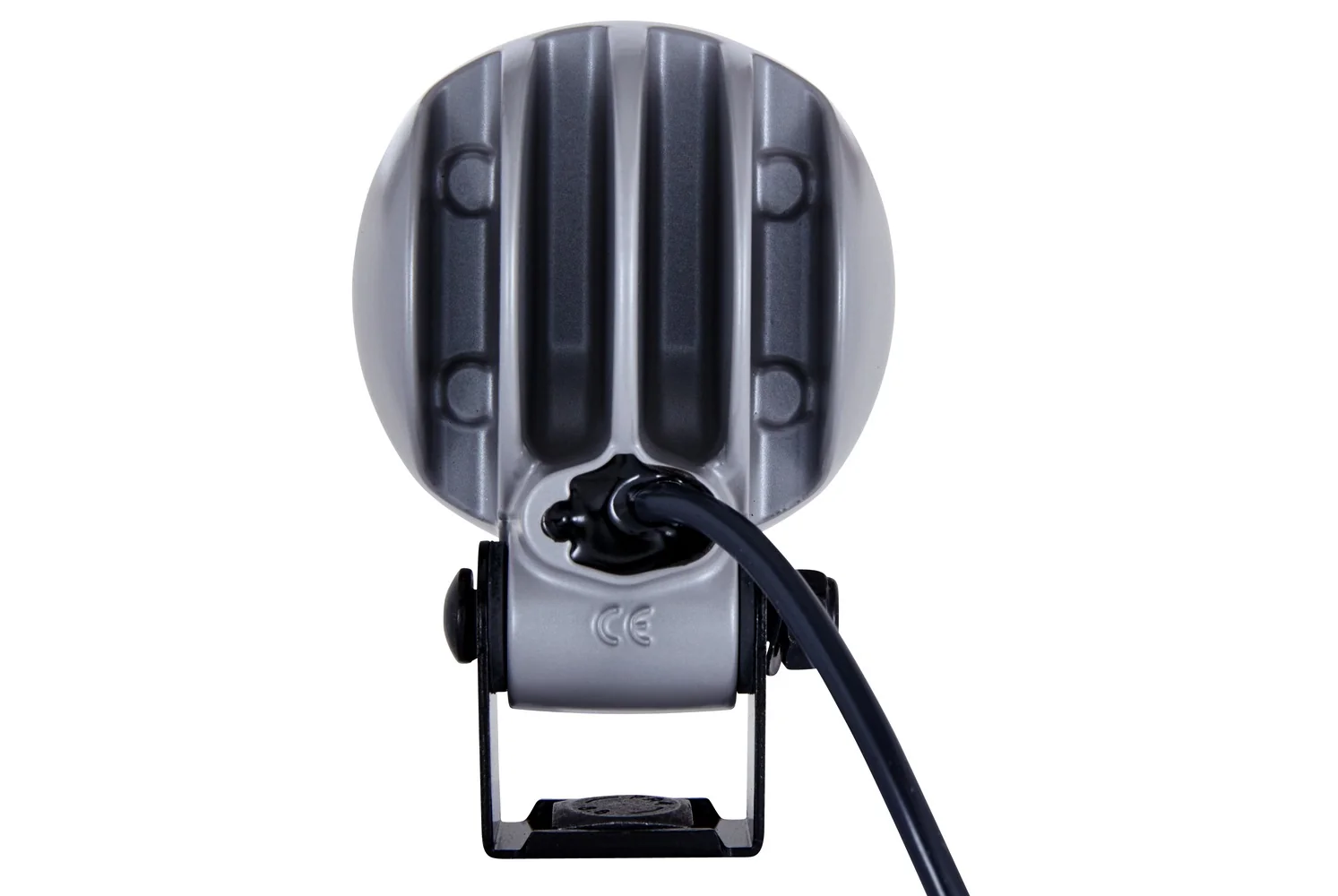

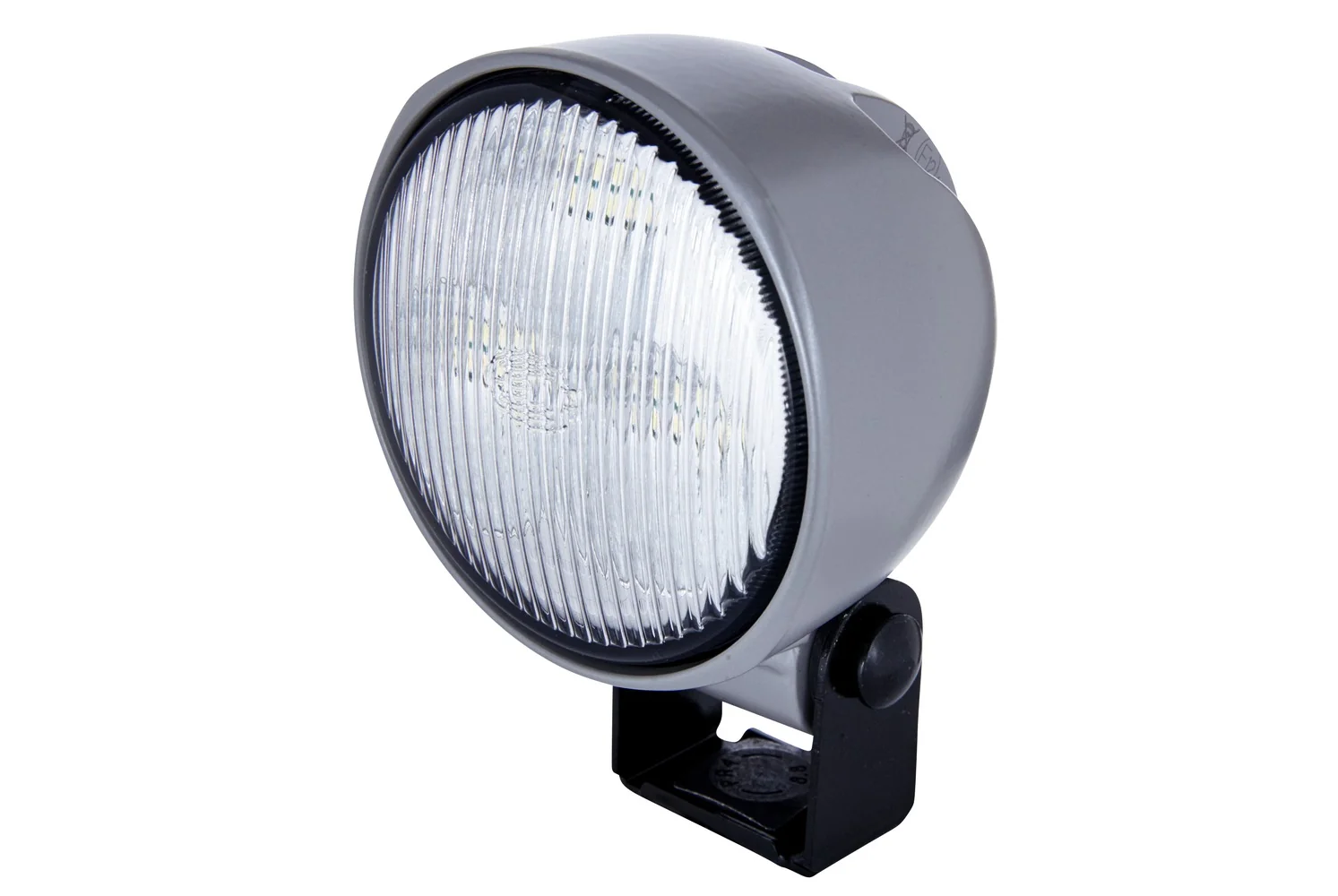

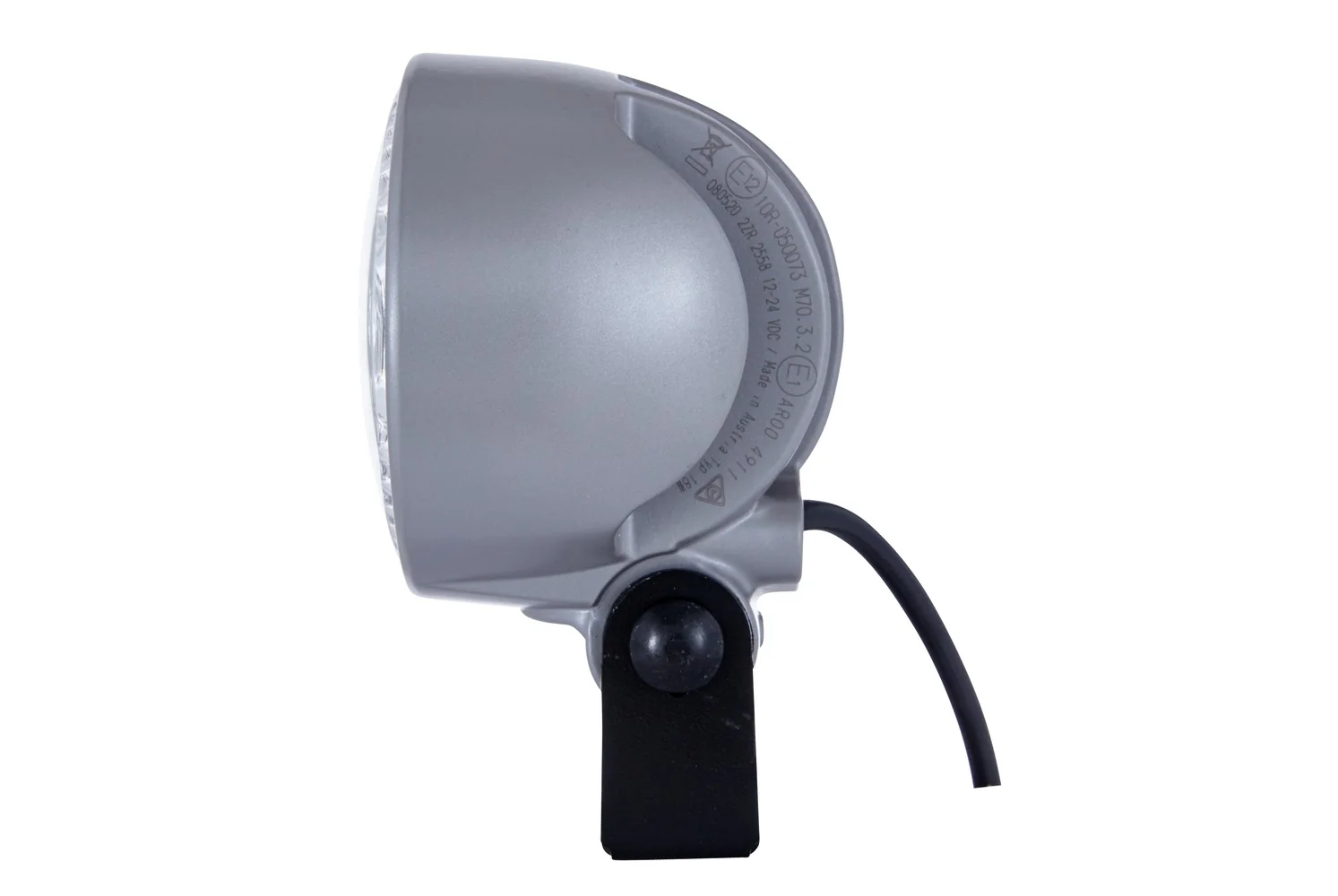

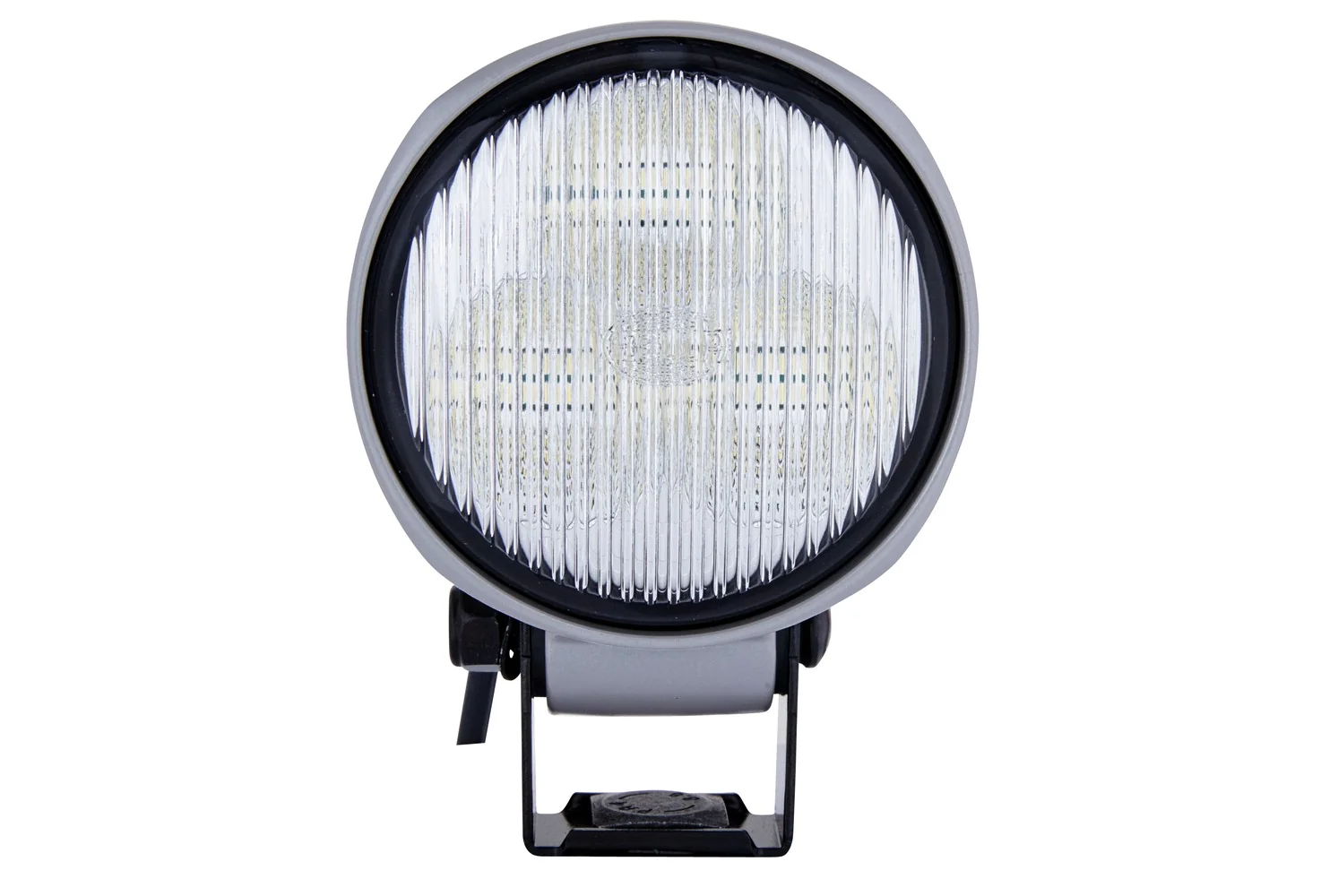

HELLA - 2ZR 996 576-501 - LED-Reverse Light, Modul 70 Gen. 3.2, 12/24V – Rear

OEM Supplier

SKU: hella-2zr-996-576-501

HELLA - 2ZR 996 576-501 - LED-Reverse Light, Modul 70 Gen. 3.2, 12/24V – Rear

€99.37€84.93 (Excl. VAT)

In stock - ready to ship

Order now for shipping Next Day

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€99.37

Brand
Plug
Open cable ends
SVHC
7439-92-1; Lead / 1317-36-8; Lead monoxide (lead oxide)
Width
83 mm
Length
123 mm
IP Code
IP67 / IP6K9K
Voltage
12 V / 24 V
Diameter
83 mm
Lamp Type
LED
Lens Colour
Crystal clear
Cable Length
2000 mm
ECE Standard
R10 / R23
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
1800 lm
Mounting Type
Bolted
Fastening Type
Vertical / Suspended
Housing Colour
Grey
Light Function
With reverse light (LED)
Number of LEDs
3
Number of Pins
2 -pin connector
Fitting Position
Rear
Power Consumption
18 W
Colour Temperature
5000 K
Light Distribution
Short-Range Illumination
Supplementary Info
Electromagnetic Compatibility (EMC)
Number of Light Functions
1
EAN
9002920164726
Manufacturer
HELLA

With the Module 70 LED Generation 3.2, HELLA brings a light upgrade of the established Module 70 LED Generation 3. Equipped with 3 high-power multichip LEDs, the module produces 70 LED Generation 3.2 now 1,800 measured lumens with an energy consumption of only 20 watts. (Comparison: Generation 3 only produced 800 lumens). The worklight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. In addition to the standard cable version, the compact Module 70 LED Generation 3.2 also comes with an integrated DEUTSCH plug for the first time. The electronics of the worklight are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. Despite its compact design, this is a very robust worklight for numerous applications. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making it much easier for the human eye to perceive the senses and preventing fatigue. The Module 70 LED Generation 3.2 is also available as a reversing spotlight.
Hella
Hella GmbH & Co. KGaA, commonly known as Hella, was founded in 1899 by Sally Windmüller in Lippstadt, Germany. Initially, the company produced lamps and horns for carriages, bicycles, and automobiles. Over its long history, Hella has evolved into a global, family-owned company, specializing in lighting and electronics for the automotive industry, with its headquarters still located in Lippstadt. Hella is renowned for its innovative lighting technologies, including LED, halogen, and xenon systems, as well as advanced electronic components. The brand's product range extends to sensors, actuators, and control units for various vehicle applications. In the agricultural sector, Hella provides robust and efficient lighting solutions, such as the Shapeline and Module series, designed to withstand harsh operating conditions and improve visibility for tractors and other machinery. At Partao, you can find a comprehensive selection of Hella spare parts, including Work Lights, Other Lighting, Air Filters, Alternators, and Apparel. These components are crucial for maintaining the functionality and safety of agricultural vehicles. Over 67,041 genuine Hella spare parts are available at Partao. Agricultural operators worldwide rely on Hella products for their durability, performance, and compliance with international standards. The brand's commitment to quality ensures that its lighting and electronic systems provide reliable operation, enhancing productivity and safety for machinery used in demanding farming environments across various regions.
