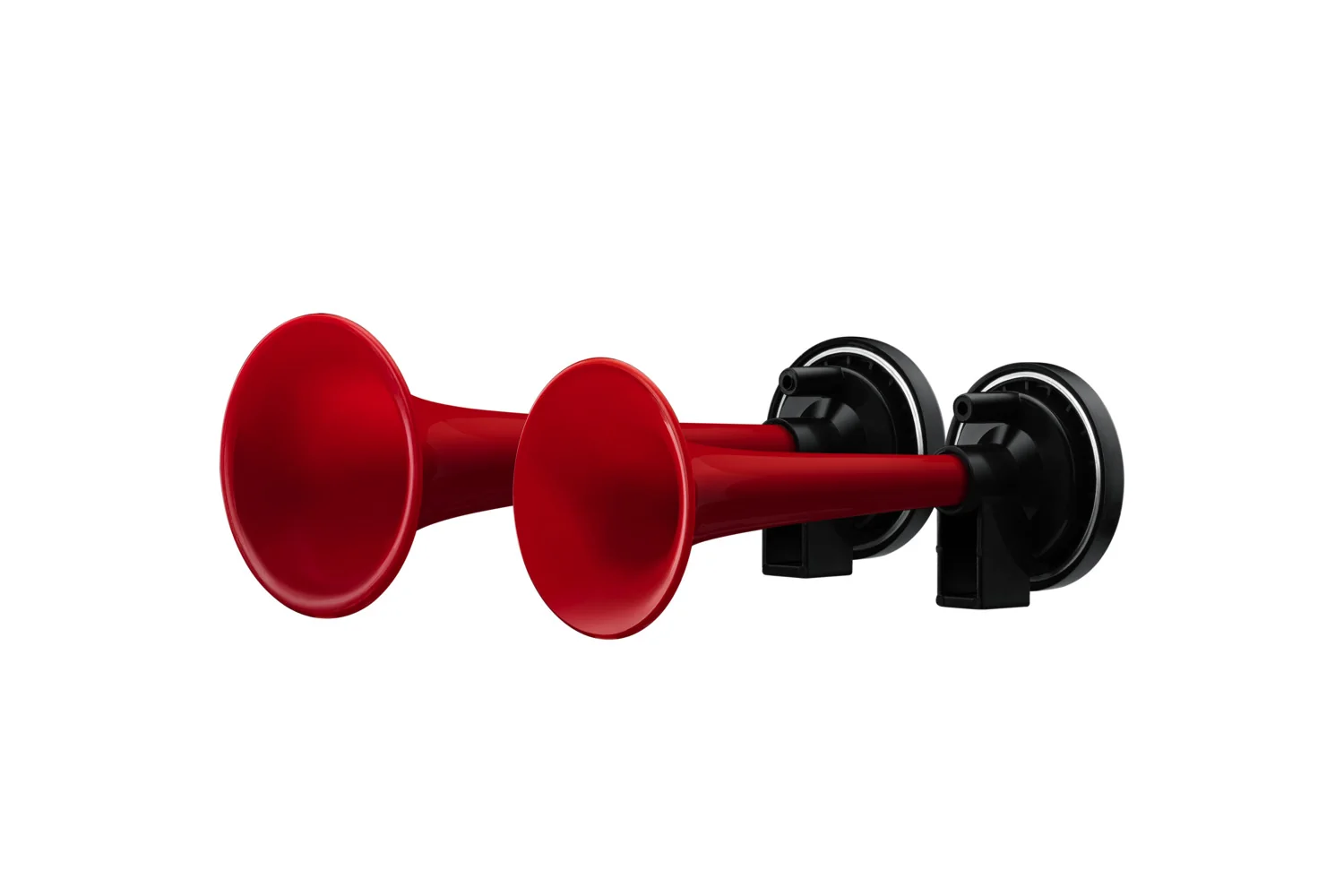

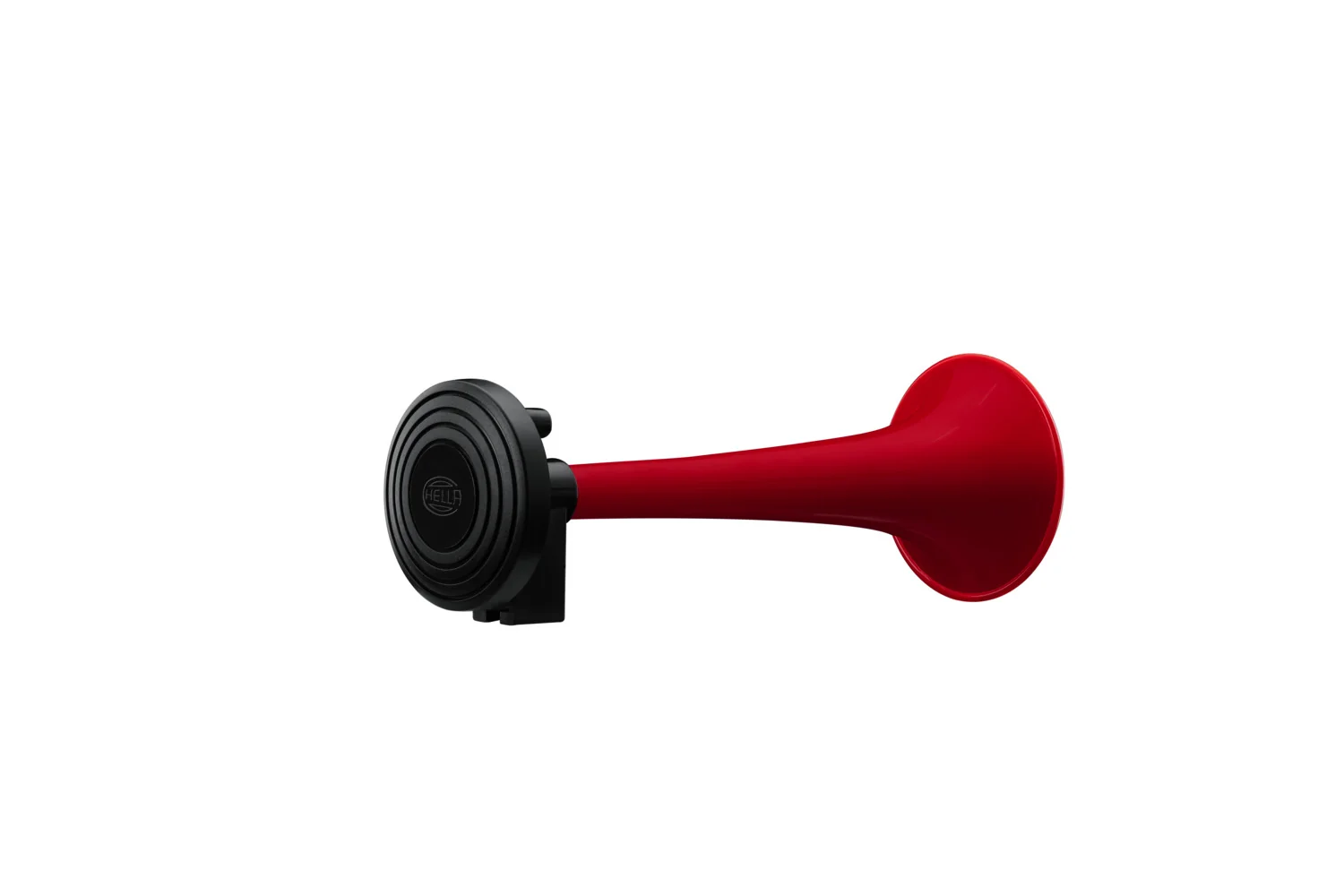

HELLA - 3PB 003 001-641 - Trumpet Horn CA10, 24V, 115dB(A), High Tone/Low Tone, Quantity: 1

OEM Supplier

SKU: hella-3pb-003-001-641

HELLA - 3PB 003 001-641 - Trumpet Horn CA10, 24V, 115dB(A), High Tone/Low Tone, Quantity: 1

€19.33

(excl. VAT)

In stock - ready to ship

Ships within 92 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€19.33

Horns are a mandatory part of the safety equipment of a vehicle. A particularly perceptible sound is necessary in order to be able to warn other road users optimally in dangerous situations. Our signal horns offer you a high level of functional reliability. Design and function: The sound is generated in the spiral horn by the vibration of two metal diaphragms set in vibration by the pressurized air produced by the electric compressor. The diaphragms that are positioned inside the acoustic chambers press on the sealing lip which forms the inlet of the acoustic duct. When a certain pressure is generated inside the acoustic chambers, the diaphragms move away from the lip resulting in passage of air and pressure drop, and then close again on the lip. The cyclic repetition of this phenomenon generates the sound waves.
Hella
Hella GmbH & Co. KGaA, commonly known as Hella, was founded in 1899 by Sally Windmüller in Lippstadt, Germany. Initially, the company produced lamps and horns for carriages, bicycles, and automobiles. Over its long history, Hella has evolved into a global, family-owned company, specializing in lighting and electronics for the automotive industry, with its headquarters still located in Lippstadt. Hella is renowned for its innovative lighting technologies, including LED, halogen, and xenon systems, as well as advanced electronic components. The brand's product range extends to sensors, actuators, and control units for various vehicle applications. In the agricultural sector, Hella provides robust and efficient lighting solutions, such as the Shapeline and Module series, designed to withstand harsh operating conditions and improve visibility for tractors and other machinery. At Partao, you can find a comprehensive selection of Hella spare parts, including Work Lights, Other Lighting, Air Filters, Alternators, and Apparel. These components are crucial for maintaining the functionality and safety of agricultural vehicles. Over 66,957 genuine Hella spare parts are available at Partao. Agricultural operators worldwide rely on Hella products for their durability, performance, and compliance with international standards. The brand's commitment to quality ensures that its lighting and electronic systems provide reliable operation, enhancing productivity and safety for machinery used in demanding farming environments across various regions.

Brand
Signal
High Tone / Low Tone
Voltage
24 V
Quantity
1
Sound Level
115 Db(A)
Assembly Note
Assembly By Qualified Personnel Required
Charging Rate
14 A
Housing Colour
Red/Black
Operating Mode
Electric-pneumatic
Power Consumption
336 W
Registration Type
ECE
Frequency Range To
756 Hz
Frequency Range From
600 Hz
Fulfils ECE Standard
R28
Protection Type (IP Code)
IP54
Supplementary Article/Supplementary Info
With Accessories
EAN
4082300870220
Manufacturer
HELLA
