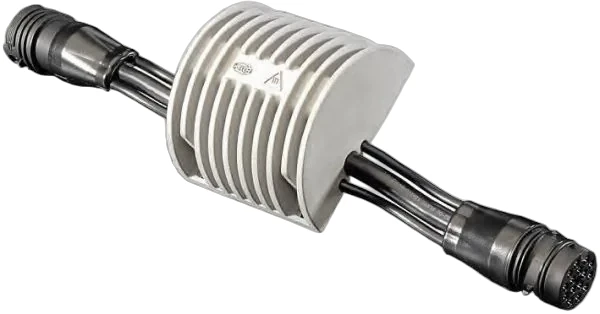

HELLA - 5DS 009 602-011 - Control Unit, lights, 12V, Number of connectors: 5
HELLA - 5DS 009 602-011 - Control Unit, lights, 12V, Number of connectors: 5

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping on orders over €60

Pay Securely with

HELLA - 5DS 009 602-011 - Control Unit, lights, 12V, Number of connectors: 5

HELLA - 5DS 009 602-011 - Control Unit, lights, 12V, Number of connectors: 5

€39.35

(Excl. VAT)

Price

(Excl. VAT)

€39.35

Product Description

Use only with HELLA LED indicators. If the existing vehicle electrical system is programmed to monitor the lighting even when it is not in operation, this is referred to as a cold check. During a cold check, a small test pulse is transmitted to the lamp while it is switched off to see whether this pulse is discharged via the bulb to ground. The energy here is so low that the bulb does not light up. As LED lamps are essentially not suitable for this form of monitoring, HELLA offers an electronic system for "simulation of the cold check" in order to ensure operation. The simulation device is connected between the central control unit and an ISO 13207-compliant LED direction indicator. The cold check control unit checks the function of the direction indicator during operation using the ISO pulse. If the direction indicator fails, the device saves the last status, which means this can then be displayed during the next cold check.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

72440012H931901020080

Fendt

72440012H931901020080

Scania

2197752
Fits

Fendt

824 (01.01.2015 >)822 (01.01.2015 >)828 (01.01.2015 >)1050 (01.01.2015 - 01.01.2020)927 (01.01.2010 - 01.01.2014)822 (01.01.2010 - 01.01.2014)936 (01.01.2010 - 01.01.2014)826 (01.01.2015 >)933 (01.01.2010 - 01.01.2014)1050 Vario (01.01.2018 - 01.01.2019)828 (01.01.2010 - 01.01.2014)826 (01.01.2010 - 01.01.2014)824 (01.01.2010 - 01.01.2014)
Voltage
12 V
Lamp Type
LED
Light Design
LED
Registration Type
ECE
Compatibility Note
Only in connection with 2VD/2VP 012 381-...
Assembly Requirement
Assembly by qualified personnel required
Number Of Connectors
5
Manufacturer
HELLA
