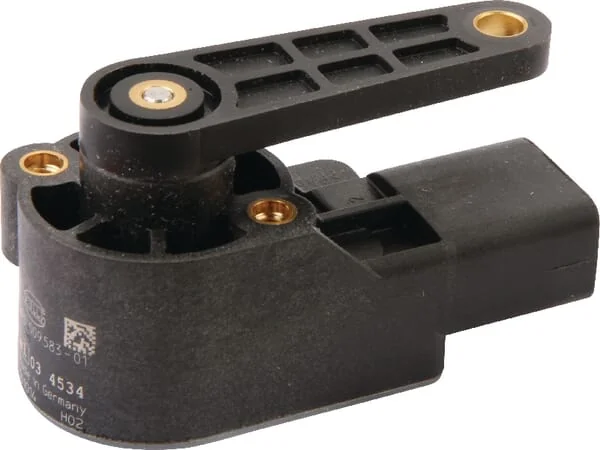

Hella - 6PD009583011 - Corner Sensor 5V/9-32V/108
Hella - 6PD009583011 - Corner Sensor 5V/9-32V/108
Hella - 6PD009583011 - Corner Sensor 5V/9-32V/108
Hella - 6PD009583011 - Corner Sensor 5V/9-32V/108

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping

Pay Securely with

Hella - 6PD009583011 - Corner Sensor 5V/9-32V/108

Hella - 6PD009583011 - Corner Sensor 5V/9-32V/108

€190.05

(Excl. VAT)

Price

(Excl. VAT)

€190.05

Product Description

Specially designed for failure detection Internal 14 bit resolution
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 2,465 genuine Hella spare parts.

Product Details

Brand
Hella
Unit
Each
Benefits
Improves the reliability of the overall system High precision
Plug type
AMP
Properties
Unlimited mechanical angle range (360°) Zero position can be individually programmed High thermal stability and linearity High insensitivity to magnetic fields
Output signal
0.5 - 4.5 V
Measuring range
-54-54 °
Insulation class
6K9K
Application range
For many different applications to measure angles accurately and reliably, even in tough environments Can be installed any offset angle that is a multiple of 120°
Operating voltage
9-32 V
Operation temperature
-40-85 °C
Manufacturer
Hella
