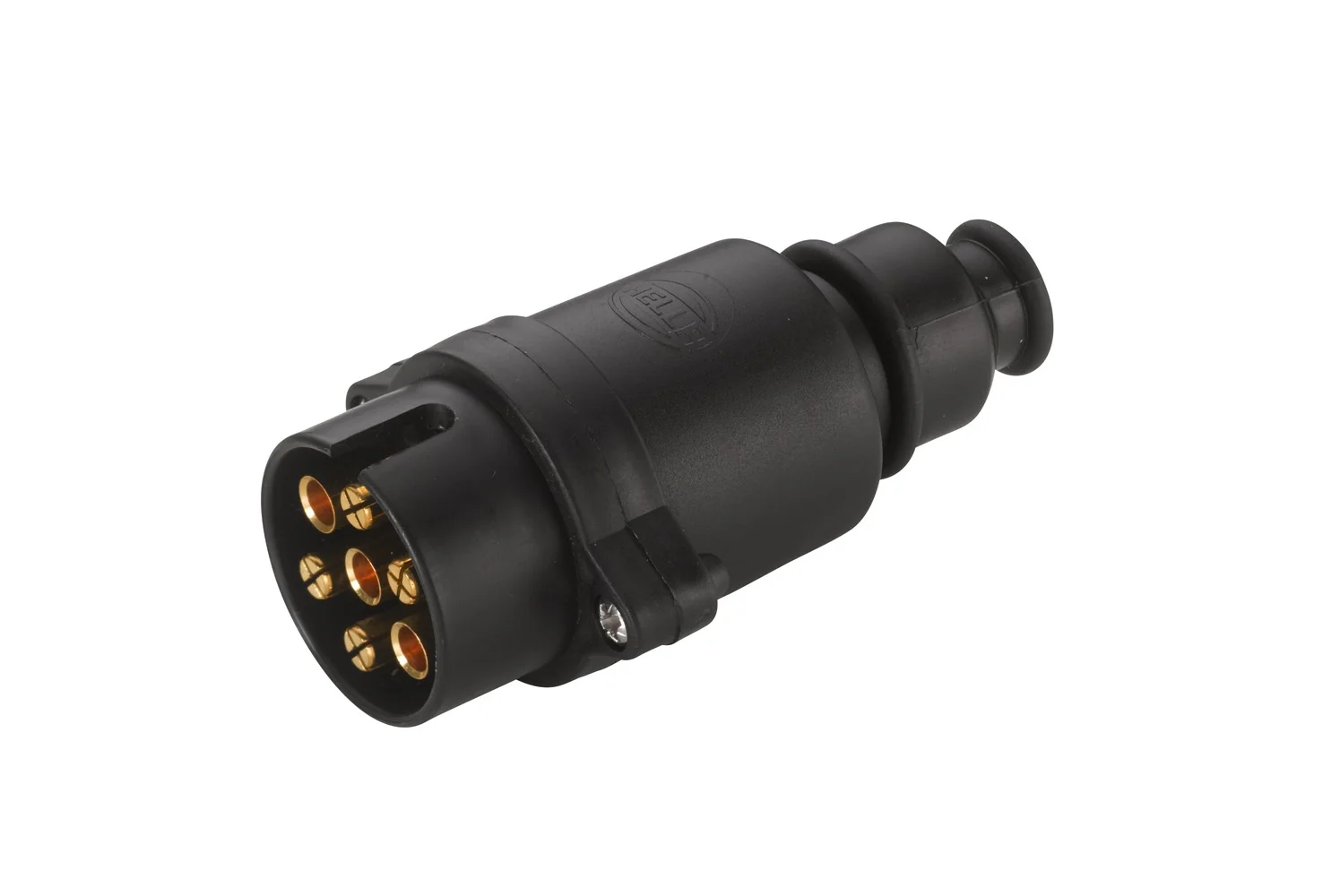

HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25
HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25
HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25
HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25
HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25
HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25

HELLA - 8JA 001 930-041 - Plug, 12V, 7-pin connector, Plug: Blade Terminal, Quantity: 25

€4.89

(Excl. VAT)

Price

(Excl. VAT)

€4.89

Product Description

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Jaeger

78400006
Plug
Blade Terminal
Colour
Black
Length
82 mm
DIN/ISO
1724 N-Typ
Voltage
12 V
Quantity
25
Socket Width
6.3 mm
Assembly note
Assembly by qualified personnel required
Number of pins
7-pin connector
Contact surface
Coated
Current Strength to
25 A
Current Strength from
16 A
Wire cross-section to
2.5 mm²
Wire cross-section from
1.5 mm²
Manufacturer
HELLA
