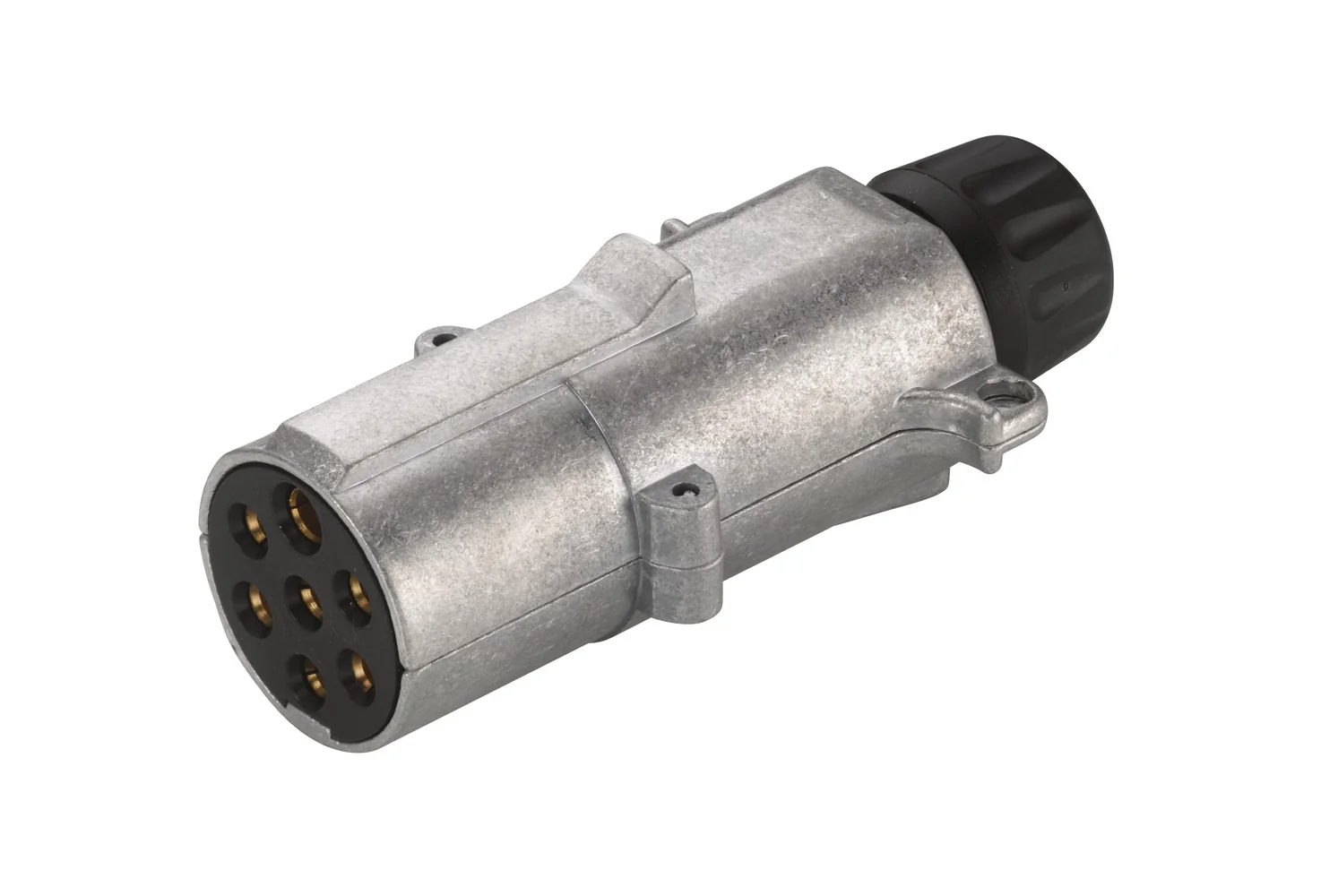

HELLA - 8JA 003 831-001 - Plug, 24V, 7-pin connector, Quantity: 10

OEM Supplier

SKU: hella-8ja-003-831-001

HELLA - 8JA 003 831-001 - Plug, 24V, 7-pin connector, Quantity: 10

€8.00

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€8.00

The 7-pin 24 V plug-in system according to ISO 1185 / ISO 3731 is currently the most widely used system for the electrical connection between towing vehicle and trailer or tractor and semi-trailer in the commercial vehicle sector. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1185 and an additional connector, type S, according to ISO 3731. The additional system differs from the standard system by its white housing, contact inserts and non-interchangeable contact arrangement.
Hella
Hella GmbH & Co. KGaA, commonly known as Hella, was founded in 1899 by Sally Windmüller in Lippstadt, Germany. Initially, the company produced lamps and horns for carriages, bicycles, and automobiles. Over its long history, Hella has evolved into a global, family-owned company, specializing in lighting and electronics for the automotive industry, with its headquarters still located in Lippstadt. Hella is renowned for its innovative lighting technologies, including LED, halogen, and xenon systems, as well as advanced electronic components. The brand's product range extends to sensors, actuators, and control units for various vehicle applications. In the agricultural sector, Hella provides robust and efficient lighting solutions, such as the Shapeline and Module series, designed to withstand harsh operating conditions and improve visibility for tractors and other machinery. At Partao, you can find a comprehensive selection of Hella spare parts, including Work Lights, Other Lighting, Air Filters, Alternators, and Apparel. These components are crucial for maintaining the functionality and safety of agricultural vehicles. Over 66,957 genuine Hella spare parts are available at Partao. Agricultural operators worldwide rely on Hella products for their durability, performance, and compliance with international standards. The brand's commitment to quality ensures that its lighting and electronic systems provide reliable operation, enhancing productivity and safety for machinery used in demanding farming environments across various regions.

Brand
OEM Part Numbers
Colour
Silver
Voltage
24 V
Material
Aluminium
Quantity
10
Assembly Note
Assembly by qualified personnel required
Number Of Pins
7 -pin connector
Connector/Clamp
With cable gland
DIN/ISO Standard
1185 N-Typ
Current Strength To
20 A
Temperature Range To
+75 °C
Current Strength From
15 A
Cable Cross-Section To
2.5 mm²
Temperature Range From
-30 °C
Cable Cross-Section From
1.5 mm²
EAN
4082300193046
Manufacturer
HELLA
