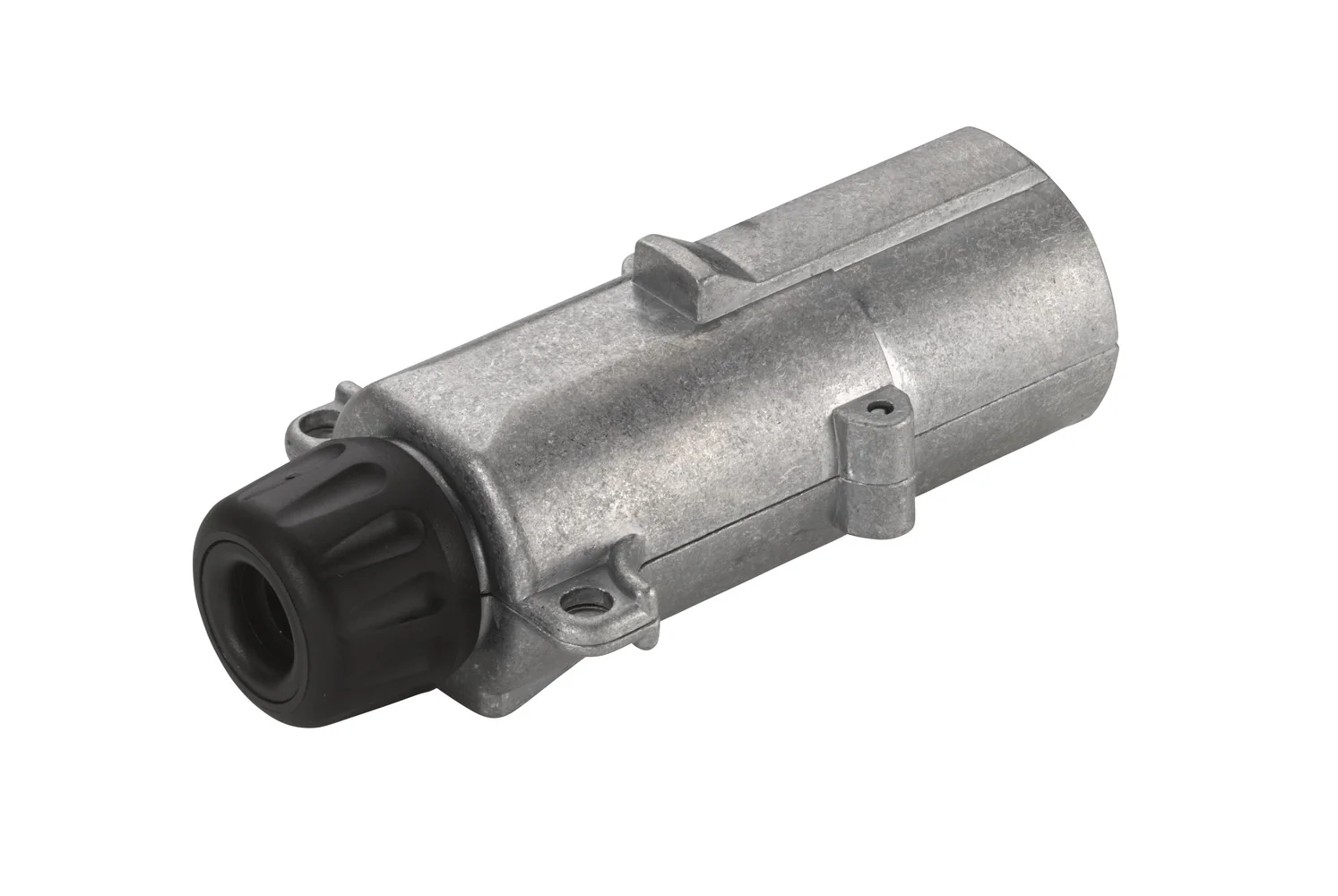

HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10
HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10
HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10
HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10
HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10
HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10

HELLA - 8JA 003 832-001 - Plug, 24V, 7-pin connector, Plug: Screw Contact, Quantity: 10

€7.24

(Excl. VAT)

Price

(Excl. VAT)

€7.24

Product Description

The 7-pin 24 V plug-in system according to ISO 1185 / ISO 3731 is currently the most widely used system for the electrical connection between towing vehicle and trailer or tractor and semi-trailer in the commercial vehicle sector. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1185 and an additional connector, type S, according to ISO 3731. The additional system differs from the standard system by its white housing, contact inserts and non-interchangeable contact arrangement.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Broshuis

35417071

Bucher

4021023

Carnehl

5626

Daf

660838

Doll

8179063

Faun

1102 74199701886181

Feldbinder

005260

Fuchs

440.50.82

Goldhofer

153357

Iveco

782727

Jaeger

21101373400004

John deere

10 68 1724 86 2019

Kamag

52125

Kramer

56452

Krone

5058068525806852/0

Langendorf

1134646

Liebherr

6 050 154 01

Mafi

000,579,2088

Man

81.25435-0591

Nooteboom

0223110

Reisch

5003022

Renders

99710113

Scania

134233417832001191202620223591

Schmitz cargobull

0601171-FZELEK00292938

Sisu

186-510-0571

Sommer

2800080001

Spierings

415223

Weiro

11267

Ziegler

402755
Plug
Screw Contact
Colour
Silver
DIN/ISO
3731 S-Typ
Voltage
24 V
Material
Aluminium
Quantity
10
Assembly note
Assembly by qualified personnel required
Number of pins
7-pin connector
Connector/Clamp
With cable gland
Current Strength to
20 A
Temperature range to
+75 °C
Current Strength from
15 A
Cable cross-section to
2.5 mm²
Temperature range from
-30 °C
Cable cross-section from
1.5 mm²
Manufacturer
HELLA
