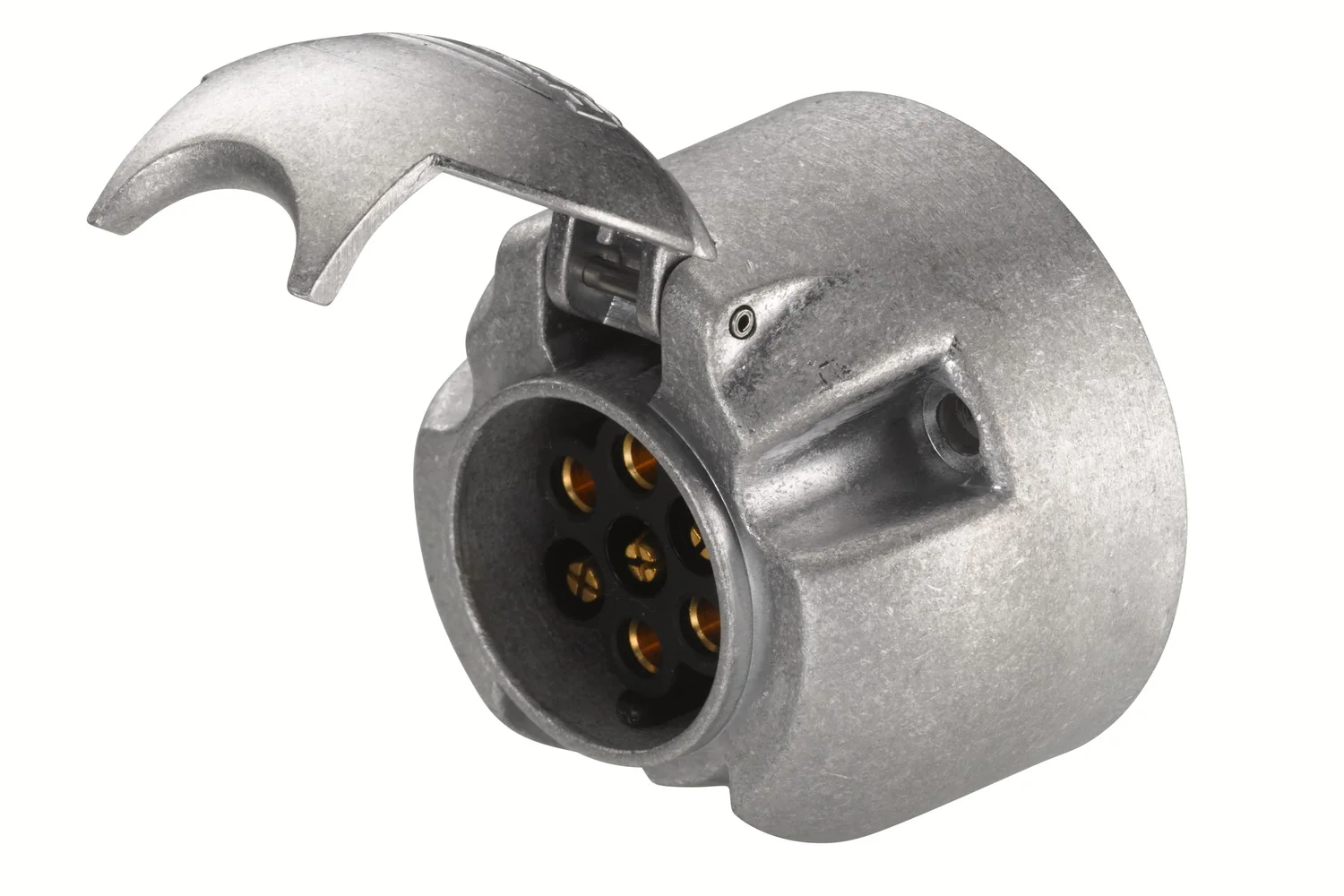

HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant
HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant
HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant
HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant
HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant
HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant

HELLA - 8JB 001 941-041 - Socket, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal, Quant

€5.95

(Excl. VAT)

Price

(Excl. VAT)

€5.95

Product Description

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Hitachi

YA0008334900

Irizar

8033795

Jaeger

101018

Manitou

53026714

Pacton

180573
Depth
47 mm
Width
63 mm
Colour
Silver
Height
72 mm
DIN/ISO
1724 N-Typ
Material
Aluminium
Quantity
25
Plug Type
Blade Terminal
Voltage to
24 V
Housing Type
Metal Housing
Socket Width
6.3 mm
Voltage from
6 V
Assembly Note
Assembly by qualified personnel required
Bore diameter
5.5 mm
Mounting Type
Flat Plug-in Connector
Number of pins
7-pin connector
Number of bores
3
Current Strength to
25 A
Current Strength from
16 A
Supplementary Article
Removable inset
Wire cross-section to
2.5 mm²
Wire cross-section from
1.5 mm²
Manufacturer
HELLA
