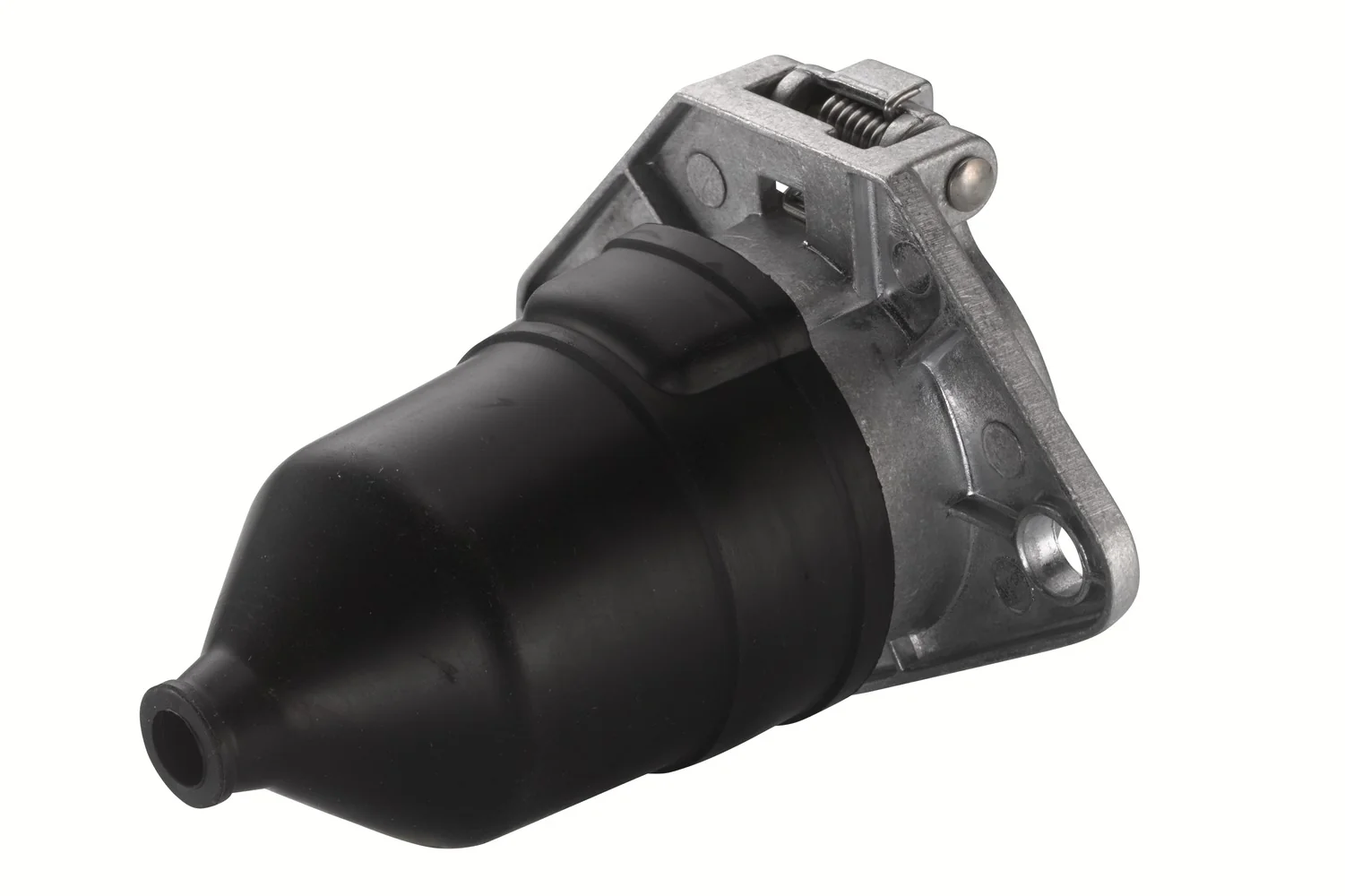

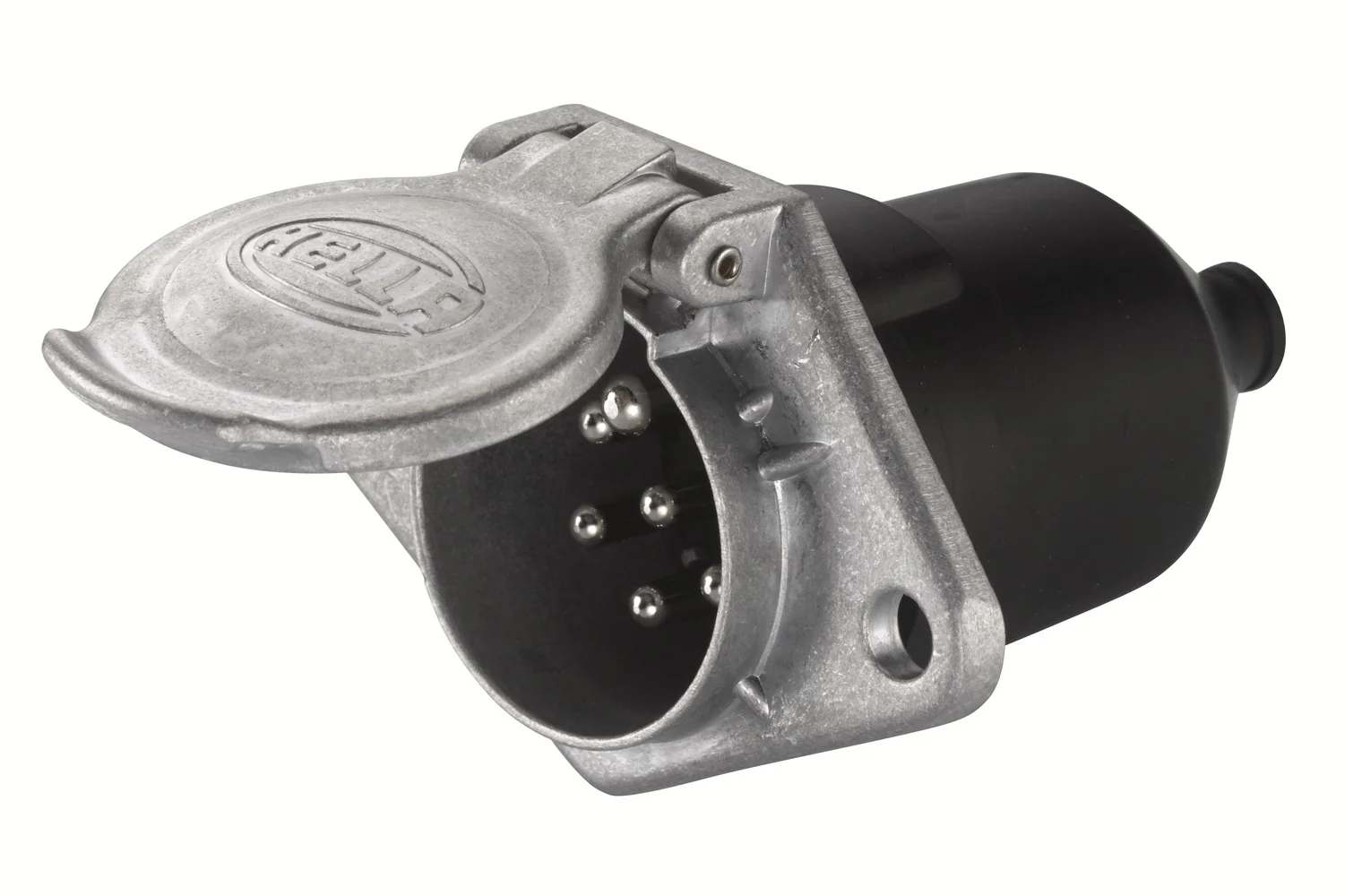

HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -
HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -
HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -
HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -
HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -
HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping on orders over €60

Pay Securely with

HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -

HELLA - 8JB 003 833-031 - Socket, 24V, 7-pin connector, Flat Plug-in Connector, Plug: Blade Terminal -

€9.29

(Excl. VAT)

Price

(Excl. VAT)

€9.29

Product Description

The 7-pin 24 V plug-in system according to ISO 1185 / ISO 3731 is currently the most widely used system for the electrical connection between towing vehicle and trailer or tractor and semi-trailer in the commercial vehicle sector. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1185 and an additional connector, type S, according to ISO 3731. The additional system differs from the standard system by its white housing, contact inserts and non-interchangeable contact arrangement.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Feldbinder

1098091

Jaeger

036384111100

Mafi

0005792014

Schmitz cargobull

1023537

Sommer

2800089002

Terex

5350658702

Yanmar

5350658702
Plug
Blade Terminal
Width
67 mm
Height
67 mm
Length
103 mm
DIN/ISO
1185 N-Typ
Voltage
24 V
Material
Aluminium
Quantity
10
Cable Ø to
12 mm
Socket Width
6.3 mm
Cable Ø from
9.5 mm
Mounting Type
Flat Plug-in Connector
Number of pins
7-pin connector
Current Strength to
20 A
Assembly requirement
By qualified personnel required
Temperature range to
+75 °C
Current Strength from
15 A
Supplementary Article
With lid
Cable cross-section to
2.5 mm²
Temperature range from
-25 °C
Cable cross-section from
1.5 mm²
Manufacturer
HELLA
