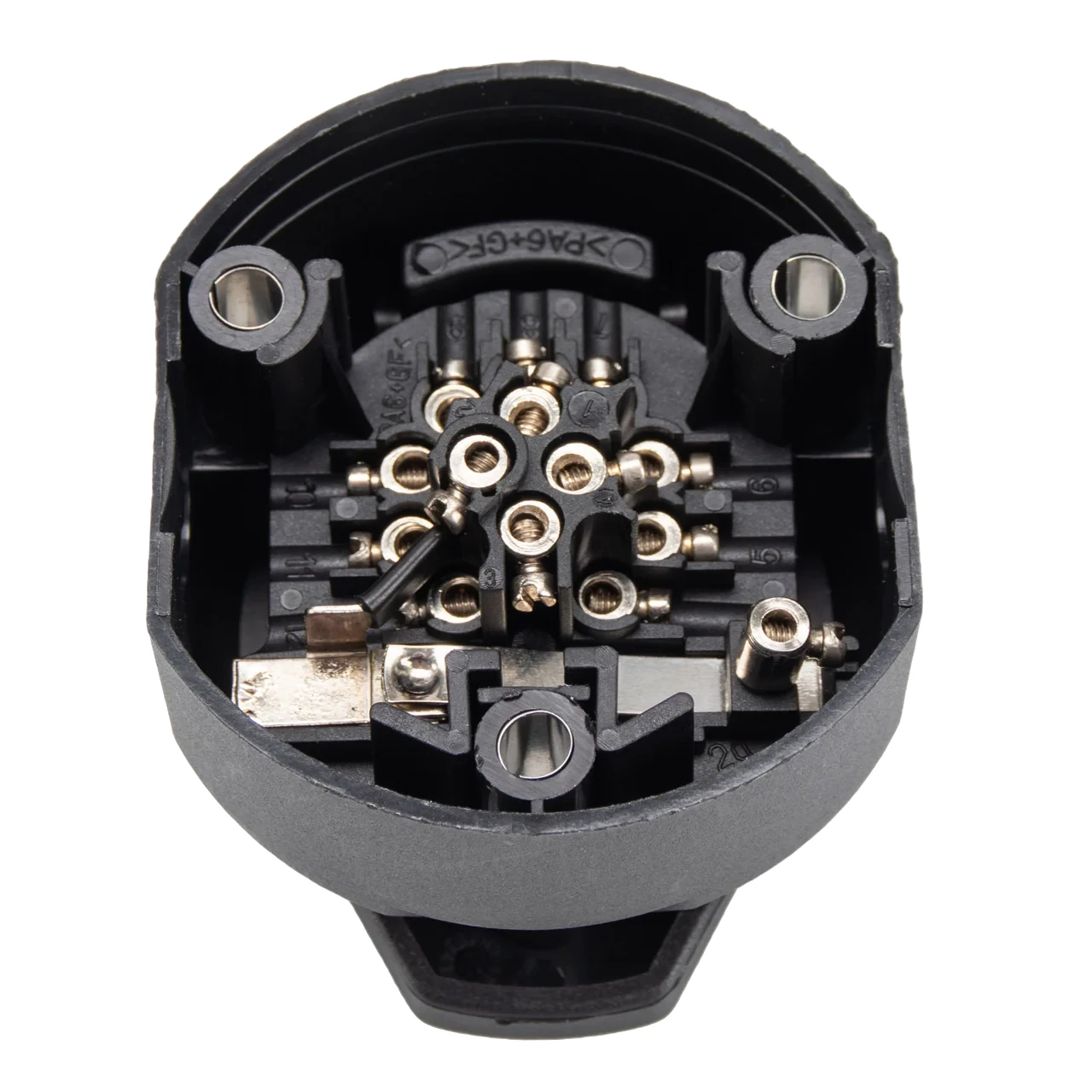

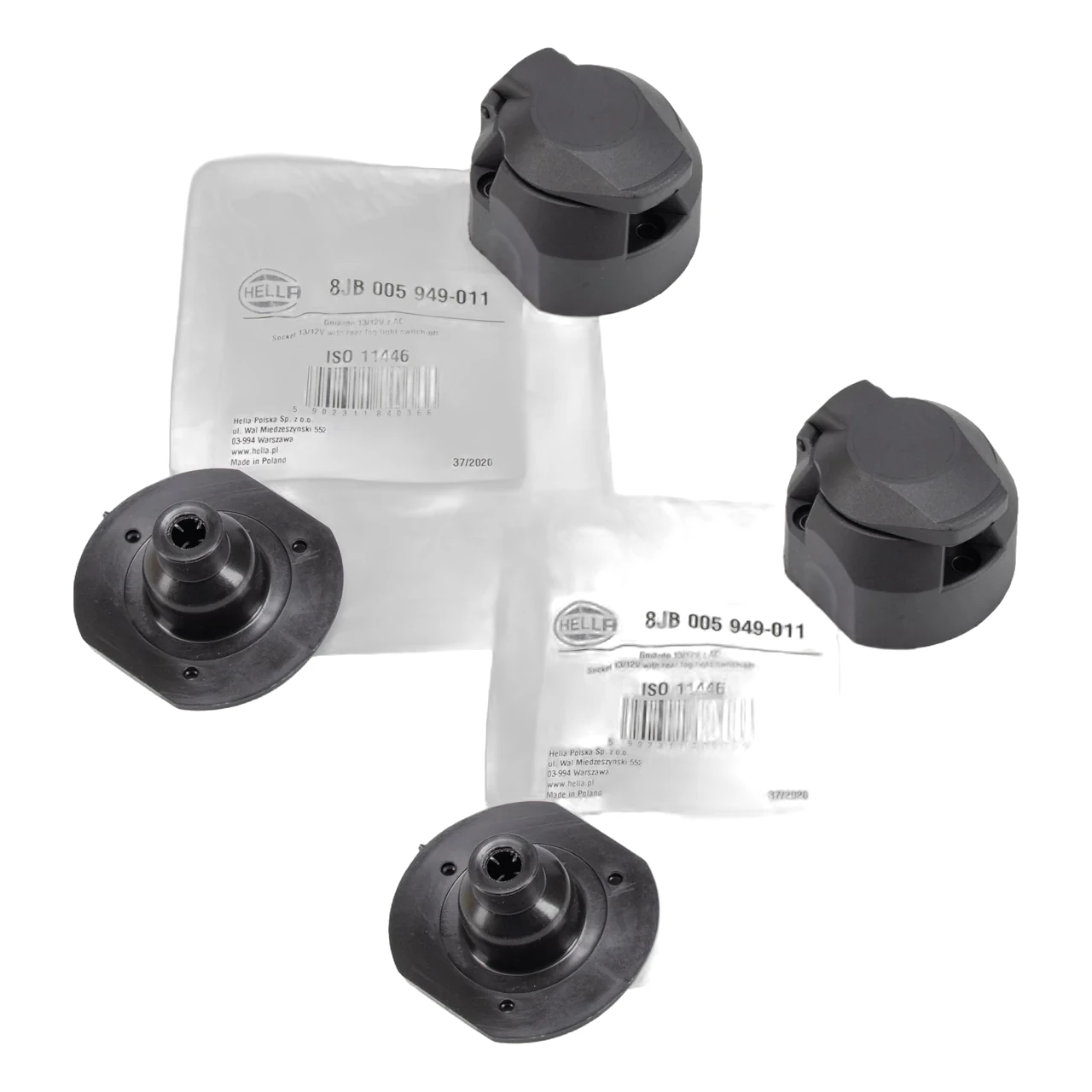

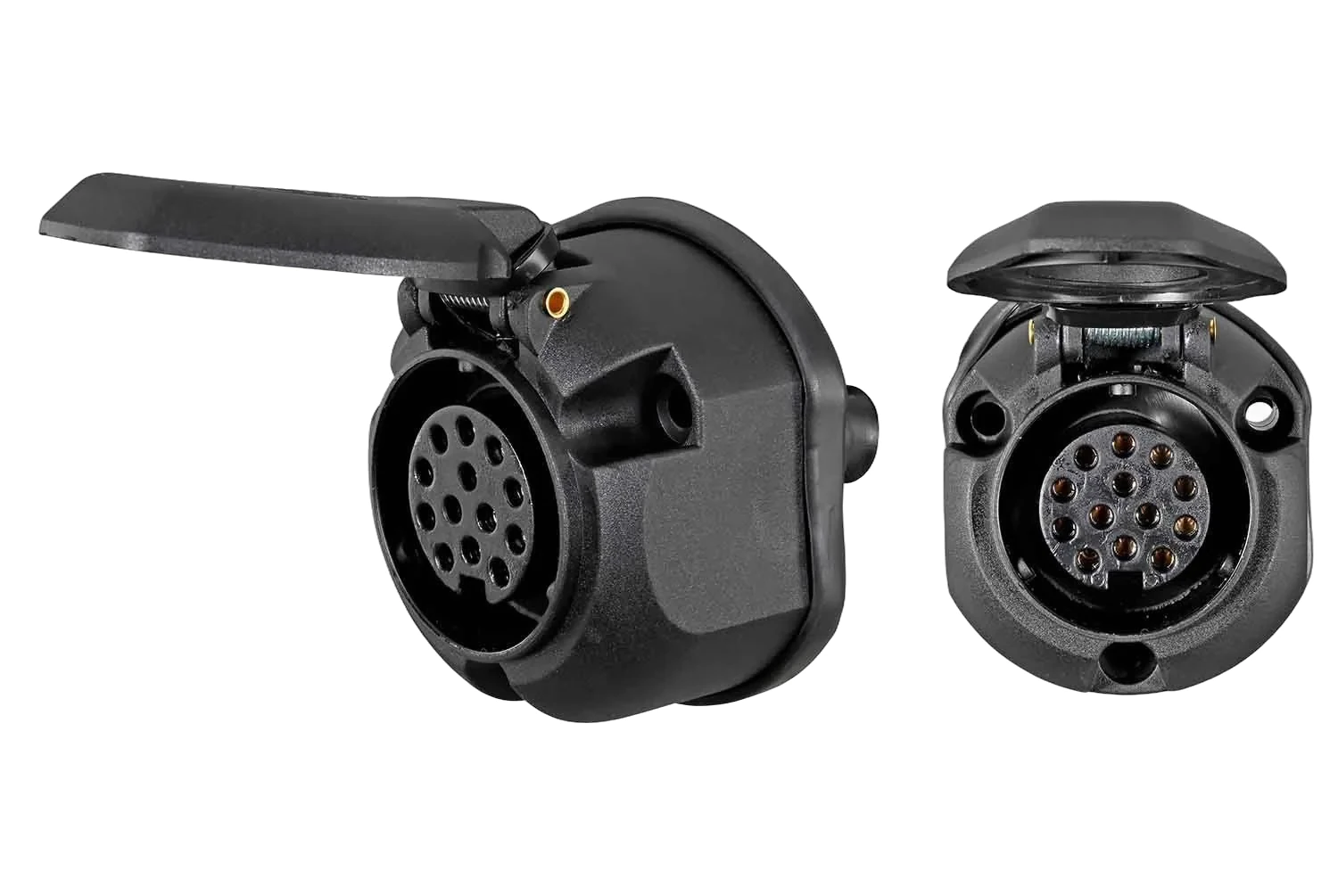

HELLA - 8JB 005 949-011 - Socket, 12V, 13-pin connector, Plug: Screw Contact, Quantity: 1
HELLA - 8JB 005 949-011 - Socket, 12V, 13-pin connector, Plug: Screw Contact, Quantity: 1

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping on orders over €60

Pay Securely with

HELLA - 8JB 005 949-011 - Socket, 12V, 13-pin connector, Plug: Screw Contact, Quantity: 1

HELLA - 8JB 005 949-011 - Socket, 12V, 13-pin connector, Plug: Screw Contact, Quantity: 1

€9.15

(Excl. VAT)

Price

(Excl. VAT)

€9.15

Product Description

The 13-pole plug-in system according to ISO 11446 was developed at the end of the 1980s. In contrast to the 7-pole system, the high number of poles enables the transmission of all light and auxiliary functions with only one plug. Due to its advantages, also in terms of waterproofness, stability, contact security and ease of use through bayonet locking, the system is increasingly replacing the older connector generations.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Aebi

18-EER270404

Agco

D44900991

Bonetti

05700108

Fendt

D 449 009 91

Hako

0882026

Heuliez

580199684601

Hymer

12009951603.08.45

Jaeger

12113472400004

Jungheinrich

51494819

Krone

5058205605820560/0

Liebherr

6 052 008 08

Mercedes Benz

002 540 52 81A 002 540 52 81

Mitsubishi

Z0539819

Renault trucks

7420881795

Solaris

1508-949-012

Steyr

002 640 52 81

Still

8407401917000

Vdl

279882

Volvo

20520796
Depth
45 mm
Colour
Black
DIN/ISO
11446 N-Typ
Voltage
12 V
Diameter
72 mm
Quantity
1
Plug type
Screw Contact
Assembly note
Assembly by qualified personnel required
Bore diameter
6 mm
Number of pins
13-pin connector
Number of bores
3
Current Strength to
25 A
Temperature range to
+85 °C
Current Strength from
16 A
Wire cross-section to
2.5 mm²
Temperature range from
-40 °C
Wire cross-section from
1.5 mm²
Manufacturer
HELLA
