HELLA - 8JS 728 596-811 - Fuse, Mini-Flat Fuse, 5A, light brown
HELLA - 8JS 728 596-811 - Fuse, Mini-Flat Fuse, 5A, light brown
HELLA - 8JS 728 596-811 - Fuse, Mini-Flat Fuse, 5A, light brown
HELLA - 8JS 728 596-811 - Fuse, Mini-Flat Fuse, 5A, light brown
HELLA - 8JS 728 596-811 - Fuse, Mini-Flat Fuse, 5A, light brown

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

HELLA - 8JS 728 596-811 - Fuse, Mini-Flat Fuse, 5A, light brown

HELLA - 8JS 728 596-811 - Fuse, Mini-Flat Fuse, 5A, light brown

€3.83

(Excl. VAT)

Price

(Excl. VAT)

€3.83

Product Description

Flat blade fuses are primarily used in automotive electrical fuse systems. A distinction is made between: 1. The widely used standard version ATO (up to max. 40 A), 2. the large-format MAXI flat fuse for the high-current range (up to max. 80 A), 3. the small-format MINI flat fuse for single consumer protection (up to max. 30 A), and 4. the even more space-saving low-profile MINI version (also up to 30 A). HELLA offers a complete range including special variants for electric vehicles and LED fuses for quick replacement even at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Daf

1245535

Hymer

1603.09.32

Kramer

1000186026

Manitou

225184

Vdl

30066334

Ziegler

1123588
Depth
3.8 mm
Width
10.9 mm
Colour
Light brown
Height
16.3 mm
Voltage
32 V
Fuse Type
Mini-Flat Fuse
Packaging
Blister
SAE Standard
J2077
Rated Current
5 A
Contact Surface
Tin-plated
DIN/ISO Standard
8820-3
Housing Material
PA (polyamide)
Temperature Range
-40 °C to +125 °C
Assembly Requirement
By qualified personnel required
Manufacturer
HELLA

Similar items you might like

  • Hella

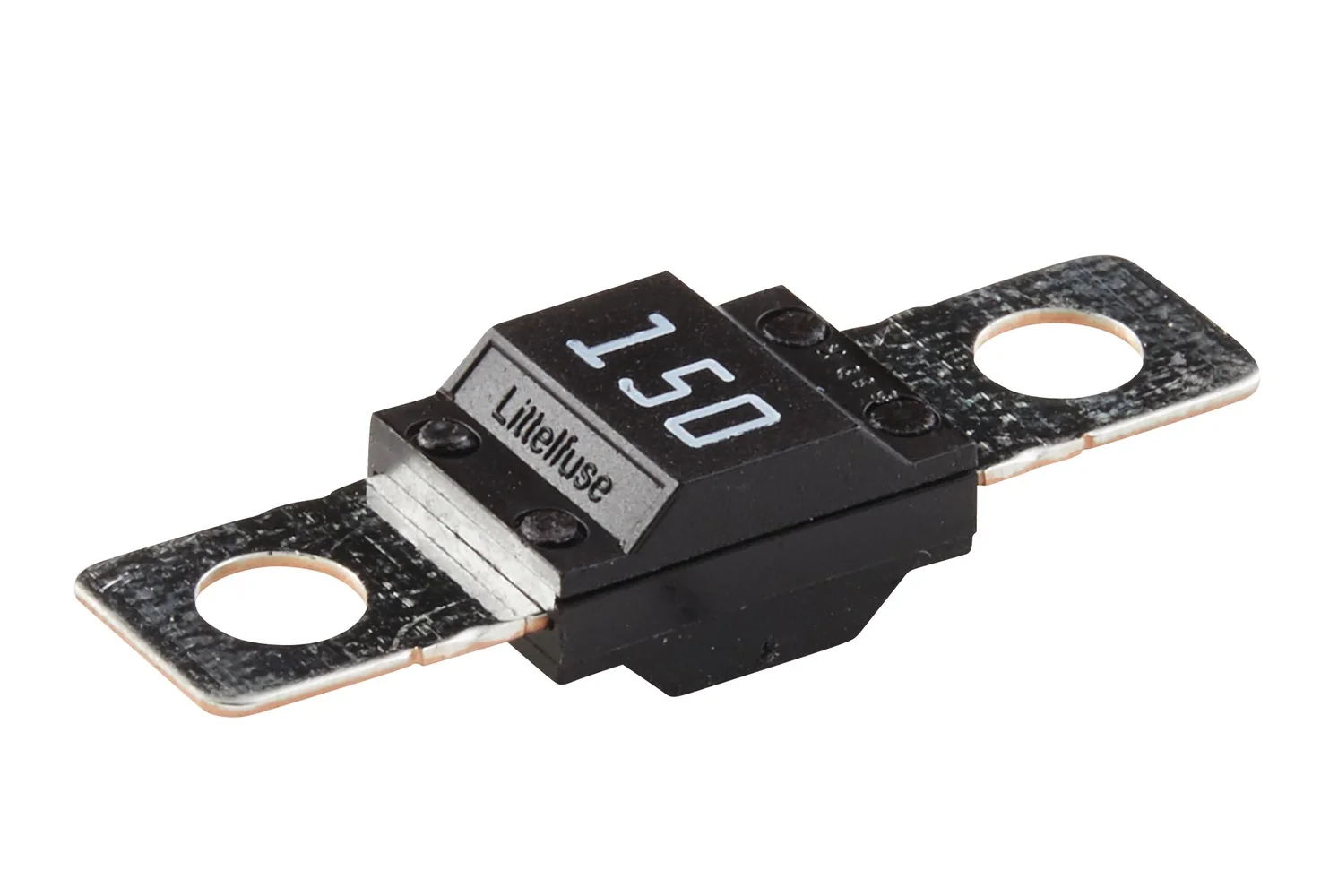

    HELLA - 8JS 742 901-081 - Fuse, Bolt Type Fuse, 150A, grey

    Hella

    €4.46

  • Hella

    HELLA - 8JD 743 557-041 - Fuse Holder, ATO fuse, red, Quantity: 1

    Hella

    €3.73

  • Hella

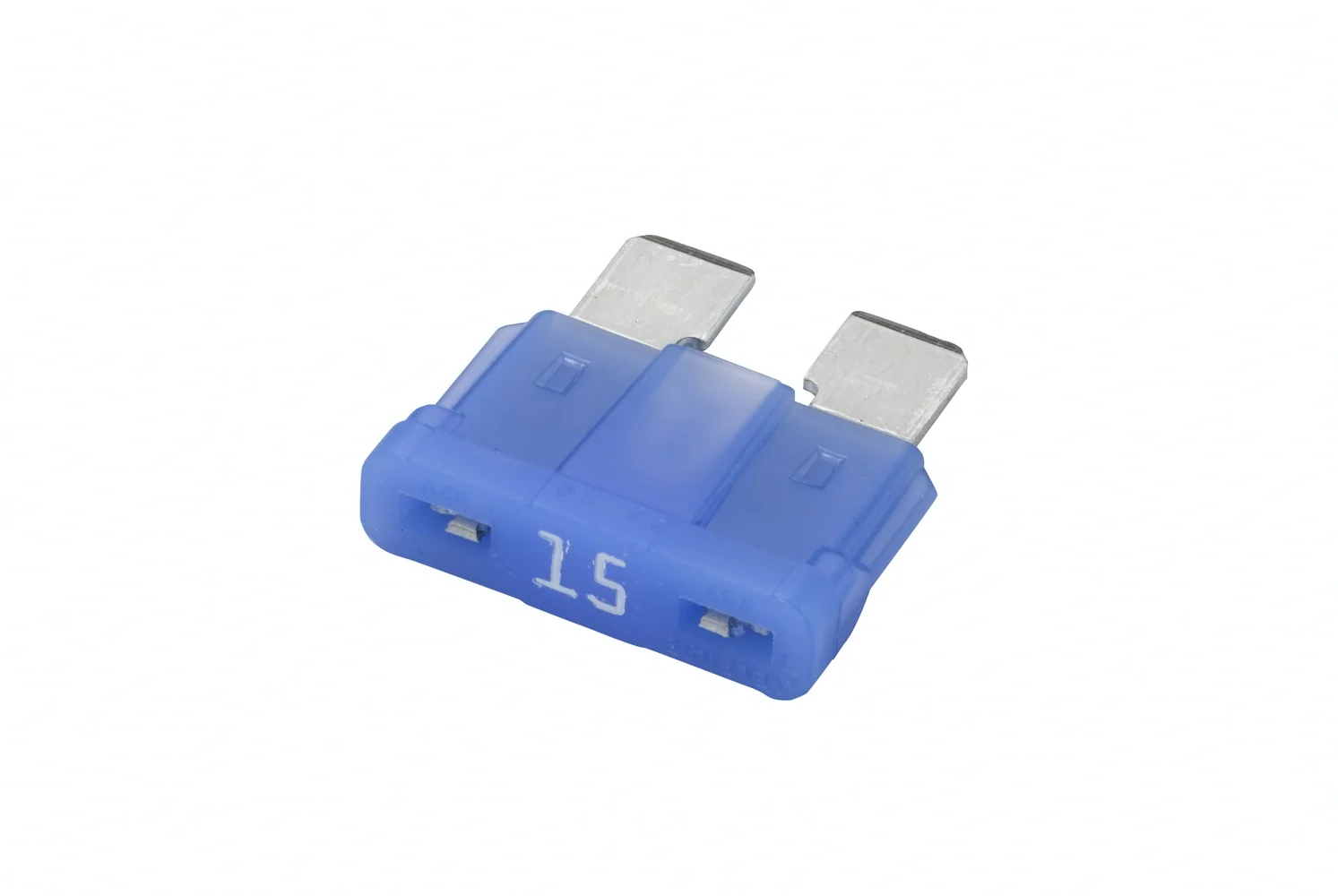

    HELLA - 8JS 711 687-821 - Fuse, ATO fuse, 15A, blue

    Hella

    €2.90

  • Hella

    HELLA - 8JS 713 575-271 - Fuse, Strip Fuse, 200A, silver

    Hella

    €5.92

  • Hella

    HELLA - 8JS 728 596-891 - Fuse, Mini-Flat Fuse, 7.5A, brown

    Hella

    €3.82

  • Hella

    HELLA - 8JS 728 596-841 - Fuse, Mini-Flat Fuse, 20A, yellow (amber)

    Hella

    €3.63

  • Hella

    HELLA - 8JS 740 026-401 - Fuse, for JCASE fuse, 20A, blue

    Hella

    €5.26

  • Hella

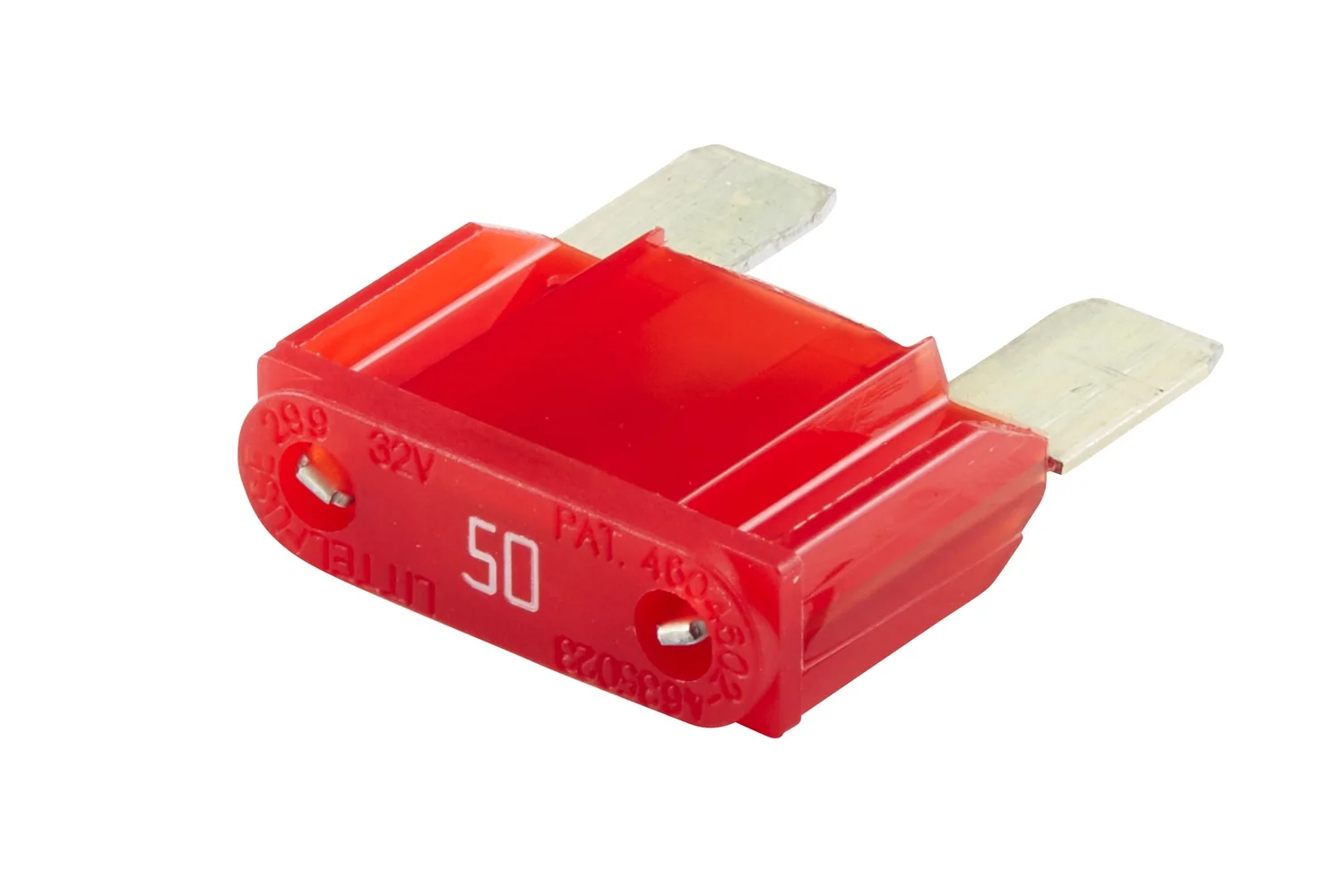

    HELLA - 8JS 728 595-081 - Fuse, Maxi-Flat Fuse, 50A, red
