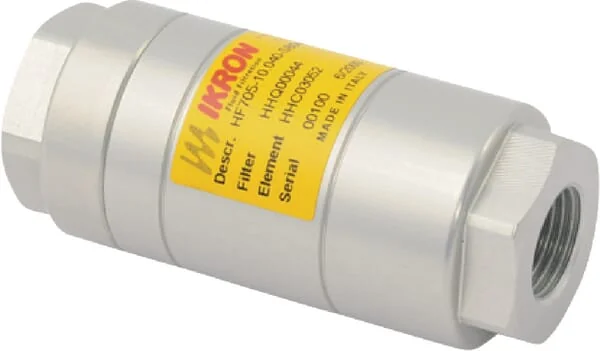

Ikron - HF70510040SB010GBB - High Pressure Filter Inline
Ikron - HF70510040SB010GBB - High Pressure Filter Inline

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping on orders over €60

Pay Securely with

Ikron - HF70510040SB010GBB - High Pressure Filter Inline

Ikron - HF70510040SB010GBB - High Pressure Filter Inline

€51.67

(Excl. VAT)

Price

(Excl. VAT)

€51.67

Product Description

Suitable for mineral oil Maximum operating pressure 350 bar These filters have no bypass valve, no bypass function in case of clogged filter Flow from A to B OR from B to A, (no two flow directions, dirt would come loose in the system) Filter elements available as 10 / 40 / 60 (in µm) Filter element material: sintered metal (bronze)
Ikron

Product Details

Brand
Ikron
Unit
Each
Bypass
No
Medium
Hydraulic oil
Total length
100 mm
Filter finess
10 µm
Max flow rate
5 l/min
Min flow rate
12 l/min
Filtration level
Nominal
Housing material
Aluminium
Outside diameter
44 mm
Inlet port diameter
1/4 Inch
Max working pressure
350 BAR
Outlet port diameter
1/4 Inch
Inlet port thread type
BSP
Outlet port thread type
BSP
Manufacturer
Ikron

Similar items you might like

  • Ikron

    Ikron - HF70510040SB010GCB - High Pressure Filter Inline

    Ikron

    €52.04

  • Ikron

    Ikron - HF70510040SB010GDB - High Pressure Filter Inline

    Ikron

    €52.04

  • Ikron

    Ikron - HF70510040SB025GDB - High Pressure Filter Inline

    Ikron

    €52.04

  • Ikron

    Ikron - HF70510040SB060GCB - High Pressure Filter Inline

    Ikron

    €51.74

  • Ikron

    Ikron - HF70510040SB060GDB - High Pressure Filter Inline 60 mu 1/2 B

    Ikron

    €52.04

  • Ikron

    Ikron - HF70520070SB010GEB - High Pressure Filter Inline 10 mu 3/4 B

    Ikron

    €69.53

  • Ikron

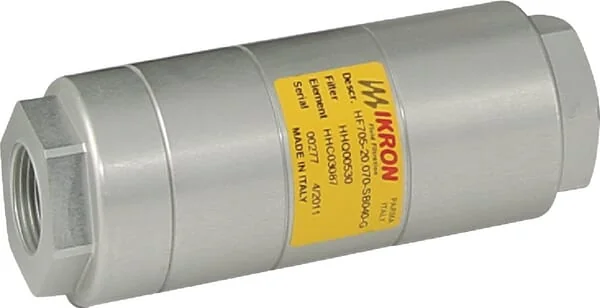

    Ikron - HF70520070SB040GEB - High Pressure Filter Inline 40 mu 3/4 B
