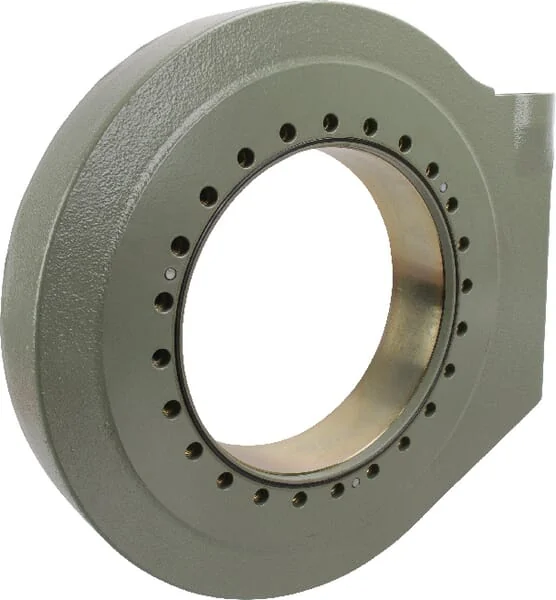

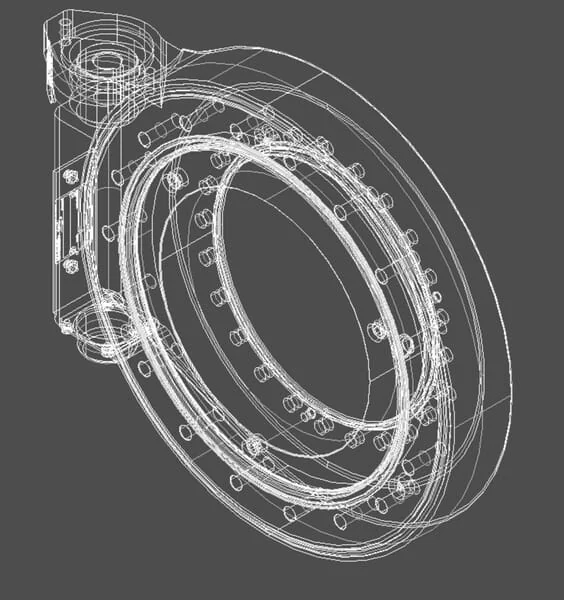

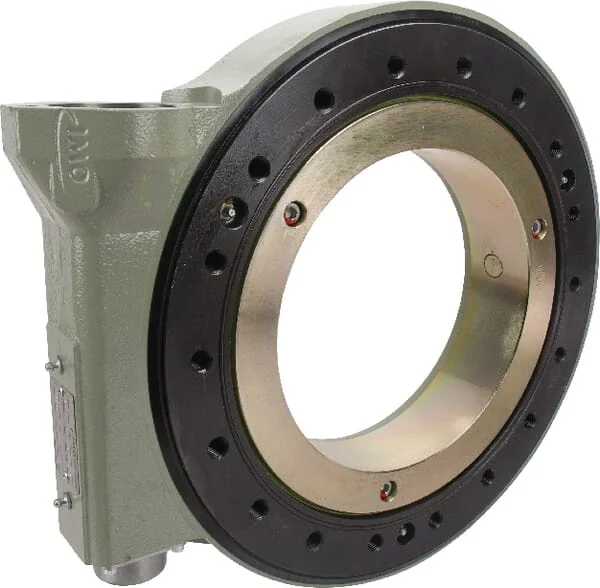

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

IMO - SD10264SH - Hydraulic Swivel Joint 264mm

€2,919.31

(Excl. VAT)

Price

(Excl. VAT)

€2,919.31

Number of products

Product Description

High resistant to heavy loads - The totally encapsulated unit prevents contamination, damage and loss of lubrication The parts which may come into contact with the medium have been given an anti-corrosion treatment

IMO

Product Details

Brand

Unit

Each

Ratio

1:86

Weight

68 kg

Inner size

343 mm

Outer size

476 mm

Properties

Rotates by 360º Very compact design Easy worm gear and gear ring lubrication through grease nipples Mecanical coupling brake not integrated (the coupling does not brake from itself), can be delivered on request Provided with a connection point for a potentiometer Primer cement gray RAL 7033 Lubrication according to DIN 51825

Consists of

Hydraulik motor not included

Torque max.

12.905 N·m

Vacuum max.

0.9 BAR

Pressure max.

1 BAR

Number of holes

18x M16 / 24x M12

Operating torque

10.15 N·m

Application range

For rotation and swiveling applications with a short cycle time This rotary coupling enables a suction arm to be rotated in a small space, for example - This swivel joint can also be used in slurry applications thanks to special seals

Temperature range

-20 +70 °C

Gear ring material

Hardened steel

Axial load static max.

905 kN

Max radial load static

338 kN

Axial load dynamic max.

183 kN

Max radial load dynamic

157 kN

Manufacturer

IMO
