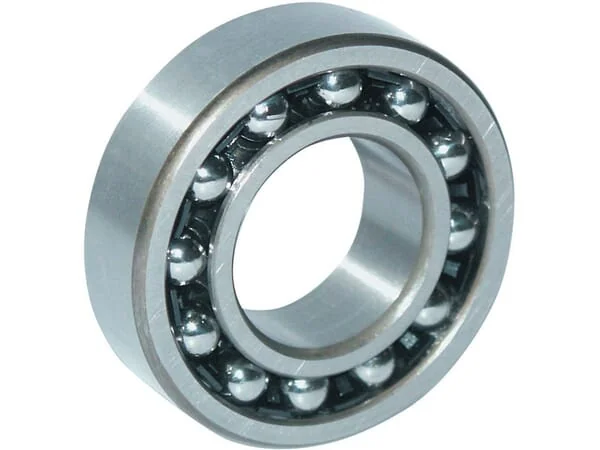

INA FAG - 1209KTVHC3 - Self-Aligning Ball Bearing Double Row

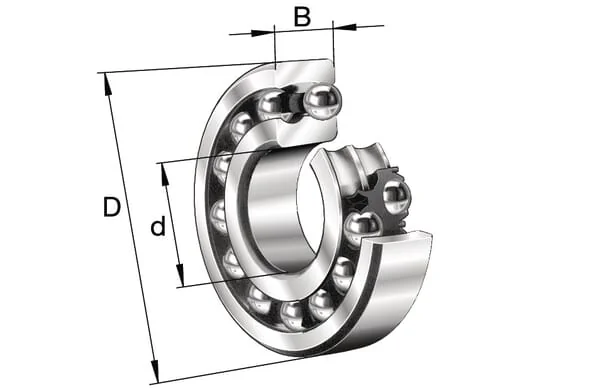

The INA-FAG 1209KTVHC3 is a high-quality genuine self-aligning double row ball bearing, engineered for applications where angular misalignment may occur. It features a 45 mm tapered bore (1:12 taper), an 85 mm outer diameter, and a 19 mm width. This bearing incorporates a durable polyamide cage (TVH) and C3 radial internal clearance, which is greater than normal, allowing for thermal expansion or accommodating misalignment. It provides a basic dynamic load rating of 25.5 kN and a basic static load rating of 7.8 kN, ensuring reliable performance in demanding industrial environments.
