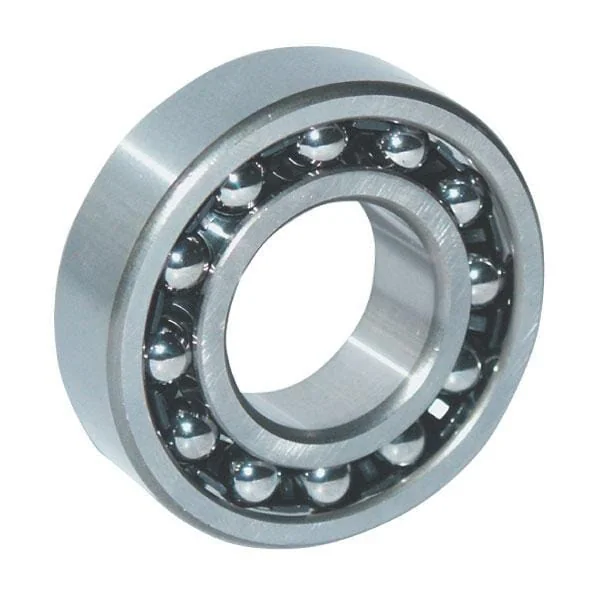

INA FAG - 1307TVH - Self-Aligning Ball Bearing Double Row

OEM Supplier

SKU: ina-fag-1307tvh

INA FAG - 1307TVH - Self-Aligning Ball Bearing Double Row

€40.49

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€40.49

The INA-FAG 1307TVH is a high-quality double row self-aligning ball bearing designed to accommodate angular misalignment. Featuring a 35mm bore, 80mm outer diameter, and 21mm width, it is equipped with a durable glass fibre reinforced polyamide cage (TVH suffix). This bearing offers a dynamic load rating of 27.5 kN and a static load rating of 7.8 kN, suitable for applications with moderate loads and speeds up to 10,000 rpm.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
1307tvh
Unit
Each
BWidth
21 mm
Weight
0,496 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
35 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
80 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
9700 r/min
Ref rotation speed
7600 r/min
Basic radial load static
7900 N
Basic radial load dynamic
25500 N
Radial internal clearance code
CN
EAN
4012801024990
Manufacturer
INA/FAG
