INA FAG - 1308KTVHC3 - Self-Aligning Ball Bearing

OEM Supplier

SKU: ina-fag-1308ktvhc3

INA FAG - 1308KTVHC3 - Self-Aligning Ball Bearing

€48.69

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€48.69

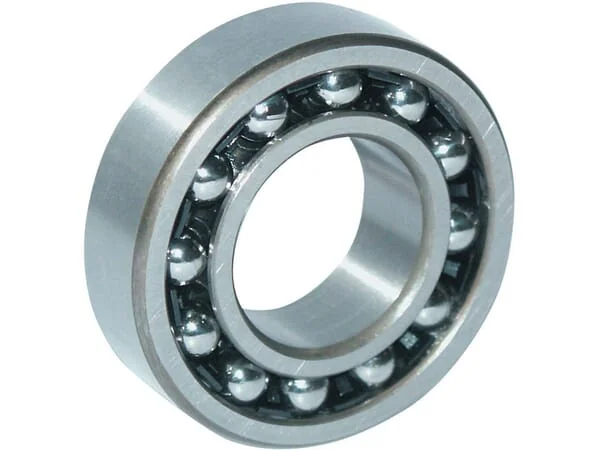

The FAG 1308KTVHC3 is a genuine FAG self-aligning ball bearing designed for applications that require compensation for angular misalignment. It features a 40mm tapered bore (K), a 90mm outer diameter, and a 23mm width. The bearing is equipped with a glass fibre reinforced polyamide 66 cage (TVH) and has a C3 radial internal clearance, making it suitable for higher operating temperatures or where axial displacement is expected. Manufactured by FAG (Schaeffler Group), this bearing ensures reliable performance and durability in various industrial and agricultural machinery.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
1308ktvhc3
Unit
Each
BWidth
23 mm
Weight
0,704 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row With conical inner ring
Consists of
Self-adjusting roller bearing Expansion bush not included
Rows number
2
Inner ring shape
Tapered
dInside diameter
40 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
90 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
8600 r/min
Ref rotation speed
8500 r/min
Basic radial load static
9700 N
Basic radial load dynamic
30000 N
Radial internal clearance code
C3
EAN
4012801159364
Manufacturer
INA/FAG
