Maintenance & Wear Parts

Tapered Roller Bearings

INA FAG - 21306E1TVPB - Barrel Bearing

INA FAG - 21306E1TVPB - Barrel Bearing

INA FAG - 21306E1TVPB - Barrel Bearing

INA FAG - 21306E1TVPB - Barrel Bearing

Number of products

In stock - ready to ship

Order now for delivery between 16 July and 20 July

Free shipping

Pay Securely with

INA FAG - 21306E1TVPB - Barrel Bearing

INA FAG - 21306E1TVPB - Barrel Bearing

€68.43

(Excl. VAT)

Price

(Excl. VAT)

€68.43

Number of products

Product Description

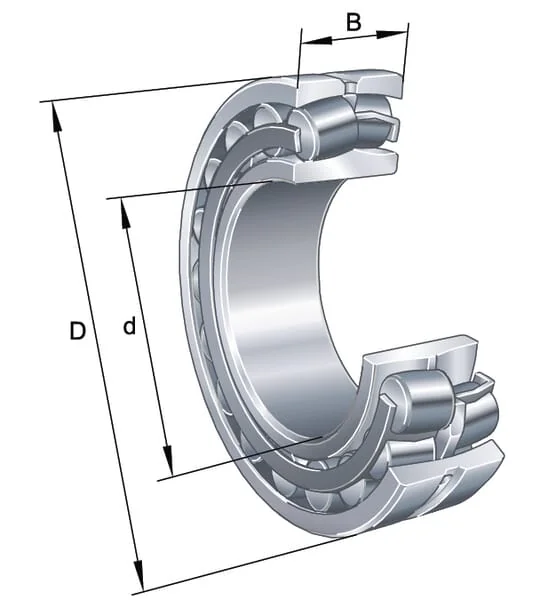

The INA-FAG 21306E1TVPB is a high-quality spherical roller bearing, featuring two rows of rollers and a common spherical raceway in the outer ring. This design allows for angular misalignment of the shaft relative to the housing, making it suitable for applications where heavy loads and potential misalignment are present. The 'E1' suffix indicates an optimized internal design for increased load capacity, and 'TVPB' denotes a solid window cage made of glass fiber reinforced polyamide 66, with an inner ring centered. This bearing is engineered for durability and reliable performance in demanding industrial and agricultural machinery.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Part Numbers

21306e1tvpb

Unit

Each

BWidth

19 mm

Weight

0,381 kg

Sealing

Open

Includes

Spherical roller bearing with cylindrical inner ring

Rows number

2

Inner ring shape

Cylindrical

dInside diameter

30 mm

DOutside diameter

72 mm

Bearing model type

Spherical roller bearings

Max rotation speed

12000 r/min

Ref rotation speed

11000 r/min

Basic radial load static

63000 N

Basic radial load dynamic

72000 N

EAN

4026677808134

Manufacturer

INA/FAG
