INA FAG - 2208KTVHC3 - Self-aligning Ball Bearing Double Row
INA FAG - 2208KTVHC3 - Self-aligning Ball Bearing Double Row
INA FAG - 2208KTVHC3 - Self-aligning Ball Bearing Double Row
INA FAG - 2208KTVHC3 - Self-aligning Ball Bearing Double Row

In stock - ready to ship

Ships within 95 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - 2208KTVHC3 - Self-aligning Ball Bearing Double Row

INA FAG - 2208KTVHC3 - Self-aligning Ball Bearing Double Row

€37.44

(Excl. VAT)

Price

(Excl. VAT)

€37.44

Product Description

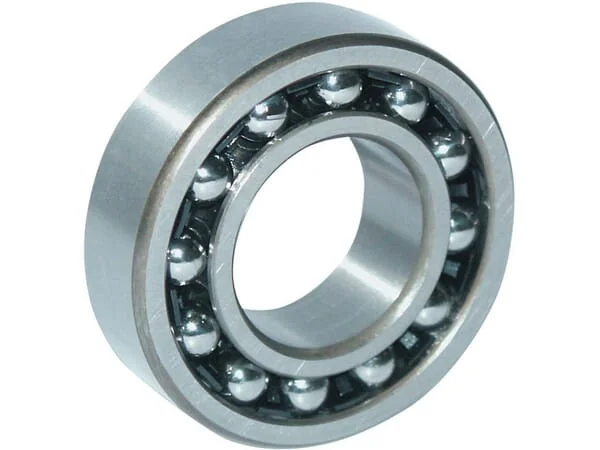

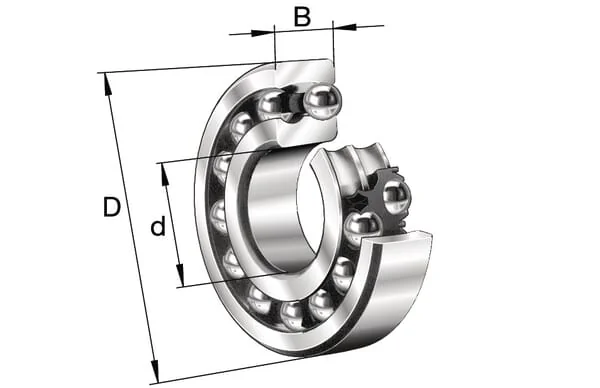

The INA-FAG 2208KTVHC3 is a genuine double row self-aligning ball bearing, engineered for applications that require compensation for angular misalignment. This high-quality bearing features a 40mm tapered bore (1:12), an 80mm outer diameter, and a 23mm width. It is equipped with a durable glass fibre reinforced polyamide 66 cage (TVH) and C3 radial internal clearance, making it suitable for demanding industrial environments with higher operating temperatures and speeds.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
2208ktvhc3
Unit
Each
BWidth
23 mm
Weight
0,463 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row With conical inner ring
Consists of
Self-adjusting roller bearing Expansion bush not included
Rows number
2
Inner ring shape
Tapered
dInside diameter
40 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
80 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
8900 r/min
Ref rotation speed
9000 r/min
Basic radial load static
9500 N
Basic radial load dynamic
32500 N
Radial internal clearance code
C3
EAN
4012801160414
Manufacturer
INA/FAG
