INA FAG - 2213TVH - Bearing

OEM Supplier

SKU: ina-fag-2213tvh

INA FAG - 2213TVH - Bearing

€90.38

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€90.38

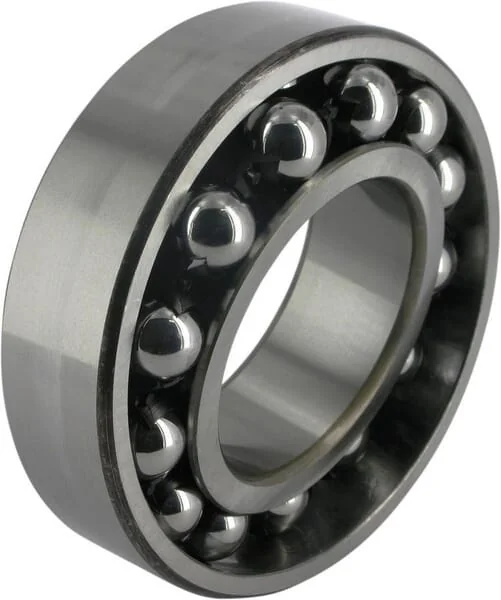

The INA 2213TVH is a high-quality self-aligning ball bearing from the Schaeffler Group. This double-row bearing features an outer ring with a concave raceway and an inner ring with two deep raceways, designed to accommodate angular misalignment. It has a cylindrical bore of 65mm, an outer diameter of 120mm, and a width of 31mm. The 'TVH' suffix indicates a solid window cage made of glass fibre reinforced polyamide 66, ensuring durability and reliable performance in various industrial applications.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
2213tvh
OEM Part Numbers

Skf

Unit
Each

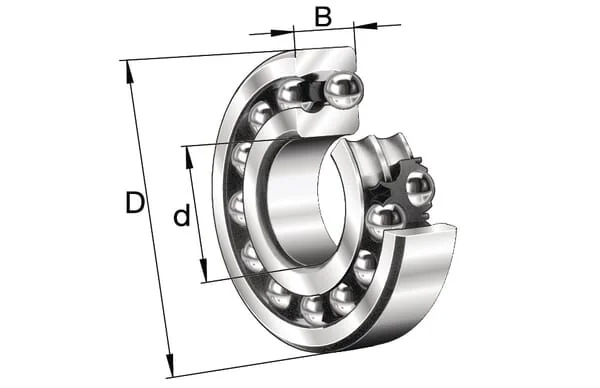

BWidth
31 mm
Weight
0,146 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
65 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
120 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
5600 r/min
Ref rotation speed
5300 r/min
Basic radial load static
19200 N
Basic radial load dynamic
58000 N
Radial internal clearance code
CN
EAN
4012801186841
Manufacturer
INA/FAG
