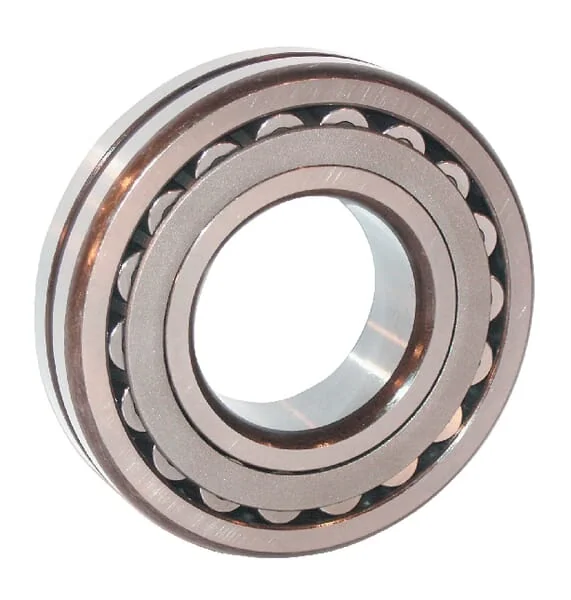

INA FAG - 23022E1TVPB - Spherical Roller Bearing

OEM Supplier

SKU: ina-fag-23022e1tvpb

INA FAG - 23022E1TVPB - Spherical Roller Bearing

€268.45

(excl. VAT)

In stock - ready to ship

Ships within 84 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€268.45

The INA-FAG 23022-E1-TVPB is a high-quality spherical roller bearing designed for heavy radial and axial loads. Featuring a 110mm bore diameter, 170mm outer diameter, and 40mm width, this FAG bearing incorporates an optimized internal design (E1) and a durable glass fibre reinforced polyamide cage (TVPB) for reliable performance in demanding industrial and agricultural machinery applications. Manufactured by Schaeffler Group, it ensures precision and longevity.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
23022e1tvpb
Equivalent AM Part Numbers
[Object Object]
Unit
Each
BWidth
45 mm
Weight
3,505 kg
Sealing
Open
Includes
Spherical roller bearing with cylindrical inner ring
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
110 mm
DOutside diameter
170 mm
Bearing model type
Spherical roller bearings
Max rotation speed
4200 r/min
Ref rotation speed
4300 r/min
Basic radial load static
530000 N
Basic radial load dynamic
400000 N
EAN
4026677827531
Manufacturer
INA/FAG
