INA FAG - 31309A - Tapered Roller Bearing

INA FAG - 31309A - Tapered Roller Bearing

€57.19

(Excl. VAT)

Price

(Excl. VAT)

€57.19

Number of products

Product Description

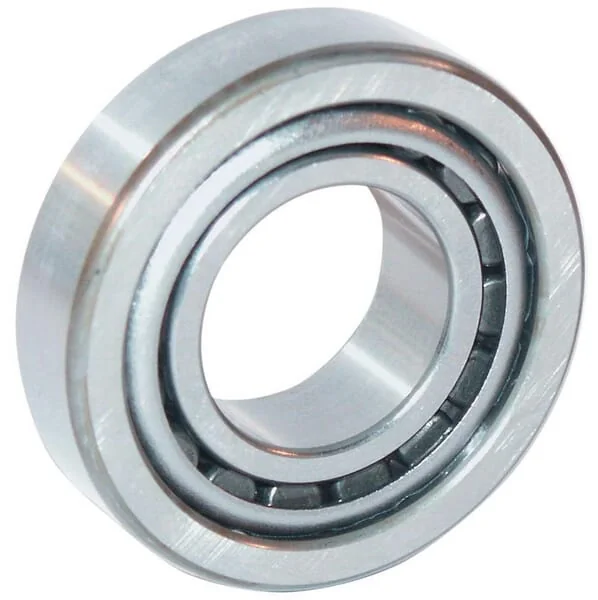

The INA-FAG 31309A is a single row tapered roller bearing with dimensions of 45mm bore, 100mm outer diameter, and 28.25mm overall width. These bearings are engineered to accommodate combined loads, effectively handling both radial and axial forces simultaneously. The design ensures true rolling and low friction, with the axial load carrying capacity increasing with the contact angle. This 31309A bearing is commonly used in applications requiring robust support for varying load conditions and is often adjusted against a second tapered roller bearing.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Part Numbers

31309a

Equivalent OEM Part Numbers

Skf

Unit

Each

Sealing

Open

Properties

Absorb high radial and one-sided loads.

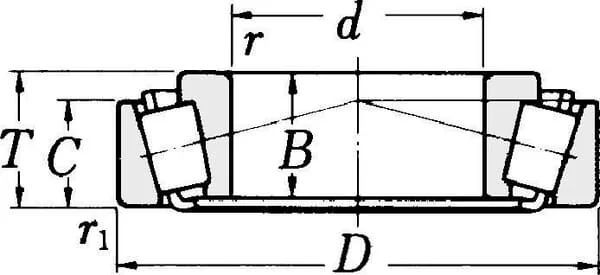

dInside diameter

45 mm

Application range

In a closed environment with grease and oil Wheel shafts Gearbox Axial piston pumps Planetary gear Rear wheel rockers

BInner ring width

25 mm

COuter ring width

18 mm

DOutside diameter

100 mm

Bearing model type

Tapered roller bearings

Ref rotation speed

3400 r/min

Basic radial load static

107000 N

Basic radial load dynamic

95000 N

EAN

4054369724011

Manufacturer

INA/FAG
