INA FAG - 3203B2RSRTVH - Bearing
INA FAG - 3203B2RSRTVH - Bearing
INA FAG - 3203B2RSRTVH - Bearing
INA FAG - 3203B2RSRTVH - Bearing

In stock - ready to ship

Ships within 66 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - 3203B2RSRTVH - Bearing

INA FAG - 3203B2RSRTVH - Bearing

€33.14

(Excl. VAT)

Price

(Excl. VAT)

€33.14

Product Description

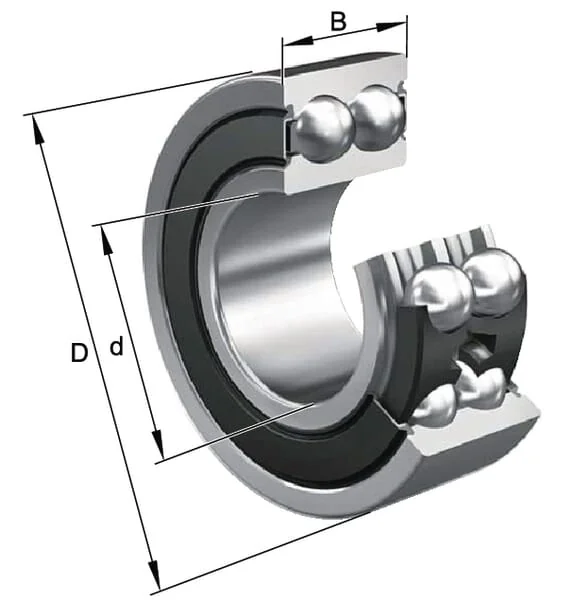

The INA-FAG 3203B2RSRTVH is a high-quality double row angular contact ball bearing, designed for applications requiring high radial and axial load capacity. This bearing features contact seals (2RSR) on both sides to protect against contaminants and retain lubricant, ensuring extended service life. It has a bore diameter of 17 mm, an outer diameter of 40 mm, and a width of 17.5 mm. The 'TVH' suffix indicates a glass fibre reinforced polyamide cage, which offers good sliding and emergency running properties.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
3203b2rsrtvh
Unit
Each
BWidth
17,5 mm
Weight
0,094 kg
Sealing
2RS
Regreasable
No
Rows number
2
Contact angle
30 °
dInside diameter
17 mm
DOutside diameter
40 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
14600 r/min
Ref rotation speed
10000 r/min
Basic radial load static
9500 N
Basic radial load dynamic
15500 N
Radial internal clearance code
CN
EAN
4012802481884
Manufacturer
INA/FAG
