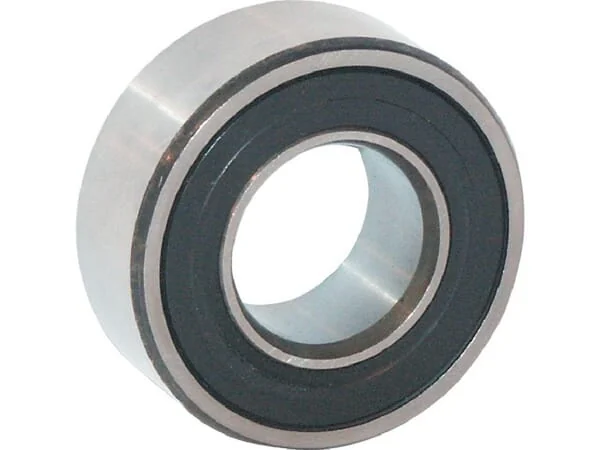

INA FAG - 3205B2RSRTVH - Double Row Angular Contact Bearing
INA FAG - 3205B2RSRTVH - Double Row Angular Contact Bearing
INA FAG - 3205B2RSRTVH - Double Row Angular Contact Bearing
INA FAG - 3205B2RSRTVH - Double Row Angular Contact Bearing

In stock - ready to ship

Order now for delivery between 8 May and 12 May
Free shipping on orders over €60

Pay Securely with

INA FAG - 3205B2RSRTVH - Double Row Angular Contact Bearing

INA FAG - 3205B2RSRTVH - Double Row Angular Contact Bearing

€35.59

(Excl. VAT)

Price

(Excl. VAT)

€35.59

Product Description

The INA-FAG 3205B2RSRTVH is a high-quality double row angular contact ball bearing, designed to accommodate significant radial and axial loads in both directions. This specific variant features '2RSR' seals on both sides, providing protection against contaminants and retaining lubricant, making it suitable for demanding industrial applications. The 'TVH' suffix indicates a solid window cage made from glass fibre reinforced polyamide, offering good sliding properties and reduced noise. With a bore diameter of 25 mm, an outer diameter of 52 mm, and a width of 20.6 mm, this bearing ensures reliable performance and extended service life.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
20,6 mm
Weight
0,175 kg
Sealing
2RS
Regreasable
No
Rows number
2
Contact angle
30 °
dInside diameter
25 mm
DOutside diameter
52 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
10700 r/min
Ref rotation speed
7500 r/min
Basic radial load static
15200 N
Basic radial load dynamic
22000 N
Radial internal clearance code
CN
Manufacturer
INA/FAG
