INA FAG - 3205C3 - Double Row Angular Contact Bearing C3
INA FAG - 3205C3 - Double Row Angular Contact Bearing C3
INA FAG - 3205C3 - Double Row Angular Contact Bearing C3
INA FAG - 3205C3 - Double Row Angular Contact Bearing C3

In stock - ready to ship

Order now for delivery between 14 April and 17 April
Free shipping on orders over €60

Pay Securely with

INA FAG - 3205C3 - Double Row Angular Contact Bearing C3

INA FAG - 3205C3 - Double Row Angular Contact Bearing C3

€29.98

(Excl. VAT)

Price

(Excl. VAT)

€29.98

Product Description

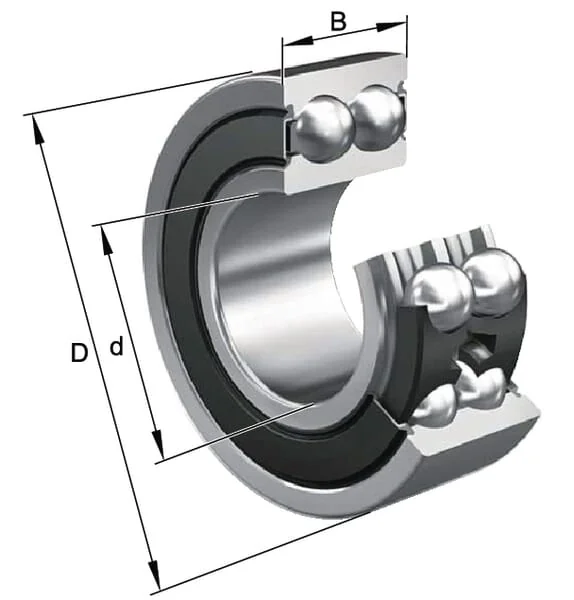

The INA-FAG 3205C3 is a high-quality double row angular contact ball bearing designed for applications requiring high rigidity and precision. It features a bore diameter of 25 mm, an outer diameter of 52 mm, and a width of 20.6 mm. The C3 radial internal clearance allows for operation at higher temperatures and speeds, accommodating thermal expansion. This bearing is capable of supporting axial loads in both directions and is suitable for various industrial and agricultural machinery applications.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Ean
4012802408676
Unit
Each
BWidth
20,6 mm
Weight
0,169 kg
Sealing
Open
Regreasable
Yes
Rows number
2
Contact angle
30 °
dInside diameter
25 mm
DOutside diameter
52 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
14300 r/min
Ref rotation speed
12000 r/min
Basic radial load static
15200 N
Basic radial load dynamic
22000 N
Radial internal clearance code
C3
Manufacturer
INA/FAG
