INA FAG - 3216BTVH - Angular Contact Ball Bearing
INA FAG - 3216BTVH - Angular Contact Ball Bearing
INA FAG - 3216BTVH - Angular Contact Ball Bearing
INA FAG - 3216BTVH - Angular Contact Ball Bearing

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping

Pay Securely with

INA FAG - 3216BTVH - Angular Contact Ball Bearing

INA FAG - 3216BTVH - Angular Contact Ball Bearing

€182.39

(Excl. VAT)

Price

(Excl. VAT)

€182.39

Product Description

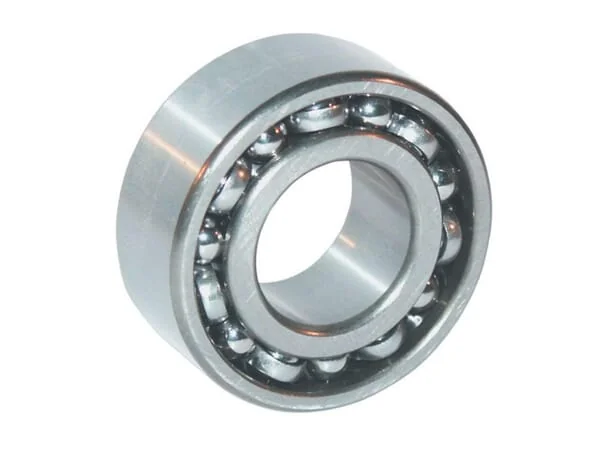

The INA-FAG 3216-B-TVH is a high-quality double row angular contact ball bearing designed for applications requiring high rigidity and the ability to accommodate combined radial and axial loads. This FAG bearing features a bore diameter of 80 mm, an outer diameter of 140 mm, and a width of 33 mm. It is manufactured with a TVH cage, indicating a glass fibre reinforced polyamide cage, which offers good sliding and emergency running properties. Ideal for various industrial and agricultural machinery, ensuring reliable performance and extended service life.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
44,4 mm
Weight
0,232 kg
Sealing
Open
Regreasable
Yes
Rows number
2
Contact angle
25 °
dInside diameter
80 mm
DOutside diameter
140 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
3650 r/min
Ref rotation speed
4000 r/min
Basic radial load static
102000 N
Basic radial load dynamic
98000 N
Radial internal clearance code
CN
Manufacturer
INA/FAG
