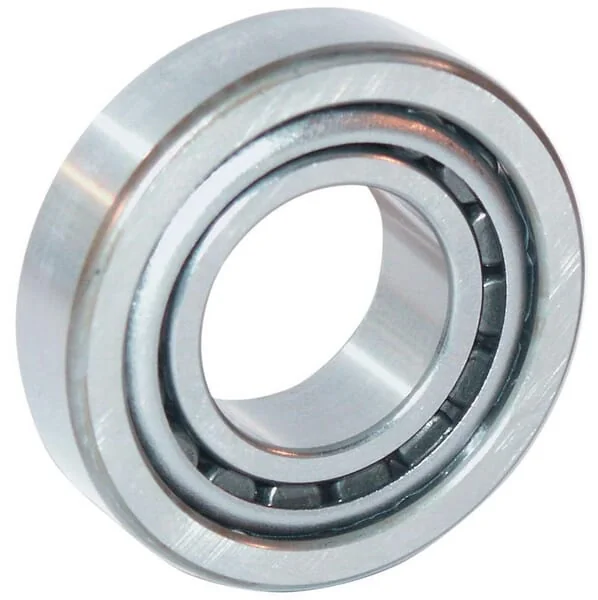

INA FAG - 33020A - Single Row Tapered Roller Bearing
INA FAG - 33020A - Single Row Tapered Roller Bearing
INA FAG - 33020A - Single Row Tapered Roller Bearing
INA FAG - 33020A - Single Row Tapered Roller Bearing

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping

Pay Securely with

INA FAG - 33020A - Single Row Tapered Roller Bearing

INA FAG - 33020A - Single Row Tapered Roller Bearing

€124.84

(Excl. VAT)

Price

(Excl. VAT)

€124.84

Product Description

The INA-FAG 33020A is a high-quality single row tapered roller bearing designed for combined radial and axial loads. Manufactured by FAG (part of the Schaeffler Group), this bearing features a bore diameter of 100 mm, an outer diameter of 150 mm, and a total width of 38 mm. Its robust design ensures reliable performance in demanding agricultural, construction, and industrial machinery applications, including wheel hubs, gearboxes, and differentials.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Equivalent AM Part Numbers

Skf

33020A

Koyo

33020A

Ntn

4T33020

Timken

33020
Unit
Each
Weight
2,411 kg
Sealing
Open
Properties
Absorb high radial and one-sided loads.
dInside diameter
100 mm
Application range
In a closed environment with grease and oil Wheel shafts Gearbox Axial piston pumps Planetary gear Rear wheel rockers
BInner ring width
39 mm
COuter ring width
32,5 mm
DOutside diameter
150 mm
Bearing model type
Tapered roller bearings
Max rotation speed
4450 r/min
Ref rotation speed
2400 r/min
Basic radial load static
395000 N
Basic radial load dynamic
224000 N
Manufacturer
INA/FAG
