INA FAG - 3305BTVH - Double-Row Angular Contact Bearing
INA FAG - 3305BTVH - Double-Row Angular Contact Bearing
INA FAG - 3305BTVH - Double-Row Angular Contact Bearing
INA FAG - 3305BTVH - Double-Row Angular Contact Bearing

In stock - ready to ship

Order now for delivery between 12 May and 15 May
Free shipping on orders over €60

Pay Securely with

INA FAG - 3305BTVH - Double-Row Angular Contact Bearing

INA FAG - 3305BTVH - Double-Row Angular Contact Bearing

€46.24

(Excl. VAT)

Price

(Excl. VAT)

€46.24

Product Description

The INA-FAG 3305BTVH is a high-quality double row angular contact ball bearing, engineered to accommodate high radial and axial loads in both directions. This bearing features a 25 mm bore diameter, 62 mm outer diameter, and 24 mm width, making it suitable for various industrial applications requiring precise alignment and robust performance. It is equipped with a solid window cage made of glass fibre reinforced polyamide (TVH) and has a 30° contact angle, ensuring reliable operation and extended service life.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
25,4 mm
Weight
0,345 kg
Sealing
Open
Regreasable
Yes
Rows number
2
Contact angle
30 °
dInside diameter
25 mm
DOutside diameter
62 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
12400 r/min
Ref rotation speed
10000 r/min
Basic radial load static
21000 N
Basic radial load dynamic
31500 N
Radial internal clearance code
CN
Manufacturer
INA/FAG

Similar items you might like

  • INA FAG

    INA FAG - 3306BD - FAG Angular Contact Ball Bearing

    INA FAG

    €55.11

  • INA FAG

    INA FAG - 3306 - Bearing 30x 72x30.2

    INA FAG

    €39.86

  • INA FAG

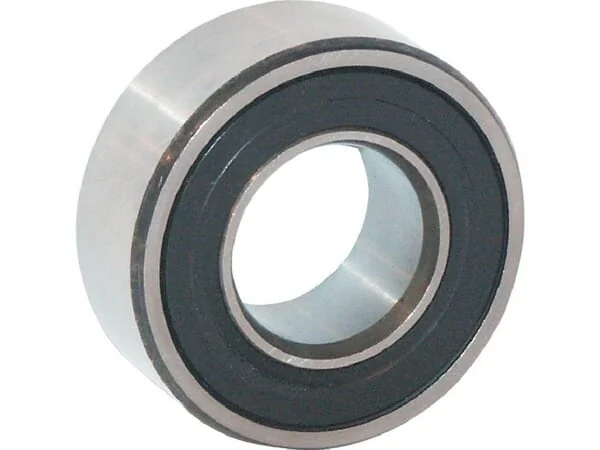

    INA FAG - 3306B2RSRTVH - Bearing
